01-142

Output on GST and/or
on VAG 1551 scan tool
Possible malfunction cause

Malfunction repair
P1611 / 18019
MIL Call-up Circ./
Transm.Control Module
Short to Ground Wiring connection between Engine
Control Module (ECM) -J192- and
Transmission Control Module (TCM) -J217-
faulty

- Check MIL wiring from Transmission
Control Module (TCM) -J217- page 24
-
105


Malfunction cause found: Yes
No

- Erase DTC memory, test drive, after test
drive check DTC memory again
MIL Status:
MIL lights up
immediately Transmission Control Module (TCM) -
J217- faulty

Repair Manual, 5 Spd. Automatic
Transmission 01V On Board Diagnostic (OBD), Repair Group 01
- Replace Transmission Control Module
(TCM) -J217-

Malfunction cause found: Yes
No

- Erase DTC memory, test drive, after test
drive check DTC memory again
For troubleshooting
Display group 027
Engine Control Module (ECM) -J192-
faulty

- Replace and code ECM -J192- page 01
-265
erase DTC memory and take
test drive check DTC memory
Notes:
Pa
ge 193 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

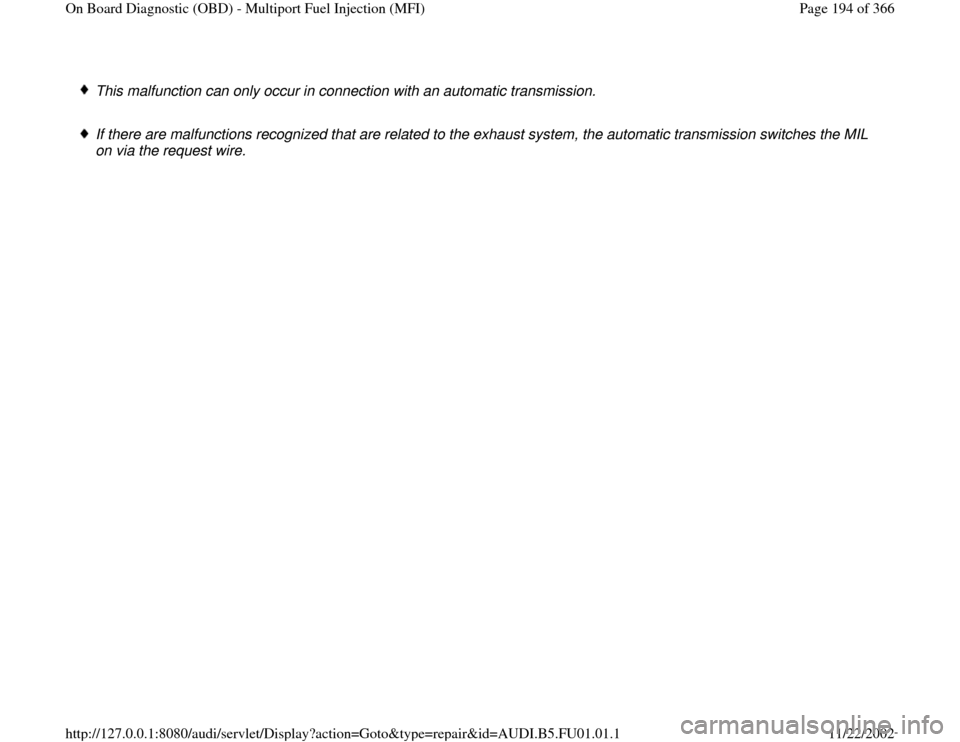

This malfunction can only occur in connection with an automatic transmission.
If there are malfunctions recognized that are related to the exhaust system, the automatic transmission switches the MIL
on via the request wire.
Pa
ge 194 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

01-143

Output on GST
and/or on VAG 1551
scan tool Possible malfunction cause

Malfunction repair
P1612 / 18020
ECM Incorrectly
Coded Malfunction P1606 / 18014 "Rough
Road Spec Engine Torque ABS-SG
Electrical Malfunction" also stored in DTC
memory
No
Yes

- Engine control module incorrectly coded

Cause: The vehicle is equipped with traction
control, but coding was done for vehicle
without traction control.
Remedy: code vehicle correctly according to
coding table.

Malfunction cause found: Yes
No

- Erase DTC memory, take test drive, after test
drive check DTC memory again
MIL Status:
Malfunction not
displayed by MIL Engine control module incorrectly coded


Cause: Vehicle is equipped with automatic
transmission, but was coded for manual
transmission or otherwise incorrectly coded
Remedy: code vehicle correctly according to
coding table.

Malfunction cause found: Yes


- Erase DTC memory, test drive, after test drive
check DTC memory again
Pa
ge 195 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

01-144

Output on GST and/or
on VAG 1551 scan tool
Possible malfunction cause

Malfunction repair
P1613 / 18021
MIL Call-up Circ.Open
Short to B+ Wiring connection between Engine
Control Module (ECM) -J192- and
Transmission Control Module (TCM) -J217-
faulty

- Check MIL wiring from Transmission
Control Module (TCM) -J217- page 24
-
105


Malfunction cause found: Yes
No

- Erase DTC memory, test drive, after test
drive check DTC memory again
MIL Status:
MIL lights up
immediately
Transmission Control Module (TCM) -
J217- faulty

Repair Manual, 5 Spd.
Automatic
Transmission 01V On Board Diagnostic (OBD), Repair Group 01
- Replace ABS control module -J104-

Malfunction cause found: Yes
No

- Erase DTC memory, take test drive, after
test drive check DTC memory again
For troubleshooting
Display group 027
Engine Control Module (ECM) -J192-
faulty

- Replace and code ECM -J192- page 01
-265
erase DTC memory and take
test drive check DTC memory
Notes:

This malfunction can only occur in connection with an automatic transmission.
Pa
ge 196 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

If there are malfunctions recognized that are related to the exhaust system, the automatic transmission switches the MIL
on via the request wire.
Pa
ge 197 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

01-145

Output Diagnostic Test Mode (scan tool
function 03)


Test requirements:

Fuses for engine electronics OK
Fuel Pump (FP) Relay OK
Ground connections OK page 01
-5

Triggering sequence:

Fuel Pump (FP) relay -J17-
Idle Air Control (IAC) valve -N71-
Intake manifold change-over valve -N156-
EVAP canister purge regulator valve -N80-
EGR vacuum regulator solenoid valve -N18-
Secondary Air Injection (AIR) solenoid valve -
N112- (only on vehicles with secondary air
system)
Pa
ge 198 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

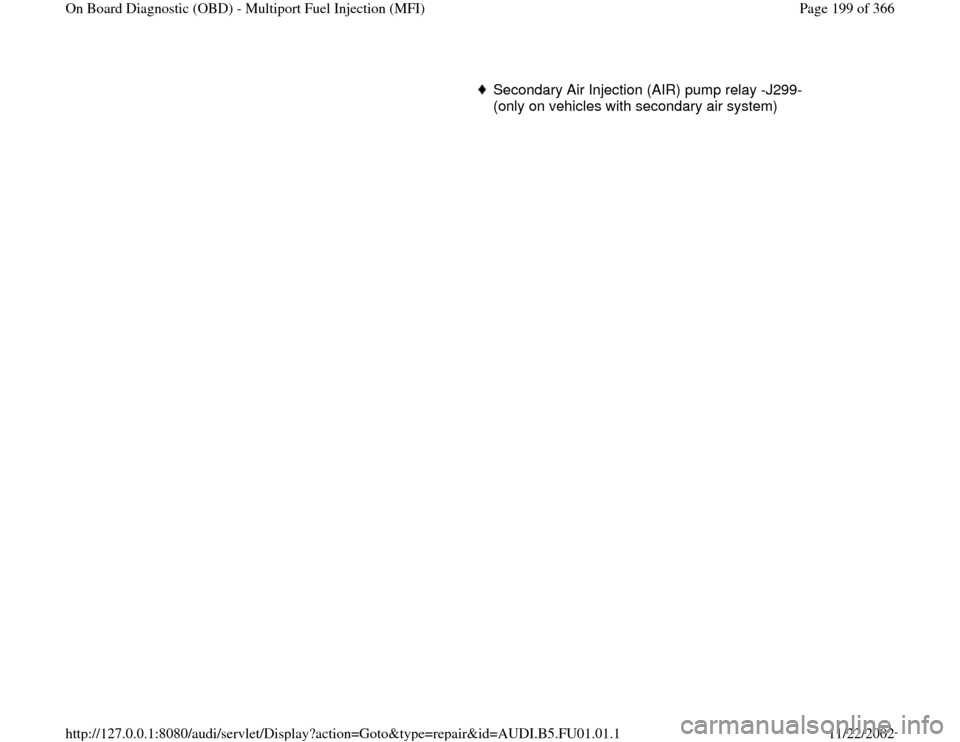

Secondary Air Injection (AIR) pump relay -J299-
(only on vehicles with secondary air system)
Pa
ge 199 of 366 On Board Dia
gnostic
(OBD
) - Multi
port Fuel In
jection
(MFI
)
11/22/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU01.01.1

01-146

Notes:

The output diagnostic test mode can only be
carried out with the ignition switched on and the
engine NOT running.
The output diagnostic test mode is interrupted if
the engine is started or a rotary pulse is
recognized.
During the output diagnostic test mode, the
individual outputs are triggered until the
program is continued by pressing the button.

The outputs are checked by listening for the
sound of the component being actuated, of by
feeling for mechanical evidence of actuation
(clicking, vibration, etc.).
Without letting the engine run briefly, switch the
ignition off for approx. 20 sec before repeating
the output diagnostic test mode.

- Connect VAG 1551 scan tool and initiate until
"Select function" is indicated on the display
page 01
-7 .
Rapid data transfer
HELP
Select function XX

Indicated on display
