1997 PONTIAC FIREBIRD engine

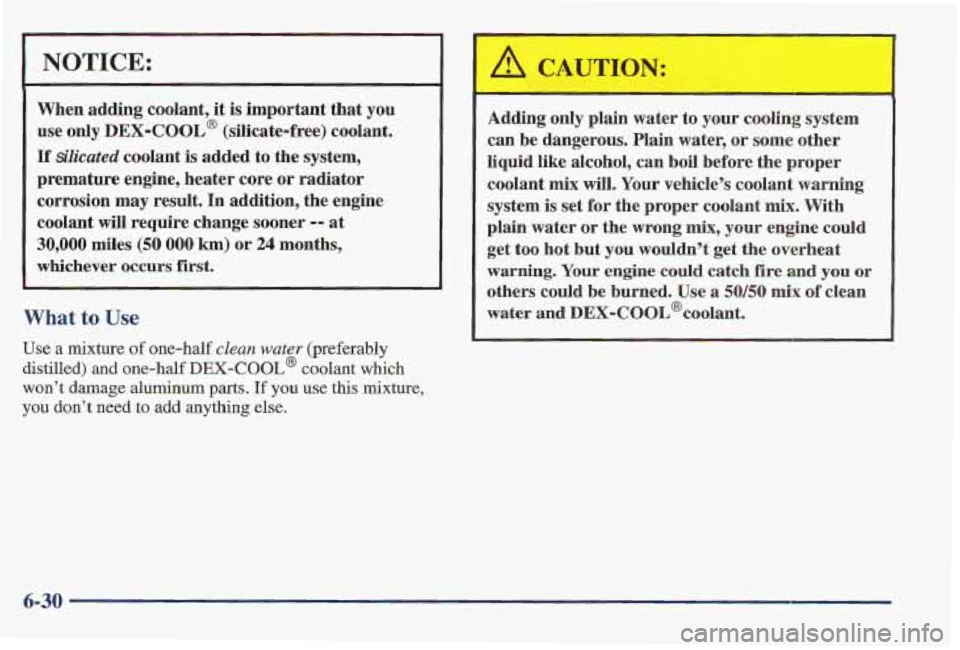

NOTICE:
When adding coolant, it is important that you
use only DEX-COOL@ (silicate-free) c’oolant.
If silicated coolant is added to the system,
premature engine, heater core
or radiator
corrosion may result. In addition, the engine
coolant will require change sooner
-- at
30,000 miles (50 000 km) or 24 months,
whichever
occurs first,
What to Use
Use a mixture of one-half ckan water (preferably
distilled)
and one-half DEX-COOL@ coolant which
won’t damage aluminum parts. If you use this mixture,
you don’t need to add anything else.
I
Adding only plain water to your cooling system
can be dangerous. Plain water, or
some other
liquid like alcohol, can boil before the proper coolant mix will.
Your vehicle’s coolant warning
system is set
for the proper coolant mix. With
plain water or the wrong mix, your engine could
get too hot but you wouldn’t get the overheat
warning. Your engine could catch fire and
you or
others could be burned. Use a 50J50 mix of clean
water and DEX-COOL’coolant.
6-30

NOTICE:
If you use an improper coolant mix, your engine
could overheat and
be badly damaged. The
repair cost wouldn’t be covered by your
warranty. Too much water in the mix can freeze
and crack the engine, radiator, heater core and
other parts.
If you have to add coolant more than four times a year,
have your dealer check your cooling system.
NOTICE:
If you use the proper coolant, you don’t have to
add extra inhibitors or additives which claim to
improve the system.
These can be harmful.
Checking Coolant
When your engine is cold, check the dipstick on the cap
of the coolant recovery tank. The coolant level should
be at
COLD, or a little higher. When your engine is
warm, the level on the dipstick should be up to HOT, or
a little higher.
6-31

5.7L Engine Only If
this light comes on,
it
means
you’re low on
engine coolant.
Adding Coolant to the Recovery Tank
If you need more coolant, add the proper DEX-COOL@
coolant mixture at the coolant recovery tank, but only
when your engine is cool. If the tank is very low or
empty, also add coolant to the radiator.
See “Engine
Overheating” in the Index
for information.
Turning the raalator pressure cap when the
engine
and radiator are hot can allow steam and
scalding liquids to blow out and burn you badly.
With the coolant recovery tank, you
will almost
never have
to add coolant at the radiator. Never
turn the pressure cap
-- even a little -- when the
engine and radiator are hot,
Add coolant mixture at the recovery tank, but be careful
not to spill it.
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol,
and it
will burn if the engine parts are hot
, enough. Don’t spill coolant on a hot engine.
I
6-32

Radiator Pressure Cap (All Engines) Power Steering Fluid
I NOTICE:
Your radiator cap is an 18 psi (124 kPa)
pressure-type cap and must be tightly installed
to
prevent coolant loss and possible engine damage
from overheating.
Be sure the arrows on the cap
line up with the overflow tube on the radiator
filler neck.
When you replace your radiator pressure cap, an AC@
cap is recommended.
Thermostat
Engine coolant temperature is controlled by a thermostat
in the engine coolant system. The thermostat stops the
flow of coolant through the radiator until the coolant
reaches
a preset temperature.
When
you replace your thermostat, an AC@ thermostat
is recommended.
-
3800 Engine
When to Check Power Steering Fluid
It is not necessary to regularly check power steering
fluid unless you suspect there is a leak in the system or
you hear an unusual noise. A fluid loss in this system
could indicate a problem. Have the system inspected
and repaired.
6-33

5.7L Engine
How To Check Power Steering Fluid
When the engine compartment is cool, wipe the cap and
the top
of the reservoir clean, then unscrew the cap and
wipe the dipstick with a clean rag. Replace the cap and
completely tighten it. Then remove the cap again and
look at the fluid level on the dipstick.
The level should be at the FULL COLD mark. If
necessary, add only enough fluid to bring the level up
to the mark.
When the engine compartment is hot, the level
When the engine compartment is cool, the level
should
be at the
H or HOT mark.
should
be at C or FULL COLD m’ark.
What to Use
Refer to the Maintenance Schedule to determine what
kind
of fluid to use. See “Recommended Fluids and
Lubricants”
in the Index. Always use the proper fluid.
Failure to
use the proper fluid can cause leaks and
damage hoses and seals,
6-34

Brakes
Brake Fluid
of the brake system. If it is, you should have your brake
system fixed, since
a leak means that sooner or later your
brakes won’t work well, or won’t work at all.
So, it isn’t a good idea to “top off’ your brake fluid.
Adding brake fluid won’t correct a leak. If you add fluid
when your linings are worn, then you’ll have too
much
fluid when you get new brake linings. You should add
(or remove) brake fluid, as necessary, only when work is
done on the brake hydrwlic system.
Your brake master cylinder reservoir is here.
It is filled
with
DOT-3 brake fluid.
There are only two reasons why
the brake fluid level in the
reservoir might go down. The first is that the brake fluid
goes down to
an acceptable level during normal brake
lining wear, When new linings are put in, the fluid level
goes back up. The other reason is that fluid is leaking out
If you have too much brake fluid, it can spill
on the engine. The fluid will burn if the engine
is hot enough. You ‘or others could be burned,
and your vehicle could be damaged. Add brake
fluid only
when work is done on the brake
hydraulic system.
Refer to the Maintenance Schedule to determine when to
check your brake fluid.
See “Periodic Maintenance
Inspections” in the
Index.
6-36

NOTICE:
Using the wrong fluid can badly damage
brake system parts. For example, just a few
drops
of mineral-based oil, such as engine
oil, in your brake system can damage brake
system parts
so badly that they’ll have to be
replaced.
Don’t let someone put in the
wrong
kind of fluid.
0 If you spill brake fluid on your vehicle’s
painted surfaces, the paint finish can
be
damaged. Be careful not to spill brake
fluid
on your vehicle. If you do, wash it
off immediately. See “Appearance Care’’
in the Index.
Brake Wear
Unless you have the four-wheel disc brake option, your
Pontiac has front disc brakes and rear
drum brakes.
Disc brake pads have built-in wear indicators that
make a high-pitched warning sound
when the brake
pads are worn and new pads are needed.
The sound
may come
and go or be heard all the time your vehicle
is moving (except when you are pushing
on the brake
pedal firmly).
I
The brake wear warning sound means that soon
your brakes won’t work well. That could lead to
an accident. When
you hear the brake wear
warning sound, have
your vehicle serviced.
6-38

Vehicle Identification Number (VIN)
I
ENGINE/1997 T ASSEMBLY
CODE MODEL YEAR PLANT
This is the legal identifier for your Pontiac. It appears on
a plate in the front corner
of the instrument panel, on the
driver’s side.
You can see it if you look through the
windshield
from outside your vehicle. The VIN also
appears
on the Vehicle Certification and Service Parts
labels and the certificates
of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement
parts.
Service Parts Identification Label
You’ll find this label located on the driver’s door side.
It’s very helpful if you ever need
to order parts. On this
label is:
your VIN,
the model designation,
paint information and
a list of all producti’on options and special
Be sure that this label
is not removed from the vehicle.
equipment.
Electrical System
Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your Pontiac
unless you check with your dealer first. Some
electrical equipment can damage your vehicle and
the damage wouldn’t be covered by your warranty.
Some add-on electrical equipment can keep other
components from working as they should.
Your
vehicle has an air bag system. Before attempting to
add anything electrical to your Pontiac, see “Servicing
Your Air Bag-Equipped Pontiac” in the Index.
6-68
