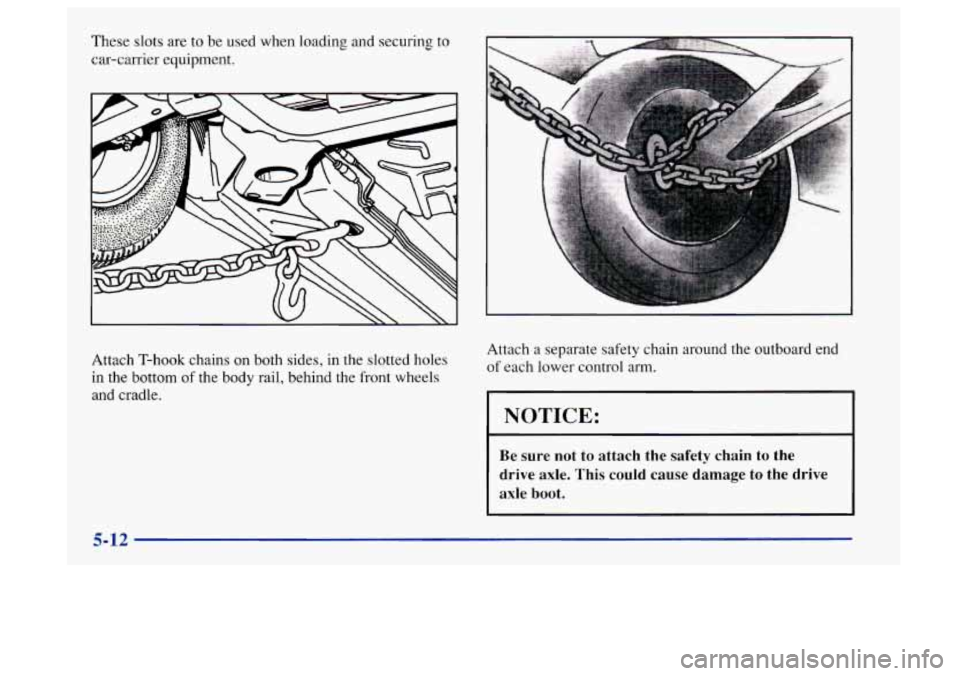

These slots are to be used when loading and securing to
car-carrier equipment.
Attach T-hook chains on both sides, in the slotted holes
in the bottom of the body rail, behind the front wheels
and cradle. Attach
a separate safety chain around
the outboard end
of each lower control arm.
NOTICE:
Be sure not to attach the safety chain to the
drive axle. This could cause damage to the drive
axle boot.
--
5-12
Section 7 Maintenance Schedule
This section covers the maintenance required for your Aurora. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7-2
7-2
7-3
7-4
7-4
7-4 7-39
7-39
7-39
7-40
7-40
Introduction
Your Vehicle and the Environment
How This Section is Organized
Part
A: Scheduled Maintenance Services
Using Your Maintenance Schedule
Selecting the Right Schedule
Part B: Owner Checks and Services
At Each Fuel Fill
At Least Once a Month
At Least Twice a Year
At Least Once a Year
7-43
7-43
7-43
7-43
7-43
7-43
7-44
7-46 Part C: Periodic Maintenance Inspections
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection
Exhaust System Inspection
Radiator and Heater Hose Inspection
Throttle Linkage Inspection
Brake System Inspection
Part D: Recommended Fluids and
Lubricants
Part
E: Maintenance Record
7-1
Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should be
performed at least twice a year (for instance, each spring
and fall). You should let your
GM retailer’s service
department or other qualified service center do these jobs.
Make sure any necessary repairs are completed at once.
Proper procedures to perform these services may
be
found in a GM service manual. See “Service and Owner
Publications’’ in the Index.
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals for damage, tears or leakage. Replace
seals
if necessary.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near
the exhaust system. Look for broken, damaged,
missing or out-of-position parts as well as open seams, holes, loose connections or other conditions
which could
cause a heat build-up in the floor pan or could let
exhaust fumes into the vehicle. See “Engine Exhaust” in
the Index.
Radiator and Heater Hose Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding,
and for damage or missing parts. Replace parts as
needed. Replace any cables that have high effort or
excessive wear.
Do not lubricate accelerator and cruise
control cables.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Inspect other brake parts,
including calipers, parking brake, etc. You may need to
have your brakes inspected more often if your driving
habits or conditions result
in frequent braking.
7-43
Gages Engine Coolant Temperature
.................... 2-74
Fuel
....................................... 2-79
Garage
Door Opener ............................ 2-61
GAWR
....................................... 4-30
GloveBox
.................................... 2-54
Gross Axle Weight Rating
........................ 4-30
Gross Vehicle Weight Rating
...................... 4-30
Guide en FranCais
11 .. .................................
GVWR ....................................... 4-30
Halogen Bulbs
................................ 6-33
Hazard Warning Flashers
.......................... 5-2
Head Restraints
................................. 1-6
Headlamps
............................... 2-37. 2-44
Aiming
..................................... 6-3 7
Bulb Replacement
............................ 6-34
HigWLow Beam Changer
...................... 2-38
Wiring
..................................... 6-62
Hearing Impaired. Customer Assistance
.............. 8-4
Heated Outside Mirror
........................... 2-54
Heatedseats
.................................... 1-4
Heating ........................................ 3-7
High-Beam Headlamps
.......................... 2-38
Highway Hypnosis
.............................. 4-24
Hill and Mountain Roads
......................... 4-24
Hitches. Trailer
................................. 4-35
Hood Checking Things Under
......................... 6-8
Release
...................................... 6-8
Horn
......................................... 2-34
Hydroplaning
.................................. 4-20 Ignition
Positions
.............................. 2-21
Illuminated Entry
............................... 2-48
Inadvertent Load Protection
....................... 2-50
Inflation, Tire
.................................. 6-45
Inspections
.................................... 7-43
Brakesystem
................................ 7-43
Exhaust Systems
............................. 7-43
Front-Wheel-Drive Axle Boot and Seal
........... 7-43
Radiator and Heater Hose
...................... 7-43
Steering
.................................... 7-43
Suspension
.................................. 7-43
Throttle Linkage
.............................. 7-43
Instrument Panel
............................... 2-64
Brightness Control
............................ 2-46
Cleaning
.................................... 6-55
Cluster
..................................... 2-66
FuseBlock
.................................. 6-63
Interior Lamps
................................. 2-46
Bulb Replacement
............................ 6-43
Ignition Transaxle
Lock Check
.................... 7-42
Jack. Tire
.................................... 5-26
Jump Starting ................................... 5-3
Key Lock Cylinders Service ..................... 7-40
Key Reminder Warning
.......................... 2-22
Keys
.......................................... 2-2
Labels Certification
................................. 4-30
Service Parts Identification ..................... 6-61
Tire-Loading Information
...................... 4-30
