184 Controls in detailUseful featuresStep 9:
Press “training” button on the garage
door opener motor head unit.
The “training light” is activated.
You have 30 seconds to initiate the follow-
ing step.
Step 10:

Firmly press, hold for two seconds and
release the programmed integrated
signal transmitter button (3, 4
or5).
Step 11:

Press, hold for two seconds and re-
lease same button a second time to
complete the training process.
Some garage door openers (or other rolling
code equipped devices) may require you to
perform this procedure a third time to
complete the training.Step 12:

Confirm the garage door operation by
pressing the programmed integrated
signal transmitter button (3, 4
or5).
Step 13:

To program the remaining two buttons,
repeat the steps above starting with
step 3.Gate operator / Canadian programming
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission
which may not be long enough for the inte-
grated signal transmitter to pick up the sig-
nal during programming. Similar to this
Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner.
If you live in Canada or if you are having dif-
ficulties programming a gate operator (re-
gardless of where you live) by using the
programming procedures, replace step 4
with the following:


REAR WINDOW WASHER PUMP, FUNCTION - GF82.35-P-4103-02GH
The motor for the rear window washer pump (M5/3) is switched on and off by the rear window
wiper/washer switch (S78) .
The pump pumps water from the washer water reservoir to the rear window washer.
REAR WINDOW WASHER PUMP, LOCATION/PURPOSE/DESIGN/FUNCTION - GF82.35-P-4103GH
MODEL 163
RADIO (RD), LOCATION OF CONTROLS - GF82.60-P-0001-02I
MB Hi-line radio
Fig. 33: Identifying Radio (RD) Controls Location

RADIO (RD), LOCATION OF CONTROLS - GF82.60-P-0001-02J
MB Premium radio
Location GF82.35-P-4103-01GH
PurposePumping water for
washing rear window.
DesignThe washer pump is
driven by a DC motor
Function GF82.35-P-4103-02GH

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 56 © 2006 Mitchell Repair Information Company, LLC.

Fig. 34: Identifying Radio (RD) Controls Location
RADIO (RD) ARRANGEMEN T OF OPERATING ELEMENTS - GF82.60-P-0001-02K
MB radio ML 5
Fig. 35: Identifying Radio (RD) A rrangement Of Operating Elements

RADIO (RD) ARRANGEMENT OF OPERATING ELEMENTS - GF82.60-P-0001-02L
MB ML 10 radio

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electr ical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 57 © 2006 Mitchell Repair Information Company, LLC.

Fig. 40: Identifying Audio 30 APS Block Diagram
AUDIO 30 APS OPERATING INST RUCTIONS - GF82.61-P-0002-03A
Models 163, 168, 170, 208, 210 with code 353
Controls on radio and navigation unit (A2/56) with explanations of primary functions.
Fig. 41: Identifying Radio A nd Navigation Unit Controls

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electr ical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 70 © 2006 Mitchell Repair Information Company, LLC.

RADIO AND NAVIGATION MODULE, DESIGN - GF82.61-P-4109-03GI
The following is integrated into the radio and navigation module (A2/56) (maximum scope):
Graphic compatible 5" LCD color display
Navigation processor with GPS receiver and gyrosensor
Single CD drive for playing audio CD's (option)
Navigation CD drive for loading navigation data or for playing audio CD's (optional)
Telephone unit (optional)
Radio tuner
Audio amplifier
CC player
The radio and navigation module (A2/56) has the following digital interfaces:
Digital data bus (D2B)
K-cable (diagnosis interface)
Fig. 58: Identifying Radio And Navigation Module (A2/56) Design

RADIO AND NAVIGATION MODULE, FUNCTION - GF82.61-P-4109-04A
Models 163, 168, 170, 208, 209, 210 with code 353
Processing key signals
The controls on the radio (A2) are read in via I/O ports of the microcontroller and made available to the central
computer. Depending on the system function the button operations are processed further in the central computer
or conveyed via the Digital Data Bus (D2B) or interior CAN (CAN B) in the form of a data telegram to the
system components involved (e.g. CD changer).
Display

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 100 © 2006 Mitchell Repair Information Company, LLC.

Fig. 114: Identifying Socket Connections For Radio
RADIO (RD) DIAGNOSIS ADVANCED INFORMATION - AD82.60-P-2000A
MODEL 124, 129, 140, 163, 168, 170, 202, 208, 210 with MB radio
MODEL 129, 140, 168, 170, 202, 208, 210 with MB radio and navigation operating unit, APS
Radio (RD), location of
controlsMB Classic radio with
traffic news decoder, with
RDS up to 08/95GF82.60-P-0001-02A
MB Classic radio with
traffic news decoder, with
RDS as of 09/95 up to
01/97GF82.60-P-0001-02B
MB Special radio with
traffic news decoder, with
RDS up to 05/98GF82.60-P-0001-02C
MB Special radio with
CD compartment up to
05/98GF82.60-P-0001-02D
MB Exquisite radio with
traffic news decoder, with
RDS up to 05/98GF82.60-P-0001-02E
MB Exquisite radio with
traffic news decoder, with
RDS GF82.60-P-0001-02F
MB APS radio and
navigation operating unit
up to 12/97GF82.60-P-0001-02G
MB Audio 5 radio with
traffic news decoder, with
RDSGF82.60-P-0001-02H
MB Hi-line radio GF82.60-P-0001-02I
MB Premium radio GF82.60-P-0001-02J
MB ML 5 Audio radioGF82.60-P-0001-02K
MB ML 10 Audio radioGF82.60-P-0001-02L
MB APS radio and
navigation operating unit
as of 01/98GF82.60-P-0001-02M
MB Radio Audio 10 RDS
as of 06/98 up to 06/99GF82.60-P-0001-02N
MB Audio 10 RDS radio
with CD compartment as
of 06/98GF82.60-P-0001-02O

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:07 PMPage 203 © 2006 Mitchell Repair Information Company, LLC.

CD PLAYER WITH CHANGER (CDC) DIAGNOSIS, TROUBLESHOOTING - AD82.64-P-5000A
MODEL 124,163,168, 202, 208, 210 with CODE (819) 6-disk CD changer in trunk
MODEL 129 as of 1.6.98 with CODE (819) 6-disk CD changer in trunk
VOLTAGE SUPPLY, TESTING ELECTRICAL SYSTEM, CD CHANGER - AD82.64-P-6000-01B
Model 163
faultless
Function of CD
changer in
accordance with radio
operating instructionsAdjust loudness on radio
Perform all operating functions of
CD changer Models 129, 202,
208, 210 with digital
data bus (D2B): ?
AD82.64-P-4000A
CD player with changer
(CDC) diagnosis, advanced
information AD82.64-P-2000A
Troubleshooting
Complaint Possible cause Note Remedy
CD player with changer
(A2/6) completely
inoperativeVoltage supply of CD
player with changer (A2/6)Models 202, 208, 210 up
to 05/98 and models
124, 168
Model 163
Models 129, 202, 208,
210 as of 06/98AD82.64-P-6000-01A
&.3.2.( AD82.64
-P-
6000-01B) AD82.64-P-
6000-01C
CD player with changer
(A2/6), does not load or
eject CDsSingle CDs with adapter
loaded in CD magazine
Adhesive foil on CD has not
been removed Voltage
supply of CD player with
changer (A2/6)Models 202, 208, 210 up
to 05/98 and models
124, 168
Model 163
Models 129, 202, 208,
210 as of 06/98AD82.64-P-6000-01A
&.3.3.( AD82.64
-P-
6000-01B) AD82.64-P-
6000-01C
CD player with changer
(A2/6) does not respond
to controlsCD player with changer
(A2/6) Radio (A2) AD82.64-P-6000-02A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:08 PMPage 247 © 2006 Mitchell Repair Information Company, LLC.

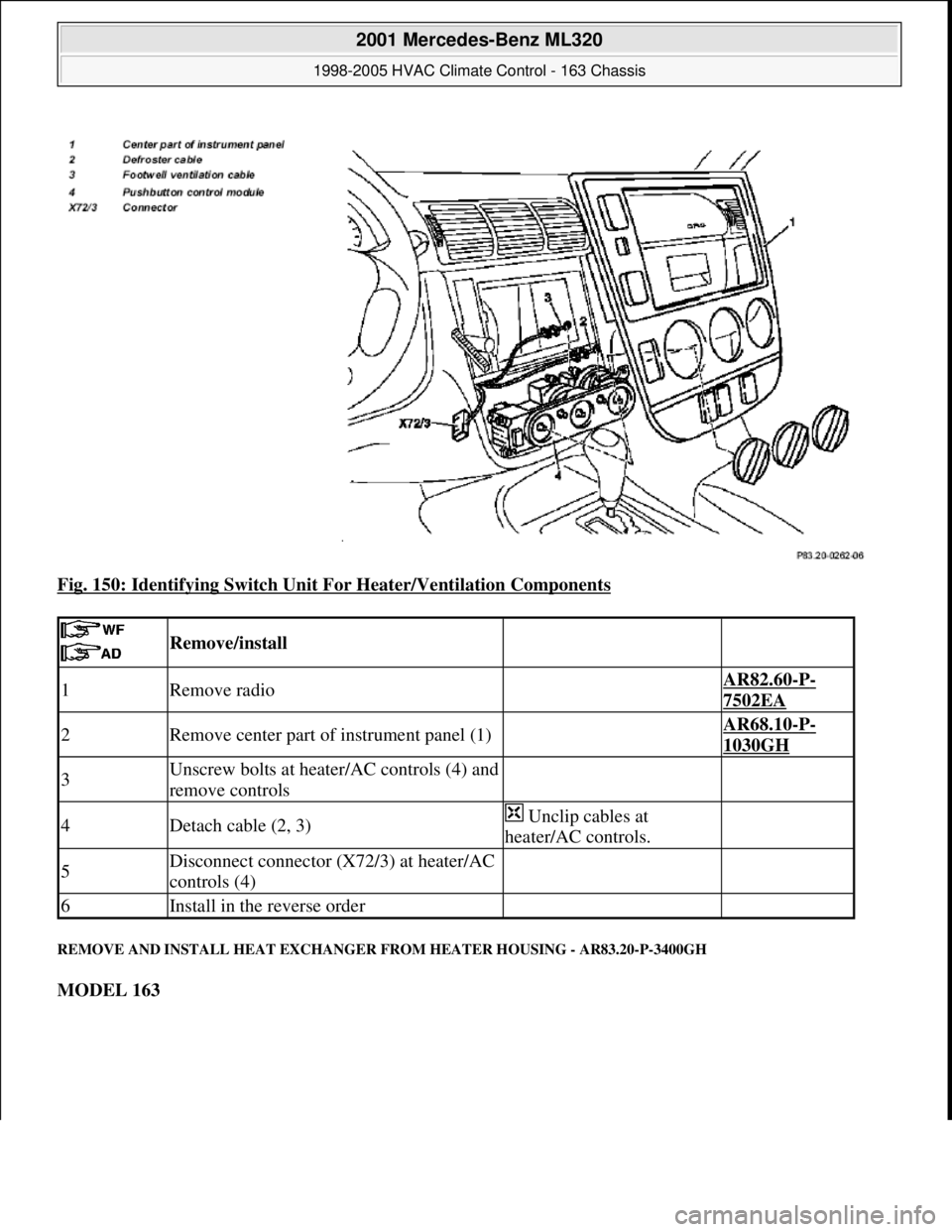

Fig. 150: Identifying Switch Unit For Heater/Ventilation Components
REMOVE AND INSTALL HEAT EXCHANGER FROM HEATER HOUSING - AR83.20-P-3400GH
MODEL 163

Remove/install
1Remove radio AR82.60-P-
7502EA
2Remove center part of instrument panel (1) AR68.10-P-
1030GH
3Unscrew bolts at heater/AC controls (4) and
remove controls
4Detach cable (2, 3) Unclip cables at
heater/AC controls.
5Disconnect connector (X72/3) at heater/AC
controls (4)
6Install in the reverse order
