Page 888 of 4133
84 Safety and SecurityAnti-theft systemsDisarming the alarm system
The alarm system is disarmed when you
unlock your vehicle with the remote con-
trol. The turn signal lamps flash once to in-
dicate that the alarm system is
deactivated.Canceling the alarm
To cancel the alarm:
Switch on the ignition by turning the
key in the steering lock to position2.
or
Press theŒ or ‹button on the
remote control.
The alarm is canceled.
Tow-away alarm, glass breakage
sensor
The tow-away alarm and the glass break-
age sensor are part of the anti-theft alarm
system.Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone:
attempts to raise the vehicle
breaks a window and reaches into the
passenger compartment
iIf the turn signal lamps do not flash
three times, the tow-away - glass
breakage sensor is malfunctioning or
one of the following elements may not
be properly closed:
a door
the liftgate
the hood
Close the respective element and lock
the vehicle again.
iThe alarm system will rearm automati-
cally again after approximately
40 seconds if one of the doors or the
liftgate is not opened.
iThe tow-away protection alarm is trig-
gered, for example, if the vehicle is
lifted on one side.
If the alarm stays on for more than
20 seconds, an emergency call is initi-
ated automatically by the Tele Aid* sys-
tem (
page 171) provided Tele Aid
service was subscribed to and properly
activated, and that necessary cellular
service and GPS coverage are avail-
able.
Page 889 of 4133
85 Safety and Security
Anti-theft systems
Arming tow-away alarm and glass
breakage sensor
When you lock your vehicle, the tow-away
and glass breakage sensor alarm is auto-
matically armed.
Disarming tow-away alarm and glass
breakage sensor
To prevent triggering the tow-away alarm
feature, switch off the tow-away alarm and
glass breakage sensor before towing the
vehicle, or when parking on a surface sub-
ject to movement, such as a ferry or auto
train.Vehicles with trip computer*
The buttons are located in the overhead
control panel.
1Reset button
2Mode button
3Display
4Glass breakage sensor
Turn key in steering lock to position2
(page 33).
Return key to position0 and remove it
from the steering lock.
Within 30 seconds press button1
or2.
The display shows
OFF
.
Exit vehicle and lock vehicle with
remote control (
page 32).
The tow-away alarm and glass breakage
sensor remain switched off until the key is
inserted in steering lock and turned to
position1.
Page 890 of 4133
86 Safety and SecurityAnti-theft systemsVehicles without trip computer
The buttons are located in the overhead
control panel.
1Switching off tow-away alarm and glass
breakage sensor
Turn key in steering lock to position2
(page 33).
Return key to position0 and remove it
from the steering lock.
Within 30 seconds press button1 on
the right or left side.
Exit vehicle and lock vehicle with
remote control (
page 32).
The tow-away alarm and glass breakage
sensor remain switched off until the key is
inserted in steering lock and turned to
position1.Canceling the alarm
To cancel the alarm:
Switch on the ignition by turning the
key in the steering lock to position2.
or
Press theŒ or ‹button on the
remote control.
The alarm is canceled.
Page 930 of 4133
126 Controls in detailGood visibility
Good visibilityInformation on the windshield wipers
(page 49) and for setting the rear view
mirrors (
page 40) is found in the
“Getting started” section.
Rear view mirror
Interior rear view mirror, antiglare
position
1Lever
Tilt the mirror to the antiglare night po-
sition by moving lever1 towards the
windshield.
The interior rear view mirror is dimmed.Automatic antiglare rear view mirror*
The reflection brightness of the exterior
rear view mirror on the driver’s side and
the interior rear view mirror will respond
automatically to glare when:
the automatic antiglare function is acti-
vated (
page 127)
the ignition is switched on
incoming light from headlamps falls on
the sensor in the interior rear view
mirror
The rear view mirror will not react if
reverse gear is engaged
the interior light is turned on
Warning!
G
The automatic antiglare function does not
react if incoming light is not aimed directly
at sensors in the inside rear view mirror.
The interior rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, if the cargo area is fully
loaded.
Glare can endanger you and others.Warning!
G
In the case of an accident, liquid electrolyte
may escape the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not al-
low the liquid to come into contact with
eyes, skin, clothing, or the respiratory sys-
tem. In case it does, immediately flush af-
fected area with water, and seek medical
help if necessary.
Page 934 of 4133
130 Controls in detailGood visibilityIntermittent wiping
Windshield wipers without rain sensor*
At speeds of approximately 105 mph
(170 km / h) the wiper switches automati-
cally to continuous wiping. Always obey lo-
cal speed limits.Windshield wipers with rain sensor*
A rain sensor automatically controls the
windshield wipers depending on how wet
the windshield is.
Switch on ignition.
Set the wiper switch to position1
(page 49).
After the initial wipe, pauses between
wipes are automatically controlled by the
rain sensor which monitors the wetness of
windshield.
iIntermittent wiping is interrupted when
the vehicle is at a standstill and a front
door is opened.
iWhen intermittent wiping is on and the
key is turned from position1 to
position2 in the steering lock
(page 33), and kept in that position
for longer than two seconds, the wipe
interval will be set to approximately
five seconds.
!Do not leave windshield wipers in inter-
mittent setting when the vehicle is tak-
en to an automatic car wash or during
windshield cleaning. Wipers will oper-
ate in the presence of water sprayed on
the windshield, and wipers may be
damaged as a result.
The switch should not be left in inter-
mittent setting as the wipers will wipe
the windshield once every time the en-
gine is started. Dust that accumulates
on the windshield might scratch the
glass and / or damage the wiper blades
when wiping occurs on a dry wind-
shield.
Page 935 of 4133
131 Controls in detail
Good visibility
Headlamp cleaning system*
The button is located on the right side of
the dashboard.Headlamp washer button
Switch on ignition.
Briefly press the upper part of button.
The headlamps will be cleaned with a
high-pressure water jet.Information on filling up the washer reser-
voir can be found in the “Operation” sec-
tion (
page 224).
Rear window wiper
The rear window wiper will also automati-
cally engage if the windshield wiper is en-
gaged and the gear selector lever is placed
in reverse.Rear window wiper with rain sensor*
Rear window wiper intervals are controlled
automatically according to the amount of
water on the windshield and the speed of
the vehicle, if:
rear window wiper is switched on
front windshield wipers are switched to
intermittent wiping
The interval for the rear window wiper re-
mains constant when the windshield wiper
interval is ten seconds or more.
Page 939 of 4133
135 Controls in detail
Automatic climate control

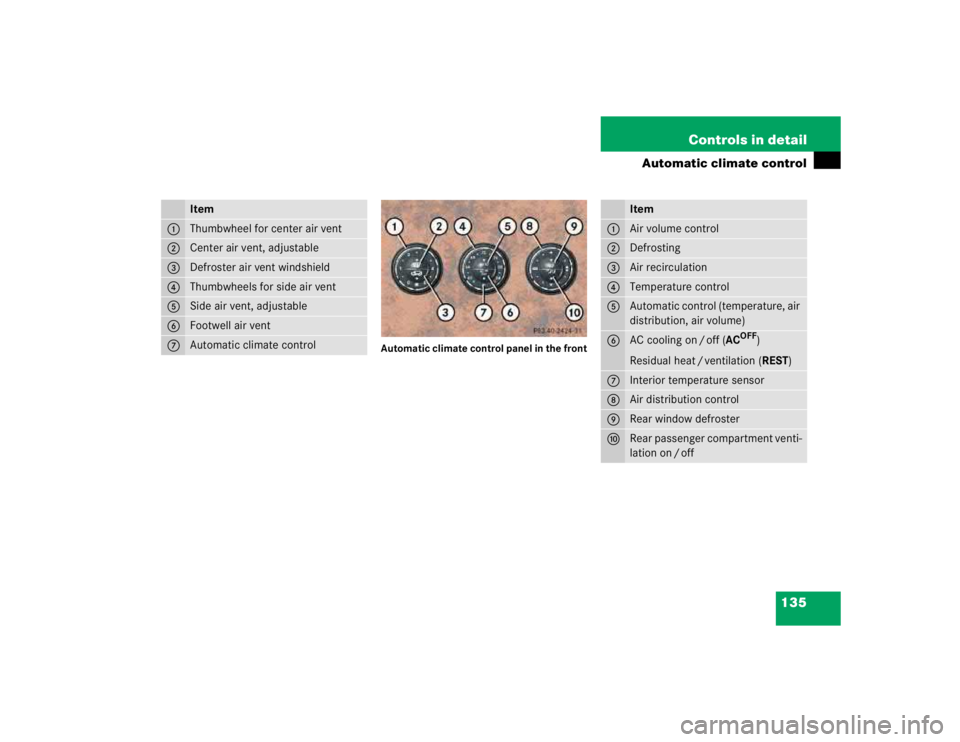

Automatic climate control panel in the front
Item
1
Thumbwheel for center air vent
2
Center air vent, adjustable
3
Defroster air vent windshield
4
Thumbwheels for side air vent
5
Side air vent, adjustable
6
Footwell air vent
7
Automatic climate control
Item
1
Air volume control
2
Defrosting
3
Air recirculation
4
Temperature control
5
Automatic control (temperature, air
distribution, air volume)
6
AC cooling on / off (AC
OFF
)
Residual heat / ventilation (REST)
7
Interior temperature sensor
8
Air distribution control
9
Rear window defroster
a
Rear passenger compartment venti-
lation on / off
Page 940 of 4133
136 Controls in detailAutomatic climate controlThe automatic climate control is operatio-
nal whenever the engine is running. You
can operate the climate control system in
either the automatic or manual mode. The
system cools or heats the interior depend-
ing on the selected interior temperature
and the current outside temperature.
Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.Warning!
G
When operating the automatic climate con-
trol, the air that enters the passenger com-
partment through the air vents in the
footwell can be very hot or very cold (de-
pending on the set temperature). This may
cause burns or frostbite on unprotected skin
in the immediate area of the air vents.
Always keep sufficient distance between un-
protected parts of the body and the footwell
air vents. If necessary, change the air flow
using the air distribution controls to direct
the air away from the footwell air vents
(page 138).
Warning!
G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iSevere conditions (e.g. strong air pollu-
tion) may require replacement of the fil-
ter before its scheduled interval. A
clogged filter will reduce the air volume
to the interior.
If the vehicle interior is hot, ventilate
the interior before driving off.
Keep the air intake grille in front of the
windshield free of snow and debris.
Do not touch the interior temperature
sensor to maintain a precise tempera-
ture.
The set value is indicated by a lighted
segment on the control wheels.
