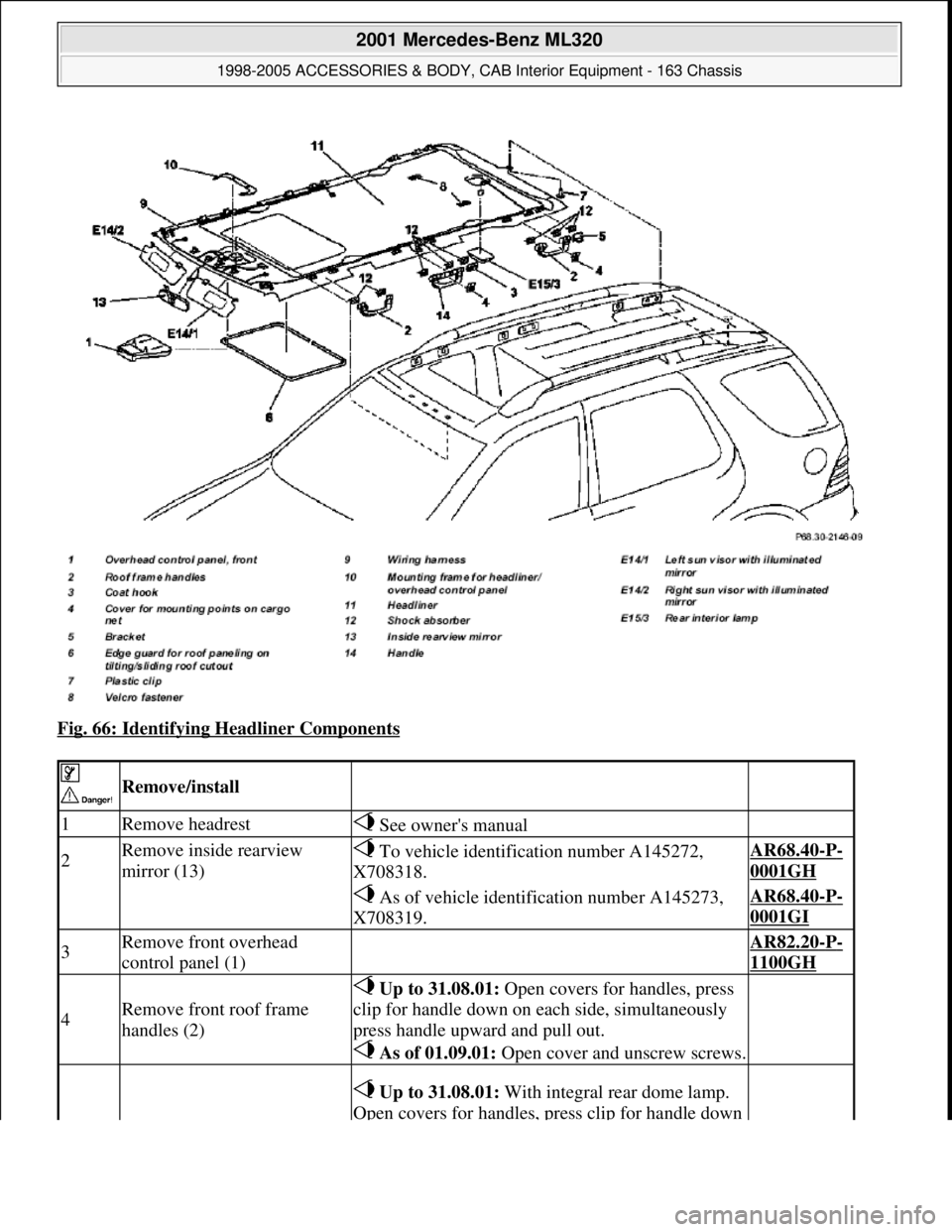

Fig. 66: Identifying Headliner Components

Remove/install
1Remove headrest See owner's manual
2Remove inside rearview
mirror (13) To vehicle identification number A145272,
X708318.AR68.40-P-
0001GH
As of vehicle identification number A145273,
X708319.AR68.40-P-
0001GI
3Remove front overhead
control panel (1) AR82.20-P-
1100GH
4Remove front roof frame
handles (2)
Up to 31.08.01: Open covers for handles, press
clip for handle down on each side, simultaneously
press handle upward and pull out.
As of 01.09.01: Open cover and unscrew screws.

Up to 31.08.01: With integral rear dome lamp.
Open covers for handles, press clip for handle down

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:22 PMPage 64 © 2006 Mitchell Repair Information Company, LLC.

Safety belts/emergency tensioning retractors
REMOVING AND INSTALLING INSIDE REARVIEW MIRROR - AR68.40-P-0001GH
MODEL 163.136 /154 /172 #A up to 145272, 163.136 /154 /172 #X up to 708318

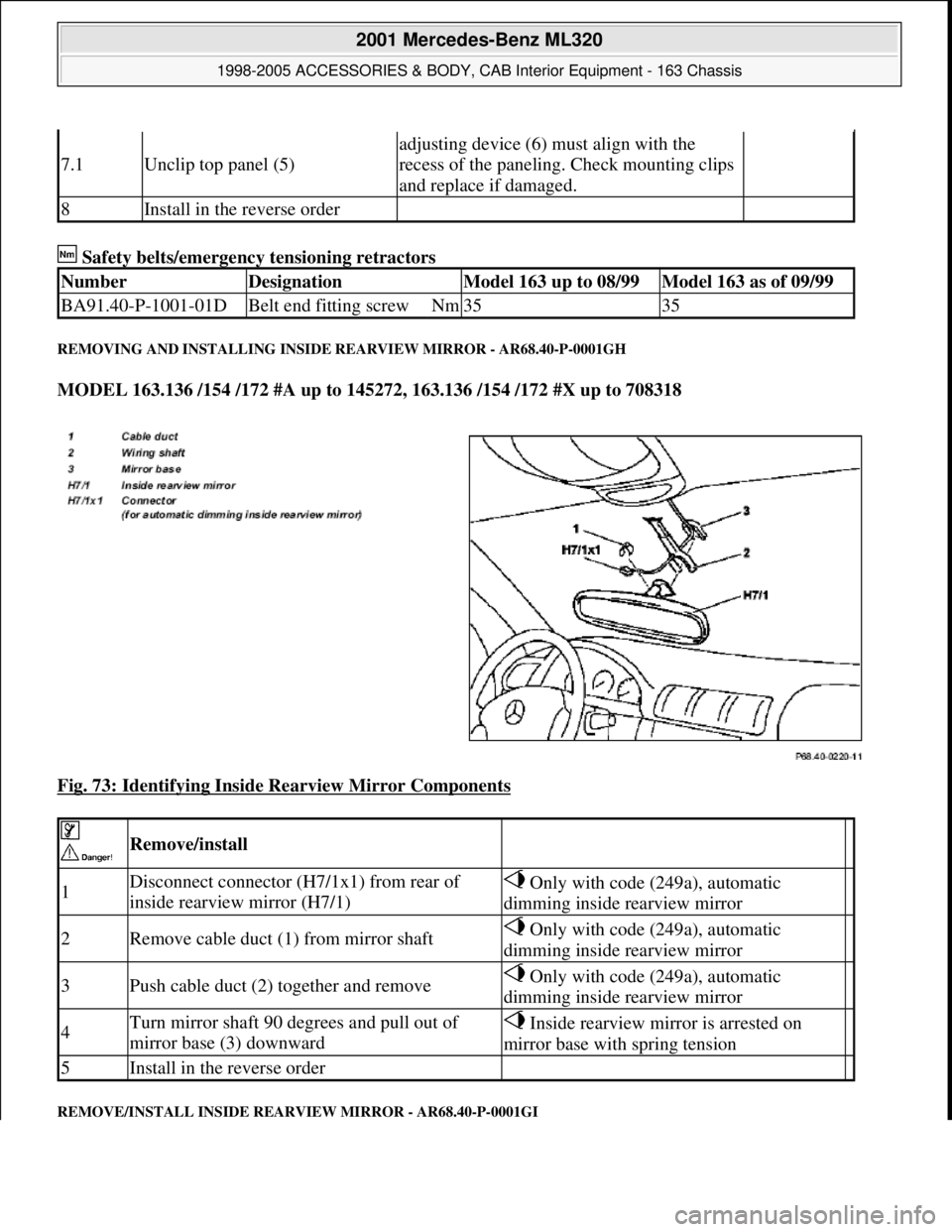

Fig. 73: Identifying Inside Rearview Mirror Components

REMOVE/INSTALL INSIDE REARVIEW MIRROR - AR68.40-P-0001GI
7.1Unclip top panel (5)
adjusting device (6) must align with the
recess of the paneling. Check mounting clips
and replace if damaged.

8Install in the reverse order
NumberDesignationModel 163 up to 08/99Model 163 as of 09/99
BA91.40-P-1001-01DBelt end fitting screwNm3535

Remove/install
1Disconnect connector (H7/1x1) from rear of
inside rearview mirror (H7/1) Only with code (249a), automatic
dimming inside rearview mirror
2Remove cable duct (1) from mirror shaft Only with code (249a), automatic
dimming inside rearview mirror
3Push cable duct (2) together and remove Only with code (249a), automatic
dimming inside rearview mirror
4Turn mirror shaft 90 degrees and pull out of
mirror base (3) downward Inside rearview mirror is arrested on
mirror base with spring tension
5Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:22 PMPage 72 © 2006 Mitchell Repair Information Company, LLC.

MODEL 163.136 /154 /172 #A as of 145273, 163.136 /154 /172 #X as of 708319, 163.113 /128 /157 /174 /175
Fig. 74: Identifying Inside Rearview Mirror, Automatic Dimming Connector & Rain Sensor

REMOVING AND INSTALLING SUN VISOR - AR68.60-P-5480GH
MODEL 163

Remove/install
1Turn inside rearview mirror (1) 90 and press
against mirror housing at side. Danger of breaking windshield. Do not
damage rain sensor (B38), if present.
2.1Disconnect automatic dimming connector (2). Only with automatically dimming inside
rearview mirror, code 249a.
3Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:22 PMPage 73 © 2006 Mitchell Repair Information Company, LLC.

AR88.70-P-9040GI
Remove/install outside rearview mirror paneling
27.2.01

MODEL
163.113 /154 /174 #A as of 289565,

163.113 /154 /174 #X as of 754620,

163.128 /157 /175

P88.70-2107-11

1
Mirror glass

2
Outside rearview mirror paneling

Arrows Retaining lugs


Remove/install

1
Adjust mirror glass (1) toward inside.

2
Loosen retaining lugs (arrows) in housing.

Long wedge

*115589035900

3
Remove outside rearview mirror paneling (2)

toward outside.

4
Disconnect connector from turn signal lamp.

5
Install in the reverse order

Long wedge

115 589 03 59 00

Copyright DaimlerChrysler AG 04.08.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

AR88.70-P-9040GH
Removing and installing outside rearview mirror cover
12.2.97

MODEL
163.113 /136 /154 /172 /174 up to 31.8.01

P88.70-0255-06

1
Frame

2
Mirror housing paneling

3
Catches in mirror housing

4
Outer catch

5
Bolt

6
Clips

Operation no. of operation texts or standard texts and flat rates
Range

Op. no.
Operation text

P
883424
REPLACING HOUSING FOR LEFT OUTSIDE REARVIEW MIRROR

P
883425
CONVERTING HOUSING FOR LEFT OUTSIDE REARVIEW MIRROR (MIRROR REMOVED)

P
883427
REPLACING HOUSING FOR RIGHT OUTSIDE REARVIEW MIRROR

P
883428
CONVERTING HOUSING FOR RIGHT OUTSIDE REARVIEW MIRROR (MIRROR REMOVED)

P
883430
REPLACING HOUSINGS FOR BOTH OUTSIDE REARVIEW MIRRORS


Remove/install

1
Remove mirror glass

AR88.70-P-9020GH

2
Release catch in mirror housing (3)

Press mirror housing out of frame (1) with

slight pressure

3
Release paneling for mirror housing (2) from

frame (1)

Outer catch (4) only accessible if mirror

housing is pivoted toward door

4
Remove mirror housing paneling (2)

5
Unscrew screw (5) from frame (1)

Torx bit set

*000589011000

6
Unclip frame (1) from mirror actuator motor

Pivot mirror housing back to initial

position. Unclip clips (6) from actuator motor.

6
Remove frame (1)

7
Install in the reverse order


Torx bit set

000 589 01 10 00

Copyright DaimlerChrysler AG 04.08.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

AR88.70-P-9020GI
Remove/install mirror glass
24.4.01

MODEL
163.113 /154 /174 #A as of 289565,

163.113 /154 /174 #X as of 754620,

163.128 /157 /175

P88.70-2126-11

1
Locking mechanism

2
Mirror glass

3
Housing


Removing and installing

1
Remove outside rearview mirror covering

AR88.70-P-9040GI

2
Open locking mechanism (1)

3
Separate mirror glass (2) from housing (3)

Separate carefully to avoid braking

retaining clips.


Installation:
Ensure that retaining clips

catch properly.

4
Disconnect electrical connectors from mirror

heater

3 electrical connectors.

5
Install in the reverse order

Copyright DaimlerChrysler AG 04.08.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

GF54.50-P-4100GH
Trip computer control module, location/task/design
24.3.00

MODEL
163 as of 1.9.00 with CODE (245) Trip computer

P54.50-0212-06

N41
Trip computer control module

Trip computer control module, location
The trip computer control module (TRIP, N41)

is located above the

inside rearview mirror unit.

Trip computer control module, task

GF54.50-P-4100-01GH

Trip computer control module, design

GF54.50-P-4100-02GH

Copyright DaimlerChrysler AG 18.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

AF88.70-P-1100AG
Wind noise at outside mirror on left and/or right front door
30.10.03

MODEL
163.154 #A as of 289560,

163.113 /128 #X as of 754620,

163.113 /174 #A as of 289560 up to 486952,
163.128 /157 /175 #A up to 486952

Operation no. of the operation texts or standard texts and flat rates

Range

Op. no.
Operation text

Flat rate
Acc. no.
Code

P
024204
Foam on base of outside rearview mirror, Location:.... install
004 WU
81 101 39
---

Damage Code
Cause
Remedy

81 101 39
Insufficient seal pressure between door and

base of mirror mount.
1
Remove outside rearview mirror (1)
only


on side where wind noise occurs.
AR88.70-P-9000GH


*110589035900

2
Install foam (2) onto base of mirror mount

around wiring harness.

3
Reinstall outside rearview mirror (1).

AR88.70-P-9000GH

Replace foam on inside of door around

hole where mirror wiring harness comes

through.

P88.70-2311-11

1
Outside rearview mirror

2
Foam

Mounting wedge

110 589 03 59 00

Parts ordering notes
Part no.

Designation
Quantity

163 682 25 28
Foam
2
