1997 LINCOLN TOWN CAR fuses

183
5. Check under the vehicle again for leaking fuel.
If you see or smell fuel, do not start your
vehicle again.If you do not see or smell fuel,
you can try to start your vehicle again.
Fuses and Circuit BreakersFuses (conventional and high current) and circuit
breakers protect your vehicle's wiring system from
overloading. If electrical parts in your vehicle are
not working, the system may have been overloaded
and blown a fuse or tripped a circuit breaker.
Before you replace or repair any electrical parts,
check the appropriate fuses (conventional and high
current) or circuit breakers.
The following charts tell you which fuses or circuit
breakers protect the wiring for each electrical part
of your vehicle. If a fuse blows or a circuit breaker
opens a circuit,allthe parts of your vehicle that
use that circuit will not work.
Once you have determined which fuses or circuit
breakers to check, follow the procedures under
Checking and replacing fusesorChecking and
replacing circuit breakersin this chapter.
File:10fnert.ex
Update:Thu Jun 20 15:16:36 1996

185
The Instrument Panel Fuses, Circuit Breakers and Relays
File:10fnert.ex
Update:Thu Jun 20 15:16:36 1996

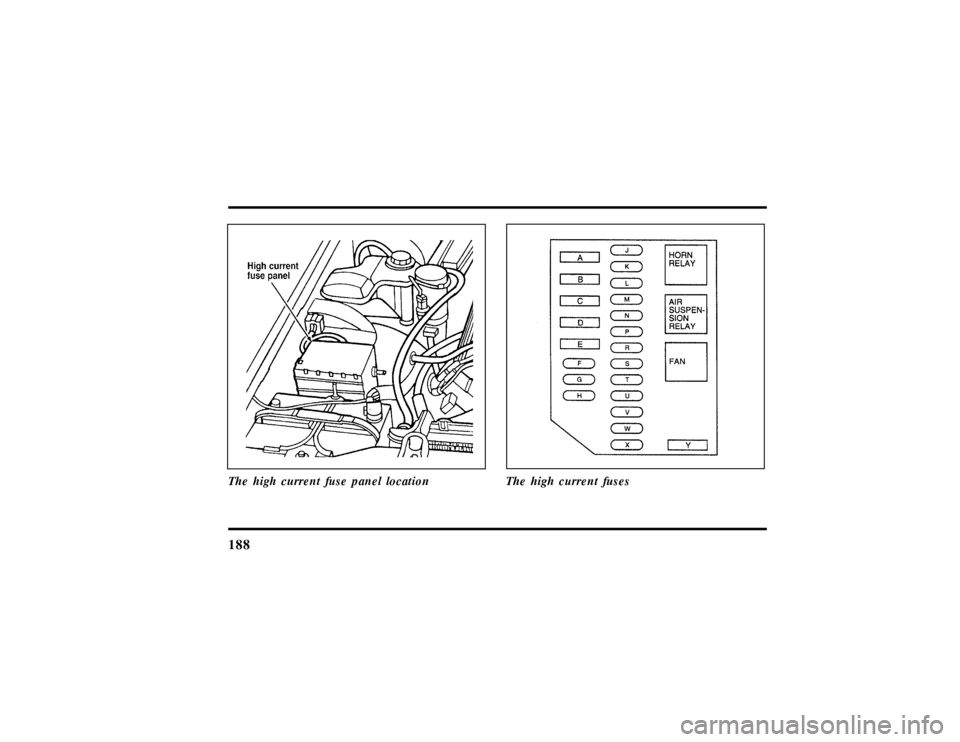

188The high current fuse panel location
The high current fuses
File:10fnert.ex
Update:Thu Jun 20 15:16:36 1996

189

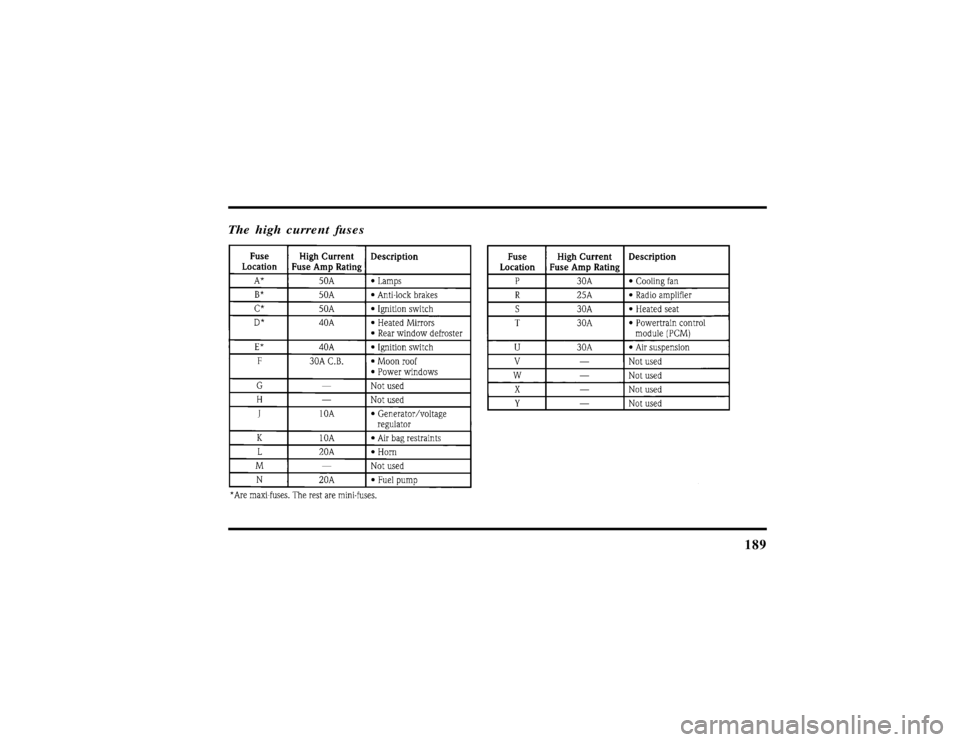

The high current fuses
File:10fnert.ex
Update:Thu Jun 20 15:16:36 1996

190Checking and Replacing FusesIf you need to check a fuse, follow these steps:
1. Find the fuse panel to the left of the steering
column in the instrument panel.
2. Find the fuse you want to check (fuses are
numbered on the fuse panel) and remove it
with the fuse pulling tool that is provided.
3. Check the fuse to see if it is blown. Look
through the clear side of the fuse to see if the
metal wire inside is separated. If it is, the fuse

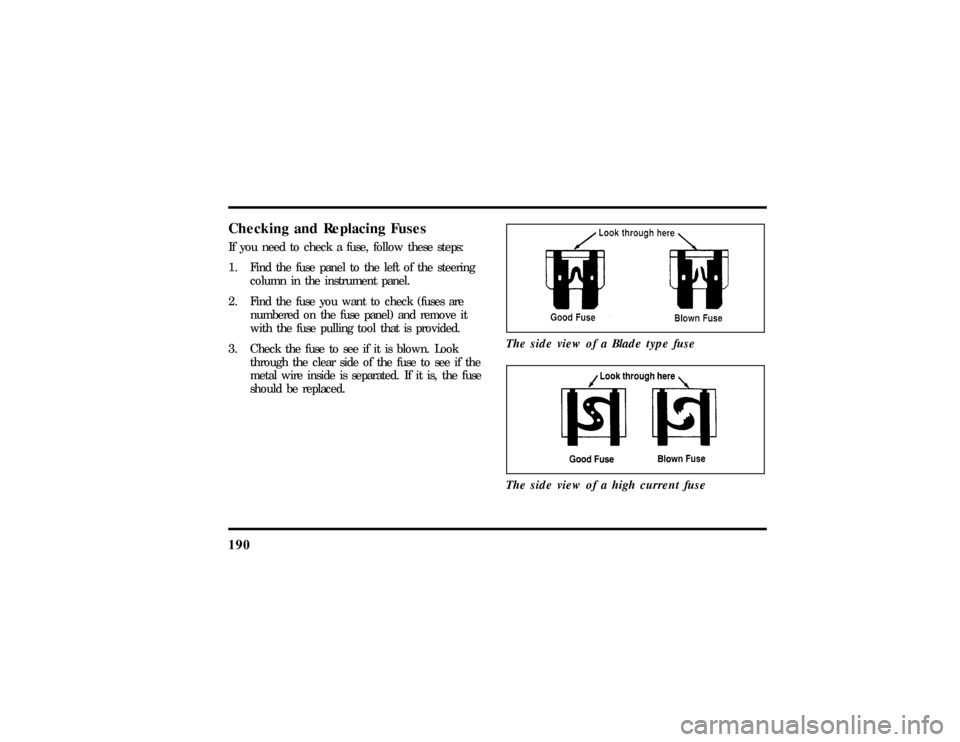

should be replaced.The side view of a Blade type fuse
The side view of a high current fuse
File:10fnert.ex
Update:Thu Jun 20 15:16:36 1996

212Use only recommended fuels, lubricants, fluids, and
service parts conforming to Ford specifications.
Motorcraft parts are designed and built to provide
the best performance in your vehicle. Using these
parts for replacement is your assurance that
Ford-built quality stays in your vehicle.
NOTE:Always dispose of used automotive fluids in
a responsible manner. Follow your community's
standards for disposing of these types of fluids. Call
your local recycling center to find out about
recycling automotive fluids.Accident DamageShould your vehicle suffer accident damage
requiring new sheet metal or plastic replacement
parts, be sure your repair shop uses only genuine
Ford replacement parts.
While imitation body parts may appear similar to
genuine Ford parts on the surface, differences in
quality become obvious when both are subjected to
standard Ford quality tests.Ford tests indicate that you should be concerned
with the quality of the fit and finish, corrosion
resistance and structural integrity of these imitation
replacement parts, and how their use will affect
your warranty.
How Can You Protect Yourself?Beforeany repair work begins, tell your adjuster
that you want your vehicle repaired usingonly
genuine Ford body parts. If the adjuster refuses,
contact your insurance agent for help. If your agent
and your insurance company refuse to repair your
vehicle with original factory parts, you should
contact your state insurance commissioner, the
National Highway Traffic Safety Administration or a
local consumer protection agency.
In Canada, contact provincial insurance
commissioners, Transport Canada or local consumer
protection groups.
File:11fnmct.ex
Update:Mon Jun 17 13:54:56 1996

300Driving under special conditions
heavy load............. 177
towing a trailer........... 179
E
Electrical system
circuit breakers........... 191
fuses................ 190
power point outlet.......... 73
Electronic sound system
antenna............... 40
tuning the radio........... 36
warranty and service information.... 53
Electronic stereo cassette radio
(see Electronic sound system)..... 35
Electronic stereo radio (see Electronic
sound system)............ 35
Emergencies, roadside
fuel................ 243
jump-starting............ 204
towing............... 209Emergency brake (parking brake)..... 168
Emission control system......... 246
catalytic converter.......... 246
emissions warranty........ 3,246
Engine
check engine warning light...... 14
does not start.........163, 181
fuel injected engine, starting...... 161
fuel pump shut-off switch....... 181
preparing to start........... 161
refill capacities............ 258
service points............ 216
starting............... 162
starting after a collision........ 181
storing your vehicle......... 260
Engine block heater........... 164
File:fnixt.ex
Update:Mon Jun 17 13:58:01 1996

302Fuel
calculating fuel economy....... 244
capacity............... 258
choosing the right fuel........ 240
comparisons with EPA fuel
economy estimates......... 244
filling your vehicle with fuel...... 239
filter, specifications.......... 257
fuel filler door release lever...... 239
fuel gauge.............. 17
octane rating............ 241
quality............... 241
running out of fuel.......... 243
safety information relating to
automotive fuels.......... 242
storing your vehicle......... 261
treating emergencies......... 242
Fuel cap
removing.............. 239
replacing.............. 239Fuel filler door
remote release............ 239
Fuel filter, specifications......... 257
Fuel gauge............... 17
Fuel pump shut-off switch
engine does not start......... 181
starting after a collision........ 181
Fuse panels
engine compartment......... 187
instrument panel........... 190
Fuses
charts............185, 190
checking and replacing........ 190
circuit breakers........... 191
G
Gas cap (see Fuel cap).......... 239
Gas mileage (see Fuel economy)..... 244
Gasoline (see Fuel)........... 239
Gauges, Electronic
charging system gauge........ 15
engine coolant temperature gauge . . . 10
fuel gauge.............. 17
