1997 ISUZU TFS SERIES relay

5-56 BRAKES
PARKING BRAKE (STEM TYPE)
REMOVAL AND INSTALLATION
PARKING BRAKE STEM ASSEMBLY (LEFT HAND DRIVE MODEL)
Removal Steps
1. Cable front, relay lever side
2. Bolt ; bracket to dash
3. Bolt ; bracket to cross beam
4. Parking brake stem assembly
Installation Steps
To install, follow the removal procedure in
reverse order.

BRAKES 5-57
PARKING BRAKE STEM ASSEMBLY (RIGHT HAND DRIVE MODEL)
Removal Steps
1. Bolt and nut
2. Collar
3. Roller
4. Cable front, relay lever side
5. Nuts ; bracket to dash
6. Bolt ; bracket to cross beam
7. Parking brake stem assembly
8. Nuts
9. Bracket ; roller
Installation Steps
To install, follow the removal procedure in
reverse order.
Before installation, apply chassis grease to the
roller (3)'s contact surface to the collar (2) and
cable (4).

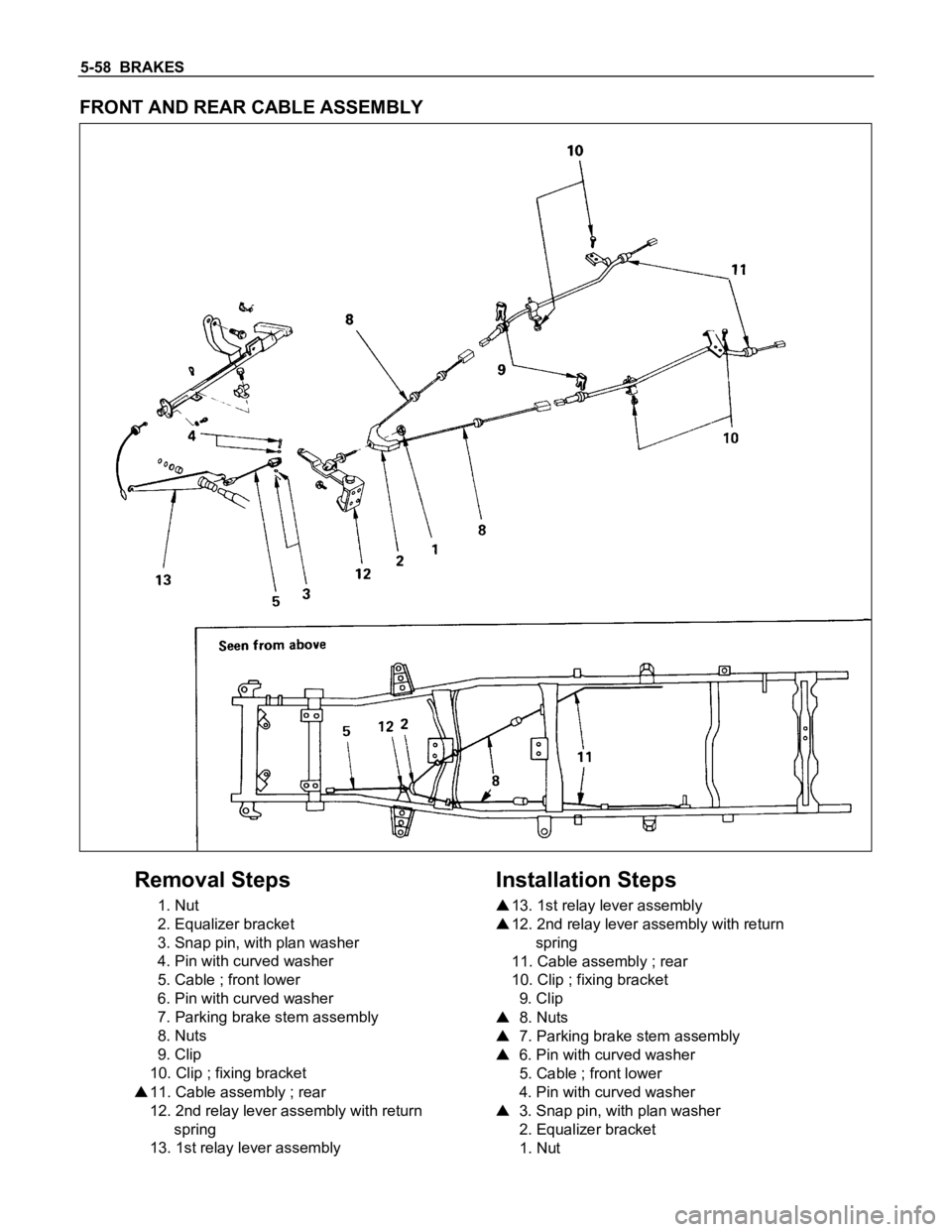

5-58 BRAKES
FRONT AND REAR CABLE ASSEMBLY
Removal Steps
1. Nut
2. Equalizer bracket
3. Snap pin, with plan washer
4. Pin with curved washer
5. Cable ; front lower
6. Pin with curved washer
7. Parking brake stem assembly
8. Nuts
9. Clip
10. Clip ; fixing bracket
11. Cable assembly ; rear
12. 2nd relay lever assembly with return
spring
13. 1st relay lever assembly
Installation Steps
13. 1st relay lever assembly
12. 2nd relay lever assembly with return
spring
11. Cable assembly ; rear
10. Clip ; fixing bracket
9. Clip
8. Nuts
7. Parking brake stem assembly
6. Pin with curved washer
5. Cable ; front lower
4. Pin with curved washer
3. Snap pin, with plan washer
2. Equalizer bracket
1. Nut

BRAKES 5-59
Important Operations - Removal
11.Cable Assembly ; Rear
When abrasion or wear is evident on edge protector, in must
be replaced with new one.
Important Operations - Installation
13.1st Relay Lever Assembly
Apply grease (BESCO L-2 or equivalent) to the inner and outer
surface of the bushes and cable connecting portions.
12.2nd Relay Lever Assembly with Return Spring
Apply grease (BESCO L-2 or equivalent) to the arrowed portion
in the left figure.
8. Intermediate Cable
After applying grease (BESCO L-2 or equivalent) to the cable
guide, set it to the bracket by striking lightly with a mallet.
