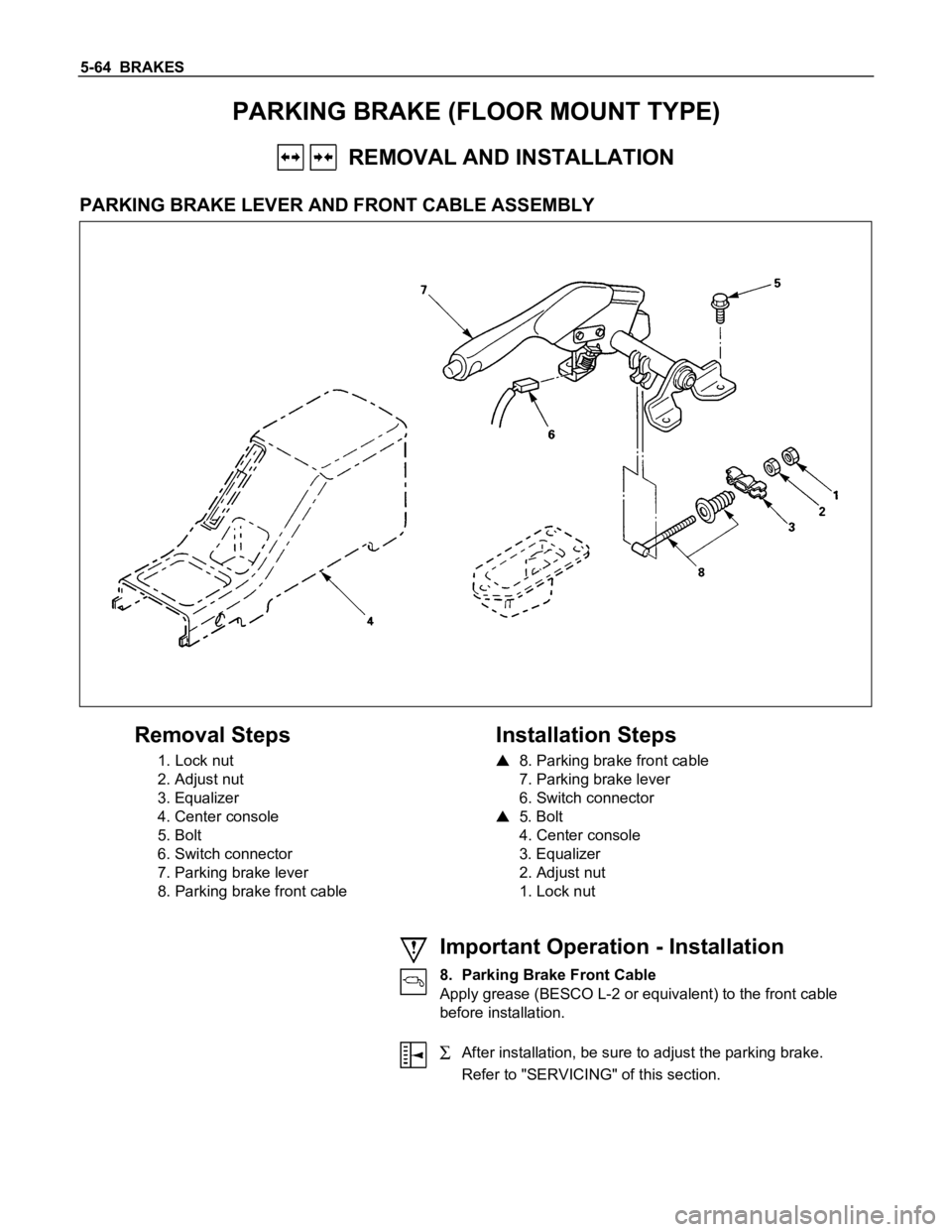

PARKING BRAKE (FLOOR MOUNT TYPE)
REMOVAL AND INSTALLATION
PARKING BRAKE LEVER AND FRONT CABLE ASSEMBLY
Removal Steps
1. Lock nut
2. Adjust nut
3. Equalizer
4. Center console
5. Bolt
6. Switch connector
7. Parking brake lever
8. Parking brake front cable
Installation Steps
8. Parking brake front cable
7. Parking brake lever
6. Switch connector
5. Bolt
4. Center console
3. Equalizer
2. Adjust nut
1. Lock nut
Important Operation - Installation
8. Parking Brake Front Cable
Apply grease (BESCO L-2 or equivalent) to the front cable
before installation.
After installation, be sure to adjust the parking brake.
Refer to "SERVICING" of this section.

10-26 CAB
INSTRUMENT PANEL
REMOVAL
2 9
6
715 1013 81211
4
3
Disassembly Steps
1. Center console assembly
2. ECM cover (M/T Remote only)
3. Glove box
4. Glove box cover
5. Instrument panel passenger lower cover
assembly
6. Instrument panel driver lower cover
assembly
7. Lower cluster assembly
8. Meter cluster assembly
9. Instrument panel lower center cover
assembly
10. Control lever assembly
11. Instrument panel assembly
12. Meter assembly
13. Radio assembly

CAB 10-27
Important Operations
1. Center Console Assembly
Remove shift knob and 2 fixing screws (front side).
Open the grommet and remove 2 fixing screws (rear
side).
2. ECM cover
3. Glove Box
Remove 2 fixing screws and pulling the handle.
4. Glove Box Cover
Remove 4 fixing screws and pull the cover toward you
and remove the clips at 2 positions.
5. Instrument Panel Passenger Lower Cover Assembly
Remove 3 fixing screws and 1 clip.
6. Instrument Panel Driver Lower Cover Assembly
Remove the engine hood opener 2 fixing screws and 6
fixing screws.
Disconnect the connector of the illumination.
7. Lower Cluster Assembly
Remove 3 fixing clips.
8. Meter Cluster Assembly
Remove 3 fixing screws, 7 clips and switch connectors.
9. Instrument Panel Lower Center Cover Assembly
Remove 7 fixing screws and disconnect the connector of
the cigarette lighter.

CAB 10-29
INSTALLATION
12
Installation Steps
1. Radio assembly
2. Meter assembly
3. Instrument panel assembly
4. Control lever assembly
5. Instrument panel lower center cover
assembly
6. Meter cluster assembly7. Lower cluster assembly
8. Instrument panel driver lower cover
assembly
9. Instrument panel passenger lower cover
assembly
10. Glove box cover
11. Glove box
12. ECM cover (M/T Remote only)
13. Center console assembly

CAB 10-31
CONSOLE BOX
REMOVAL AND INSTALLATION
6 51 2 4
3
44 S Model
Removal Steps
1. Hole cover 2
2. Screw
2
3. Screw
2
4. Center console
5. Screw
4
6. Rear console
Installation Steps
6. Rear console
5. Screw
4
4. Center console
3. Screw
2
2. Screw
2
1. Hole cover
2

10-32 CAB
CONSOLE BOX
REMOVAL AND INSTALLATION
4 5
3
2 1
4
2 LS Model 44 LS Model
42 LS AND 44 LS Model
Removal Steps
1. Screw 4
2. Rear console
3. Screw
2
4. Screw
2
5. Center console
Installation Steps
5. Center console
4. Screw
2
3. Screw
2
2. Rear console
1. Screw
4
