1997 GMC JIMMY mirror

Front Map Lamps (If Equipped)
If your vehicle has optional front rmp lamps, they
are located on the inside rearview mirror. They
will
automatically come on for approximately 20 seconds
when either front door is opened or unlocked with
the
Keyless Entry System, if so equipped, or until the
ignition key is turned to RUN or ACCESSORY. The
lamps
will also stay on for approxinlately 15 seconds
after you exit the vehicle.
They
will also stay on for I5 seconds when the INT
LIGHTS switch on the instrument panel is turned on
then off, while the ignition is off.
You can also turn the lamps on and off by pressing the
switch near each lamp.
Dome Lamps
The rear dome lamp has a switch that lets you turn it on
from the rear of the vehicle.
Press the side
of the switch with the lamp symbol to turn
on the front and rear dome lamps. Pressing the other side
of the swirch
will turn the cargo area dome lamp off,
even when the endgate or liftgate and doors are open.
2-48

Press the tab under the mirror to reduce glare from
headlamps behind
you.
Outside Manual Adjust Mirror
Adjust your outside mirrors so you can just see the side
of your vehicle.
You can fold them before entering a car wash. Pull the
mirrors in toward the vehicle. Push the mirrors back out
when finished.
Power Remote Control Mirror
The control is located on the
driver’s door armrest.
Turn
the control to L or R to
choose the mirror, then
press the arrows on the
outside switch ring to adjust
the mirror.
2-49

Convex Outside Mirror
Your passenger's side mirror is convex. A convex
mirror's surface
is curved so you can see more frorn the
driver's seat.
A CAUTION:
A convex mirror can make things (like other
vehicles)
look farther away than they really are.
If you cut too sharply into the right lane,
you
could hit a vehicle on your right. Check your
inside mirror
or glance over your shoulder before
changing lanes.
Storage Compartments
Glove Box
To open your glove box: squeeze the lever at the top of
the glove box and lower the door. Two cup depressions
are provided
for your convenience, but the glove box
should not be open while driving.
Overhead Console (If Equipped)
The overhead console includes reading lamps, a
compartment
for a garage door opener. a temperature
and compass display and
a storage compartment
for
sunglasses.
2-50

I NOTICE:
Don’t put papers and other things that burn into
your ashtray.
If you do, cigarettes or other
smoking materials could set them on
fire
causing damage.
To remove the front ashtray, lift the release tab as high
as possible, then remove the tray.
Four-door vehicles have smaller ashtrays inside the rear
doors. Press
PUSH to turn the ashtray around for use.
Sun Visors
To block out glare, you can swing down the top and
bottom visors.
You can also swing the bottom visor from
side to side. Your visors may have
an extension that can
be pulled out for additional glare protection
and a strap
for holding small items, such as
maps.
Visor Vanity Mirror
Pull the sun visor down and lift the cover to expose the
vanity mirror.
Illuminated Visor Vanity Mirror
(If Equipped)
Pull the sun visor down and lift the mirror cover to turn
on the lamps.
2-62

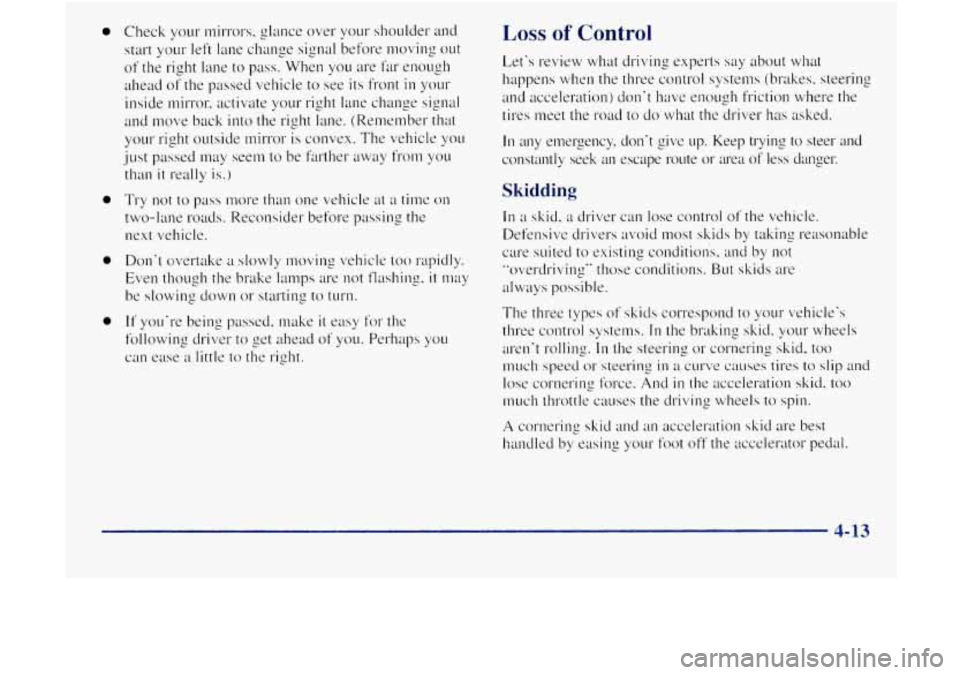

0 Check your mirrors. glat~ce over your shoulder and
start your left lane change signal before moving out
of the right lane to pass. When you are
far enough
ahead
of the passed vehicle to see its front in yo~~r
inside mirror. acti\;ate your right lane change signal
and move
back into the right lane. (Remember that
your right outside mirror is convex. The vehicle you
just passed
may seem to be farther away f'rom you
than it really is.)
a Try not to pass more than one vehicle at a time on
two-lane roads. Reconsider before passing the
next vehicle.
Loss of Control
Let's re\:iew what driving experts say about what
happens when the three control systems
(brakes. steering
;MI accelerution) don't ha\^ enough friction where the
tires meet the road
to do what the driver has asked.
In any emergency. don't give up. Keep trying to steer a.nd
constantly seek an escape route
or area of less danger.
Skidding
4-13

If your vehicle starts to slide, ease your foot off the
accelerator pedal and quickly steer the way you want the
vehicle
to go. If you start steering quickly enough, your
vehicle may straighten out. Always be ready for
a
second skid if il occurs.
Of course, traction is reduced when water. snow, ice,
gravel or other material is
on the road. For safety. you'll
want to slow down
and adjust your driving to these
conditions.
It is important to slow down on slippery
surfaces because stopping distance will be longer
and
vehicle control more lilnited.
While driving
on a surface with reduced traction. try
your best to avoid sudden steering, acceleration
or
braking (inclucling engine braking by shifting to a lower
gear).
Any sudden changes could cause the tircs lo slide.
You may not realize the surface is slippery until yo11r
vehicle is skidding. Learn to recognize warning
clues
-- such as enough water. ice or packed snow on
the road to make a "mirrored surface" -- and slow down
when you
have any doubt.
Remember:
Any anti-lock brake system (ABS) helps
avoid only the braking skid.
Driving Guidelines
This multipurpose passenger vehicle is defined as a utility
vehicle in Consumer Information Regulations issued by
the National Highway Traffic Safety Administration (NHTSA)
of the United States Department of
Transportation.
Utility vehicles have higher ground
clearance
and a narrower track to make them capable of
performing
in a wide variety of off-road applications.
Specific design characteristics give them
a higher center of
gravity than ordinary cars. An advantage of the higher
ground clearance is
a better view of the road allowing yo11
to anticipate problems. They are not designed for
cornering at the same speeds
as conventional
two-wheel-drive vehicles any more than low-slung sports cars are dcsigned
to perform satisfactorily under off-road
conditions.
If at all possible. avoid shalp turns or abrupt
manewers. As with other vehicles
of this type. failure to
operate this vehicle correctly may result
in loss of control
or vehicle rollover.
4-14

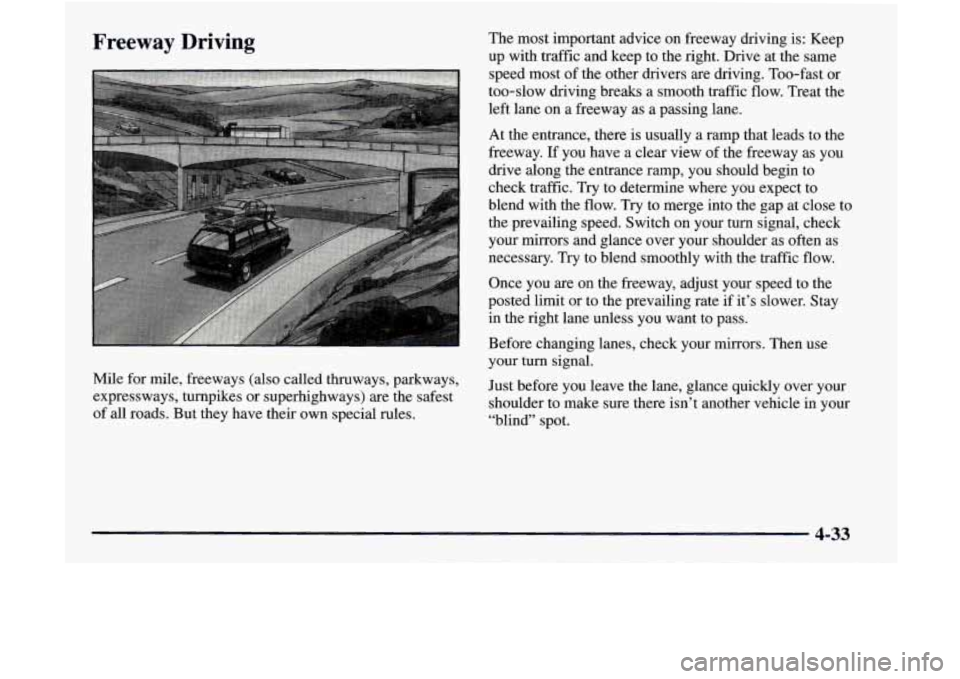

Freeway Driving
Mile for mile, freeways (also called thruways, parkways,
expressways, turnpikes or superhighways) are the safest of all roads. But they have their own special rules. The
most important advice on freeway driving is: Keep
up with traffic and keep to the right. Drive at the same
speed most of the other drivers are driving. Too-fast or
too-slow driving breaks a smooth traffic flow. Treat the
left lane
on a freeway as a passing lane.
At the entrance, there is usually a ramp that leads to the
freeway. If you have a clear view
of the freeway as you
drive along the entrance ramp, you should begin to
check traffic. Try to determine where you expect to
blend with the flow. Try to merge into the gap at close to
the prevailing speed. Switch on your
turn signal, check
your mirrors and glance over your shoulder as often as
necessary. Try to blend smoothly with the traffic flow.
Once you are on the freeway, adjust your speed to the
posted limit or to the prevailing rate if it’s slower. Stay
in the right lane unless you want to pass.
Before changing lanes, check your mirrors. Then use
your turn signal.
Just before you leave the lane, glance quickly over your
shoulder to make sure there isn’t another vehicle in your
“blind” spot.
4-33

Highway Hypnosis
Is there actually such a condition as "highway hypnosis'"?
Or is
it just plain falling asleep at the wheel'? Call it
highway hypnosis, lack of awareness, or whatever.
There
is something about an easy stretch of road with
the same scenery, along with the hum of the tires on the
road, the drone of the engine. and the rush of the wind
against the vehicle that can make you sleepy. Don't let
it
happen to you! If it does, your vehicle can leave the
road
in less than cf soc-ond, and you could crash and
be injured.
What can you
do about highway
aware that
it can happen.
Then here are some tips:
0 Make sure your vehicle is we1
comfortably cool interior. 1ypmsis'?
First. be
0
0
I ventilated. with a
Keep your eyes moving. Scan the road ahead and
to the sides. Check your mirrors and your
instruments frequently.
If you get sleepy, pull off the road into a rest. service
or parking area and take
a nap, get some exercise, or
both.
For safety, treat drowsiness on the highway as
an emergency.
Hill and Mountain Roads
Driving on steep hills or nlountains is different from
driving
in flat or rolling terrain.
If you drive regularly in steep country, or if you're
planning
to visit there, here are some tips that can make
your trips safer
and more enjoyable. (See "Off-Road
Driving"
in the Index for information about driving
off-road.
)
4-35
