1997 FORD WINDSTAR engine

246
%*
[GF21500(ALL)01/96]
Towing a Trailer
*
[GF21600(ALL)01/96]
Towing a trailer puts an additional load on your vehicle's
engine, transaxle, axle, brakes, tires and suspension. For your
safety and for the good of your vehicle, use the right equipment
for the type of trailer you tow.
*
[GF21700(ALL)01/96]
n
Stay within the load limits when you tow.
*
[GF21800(ALL)01/96]
n
Carefully and thoroughly prepare your vehicle for towing,
making sure to use the right equipment and to attach it
properly. SeePreparing to Towin this section.
*
[GF21900(ALL)01/96]
n
Use extra caution when driving your vehicle while you tow.
SeeDriving While You Towin this section.
*
[GF22000(ALL)01/96]
n
Service your vehicle more frequently if you tow a trailer. See
Servicing Your Vehicle if You Towin this section.
*
[GF22100(ALL)01/96]
Do not tow a trailer until your vehicle has been driven at least
500 miles (800 km).
File:09wngfs.ex
Update:Thu Jul 18 11:01:42 1996

247
Roadside Emergencies
*
[ER00200(ALL)01/96]
The hazard flasher is used to alert other drivers to hazardous
situations.
*
[ER00300(ALL)01/96]
The hazard flasher switch operates the same lamps as the turn
signal lever. When the hazard flasher is activated, all of these
lamps will flash on and off. The turn signal indicators cannot be
used when the hazard lamps are flashing. Operation of the
hazard flashers does not affect operation of the brakelamps.
*
[ER00400(ALL)01/96]
The flashers work even with the key out of the ignition. The
flashers will work for up to two hours when the battery is fully
charged and in good condition. They will not drain the battery
excessively. If the flashers run for longer than two hours or if
your battery is not fully charged, your battery may be drained
to the point where the vehicle will not start.
%*
[ER00500(ALL)01/96]
What To Do If The Engine Does Not Start
%*
[ER00600(ALL)01/96]
Fuel Pump Shut-Off Switch
*
[ER00700(ALL)03/96]
If the engine cranks but does not start or does not start even
after a small collision, the fuel pump shut-off switch may have
been activated. The shut-off switch is a device intended to stop
the fuel pump when your vehicle has been involved in a
substantial jolt.
*
[ER00800(ALL)03/96]
Once the shut-off switch is activated, you must reset the switch
by hand before you can start your vehicle.
[ER00900(ALL)12/95]
The fuel pump shut-off switch reset button is located behind the
jack access cover under the jack in the cargo compartment.
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996

256
%*
[ER04100(ALL)01/96]
Engine Compartment Main Fuse Panel
[ER04200(ALL)01/96]
17-1/2 pica
art:0050039-B
Engine compartment main fuse panel located on driver's side of engine
compartment
[ER04300(ALL)01/96]
10-1/2 pica
art:0050114-C
Engine compartment main fuse and relay panel
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996

Roadside Emergencies
277
[ER14500(ALL)01/96]
After you connect the jumper cables to the batteries:
[ER14600(ALL)04/96]1.
Make sure that the jumper cables are not in the way of
moving engine parts, then start the vehicle that has the
booster battery. Run the engine at a moderate speed.
[ER14700(ALL)01/96]2.
Let the dead battery charge for a few minutes and then start
the vehicle that has the dead battery. If the starter does not
crank, check for good, solid jumper cable clamp attachments.
It may take a couple of tries before your vehicle starts. If
your vehicle does not start after several attempts, you may
have a different mechanical problem.
[ER14800(ALL)04/96]3.
When both vehicles are running, let them idle for a few
minutes to charge the dead battery.
% [ER14900(ALL)01/96]
Take the jumper cables off in the following order:
[ER15000(ALL)01/96]1.
Remove the negative (s) end of the jumper cable from the
metallic surface in the engine compartment of the vehicle
that needed a jump-start.
[ER15100(ALL)04/96]2.
Remove the other end of the negative (s) cable from the
booster battery.
*
[ER15200(ALL)02/96]3.
Remove the positive (+) cable from the booster battery.
[ER15300(ALL)04/96]4.
Remove the other end of the positive (+) cable from the
vehicle that needed a jump-start.
% [ER15400(ALL)01/96]
After your vehicle is started, let it idle for a while to let the
engine ªrelearnº its idle conditions and drive it around for a
little while with all electrical accessories turned off, to let the
battery recharge.You may need to use a battery charger to
fully recharge the battery.
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996

279
Maintenance and Care
*
[MC00200(ALL)01/96]
How Ford Makes Servicing Your Vehicle
Easy
*
[MC00300(ALL)01/96]
Ford has two goals for servicing your vehicle.
*
[MC00400(ALL)01/96]1.
When we can, we design parts that do not need to be
serviced.
*
[MC00500(ALL)01/96]2.
We want to make servicing your vehicle as easy as possible.
To help you:
*
[MC00600(ALL)01/96]
n
We highlight do-it-yourself items in yellow in your engine
compartment so that you can find them easily.
*
[MC00700(ALL)03/96]
n
When possible, we design parts that can be replaced without
tools.
[MC00800(ALL)07/96]
n
We give you aMaintenance Schedulebooklet that makes
tracking routine service for your vehicle easy.
*
[MC00900(ALL)01/96]
This chapter tells you about the basic parts that you need to
check and service regularly.
[MC01000(ALL)01/96]
If you need professional servicing, see the chapter onCustomer
Assistancein this Owner Guide.
[MC01100(ALL)01/96]
Check yourWarranty InformationBooklet to find out which parts
are covered.
%*
[MC01200(ALL)01/96]
Precautions When Servicing Your Vehicle
*
[MC01300(ALL)01/96]
Be especially careful when inspecting or servicing your vehicle.
Here are some general precautions for your safety:
[MC01400(ALL)04/96]
n
If you must work with the engine running, avoid wearing
loose clothing or jewelry that could get caught in moving
parts.
*
[MC01500(ALL)01/96]
n
Do not work on a vehicle in an enclosed space with the
engine running, unless you are sure you have enough
ventilation.
File:11wnmcs.ex
Update:Mon Jul 8 14:29:32 1996

Maintenance and Care
283
*
[MC03300(ALL)01/96]
To close the hood:
*
[MC03400(ALL)01/96]1.
Remove the prop rod from the slotted hole in the hood.
Place the rod in its retaining clip and close the hood with
enough force to make it latch. Be sure to oil the hood latch
every six months to maintain smooth operation.
*
[MC03500(ALL)01/96]2.
Try to lift the hood after closing it to be sure it is securely
latched.
%*
[MC03600(ALL)03/96]
Engine Compartment
[MC03700(ALL)01/96]
Your vehicle has a 3.0 liter SFI, V-6 engine or an optional 3.8
liter SFI, V-6 engine. The following illustrations show diagrams
of your engine and where you can find items you should
service regularly.
File:11wnmcs.ex
Update:Mon Jul 8 14:29:32 1996

284
[MC03800(ALL)01/96]
33-1/2 pica
art:0050234-B

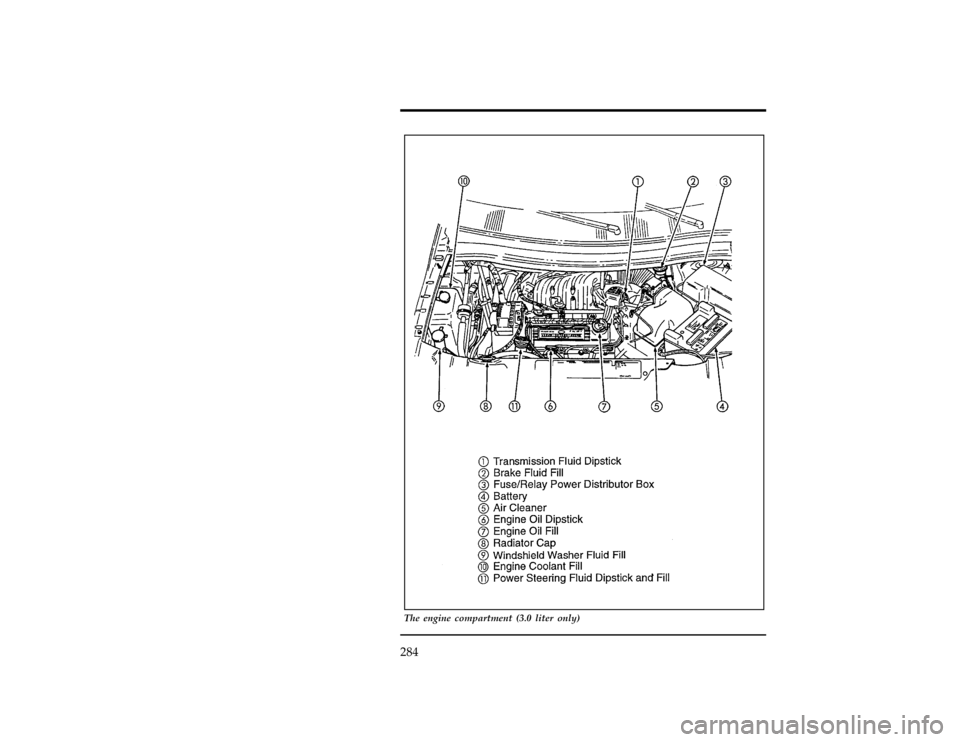

The engine compartment (3.0 liter only)
File:11wnmcs.ex
Update:Mon Jul 8 14:29:32 1996

Maintenance and Care
285
[MC03900(ALL)01/96]
33-1/2 pica
art:0050038-C

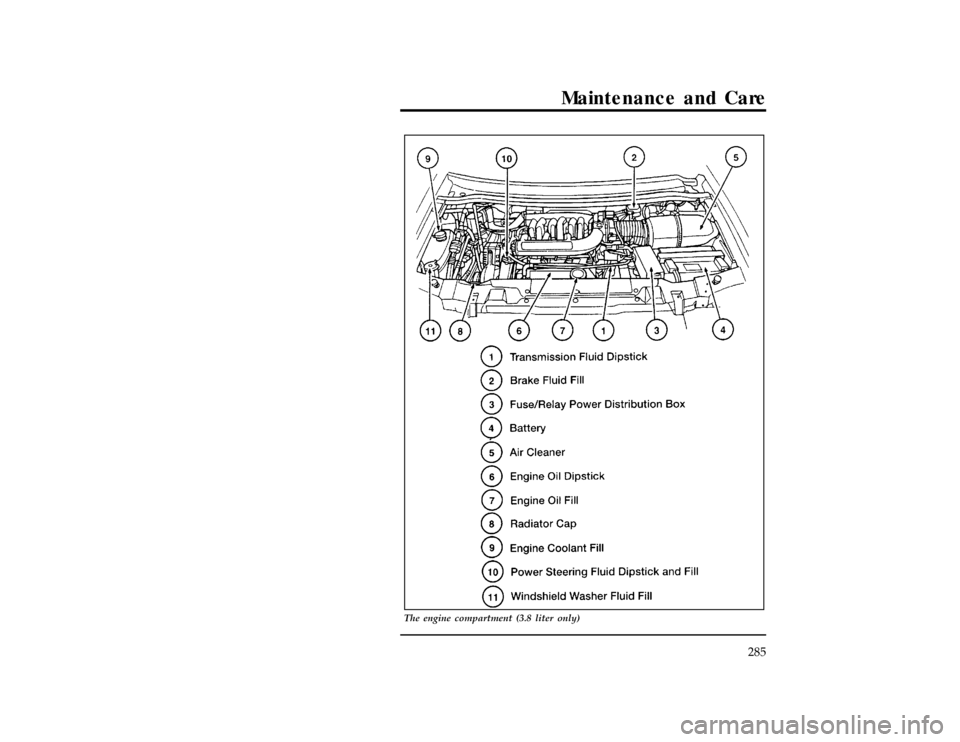

The engine compartment (3.8 liter only)
File:11wnmcs.ex
Update:Mon Jul 8 14:29:32 1996
