1997 FORD WINDSTAR engine

Instrumentation
35
% [IS18100(ALL)01/96]
AVERAGE ECONOMY
[IS18200(ALL)01/96]
Your average fuel economy is the average value of your fuel
economy since the last reset. To display your average fuel
economy, press SELECT until the pointer is at AVERAGE
ECONOMY. The fuel computer calculates average fuel economy
from the distance traveled and the fuel used (as reported by the
Electronic Engine Control module). Press the RESET button
when AVERAGE ECONOMY is selected to reset the average
fuel economy. You may want to use this feature to see how
your fuel economy changes each day or for each tank of fuel.
[IS18300(ALL)01/96]
If you calculate your fuel economy based on the odometer
distance traveled and the amount of fuel you pump into the
tank, your number may be different than the fuel computer
number for various reasons. Most likely, the top level of fuel
added may be different between fill-ups, causing an incorrect
estimate of the amount of fuel used.
% [IS18400(ALL)01/96]
DISTANCE TO EMPTY
[IS18500(ALL)01/96]
Your distance to empty is the approximate number of miles or
kilometers that you can drive before you run out of fuel. To
display your distance to empty, press SELECT until the pointer
is at DISTANCE TO EMPTY. The fuel computer calculates
distance to empty from the amount of fuel in the tank and an
internally determined fuel economy value, which is not the
same as the AVERAGE ECONOMY number. DISTANCE TO
EMPTY is not resettable. You may want to use this feature to
plan when your next fuel fill-up should be.
[IS18600(ALL)01/96]
Your distance to empty may change faster or slower than actual
distance traveled because your fuel economy varies with
changing driving conditions.
File:03wniss.ex
Update:Thu Jul 18 10:55:19 1996

Instrumentation
37
% [IS19200(ALL)01/96]
Auxiliary Warning Module (If equipped)
[IS19300(ALL)01/96]
An additional bank of indicator and warning lights is located
above the driver's side vent, just to the right of the steering
wheel. The light(s) located in this module are described and
illustrated below.
[IS19400(ALL)07/96]
13-1/2 pica
art:0050122-G

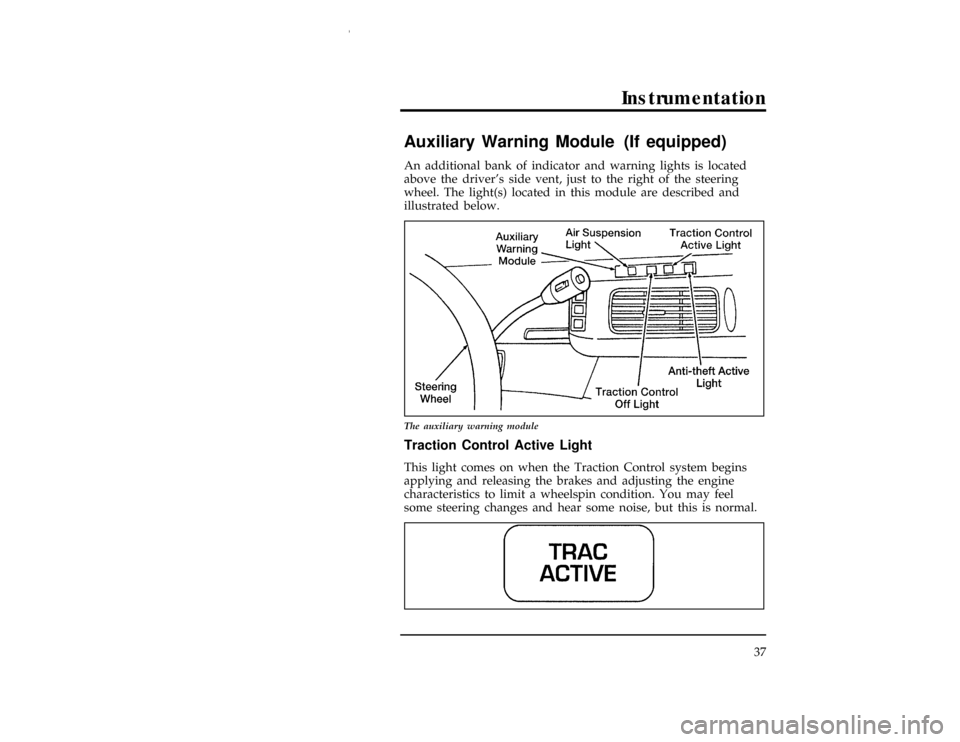

The auxiliary warning module
% [IS19500(ALL)01/96]
Traction Control Active Light
[IS19600(ALL)01/96]
This light comes on when the Traction Control system begins
applying and releasing the brakes and adjusting the engine
characteristics to limit a wheelspin condition. You may feel
some steering changes and hear some noise, but this is normal.
[IS19700(ALL)01/96]
one inch art:0050274-AFile:03wniss.ex
Update:Thu Jul 18 10:55:19 1996

86
[CF03100(ALL)01/96]
InV(DEFROST), most of the air is directed through the
defrosters and onto the windshield. A small amount is diverted
to the floor.
*
[CF03200(ALL)01/96]
Heater Controls (Heater-Only Vehicles)
[CF03300(ALL)01/96]
The fan speed, temperature, and function controls are essentially
the same as the A/C controls described previously with the
exception that the control assembly has no function settings for
MAX A/C and A/C and no A/C compressor operation is
provided in any of the function settings. An illustration of the
control for a heater-only system follows.
[CF03400(ALL)01/96]
10-1/2 pica
art:0050238-C
Climate control panel Ð Heater-Only System
*
[CF03500(ALL)04/96]
Turning On the Heat
[CF03600(ALL)01/96]
Heat will not be available until the engine has been running for
sufficient time as indicated by the engine coolant temperature
gauge.
*
[CF03700(ALL)01/96]
To heat the inside of your vehicle:
[CF03800(ALL)01/96]1.
Turn the Function Selector Knob toR(FLOOR). Outside
air is drawn in and directed into the passenger compartment
through the floor outlets. Small quantities of air are also
directed to the defrost and side window demist outlets.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
91
[CF07400(ALL)01/96]
When stopped in traffic for long periods of time in hot weather,
place the automatic transaxle gearshift selector lever in Park (P)
or in Neutral (N). This aids in engine cooling and air
conditioner efficiency. (If the engine overheats, turn the
Function Selector Knob toQ(PANEL) and turn the
Temperature Control Knob to WARM.)
*
[CF07500(ALL)01/96]
When your vehicle's engine is operated at full throttle, the air
conditioner compressor will automatically be turned off to allow
maximum engine power. This may occur during passing or
when climbing steep grades. The compressor will return to
normal operation within a few seconds after full throttle is no
longer needed.
[CF07600(ALL)01/96]
NOTE: The compressor will not operate when the outside
temperature is less than about45ÊF (7ÊC).
% [CF07700(ALL)01/96]
Rear Climate Control System (If equipped)
[CF07800(ALL)01/96]
If your vehicle is equipped with a rear climate control system,
the rear seat occupants can select their own personal fan speed
settings.
[CF07900(ALL)01/96]
The rear seat climate control system is controlled from the main
climate control system on the instrument panel. If the rear
passenger compartment climate control knob in the front climate
control panel is set in OFF, the fan in the rear seat climate
control system will also be off. If the knob is set in any of the
fan speed positions (Medium Low, Medium High, or High), air
will be discharged from the rear seat vents at the corresponding
speed. However, when the knob is set at REAR CTRL, rear seat
passengers can control their own fan speed.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
93
*
[CF08600(ALL)01/96]
Liftgate Window Features
%*
[CF08700(ALL)01/96]
Rear Window Defogger (If equipped)
*
[CF08800(ALL)01/96]
The defogger for the rear liftgate window clears frost, fog, or
thin ice from both the inside and outside of the rear window.
The defogger operates with the ignition in the ON position.
[CF08900(ALL)01/96]
The control switch is located on the instrument panel to the
right of the steering column and below the climate control
system.
[CF09000(ALL)01/96]
10-1/2 pica
art:0050036-B
The rear defogger switch
*
[CF09100(ALL)03/96]
To defrost the rear window:
*
[CF09200(ALL)03/96]1.
Clear any snow or ice from the rear window.
*
[CF09300(ALL)03/96]2.
Get in your vehicle and start the engine.
[CF09400(ALL)01/96]3.
Press the rear defogger switch.
[CF09500(ALL)01/96]
The defogger turns off automatically after 10 minutes. If the
window is not clear, turn the defogger on again. It will
automatically shut off anytime the engine is turned off or if the
switch is depressed a second time.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
97
*
[CF11500(ALL)03/96]
The fog lamps act as a supplement to the low beam headlamps
under limited visibility conditions such as rain, snow, dust or
fog and operate only when the low beam headlamps are on.
*
[CF11600(ALL)03/96]
To maximize fog lamp bulb life, it is recommended that the fog
lamp switch be turned off after each use prior to turning off the
headlamps.
[CF11700(ALL)01/96]
n
To turn the fog lamps on, push the switch. An indicator light
will glow when the lamps are on.
*
[CF11800(ALL)03/96]
n
To turn off, push the switch again.
%*
[CF11900(ALL)03/96]
ªHeadlamps Onº Alert Chime
[CF12000(ALL)01/96]
The ªheadlamps onº alert chime acts as an indicator that you
have left the headlamps or parking lights on. This continuous
chime will activate when the following conditions are present:
[CF12100(ALL)01/96]
n
The headlamp and/or parking lamps are on
[CF12200(ALL)01/96]
n
There is no key in the ignition
[CF12300(ALL)01/96]
n
The driver's door is ajar (open)
%*
[CF12400(ALL)01/96]
Daytime Running Light (DRL) System
(Canadian vehicles only)
*
[CF12500(ALL)01/96]
The Daytime Running Light (DRL) system is designed to turn
the high beam headlamps on, with a reduced light output and
without illuminating the high beam indicator lamp in the
instrument panel. The DRL system operates when all of the
following conditions are met:
*
[CF12600(ALL)01/96]
n
the vehicle is ªrunningº
*
[CF12700(ALL)02/96]
n
the vehicle has a fully released parking brake
*
[CF12800(ALL)01/96]
n
the headlamp system is in the OFF position
*
[CF12900(ALL)01/96]
NOTE: You may notice that the lights flicker when the engine
is turned on or off. This is a normal condition.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

100
*
[CF14400(ALL)04/96]
NOTE: Do not place heavy objects in the cupholders.
*
[CF14500(ALL)05/96]
The controls on the steering column and wheel are designed to
give you easy access to the controls while you are driving.
*
[CF14600(ALL)01/96]
Ignition
%*
[CF14700(ALL)01/96]
Understanding the Positions of the Ignition
*
[CF14800(ALL)01/96]
13-1/2 pica
art:0040047-D

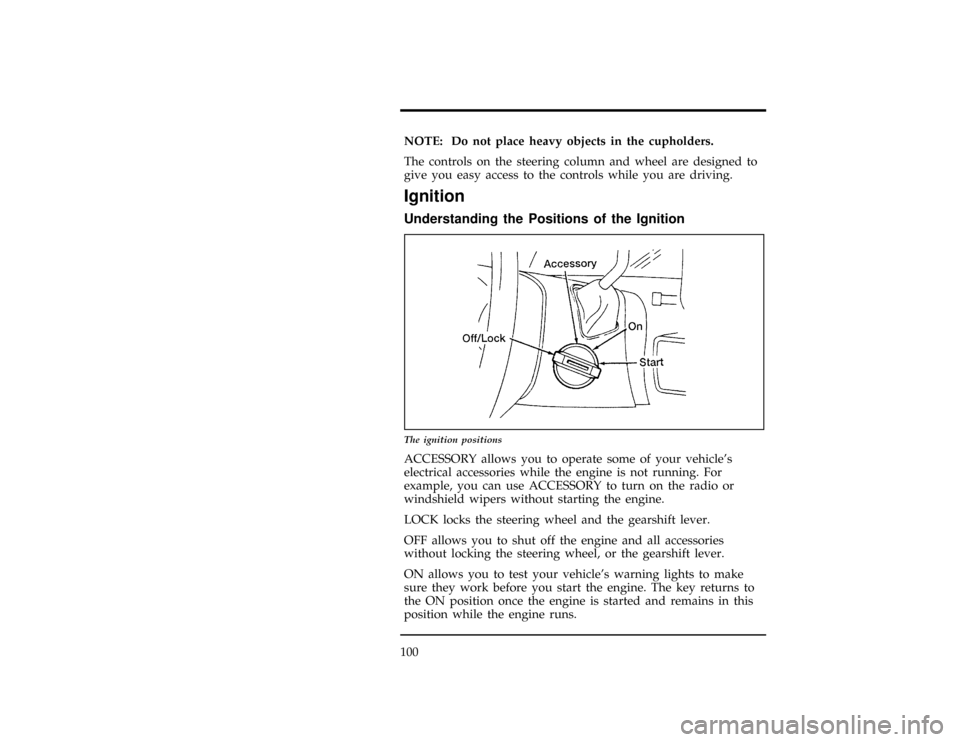

The ignition positions
% [CF14900(ALL)12/95]
ACCESSORY allows you to operate some of your vehicle's
electrical accessories while the engine is not running. For
example, you can use ACCESSORY to turn on the radio or
windshield wipers without starting the engine.
[CF15000(ALL)12/95]
LOCK locks the steering wheel and the gearshift lever.
*
[CF15100(ALL)06/96]
OFF allows you to shut off the engine and all accessories
without locking the steering wheel, or the gearshift lever.
*
[CF15200(ALL)01/96]
ON allows you to test your vehicle's warning lights to make
sure they work before you start the engine. The key returns to
the ON position once the engine is started and remains in this
position while the engine runs.
File:05wncfs.ex
Update:Wed Jul 31 15:55:37 1996

Controls and Features
101
[CF15300(ALL)12/95]
START cranks the engine. Release the key once the engine starts
so that you don't damage the starter. The key should return to
the ON position when you release it. The START position also
allows you to test the brake warning light.
%*
[CF15400(ALL)03/96]
Removing the Key From the Ignition
[CF15500(ALL)12/95]
LOCK is the only position that allows you to remove the key
from the ignition. The LOCK feature helps to protect your
vehicle from theft, because it also locks the steering wheel and
the gearshift lever when the key is removed.
%*
[CF15600(ALL)01/96]
If your key is stuck in the LOCK position, and you are unable
to turn it, move your steering wheel left or right until the key
turns freely.
*
[CF15700(ALL)01/96]
To remove your key from the ignition:
*
[CF15800(ALL)01/96]1.
Put the gearshift lever in P (Park).
*
[CF15900(ALL)01/96]2.
Set the parking brake fully.
*
[CF16000(ALL)06/96]3.
Turn the ignition key to LOCK.
*
[CF16100(ALL)03/96]4.
Remove the key.
*
[CF16200(ALL)01/96]
RWARNING
When you leave your vehicle, place the gearshift lever in
P (Park). Set the parking brake fully, and shut off the
engine. Never park your vehicle in N (Neutral). If you do
not take these precautions, your vehicle may move
suddenly and injure someone.
*
[CF16300(ALL)05/96]
RWARNING
Do not leave children, unreliable adults, or pets
unattended in your vehicle.
File:05wncfs.ex
