Seatingan dSafet yRestraints
201
WARNING
Whe nusin gforward-facin gchil dseat smov ethe
WARNING
If yo udo no tproperl ysecur eth esafet yseat ,th echild
WARNING
Carefull yfollo wallof th emanufacturer' sinstructions
WARNING
Alway skee pthebuckl ereleas ebutto npointin gupward

Seating and Safety Restraints
205
[SS30200(ALL)12/95]4.
Insert the belt into the proper buckle for that seating position
until you hear and feel the latch engage. See Figure 3. Make
sure the tongue is latched securely to buckle by pulling on
the tongue.
[SS30300(ALL)12/95]
17-1/2 pica
art:0050278-A
Buckling the belt
*
[SS30400(ALL)12/95]5.
Grasp the shoulder portion of the belt and pull downward
until all of the belt is extracted and a click is heard. At this
time, the retractor is in the automatic locking mode (child
restraint mode). See Figure 4.
[SS30500(ALL)12/95]
NOTE: The dual-locking mode retractor must be in the
automatic locking mode to properly restrain a child
seat.
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

Seating and Safety Restraints
209
[SS31000(ALL)12/95]7.

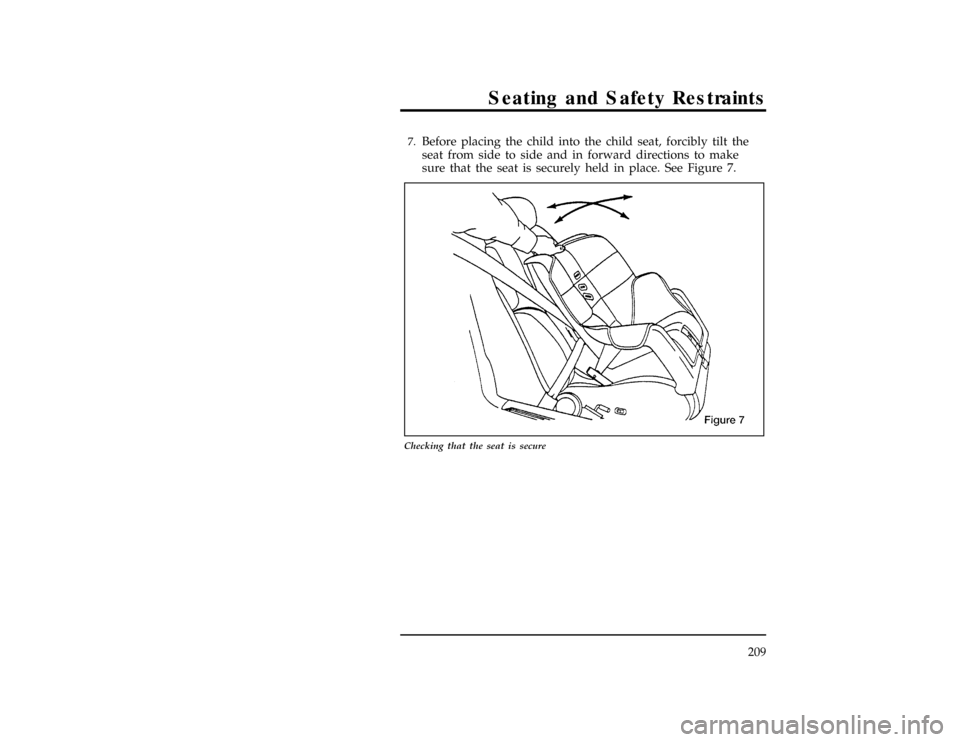

Before placing the child into the child seat, forcibly tilt the
seat from side to side and in forward directions to make
sure that the seat is securely held in place. See Figure 7.
[SS31100(ALL)12/95]
17-1/2 pica
art:0050282-A
Checking that the seat is secure
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

210
[SS31200(ALL)12/95]8.
Double check the retractor is in the automatic locking mode.
Try to pull more belt out of the retractor. If you cannot, the
belt is in the automatic locking mode. See Figure 8.
[SS31300(ALL)12/95]
17-1/2 pica
art:0050283-A
Checking the retractor
[SS31400(ALL)12/95]9.
Check to make sure that the seat is properly secured prior to
each use. If the retractor is not locked, repeat steps 6
through 8.
[SS31500(ALL)12/95]
NOTE: To remove retractor from the automatic lock mode,
allow seat belt to retract fully to its stowed position
and the retractor will automatically switch back to the
vehicle sensitive locking mode for normal adult usage.
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

Seating and Safety Restraints
211
*
[SS31600(ALL)05/96]
Installing a Child Safety Seat at the Center Seating
Position with Locking Adjustable Lap Belt
*
[SS31700(ALL)01/96]1.
Lengthen the lap belt. To lengthen the belt, hold the tongue
so that its bottom is perpendicular to the direction of
webbing while sliding the tongue up the webbing.
*
[SS31800(ALL)01/96]2.
Place the child safety seat in the center seating position.
*
[SS31900(ALL)01/96]3.
Route the tongue and webbing through the child seat
according to the child seat manufacturer's instructions.
*
[SS32000(ALL)01/96]4.
Insert the belt tongue into the proper buckle for the center
seating position until you hear a snap and feel it latch. Make
sure the tongue is securely fastened to the buckle by pulling
on tongue.
*
[SS32100(ALL)01/96]5.
Push down on the child seat while pulling on the loose end
of the lap belt webbing to tighten the belt.
[SS32200(ALL)12/95]6.
Before placing the child into the child seat, forcibly tilt the
child seat from side to side and in forward directions to
ensure that the seat is held securely in place. If the child seat
moves excessively, repeat steps 5 through 6 or properly
install the child seat in a different seating position.
%*
[SS32300(ALL)04/96]
Attaching Safety Seats With Tether Straps
*
[SS32400(ALL)04/96]
Some manufacturers make safety seats that include a tether
strap that goes over the back of the vehicle seat and attaches to
an anchoring point. Other manufacturers offer the tether strap
as an accessory. Contact the manufacturer of your child safety
seat for information about ordering a tether strap.
[SS32500(ALL)12/95]
You can attach a tether strap to the front passenger or second
row seats by using the built-in tether anchors provided on the
back of the seats as described below.
[SS32600(ALL)12/95]
Follow the child seat manufacturer's instructions to attach the
tether strap to the tether anchor.
File:06wnsss.ex
Update:Thu Jul 18 11:00:49 1996

242
[GF17500(ALL)12/95]
The rear cross-bar can be adjusted forward and backward. Place
your luggage between the bars, adjust the rear bar, and secure
the luggage with rope to the bars. Items carried on the roof
rack must be properly secured before driving your vehicle.
[GF17600(ALL)12/95]
10-1/2 pica
art:0050032-B
The adjustable cross-bar
%*
[GF17700(ALL)01/96]
Driving Under Special Conditions
%*
[GF17800(ALL)01/96]
Tips for Safe Driving
[GF17900(ALL)04/96]
As with any new vehicle, yours may drive and handle
differently from your previous vehicle. Use greater care until
you become accustomed to its features and driving
characteristics.
[GF18000(ALL)04/96]
Always operate your vehicle within reasonable limits. Abrupt
changes in acceleration, deceleration, turning, or combinations of
these maneuvers can cause a vehicle to behave differently than
anticipated, especially when road conditions vary.
[GF18100(ALL)04/96]
For example, even with anti-lock brakes, extreme braking can
make it difficult to control the direction of the vehicle. Use a
ªsqueezeº technique. Push on the brake pedal with steadily
increasing force. This allows the wheels to brake, yet continue to
roll so that you may steer in the direction you want to travel.
File:09wngfs.ex
Update:Thu Jul 18 11:01:42 1996

Roadside Emergencies
271
%*
[ER11000(ALL)01/96]
7-1/2 pica art:0040176-A
Lug nut tightening sequence
[ER11100(ALL)01/96]
The lug nuts should be tightened to 83-113 ft-lb (113-153 Nm).
*
[ER11200(ALL)01/96]13.
Replace the wheel cover by pressing it into place. If you
have the standard wheel covers, you must align the notch in
the wheel cover with the tire's valve stem and align the
recess in the back of the wheel cover with one of the lug
nuts. If you have the optional aluminum wheel, press the
center wheel cap into place after matching up the design of
the wheel cap to the wheel.
[ER11300(ALL)01/96]14.
Replace the jack in the storage compartment and make sure
the jack is securely fastened.
*
[ER11400(ALL)01/96]15.
Store the flat tire under the vehicle just as you would store
the spare tire. Refer to the section onStowing the Spare Tire
in this chapter.
[ER11500(ALL)01/96]16.
Unblock the wheels.
*
[ER11600(ALL)01/96]
Retighten the lug nuts to the specified torque at 500 miles
(800 km) of operation, after any wheel change, or any time the
lug nuts are loosened.
File:10wners.ex
Update:Tue Jul 9 12:14:55 1996

Maintenance and Care
283
*
[MC03300(ALL)01/96]
To close the hood:
*
[MC03400(ALL)01/96]1.
Remove the prop rod from the slotted hole in the hood.
Place the rod in its retaining clip and close the hood with
enough force to make it latch. Be sure to oil the hood latch
every six months to maintain smooth operation.
*
[MC03500(ALL)01/96]2.
Try to lift the hood after closing it to be sure it is securely
latched.
%*
[MC03600(ALL)03/96]
Engine Compartment
[MC03700(ALL)01/96]
Your vehicle has a 3.0 liter SFI, V-6 engine or an optional 3.8
liter SFI, V-6 engine. The following illustrations show diagrams
of your engine and where you can find items you should
service regularly.
