1997 FORD F250 seats

61 [CF03000(F )04/96]
MIX
[CF03100(F )04/96]
SelectMIXto get air to the floor and windshield
defrosters at the same time equipped on vehicles
with A/C. If the outside temperature is about
50Ê (10ÊC) or warmer, the airwill also be
dehumidified to remove moisture. This feature
will help prevent fogging in humid weather. The
air can be cooled or heated.
*
[CF03200(F )03/96]
VDEF
[CF03300(F )04/96]
SelectVDEFto obtain maximum air flow to
the windshield. Rotate the center knob into the
RED area for the air temperature required to
defrost. Rotate the
Hknob on the left to
increase the air flow. On vehicles equipped with
A/C, when the outside air temperature is about
50ÊF (9ÊC) orwarmer, the air will be
dehumidified to remove moisture. The air can be
cooled or heated.
*
[CF03400(F )03/96]
Operating Tips
*
[CF03500(F )03/96]
The following tips will help you to get the most
satisfaction from your air conditioning (if
equipped) and heater system.
[CF03600(F )04/96]
q
In humid weather, selectVDEF. This will
help to prevent windshield fogging. After a
few minutes of operation, you may select
another air flow position. Rotate the control
knob to obtain your desired comfort level.
[CF03700(F )04/96]
q
To prevent humidity buildup inside your
vehicle, always drive with the Air
Conditioning (if equipped) and Heater
System turned on.
[CF03800(F )03/96]
q
Do not put objects under the front seats that
will interfere with the flow of air under the
seats to the back seat area of your vehicle.
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

95
Seating and Safety
Restraints
%*
[SS00200(F )05/96]
Seats
%*
[SS00300(F )01/96]
Adjusting the Front Seat Manually
*
[SS00400(F )01/96]
To move the front seat forward or rearward:
[SS00450(F )05/96]
1. Find the adjustment lever at the lower left
corner of the front seat.
[SS00500(F )04/96]
2. Push the lever to the left to unlatch the seat.
*
[SS00700(F )01/96]
3. Move the seat to the desired position.
*
[SS00800(F )01/96]
4. Release the lever to latch the seat in its new
position. Make sure the seat locks securely in
place.
[SS00900(F )04/96]
one third page art:0020218-B
Adjusting bucket seat
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

97 % [SS01500(F )04/96]
Reclining Bucket Seats
[SS01600(F )04/96]
You can tilt the seat back of your bucket seats
backward.
[SS01700(F )04/96]
1. On the outboard side of the seat, lift the
recliner handle up and hold it in place.
[SS01900(F )04/96]
2. Lean against the back of the seat and adjust
it to the position you want.
[SS02000(F )04/96]
3. Release the handle to lock the seat back in
place.
[SS02100(F )04/96]
4. To return the seat back upright, lift the
handle and lean forward.
[SS02200(F )04/96]

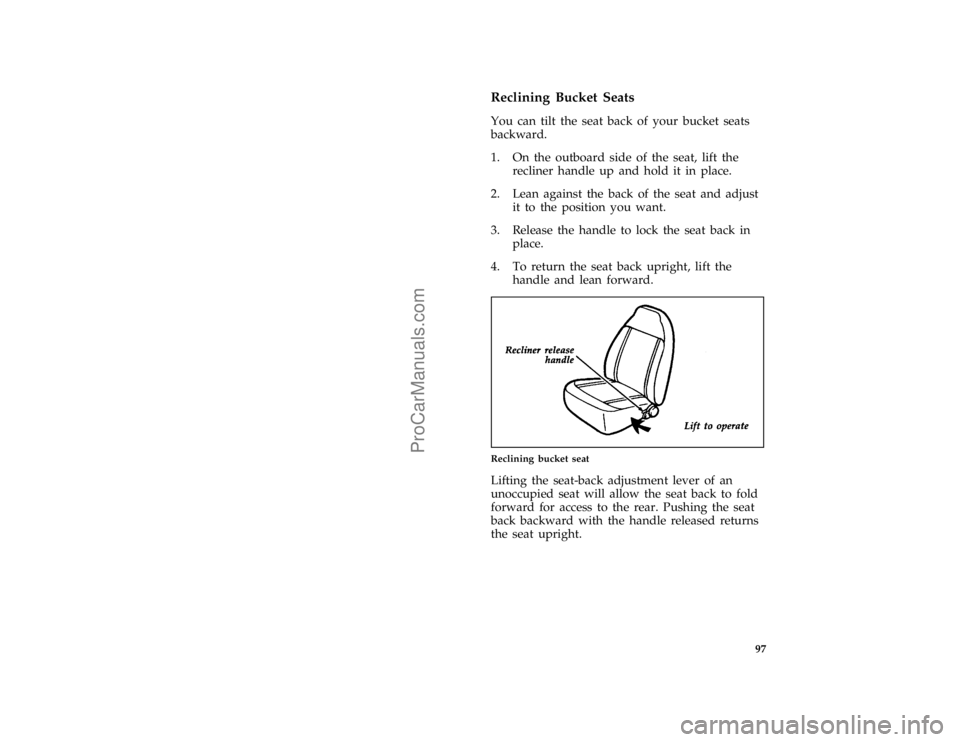

one third page art:0020222-B
Reclining bucket seat
[SS02400(F )04/96]
Lifting the seat-back adjustment lever of an
unoccupied seat will allow the seat back to fold
forward for access to the rear. Pushing the seat
back backward with the handle released returns
the seat upright.
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

98 [SS02500(F )04/96]40/20/40 Seat
[SS02550(F )04/96]
Your F-Series may have a 40/20/40 seat which
consists of two bucket seats that adjust
independently of each other, and a center seat
that is fixed. The center seatback can be folded
down into an armrest/console.
[SS02600(F )04/96]

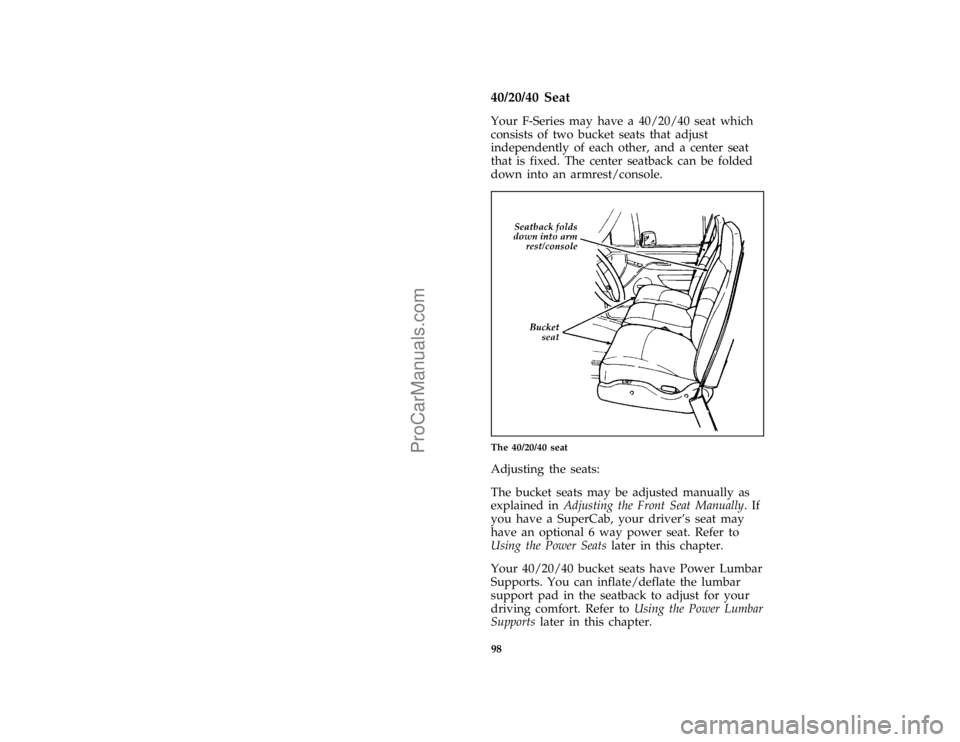

half page art:0021082-A
The 40/20/40 seat
[SS02700(F )04/96]
Adjusting the seats:
[SS02800(F )04/96]
The bucket seats may be adjusted manually as
explained inAdjusting the Front Seat Manually.If
you have a SuperCab, your driver's seat may
have an optional 6 way power seat. Refer to
Using the Power Seatslater in this chapter.
[SS02900(F )04/96]
Your 40/20/40 bucket seats have Power Lumbar
Supports. You can inflate/deflate the lumbar
support pad in the seatback to adjust for your
driving comfort. Refer toUsing the Power Lumbar
Supportslater in this chapter.
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

104 [SS08040(F )04/96]

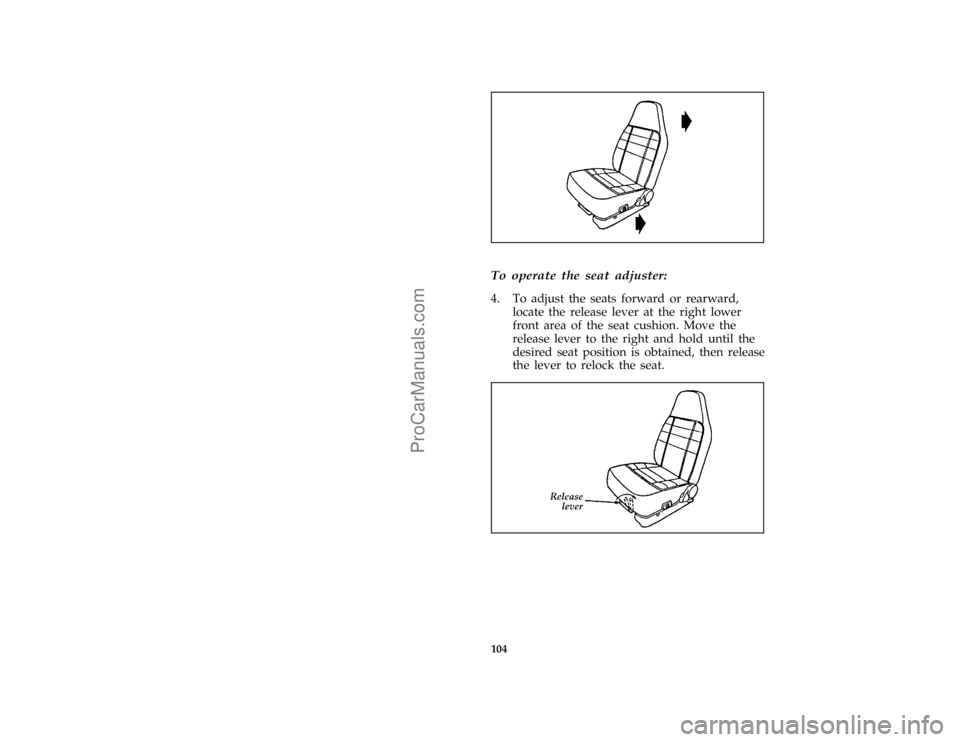

one third page art:0021019-B
*
[SS08050(F )01/96]
To operate the seat adjuster:
[SS08060(F )04/96]
4. To adjust the seats forward or rearward,
locate the release lever at the right lower
front area of the seat cushion. Move the
release lever to the right and hold until the
desired seat position is obtained, then release
the lever to relock the seat.
[SS08070(F )04/96]
one third page art:0021020-BFile:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

105 %
*
[SS08080(F )01/96]
Using the Power Seats (If equipped)
*
[SS08090(F )01/96]
If your vehicle has the power seat option, you
can adjust it in several directions. The controls
are on the outboard side of the seat.
[SS08100(F )04/96]

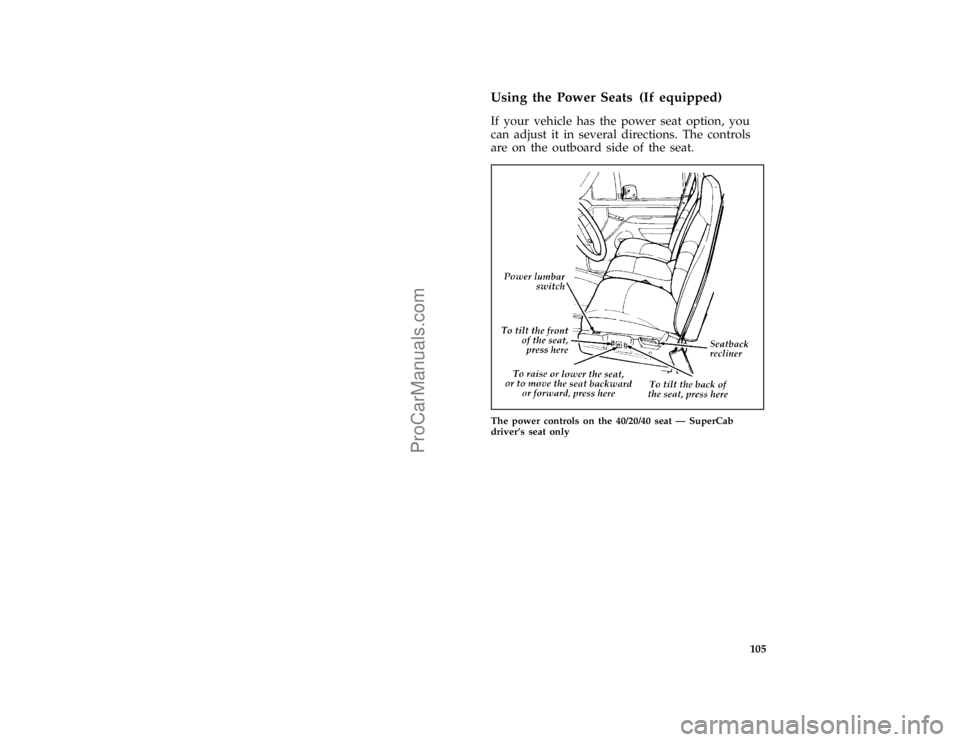

half page art:0021084-A
The power controls on the 40/20/40 seat Ð SuperCab
driver's seat only
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

108
*
[SS11600(F )02/96]
RWARNING
Always drive and ride with your seatback
upright and the lap belt snug and low
across the hips.
*
[SS11650(F )05/96]
RWARNING
It is extremely dangerous to ride in a
cargo area, inside or outside of a vehicle.
In a collision, people riding in these areas
are more likely to be seriously injured or
killed. Do not allow people to ride in any
area of your vehicle that is not equipped
with seats and safety belts. Be sure
everyone in your vehicle is in a seat and
using a safety belt properly.
*
[SS11700(F )05/96]
RWARNING
Cargo should always be secured to
prevent it from shifting and causing
damage to the vehicle or harm to
passengers.
*
[SS11800(F )02/96]
RWARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
*
[SS11900(F )02/96]
RWARNING
Children should always ride with the
seatback in the fully upright position.
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

110 % [SS12800(F )01/96]Automatic Locking Mode
*
[SS12900(F )08/95]
In this operating mode, the shoulder belt
retractor will be automatically locked and remain
locked when the combination lap/shoulder
safety belt is buckled, and does not allow the
occupant freedom of movement. This mode
provides the following:
*
[SS13000(F )01/96]
q
A tight lap/shoulder belt fit on occupant
[SS13100(F )01/96]
q
Child seat/infant carrier installation restraint
[SS13300(F )01/96]
This mode must be used when installing a child
seat on the front passenger seat and rear
outboard seats where dual locking retractors are
provided.
[SS13400(F )01/96]
To switch the retractor from the ªemergency
locking modeº to the ªautomatic locking mode,º
perform the following steps:
*
[SS13500(F )02/96]
1. Buckle the lap/shoulder combination belt.
[SS13600(F )01/96]
2. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted, and when allowed to retract, a
clicking sound will be heard. At this time,
the belt retractor is in the ªautomatic locking
modeº (child restraint mode).
[SS13700(F )01/96]
3. A clicking sound will continue to be heard
as the belt is allowed to retract. This
indicates that the retractor is in the
ªautomatic locking mode.º
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
