Downloaded from www.Manualslib.com manuals search engine This is a correction to information found on page 6-58 and 6-59 for Lumina and Monte Carlo.
Instrument Panel Fuse Block B Not Used
Circuit
Breaker Description
C Power Windows
D Power Seats
E Not Used
Fuse Rating Description
1
5
6
Cigar Lighter-- Instrument Panel and
Console Cigar Lighters
Not Used
Not Used
HVAC
-- HVAC Control Assembly
Solenoid Box, Mix Motor, DRL Module,
HVAC Control Head, Defogger Relay,
(S.E.O.) Digital Speedometer
nazard Flasher
R.H. Spot Lamp
(S.E.O.)
A
Not Used
2

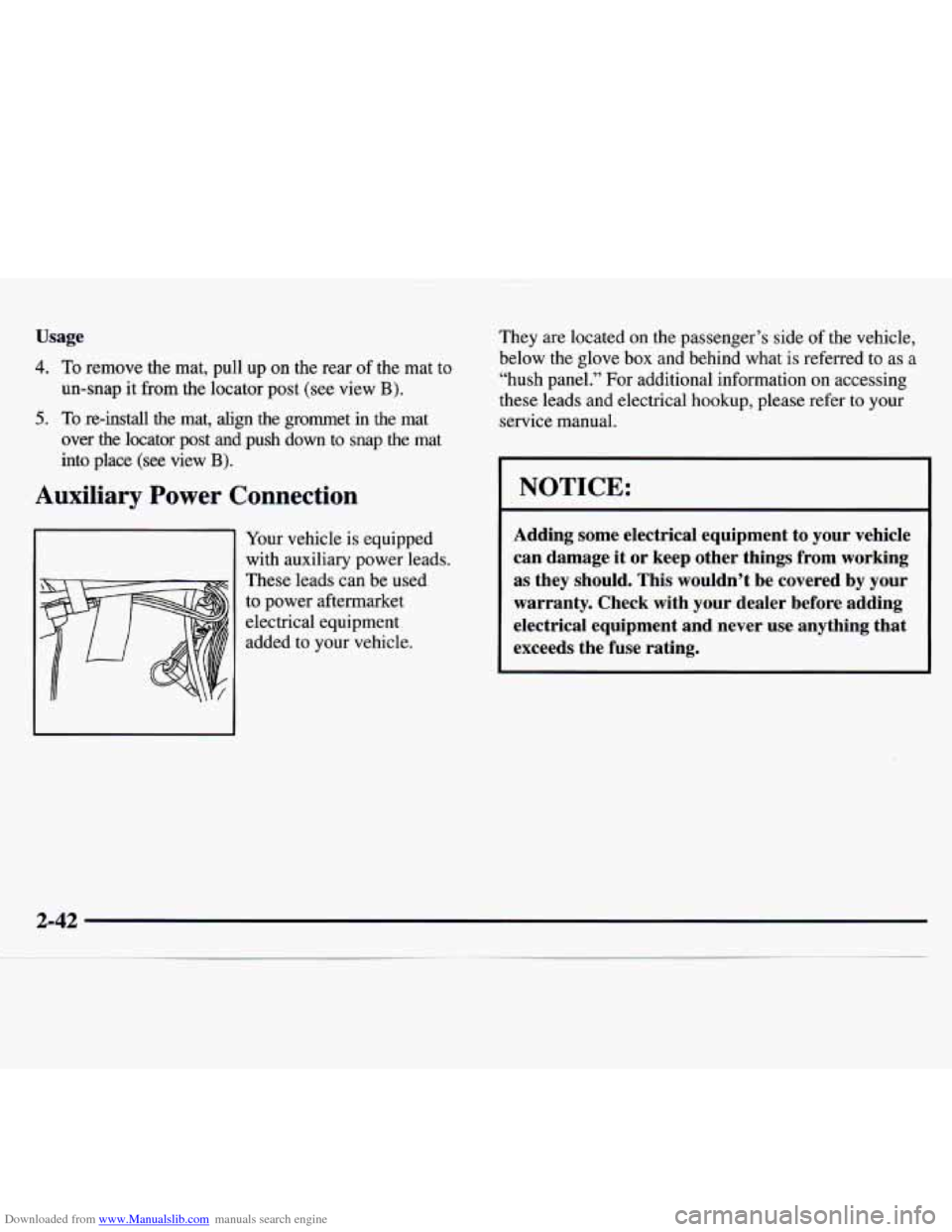

Downloaded from www.Manualslib.com manuals search engine Usage
4. To remove the mat, pull up on the rear of the mat to
un-snap it from the locator post (see view
B).
5. To re-install the mat, align the grommet in the mat
over the locator post and push down to snap the mat
into place
(see view B).
Auxiliary Power Connection
Your vehicle is equipped
with auxiliary power leads.
These leads can be used
to power aftermarket
electrical equipment
added to your vehicle.
J
They are located on the passenger’s side of the vehicle,
below the glove box and behind what
is referred to as a
“hush panel.” For additional information
on accessing
these leads and electrical hookup, please refer to your
service manual.
NOTICE:
Adding some electrical equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn’t be covered by your
warranty. Check with your dealer before adding
electrical equipment and never use anything that
exceeds the fuse rating.

Downloaded from www.Manualslib.com manuals search engine Fuse
1
4
5
6
10
Circuit
Breaker
C
D
Description
11
12 Power Windows
Power Seats
13
Description
CIGAR LIGHTER -- Instrument
Panel and Console Cigar Lighters
HVAC
-- WAC Control
Assembly Solenoid Box,
Mix Motor, DRL Module,
HVAC Control Head, Blower
Control Switch
HAZARD FLASHER
R.H.
SPOT LAMP (S.E.O.)
I/P ELECTRONICS BATTERY
FEED
-- Chime Module,
Electronic Brake Control Module
(EBCM), Theft-Deterrent
Module, Radio
STARTER RELAY
ANTI-THEFTPCM
--
Theft-Deterrent Module
ABS
-- Electronic Brake Control
Module (EBCM), ABS Relay
