1997 CHEVROLET BLAZER Fuse panel

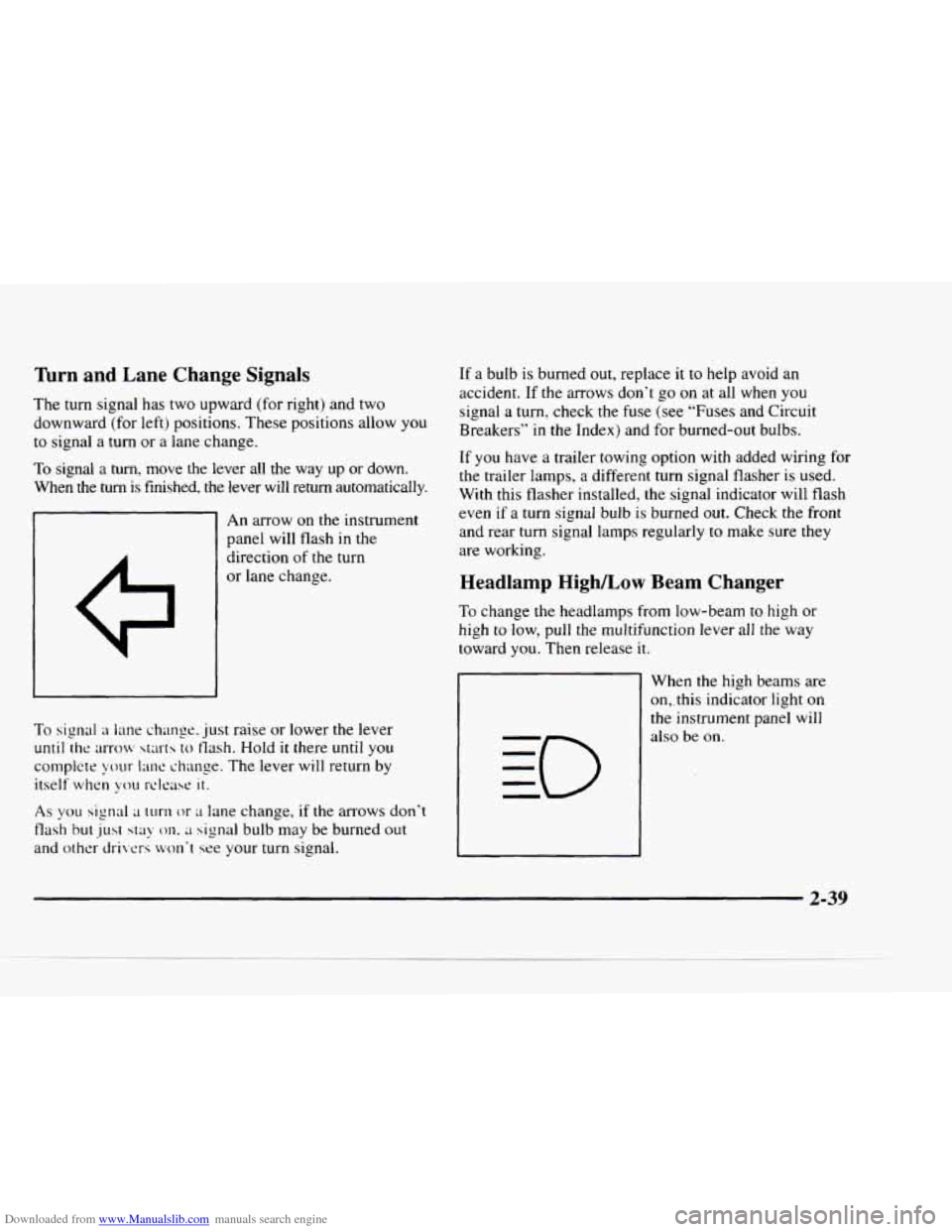

Downloaded from www.Manualslib.com manuals search engine ’krn and Lane Change Signals
The turn signal has two upward (for right) and two
downward (for left) positions.
These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up or down.
When
the turn is finished, the lever will return automatically.
An arrow on the instrument
panel will flash in the
direction
of the turn
or lane change.
To signal a lane change. just raise or lower the lever
until the ;lrrocv starts to tlash. Hold it there until you
complete your
1mc change. The lever will return by
itself when you rclt.ast: it.
As you signal ;1 turn or LI lane change, if the arrows don’t
flash but just stay 011. ;I signal bulb may be burned out
and other drivers won‘t see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident.
If the arrows don’t go on at all when you
signal a turn, check the fuse (see
“Fuses and Circuit
Breakers’’ in the Index) and for burned-out bulbs.
If
you have a trailer towing option with added wiring for
the trailer lamps, a different turn signal flasher is used.
With this flasher installed,
the signal indicator will flash
even
if a turn signal bulb is burned out. Check the front
and rear turn signal lamps regularly
to make sure they
are working.
Headlamp Highkow Beam Changer
To change the headlamps from low-beam to high or
high
to low, pull the multifunction lever all the way
toward
you. Then release it.
1
When the high beams are
on,. this indicator light on
the instrument panel will
also be
on.
2-39

Downloaded from www.Manualslib.com manuals search engine Headlamps
The headlamp wiring is protected by an internal circuit
breaker.
An electrical overload will cause the lamps to go
on and off, or in some cases to remain off. If this happens,
have your headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit breaker
and a fuse.
If the motor overheats due to heavy snow, etc., the
wiper will stop until the motor cools.
If the overload is caused
by some electrical problem, be sure
to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When
the current load is too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem is fixed or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links. This greatly reduces the
chance
of fires caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating. If you
ever have a problem on the road and don't have
a
spare fuse, you can borrow one that has the same
amperage. Just pick some feature
of your vehicle that
you
can get along without -- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace it as soon as
you can.
Instrument Panel Fuse Block
The fuse block is at the
driver's end
of the
instrument panel.
Remove the cover by turning the fastener
counterclockwise. Extra fuses and the fuse extractor
are
provided in the cover. To reinstall the fuse panel cover,
push
in and turn the fastener clockwise.

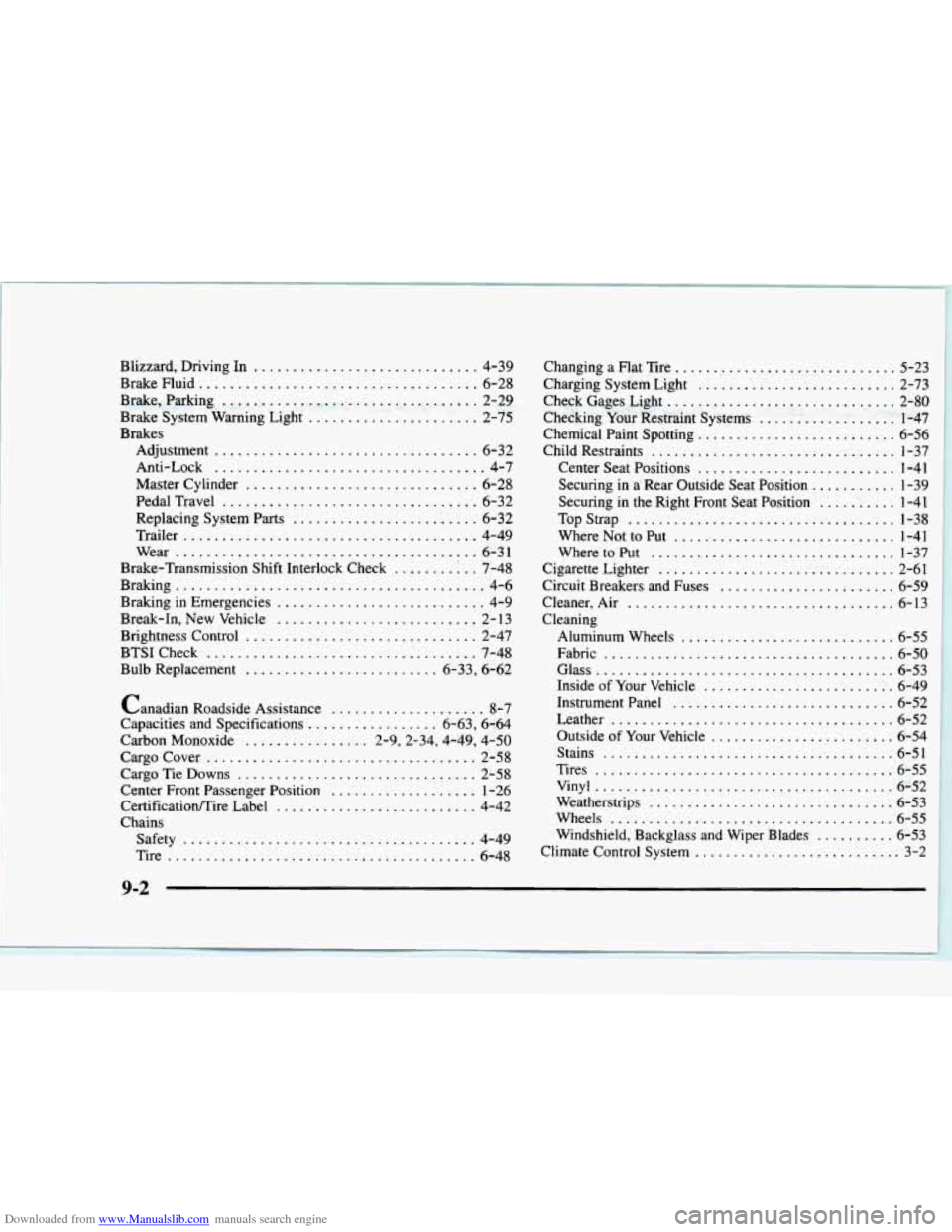

Downloaded from www.Manualslib.com manuals search engine Blizzard. Driving In ............................. 4-39
Brake Fluid
.................................... 6-28
Brake. Parking
................................. 2-29
Brake System Warning Light
...................... 2-75
Brakes Adjustment
.................................. 6-32
Anti-Lock
................................... 4- 7
PedalTravel
................................. 6-32
Trailer
...................................... 4-4 9
Wear ....................................... 6-31
Brake-Transmission Shift Interlock Check
........ .. 7-48
Braking
........................................ 4- 6
Master Cylinder
.............................. 6-28
Replacing System Parts
........................ 6-32
Braking in Emergencies
........................... 4-9
Break-In, New Vehicle
.......................... 2-13
Brightness Control
.............................. 2-47
Bulb Replacement
......................... 6-33, 6-62
BTSICheck
................................... 7-48
Canadian Roadside Assistance
.................... 8-7
Capacities and Specifications ................. 6-63, 6-64
Carbon Monoxide
................ 2-9.2-34.4-49, 4-50
Cargocover ................................... 2-58
Cargo Tie Downs ............................... 2-58
Center Front Passenger Position ................... 1-26
CertificatiodTire Label
.......................... 4-42
Chains Safety
...................................... 4-49
Tire
........................................ 6-48 Changing a Flat Tire
............................. 5-23
Charging System Light
.......................... 2-73
Check Gages Light
.............................. 2-80
Checking Your Restraint Systems
..... : ............ 1-47
Chemical Paint Spotting
.......................... 6-56
Child Restraints
................................ 1-37
Center Seat Positions
.......................... 1-41
Securing
in a Rear Outside Seat Position ........... 1-39
TopStrap
................................... 1-38
Where Not to Put
............................. 1-41
WheretoPut
................................ 1-37
Circuit Breakers and Fuses
....................... 6-59
Cleaner. Air
................................... 6-13
Cleaning Aluminum Wheels
............................ 6-55
Fabric
...................................... 6-50
Glass
....................................... 6-53
Inside of Your Vehicle
......................... 6-49
Instrumentpanel
............................. 6-52
Leather
..................................... 6-52
Outside
of Your Vehicle ........................ 6-54
Stains
...................................... 6-51
Tires
....................................... 6-55
Vinyl ....................................... 6-52
Wheels
...................................... 6-45
Windshield, Backglass and Wiper Blades
.......... 6-53
Securing in the Right Front Seat Position .......... 1-41
Cigarette Lighter
............................... 2-61
Weatherstrips
................................ 6-53
Climate Control System
........................... 3-2
9-2

Downloaded from www.Manualslib.com manuals search engine Garage Door Opener ............................ 2-5 1
GasCap ....................................... 6-5
Gate Ajar Light ................................ 2-81
GearPositions ................................. 2-18
GloveBox .................................... 2-50
Gross Axle Weight Rating ........................ 4-43
Gross Vehicle Weight Rating
...................... 4-42
Guide en Franpis
11
GAWR ....................................... 4-43
.. .................................
GVWR ....................................... 4-42
Halogen Bulbs
................................ 6-33
Hazard Warning Flashers
.......................... 5-2
Head Restraints ................................. 1-6
Headlamps
.................................... 2-45
Bulb Replacement ............................ 6-33
HighLow Beam Changer
...................... 2-39
OnReminder
................................ 2-46
Wiring
..................................... 6-59
Hearing Impaired. Customer Assistance
.............. 8-4
Heating ........................................ 3-3
Highway Hypnosis
.............................. 4-35
Hill and Mountain Roads ......................... 4-35
Hitches. Trailer
................................. 4-48
Horn
......................................... 2-37
Hydraulic Clutch
............................... 6- I9
Check
...................................... 7-47
Hydroplaning .................................. 4-31
Hood
.......................................... 6-6 Ignition
Positions
.............................. 2-13
Inflation. Tire
............................. 6.41. 7.46
Inside Daymight Rearview Mirror
................. 2-49
Inspections
Brake System
................................ 7-51
Exhaust Systems ............................. 7-50
Front Drive Axle Boot Seal
..................... 7-50
Radiator and Heater Hose
...................... 7-50
Steering .................................... 7-50
Throttle Linkage .............................. 7-50
Transfer Case ................................ 7-51
Instrument Panel ............................... 2-67
Cleaning
.................................... 6-52
Cluster
..................................... 2-69
FuseBlock
.................................. 6-59
Interior Lamps
................................. 2-47
Suspension
.................................. 7-50
Jacking Equipment
............................. 5-26
Jump Starting
................................... 5-3
Key in the Ignition ............................. 2-12
Key Lock Cylinders Service ...................... 7-47
Key Release Button
............................. 2-15
Keyless Entry System
............................ 2-6
Keys .......................................... 2-2
9-5
