1997 CHEVROLET ASTRO jump start

Downloaded from www.Manualslib.com manuals search engine Section 5 Problems on the Road
Here you’ll find what to do about some problems that can occur on the road.
5-2
5-3
5-3
5-7
5- 13
5-15
Hazard Warning Flashers
Other Warning Devices
Jump Starting
Towing Your Vehicle
Engine Overheating Cooling System 5-22
5-22
5-23
5-35
5-36
Engine Fan Noise
If
a Tire Goes Flat
Changing a Flat Tire
Compact Spare Tire
If You’re Stuck: In Sand, Mud, Ice or Snow

Downloaded from www.Manualslib.com manuals search engine Other Warning Devices
If you carry reflective triangles, you can set one up at
the side
of the road about 300 feet (100 m) behind
your vehicle.
Jump Starting
If your battery has run down, you may want to use another
vehicle and some jumper cables
to start your vehicle. But
please follow the numbered steps to do it safely.
1
Batteries can hurt you. They can be dangerous
because:
They contain acid that can burn you.
0 They contain gas that can explode or ignite.
They contain enough electricity to burn you.
If you don’t follow these steps exactly, some
or all
of these things can hurt you.
NOTICE:
Ignoring these steps could result in costly damage
to your vehicle that wouldn’t be covered by
your warranty.
Trying to start your vehicle by pushing or pulling
it won’t work, and it could damage your vehicle.
I. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
I NOTICE:
If the other system isn’t a 12-volt system with a
negative ground, both vehicles can be damaged.

Downloaded from www.Manualslib.com manuals search engine 2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren’t touching
each other.
If they are, it could cause a ground
connection you don’t want.
You wouldn’t be able to
start your vehicle, and the bad grounding could
damage the electrical systems.
To avoid the possibility of the vehicles rolling, set
the parking brake firmly
on both vehicles involved in
the jump start procedure. Put an automatic
transmission
in PARK (P).
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or accessory power outlets. Turn
off all lamps
that aren’t needed as well
as radios. This will avoid
sparks and help save both batteries. In addition, it
could save your radio!
NOTICE:
I I
If you leave your radio on, it could be badly
damaged. The repairs wouldn’t be covered by
your warranty.
4. Open the hoods and locate the batteries. Find the
positive
(+) and negative (-) terminals on each battery.
Using a match near a battery can cause battery
gas to explode. People have been hurt doing this,
and some have been blinded. Use a flashlight
if
you need more light.
Be sure the battery has enough water. You don’t
need to add water to the Delco Freedom@ battery
installed in every new
GM vehicle. But if a
battery has filler caps, be sure the right amount
of fluid is there.
If it is low, add water to take care
of that first. If’ you don’t, explosive gas could
be present.
Battery fluid contains acid that can burn you.
Don’t get
it on you. If you accidentally get it in
your eyes or on your skin, flush the place with
water and get medical help immediately.

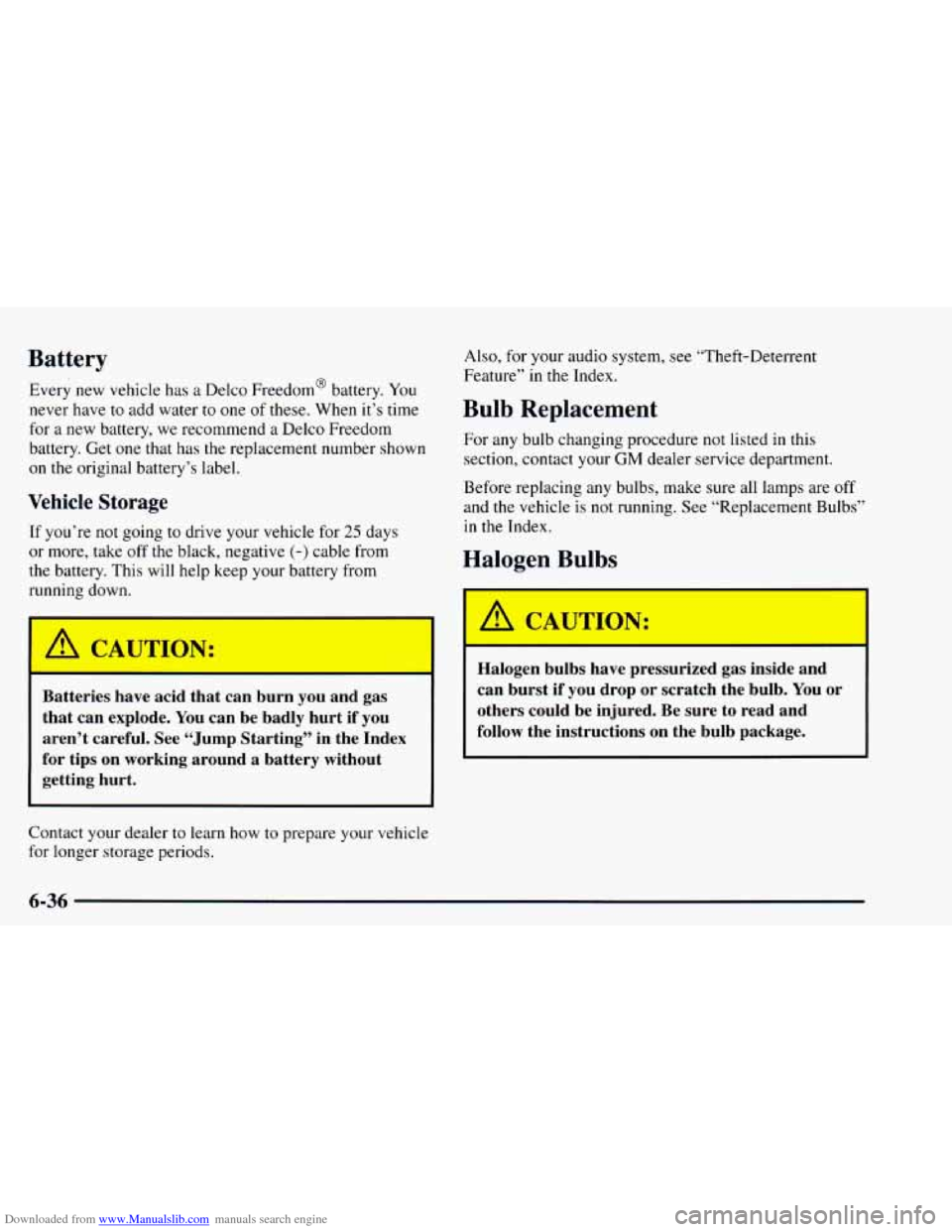

Downloaded from www.Manualslib.com manuals search engine Battery
Every new vehicle has a Delco Freedom@ battery. You
never have to add water to one of these. When it’s time
for a new battery, we recommend a Delco Freedom
battery. Get one that has
the replacement number shown
on the original battery’s label.
Vehicle Storage
If you’re not going to drive your vehicle for 25 days
or more, take off the black, negative
(-) cable from
the battery. This will help keep your battery from
running down. Also,
for your audio system, see “Theft-Deterrent
Feature” in the Index.
Bulb Replacement
For any bulb changing procedure not listed in this
section, contact your
GM dealer service department.
Before replacing any bulbs, make sure all lamps are
off
and the vehicle is not running. See “Replacement Bulbs”
in the Index.
Halogen Bulbs
Batteries have acid that can burn you and gas
that can explode.
You can be badly hurt if you
aren’t careful. See “Jump Starting” in the Index
for tips on working around a battery without getting hurt.
Contact your dealer to learn how
to prepare your vehicle
for longer storage periods.
I A CAUTION:
I
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb.
You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
6-36

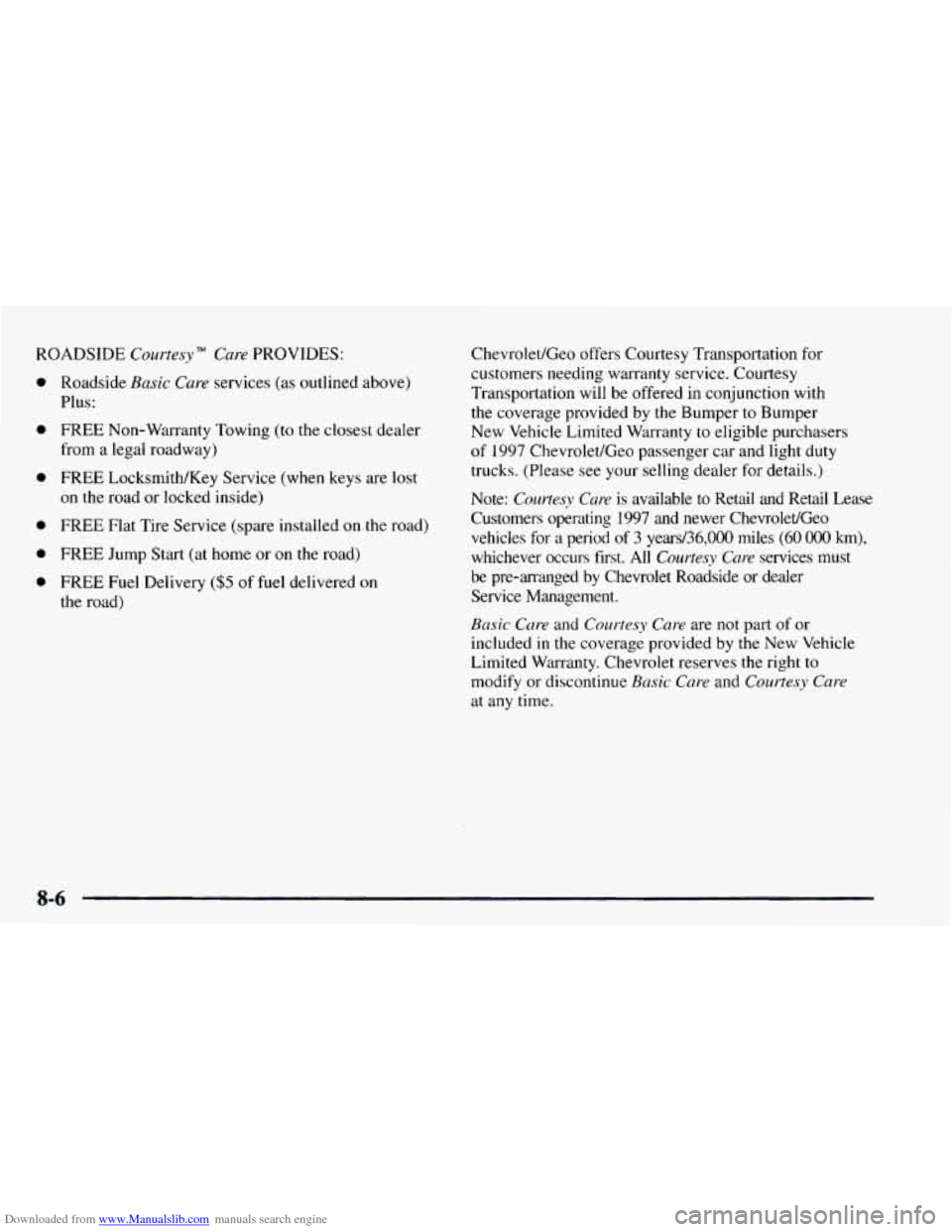

Downloaded from www.Manualslib.com manuals search engine ROADSIDE Courtesy" Care PROVIDES:
a
a
a
0
a
a
Roadside Basic Care services (as outlined above)
Plus:
FREE Non-Warranty Towing (to the closest dealer
from a legal roadway)
FREE LocksmithKey Service (when keys are lost
on the road or locked inside)
FREE Flat Tire Service (spare installed on the road)
FREE Jump Start (at home or on the road)
FREE Fuel Delivery ($5 of fuel delivered on
the road) Chevrolet/Geo offers Courtesy Transportation
for
customers needing warranty service. Courtesy
Transportation will be offered in conjunction with
the coverage provided by the Bumper to Bumper
New Vehicle Limited Warranty
to eligible purchasers
of 1997 Chevrolet/Geo passenger car and light duty
trucks. (Please see your selling dealer for details.)
Note:
Courtesy Cure is available to Retail and Retail Lease
Customers operating
1997 and newer Chevrolet/Geo
vehicles for a period of
3 years/36,000 miles (60 000 km),
whichever occurs first. All Courtesy Care services must
be pre-arranged
by Chevrolet Roadside or dealer
Service Management.
Basic Care and Courtesy Care are not part of or
included
in the coverage provided by the New Vehicle
Limited Warranty. Chevrolet reserves the right to
modify or discontinue
Basic Care and Courtesy Care
at any time.

Downloaded from www.Manualslib.com manuals search engine Section 9 Index
Accessory Power Outlet ......................... 2-52
Add-on Equipment
............................. 4-30
AirBag
....................................... 1-27
Adding Equipment
............................ 1-33
How Does
it Restrain .......................... 1-3 1
How it Works ................................ 1-29
Location
.................................... 1-29
Readiness Light
......................... 1.28. 2.61
Servicing
................................... 1-32
What Makes
it Intlate .......................... 1-30
What Will
You See After it Inflates ............... 1-3 I
When Should it Inflate ......................... 1-30
AirCleanerFilter
............................... 6-19
Air Conditioning Refrigerants
..................... 6-67
Alignment and Balance. Tire
...................... 6-48
All-Wheel Drive
.......................... 2.22. 6.23
Aluminum Wheels. Cleaning
...................... 6-57
Antenna. Fixed
................................. 3-30
Antifreeze
..................................... 6-25
Anti-Lock
Brakes
...................................... 4-7
Brake System Warning Light
................ 2.64. 4.7
Anti.Theft. Radio
.............................. 3-26
Appearance Care
............................... 6-50
Appearance Care Materials
....................... 6-59
Arbitration Program
.............................. 8-9
Ashtrays
...................................... 2-50
Air
Conditioning
................................ 3-5 Audio Equipment. Adding
........................ 3-28
Audio Systems
.................................. 3-9
Automatic Transmission Check
........................... 7-44
Transmission Fluid
............................ 6-20
Transmission Operation
........................ 2-19
Front
....................................... 6-24
LockingRear
................................ 2-22
Rear
....................................... 6-25
Battery
...................................... 6-36
Jump Starting
................................. 5-3
Replacement. Remote Keyless Entry
............... 2-9
Wdrnings
.................................... 5-3
BBB Auto Line
................................. 8-9
Better Business Bureau Mediation
................... 8-9
Brake
Adjustment
.................................. 6-35
Fluid
....................................... 6-32
Master Cylinder
.............................. 6-32
Parking
..................................... 2-23
PedalTravel
................................. 6-35
Replacing System Parts
........................ 6-35
System Warning Light
......................... 2-63
Trailer ...................................... 4-35
Transmission Shift Interlock Check
............... 7-45
Wear
....................................... 6-34
Axle
9-1

Downloaded from www.Manualslib.com manuals search engine Hearing Impaired. Customer Assistance .............. 8-4
Heating
........................................ 3-6
High-Beam Headlamps
.......................... 2-32
Highway Hypnosis
.............................. 4-2 1
Hill and Mountain Roads ......................... 4-22
Hitches. Trailer
................................. 4-34
Hood Checking Things Under
......................... 6-7
Prop
....................................... 6-10
Release
...................................... 6-8
Horn
......................................... 2-31
Hydroplaning
.................................. 4-17
Ignition Positions
.............................. 2. I 5
Ignition Transmission Lock Check ................. 7-46
Inflation. Tire
.................................. 6-44
Inspections
.................................... 7-47
Brakesystem
................................ 7-48
Drive Axle
.................................. 7-48
Exhaust Systems
............................. 7-47
Radiator and Heater Hose
...................... 7-47
Steering
.................................... 7-47
Suspension
.................................. 7-47
Throttle Linkage
.............................. 7-47
InstrumentPanel
............................... 2-56
Brightness Control
............................ 2-39
Cleaning
.................................... 6-54
Cluster
..................................... 2-58
FuseBlock
.................................. 6-62
Interior Lamps
.................................. 2-39
Inside
Daymight Rearview Mirror
................. 2-41 Jack.
Tire
.................................... 5-24
Jump Starting ................................... 5-3
Keyless Entry System
........................... 2-7
Key Lock Cylinders Service
...................... 7-44
Keys
.......................................... 2-2
Labels CertificationlTire
............................. 4-28
Service Parts Identification
..................... 6-60
Tire-Loading information
...................... 4-28
Vehicle Identification Number
................... 6-60
Lamps
........................................ 2-37
Courtesy
.................................... 2-39
Dome
...................................... 2-39
Interior
..................................... 2-39
On Reminder
................................ 2-38
Latches, Seatback
................................ 1-5
Leaving Your Vehicle ............................. 2-7
Leaving Your Vehicle
with the Engine Running ....... 2-25
Lighter
....................................... 2-50
Lights
Air
Bag Readiness ....................... 1-28, 2-61
Anti-Lock Brake System Warning
............ 2-64, 4-7
Brake System Warning
......................... 2-63
Charging System
............................. 2-61
CheckGages
................................ 2-68
Safety Belt Reminder
..................... 1 - 13, 2-60
Service Engine Soon
.......................... 2-65
Daytime Running Lamps Indicator
............... 2-68
9-5
