Downloaded from www.Manualslib.com manuals search engine To provide cleaner air, all gasolines in the United States
are now required to contain additives that will help
prevent deposits from forming in your engine and fuel
system, allowing your emission control system
to
function properly. Therefore, you should not have to
add anything
to the fuel. In addition, gasolines
containing oxygenates, such
as ethers and ethanol, and
reformulated gasolines
may be available in your area to
help clean the air. General Motors recommends that you
use these gasolines
if they comply with the
specifications described earlier.
N B e
~ -~
Your vehicle was not designed for fuel that
contains methanol. Don% use it. I& can corrode
metal parts in YOU^: fuel system and also damage
plastic and rubber pasts. That damage wouldn’t
be covered under your warranty.
rei s
If you plan on driving in another country outside the
United States or Canada, the proper fuel may be hard to
find. Never use leaded gasoline or any other fuel not
recommended
in the previous text on fuel. Costly repairs
caused
by use of improper fuel wouldn’t be covered by
your warranty.
To check on
fuel availability, ask an auto club, or
contact a major oil company that does business in the
country where you’ll be driving.
You can also write
us at the following address for
advice. Just
tell us where you’re going and give your
Vehicle Identification Number
(VIN).
General Motors International Product Center
1908 Colonel Sam Drive
Oshawa, Ontario
LlH 8P7

Downloaded from www.Manualslib.com manuals search engine Turn the parking lamps on to operate the underhood
lamp. The underhood lamp will come
on when the hood
is opened.
FUEL ONLY TRIP 0 u Bni!
@@BmaMm
....: ............... ” .... .............. : ... : :.* ......... .... : :.. : : :.. : : ::: : :*. .... : : e:* : :
......... ...... .... .... ...................................................
If you have the Driver Information Center (DIC), a
CHECK OIL LEVEL message will appear when the
engine oil is approximately
1 quart (1 L) low. If the
message is displayed, check the dipstick level and
add
oil as needed. It’s
a good
idea to check your engine oil every time you
get fuel.
In order to get an accurate reading, the oil must
be warm and the vehicle
must be on level ground.
The engine oil dipstick
is
located behind the radiator
on the driver’s side
of the
engine. The black
handle
says ENGINE OIL on it.
Turn
off the engine and give the oil a few minutes to
drain back into the oil pan. If you don’t, the oil dipstick
might not show the actual
level.

Downloaded from www.Manualslib.com manuals search engine en t
If the oil is at or below the ADD line, then you’ll need
to add at least one quart of oil. But you must use the
right kind.
This part explains what kind of oil to use. For
crankcase capacity, see “Capacities and Specifications”
in the Index.
Pull out the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it again,
keeping the tip down,
and check the level.

Downloaded from www.Manualslib.com manuals search engine itives
Don’t add anything to your oil. Your Cadillac dealer is
ready to advise if you tlunk something should be added.
Your Cadillac has an Oil Life Indicator. This feature
will let you
know when to change your oil and
filter
-- usually between 3,000 miles (5 000 km) and
7,500 miles
(12 500 km) since your last oil change.
Under severe conditions,
the indicator may come on
before 3,000 miles (5 000 km). Never drive your vehicle
more than 7,500 miles (12
500 km) or 12 months
(whichever occurs first) without an
oil change.
The system won’t detect dust
in the oil. So, if you
drive
in a dusty area, be sure to change your oil every
3,000 miles
(5 000 km) or sooner if the CHANGE
ENGINE OIL message comes on. Remember to reset
the Oil Life Indicator when the oil has been changed.
For more information, see “Oil Life Indicator”
in
the Index.
After
the oil has been changed, display the OIL LIFE
LEFT message by pressing the INFORMATION (INFO)
button. Then press and hold the RESET (INFO RESET)
button until the display shows “loo.” This resets the oil life
index. The message will remain
off until the next oil
change
is needed. The percentage of oil life remaining
may be checked at any time by pressing the
INFORMATION (INIFQ) button several times until
the OIL LIFE LEFT message appears. For more
information on the Oil Life feature, see “Oil Life
Indicator”
in the Index.
at to
Did you know that used engine oil contains certain
elements that may be unhealthy for your skin and could
even cause cancer? Don’t let used
oil stay on your skin
for very long. Clean your skin and nails with soap and
water,
or a good hand cleaner. Wash or properly throw
away clothing or rags containing used engine oil. (See
the manufacturer’s warnings about the use and disposal
of oil products.)
Used oil can be
a real threat to the environment. If you
change your own oil, be sure to drain all free-flowing oil
from
the filter before disposal. Don’t ever dispose of oil
by putting
it in the trash, pouring it on the ground, into
sewers, or into streams QI- bodies of water. Instead,
recycle
it by takmg it to a place that collects used oil. If
you have
a problem properly disposing of your used oil,
ask your dealer, a service station or a local recycling
center for help.

Downloaded from www.Manualslib.com manuals search engine ic
ange
A good time to check your automatic transaxle fluid
level
is when the engine oil is changed.
Change both
the fluid and filter every 50,000 miles
(83
000 km) if the vehicle is mainly driven under one or
more
of these conditions:
In heavy city traffic where the outside temperature
regularly reaches
90°F (32 O C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such
as found in taxi, police or delivery service.
If you do not use your vehicle under any of these
conditions, the fluid and filter do not require changing.
See “Scheduled Maintenance Services”
in the
Maintenance Schedule booklet. Because this
operation can be
a little difficult, you may
choose
to have this done at your Cadillac dealership
service department.
If’ you do it yourself, be sure to follow all the instructions
here, or you could get
a false reading on the dipstick.
ICE:

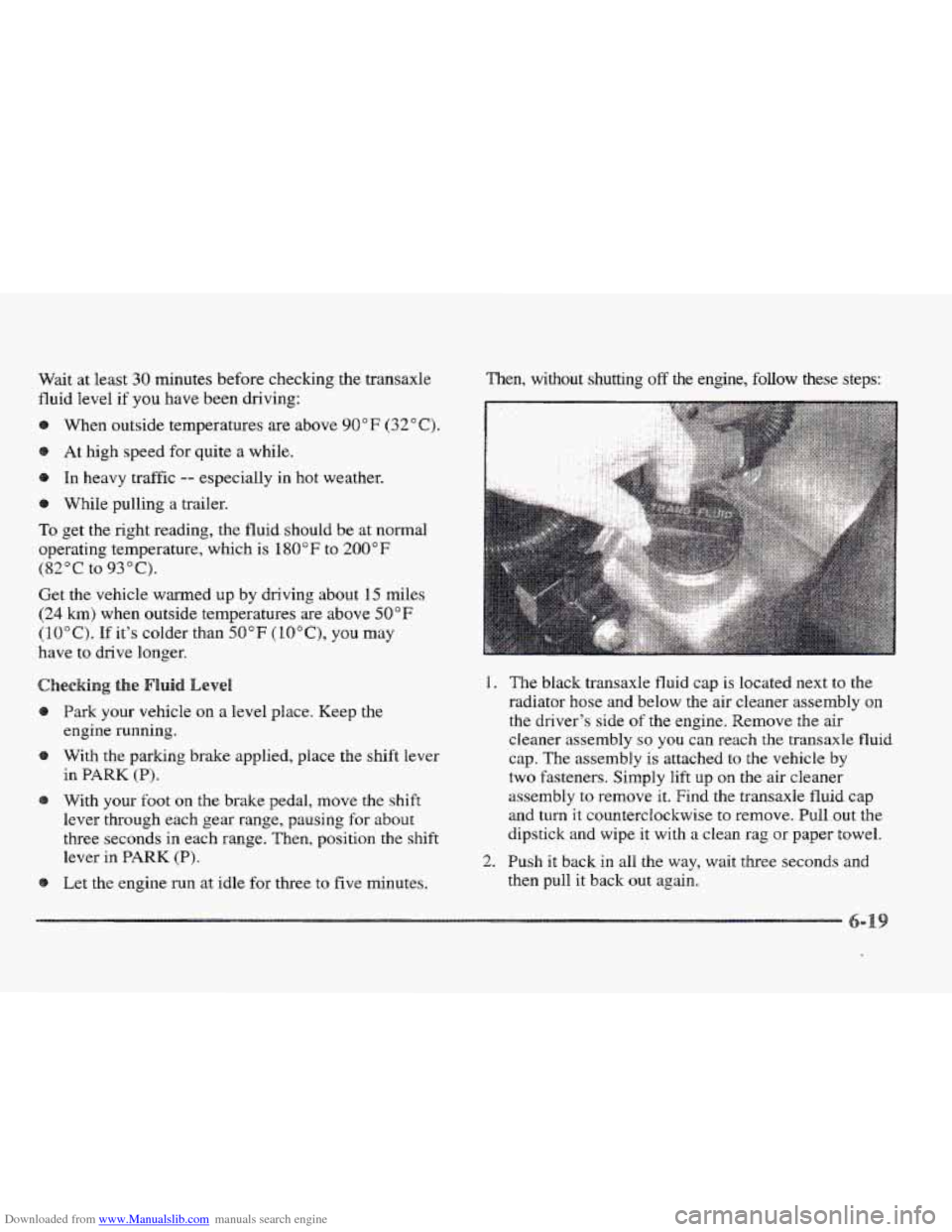

Downloaded from www.Manualslib.com manuals search engine Wait at least 30 minutes before checking the transaxle
fluid Bevel
if you have been driving:
When outside temperatures are above
90" F (32 " C).
At high speed for quite a while.
In heavy traffic
-- especially in hot weather.
While pulling
a trailer.
To get the right reading, the fluid should be at normal
operating temperature, which
is 180°F to 200" F
(82°C to 93°C).
Get the vehicle warmed up by driving about 15 miles
(24 km) when outside temperatures are above 50°F
(10°C). If it's colder than 50°F ( 10°C), YSU may
have to drive longer.
Park your vehicle on a level place. Keep the
engine running.
With the parhng brake applied, place the shift
lever
in PARK (P).
With your foot on the brake pedal, move the shift
lever through each gear range, pausing for about
three seconds
in each range. Then, position the shift
lever in
PARK (P).
Let the engine run at idle for three to five minutes. Then, without shutting
off the engine, follow these steps:
1.
2.
The
black transaxle fluid cap is located next to the
radiator hose and
below the air cleaner assembly on
the driver's side of the engine. Remove the air
cleaner assembly
so you can reach the transaxle fluid
cap. The assembly
is attached to the vehicle by
two fasteners. Simply lift up on the air cleaner
assembly to remove it.
Find the transaxle fluid cap
and
turn it counterclockwise to remove. Pull out the
dipstick and wipe it with
a clean rag or paper towel.
Push it back in all the way, wait three seconds and
then pull it back out again.

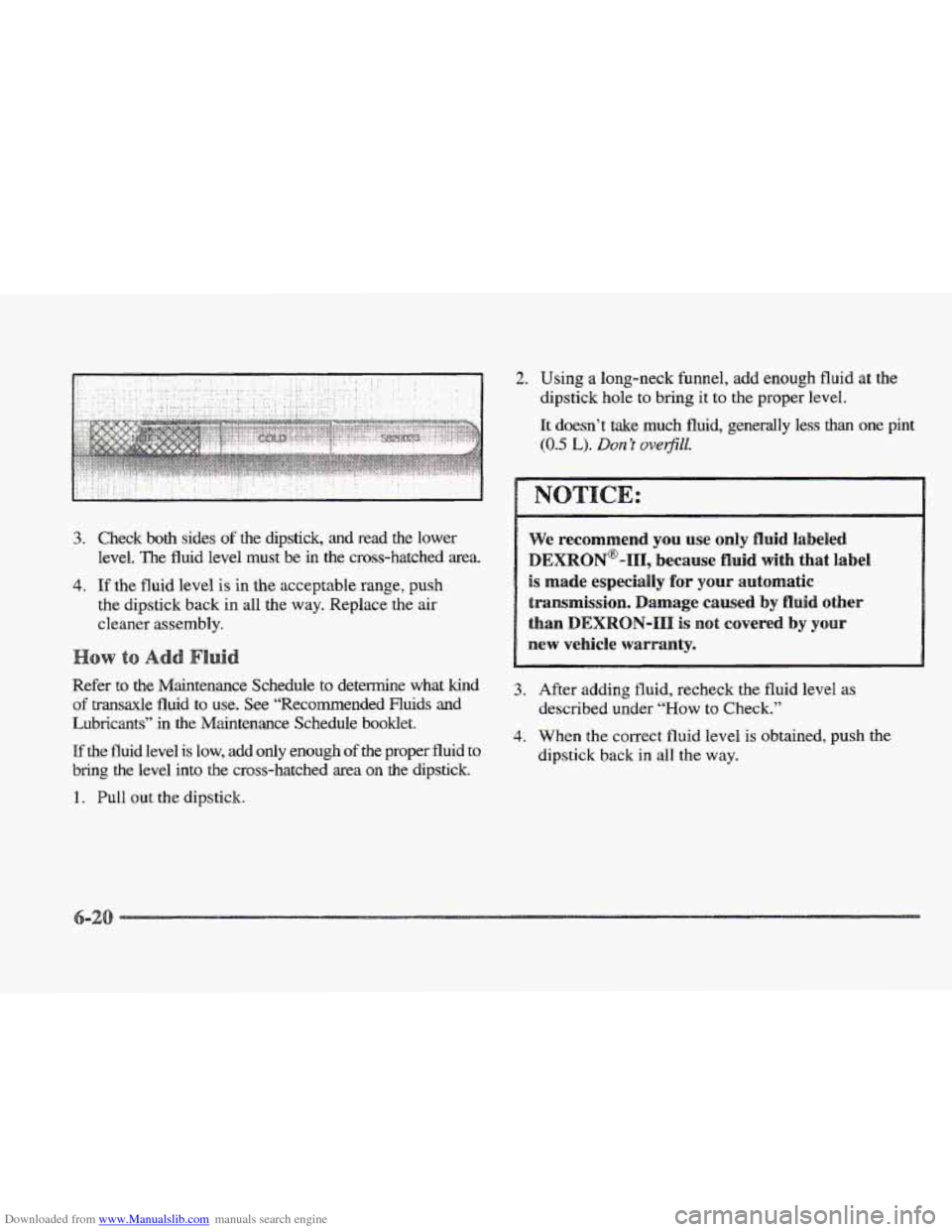

Downloaded from www.Manualslib.com manuals search engine 3. Check both sides of the dipstick, and read the lower
level.
”he fluid level must be in the cross-hatched area.
4. If the fluid level is in the acceptable range, push
the dipstick back in
a11 the way. Replace the air
cleaner assembly.
Refer
to the Maintenance Schedule to determine what kind
of transaxle fluid to use. See “Recommended Fluids and
Lubricants” in the Maintenance Schedule booklet.
If’ the fluid level is low, add only enough of the proper fluid to
bring the level into the cross-hatched area on the dipstick.
1. Pull OW the dipstick.
2. Using a long-neck funnel, add enough fluid at the
dipstick hole to bring it to the proper level.
It doesn’t take
much fluid, generally less than one pint
(0.5 L). Don’t oveflll.
3. After adding fluid, recheck the fluid level as
described under “How to Check.”
4. When the correct fluid level is obtained, push the
dipstick back
in all the way.

Downloaded from www.Manualslib.com manuals search engine Use a mixture of one-half clean water (preferably
distilled) and
one-half DEX-COOL@ coolant which
won’t damage aluminum
parts. If you use this mixture,
you
don’t need to add anything else.
A, CAUTION.: ..
Adding only plain water to your cooling system
can
be dangerous. Plain water, or some other
liquid Bike alcohol, can boil before the proper
coolant mix will.
YQW vehicle’s coolant warning
system is set for the proper coolant mix. With
plain water or the wrong
mix, your engine could
get too hot but you wouldn’t get the overheat
warning. Your engine could catch fire and
YOU or
others could
be burned. Use a 5W50 mix of clean
water and
DEX-COOE~ coolant.
If YSU use an improper coolant mix, your engine
could overheat and
be badly damaged. The
repair cost wouldn’t be covered by your
warranty. Too much water in the mix can freeze
and crack the engine, radiator, heater core and
If you have to add coolant more than four times a year,
have your dealer check your cooling system.
If you use the proper coolant, you don’t have to
add extra inhibitors
QF additives which claim to
improve the system. These can be harmful.
