If LED does not light:

- Check wire connection from terminal 1 to Fuel
Pump (FP) relay via fuse for an open circuit":

Electrical Wiring Diagrams, Troubleshooting &
Component Locations
- Repair open circuit if necessary.
If wire connection is OK:

- Check Fuel Pump (FP) relay:

Repair Manual, 1.8 Liter 4-Cyl. 5V Turbo Fuel
Injection & Ignition, Repair Group 24 If LED lights:

- Check activation:

Checking activation

- Connect VAG1527B voltage tester to connector terminals 1 (B+) and 2.
-
Initiate output Diagnostic Test Mode (DTM) and activate the
Pa
ge 8 of 42 Char
ge air s
ystem with turbochar
ger
(en
gine code ATW
)
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.21.3

21-53
If LED does not blink or if it remains constantly
lit:

- Connect VAG1598/31 test box at wiring harness
to ECM, do not connect ECM:

Repair Manual, 1.8 Liter 4-Cyl. 5V Turbo Fuel
Injection & Ignition, Repair Group 24

If wire connection is OK:
Repair Manual, 1.8 Liter 4-Cyl. 5V Turbo Fuel Injection & Ignition,
Repair Group 24 - Check the following wire connection for open circuit and short circuit to
Ground (GND) and B+: Harness connector
terminal
VAG1598/31 test box
socket
2 105
- Repair open circuit or short circuit if necessary.
- Replace Engine Control Module (ECM):
Pa
ge 10 of 42 Char
ge air s
ystem with turbochar
ger
(en
gine code ATW
)
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.21.3

21-63
If specified value is not obtained:

- Replace wastegate bypass regulator valve -N75-
.
If the specified value is met:

Checking voltage supply

If LED does not light:
Electrical Wiring Diagrams, Troubleshooting & Component Locations - Connect VAG1527B voltage tester as follows:Harness connector
terminal
Measure to
1 Engine Ground (GND)
- Operate starter briefly.

LED must light.
- Check wire connection from terminal 1 to Fuel Pump (FP) relay via
fuse for open circuit:
- Repair open circuit if necessary.
Pa
ge 22 of 42 Char
ge air s
ystem with turbochar
ger
(en
gine code ATW
)
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.21.3

21-64
If wire connection is OK:

- Check Fuel Pump (FP) relay:

Repair Manual, 1.8 Liter 4-Cyl. 5V Turbo Fuel
Injection & Ignition, Repair Group 24 If LED lights:

Checking activation

Repair Manual, 1.8 Liter 4-Cyl. 5V Turbo Fuel Injection & Ignition,
Repair Group 01
If LED does not blink or if it remains constantly lit:
Repair Manual, 1.8 Liter 4-Cyl. 5V Turbo Fuel Injection & Ignition,
Repair Group 24 - Connect VAG1527B voltage tester to harness connector terminals 1
(B+) and 2.
- Initiate output Diagnostic Test Mode (DTM) and activate the wastegate
bypass regulator valve -N75-.
LED must blink.
- Connect VAG1598/31 test box at wiring harness to ECM, do not
connect ECM:
Pa
ge 23 of 42 Char
ge air s
ystem with turbochar
ger
(en
gine code ATW
)
11/18/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE02.21.3

21-68

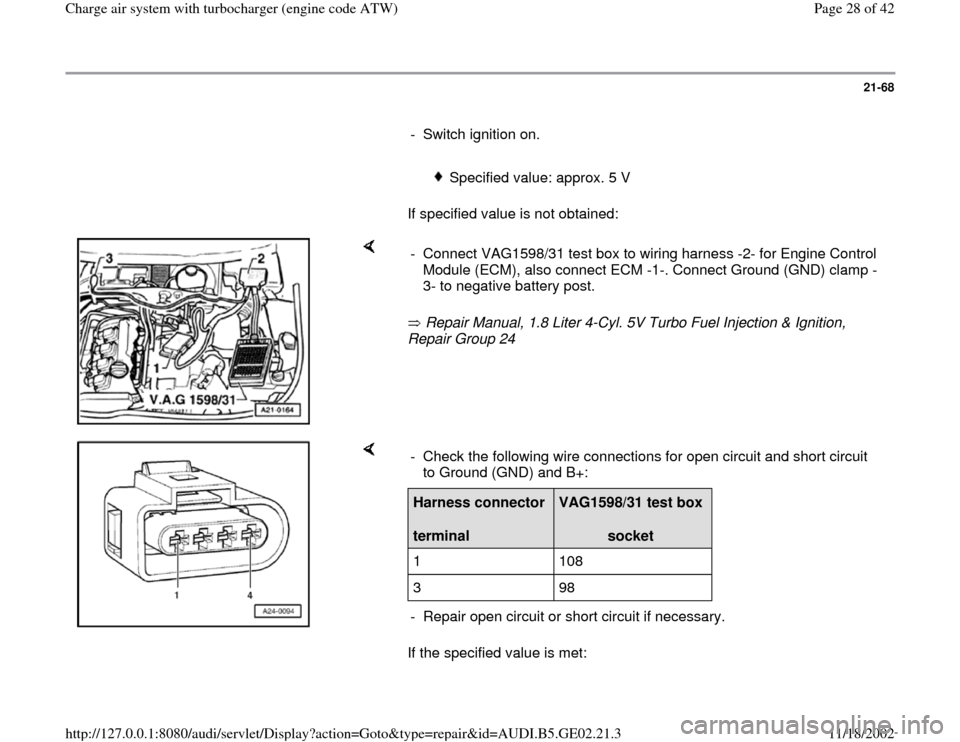

- Switch ignition on.


Specified value: approx. 5 V
If specified value is not obtained:

Repair Manual, 1.8 Liter 4-Cyl. 5V Turbo Fuel Injection & Ignition,
Repair Group 24 - Connect VAG1598/31 test box to wiring harness -2- for Engine Control
Module (ECM), also connect ECM -1-. Connect Ground (GND) clamp -
3- to negative battery post.

If the specified value is met: - Check the following wire connections for open circuit and short circuit
to Ground (GND) and B+: Harness connector
terminal
VAG1598/31 test box
socket
1 108
3 98
- Repair open circuit or short circuit if necessary.
