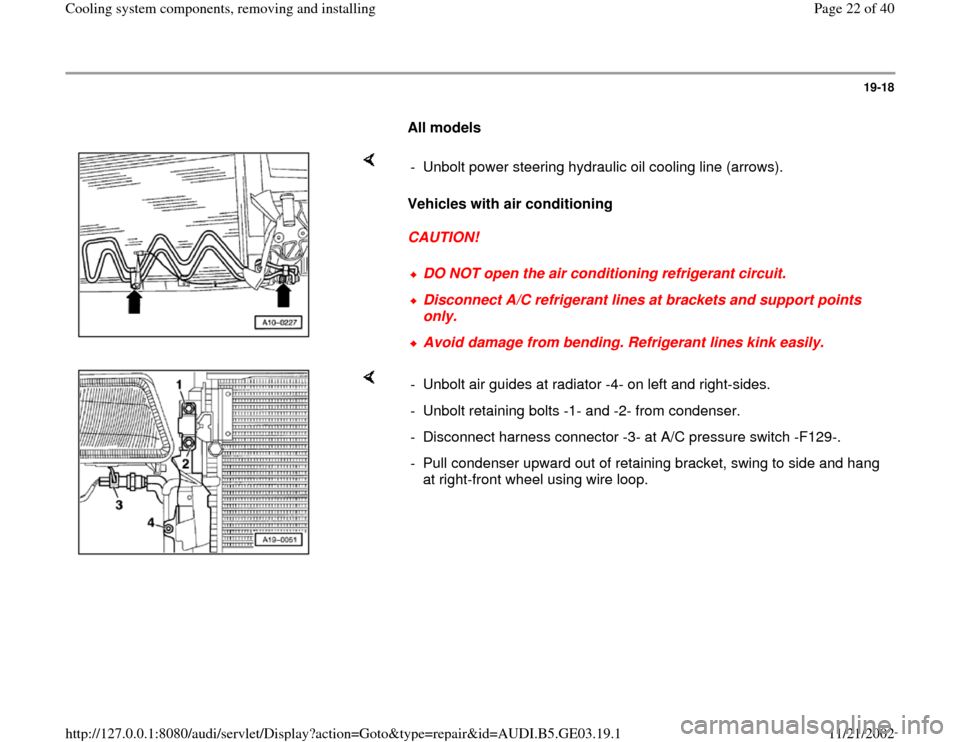

19-18
All models
Vehicles with air conditioning
CAUTION! - Unbolt power steering hydraulic oil cooling line (arrows).
DO NOT open the air conditioning refrigerant circuit.Disconnect A/C refrigerant lines at brackets and support points
only. Avoid damage from bending. Refrigerant lines kink easily.
- Unbolt air guides at radiator -4- on left and right-sides.
- Unbolt retaining bolts -1- and -2- from condenser.
- Disconnect harness connector -3- at A/C pressure switch -F129-.
- Pull condenser upward out of retaining bracket, swing to side and hang
at right-front wheel using wire loop.
