1997 AUDI A4 Lower Trim Strip Rear Door Workshop Manual

66-5


Lower trim strip for rear door Lower trim strip, removing and installing

1 -
Lower trim strip
Remove combination bolts -3- and slide
trim strip out of retaining clips -2- toward
rear. Remove trim strip from toward side of door.Installation is the reverse of removal.
2 -
Retaining clip
3 -
Combination bolt 1 Nm
4 -
Rear doors
Pa
ge 1 of 3 Lower trim stri
p for rear doo
r
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD01.66.3

66-6

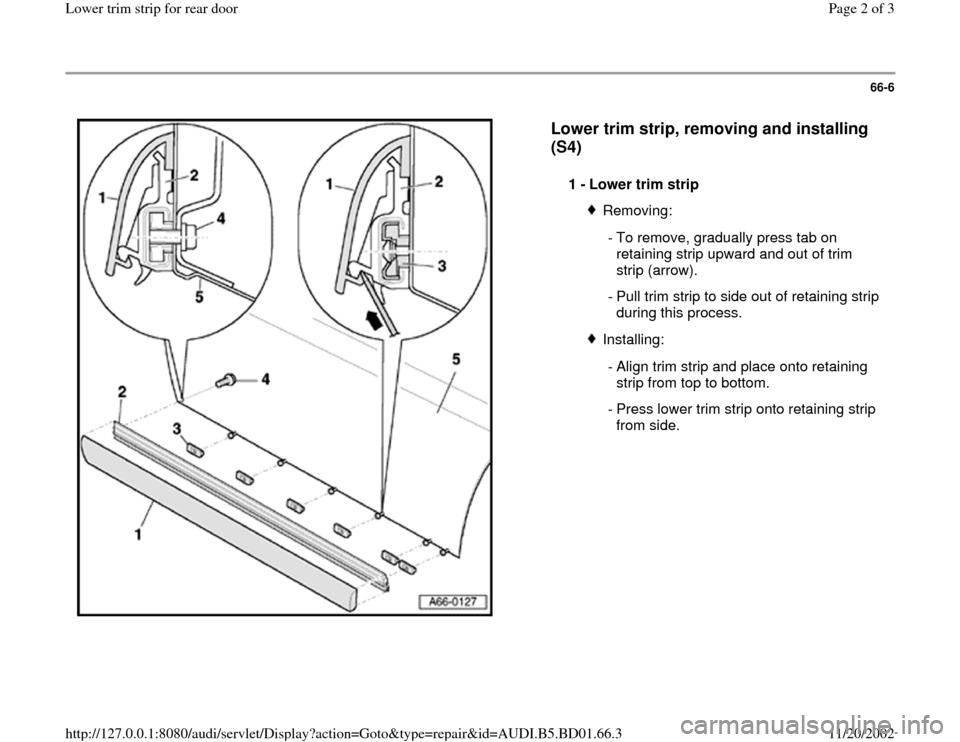

Lower trim strip, removing and installing
(S4)

1 -
Lower trim strip
Removing:
- To remove, gradually press tab on
retaining strip upward and out of trim
strip (arrow).
- Pull trim strip to side out of retaining strip
during this process. Installing:
- Align trim strip and place onto retaining
strip from top to bottom.
- Press lower trim strip onto retaining strip
from side.
Pa
ge 2 of 3 Lower trim stri
p for rear doo
r
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD01.66.3

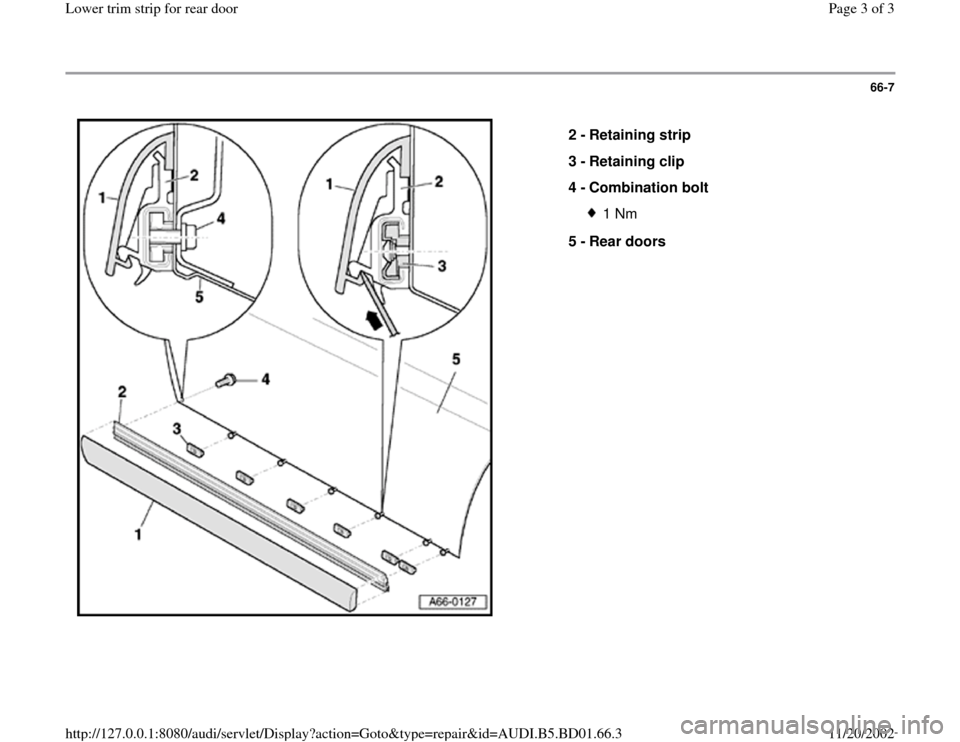

66-7


2 -
Retaining strip
3 -
Retaining clip
4 -
Combination bolt
1 Nm
5 -
Rear doors
