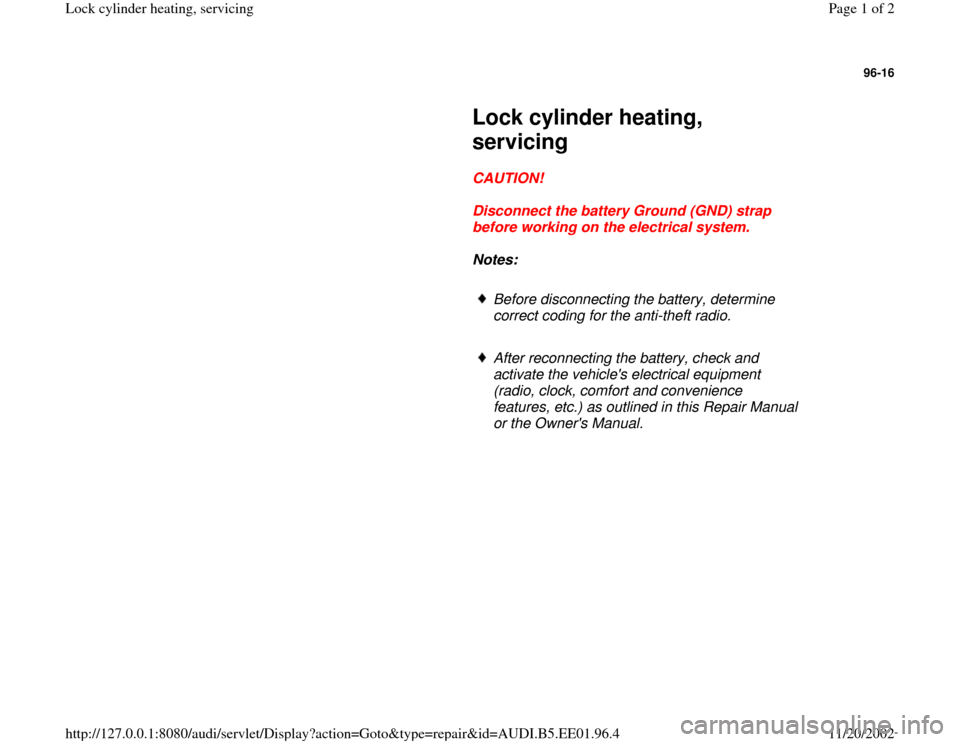

96-16
Lock cylinder heating,
servicing
CAUTION!
Disconnect the battery Ground (GND) strap
before working on the electrical system.
Notes:
Before disconnecting the battery, determine
correct coding for the anti-theft radio.
After reconnecting the battery, check and
activate the vehicle's electrical equipment
(radio, clock, comfort and convenience
features, etc.) as outlined in this Repair Manual
or the Owner's Manual.
Pa
ge 1 of 2 Lock c
ylinder heatin
g, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.96.4

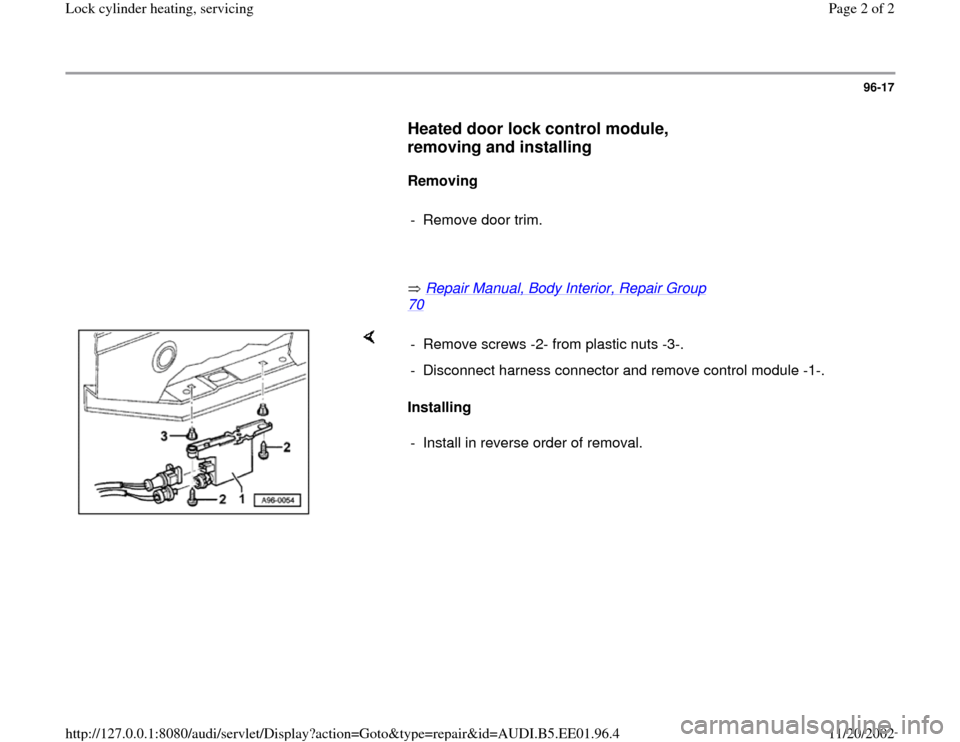

96-17
Heated door lock control module,
removing and installing
Removing
- Remove door trim.
Repair Manual, Body Interior, Repair Group
70
Installing - Remove screws -2- from plastic nuts -3-.
- Disconnect harness connector and remove control module -1-.
- Install in reverse order of removal.
