1997 AUDI A4 Interior Lights Workshop Manual

96-4

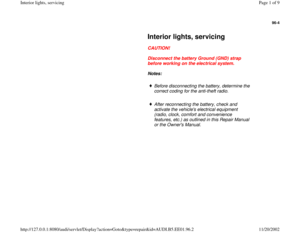

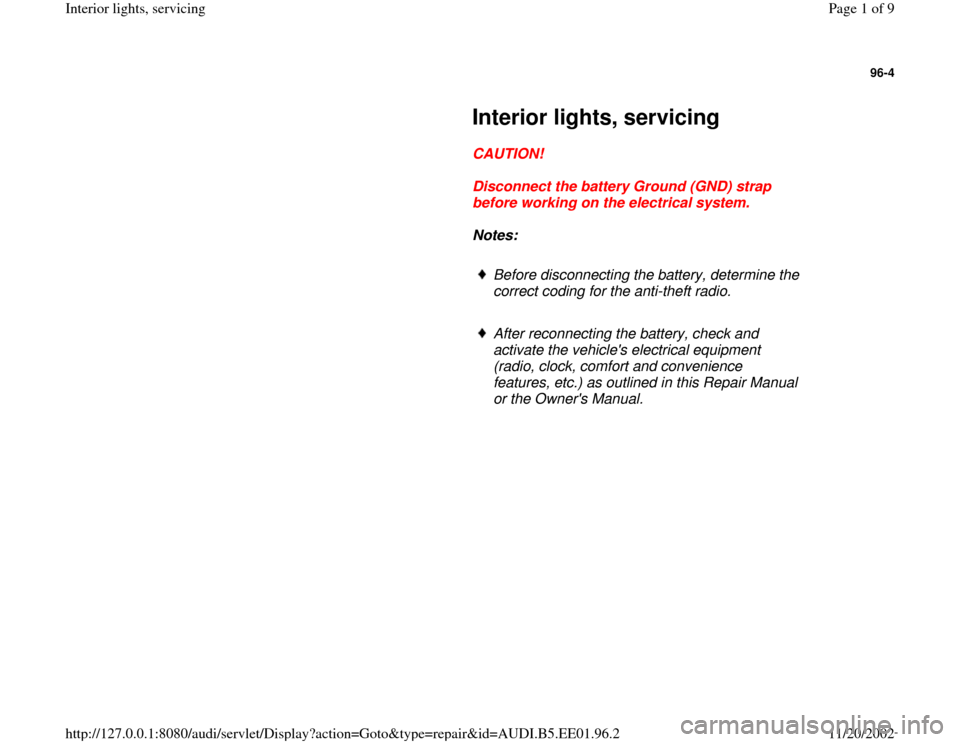

Interior lights, servicing

CAUTION!

Disconnect the battery Ground (GND) strap
before working on the electrical system.

Notes:

Before disconnecting the battery, determine the
correct coding for the anti-theft radio.
After reconnecting the battery, check and
activate the vehicle's electrical equipment
(radio, clock, comfort and convenience
features, etc.) as outlined in this Repair Manual
or the Owner's Manual.
Pa
ge 1 of 9 Interior li
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.96.2

96-5

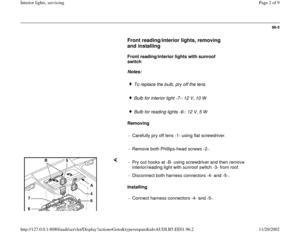

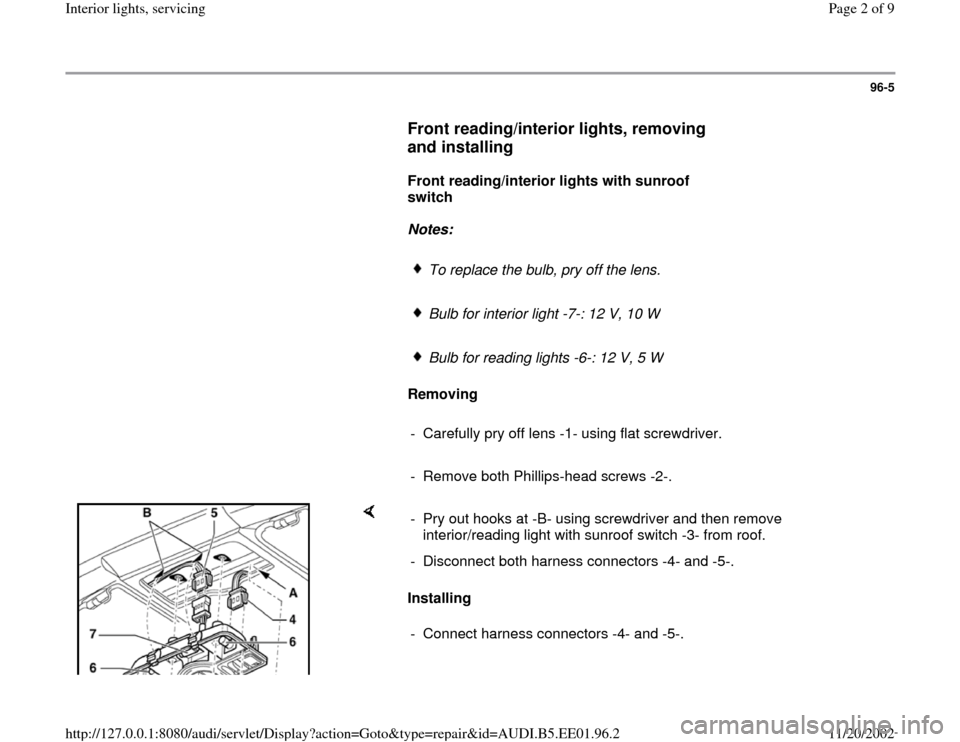

Front reading/interior lights, removing
and installing


Front reading/interior lights with sunroof
switch

Notes:

To replace the bulb, pry off the lens.
Bulb for interior light -7-: 12 V, 10
W

Bulb for reading lights -6-: 12 V, 5
W

Removing

- Carefully pry off lens -1- using flat screwdriver.

- Remove both Phillips-head screws -2-.

Installing - Pry out hooks at -B- using screwdriver and then remove
interior/reading light with sunroof switch -3- from roof.
- Disconnect both harness connectors -4- and -5-.
- Connect harness connectors -4- and -5-.
Pa
ge 2 of 9 Interior li
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.96.2

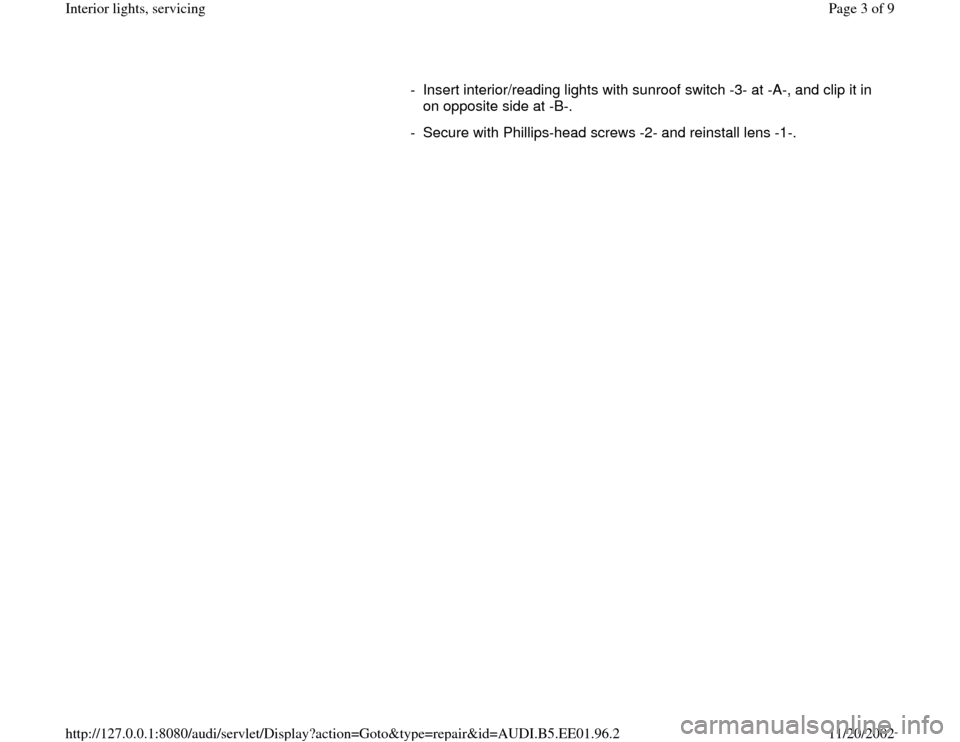

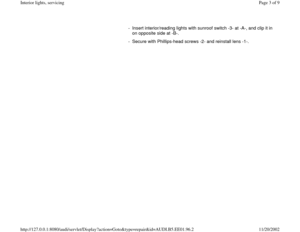

- Insert interior/reading lights with sunroof switch -3- at -A-, and clip it in
on opposite side at -B-.
- Secure with Phillips-head screws -2- and reinstall lens -1-.
Pa
ge 3 of 9 Interior li
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.96.2

96-6

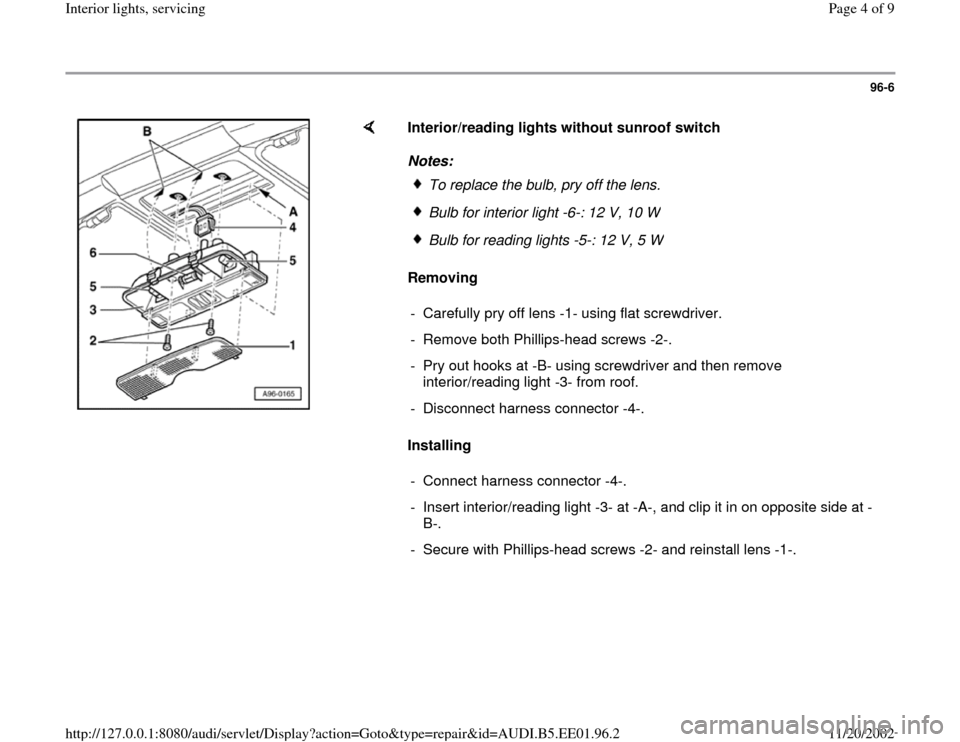

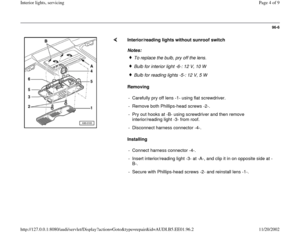

Interior/reading lights without sunroof switch
Notes:
Removing
Installing
To replace the bulb, pry off the lens.Bulb for interior light -6-: 12 V, 10
W
Bulb for reading lights -5-: 12 V, 5
W
- Carefully pry off lens -1- using flat screwdriver.
- Remove both Phillips-head screws -2-.
- Pry out hooks at -B- using screwdriver and then remove
interior/reading light -3- from roof.
- Disconnect harness connector -4-.
- Connect harness connector -4-.
- Insert interior/reading light -3- at -A-, and clip it in on opposite side at -
B-.
- Secure with Phillips-head screws -2- and reinstall lens -1-.
Pa
ge 4 of 9 Interior li
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.96.2

96-7

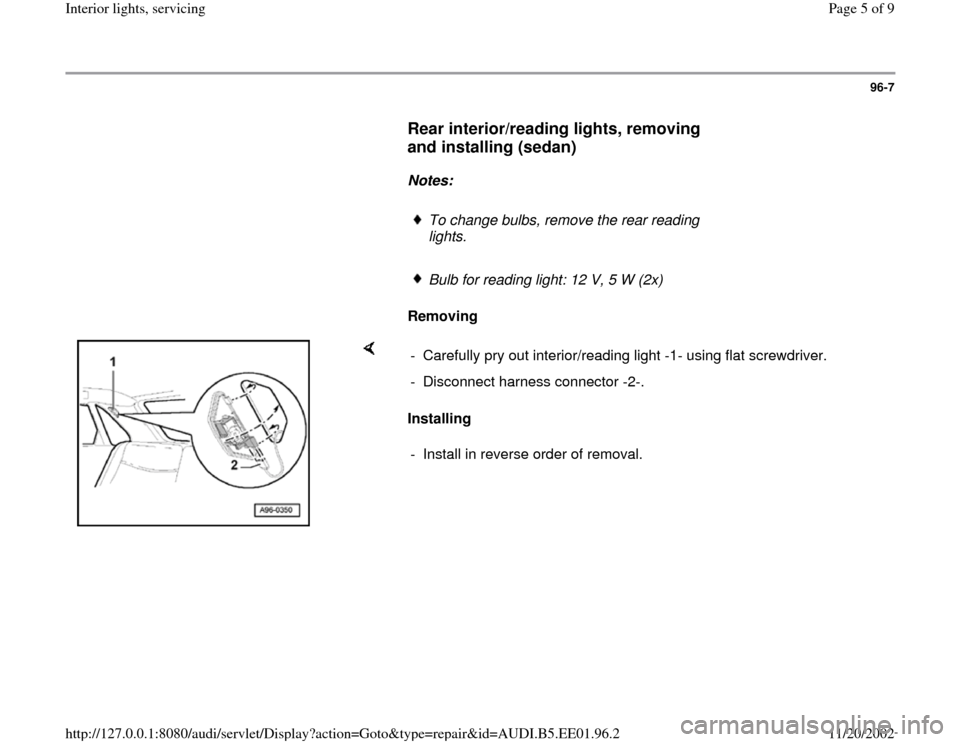

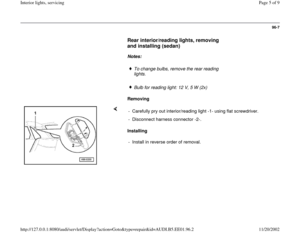

Rear interior/reading lights, removing
and installing (sedan)


Notes:

To change bulbs, remove the rear reading
lights.
Bulb for reading light: 12 V, 5 W (2x)

Removing

Installing - Carefully pry out interior/reading light -1- using flat screwdriver.
- Disconnect harness connector -2-.
- Install in reverse order of removal.
Pa
ge 5 of 9 Interior li
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.96.2

96-8

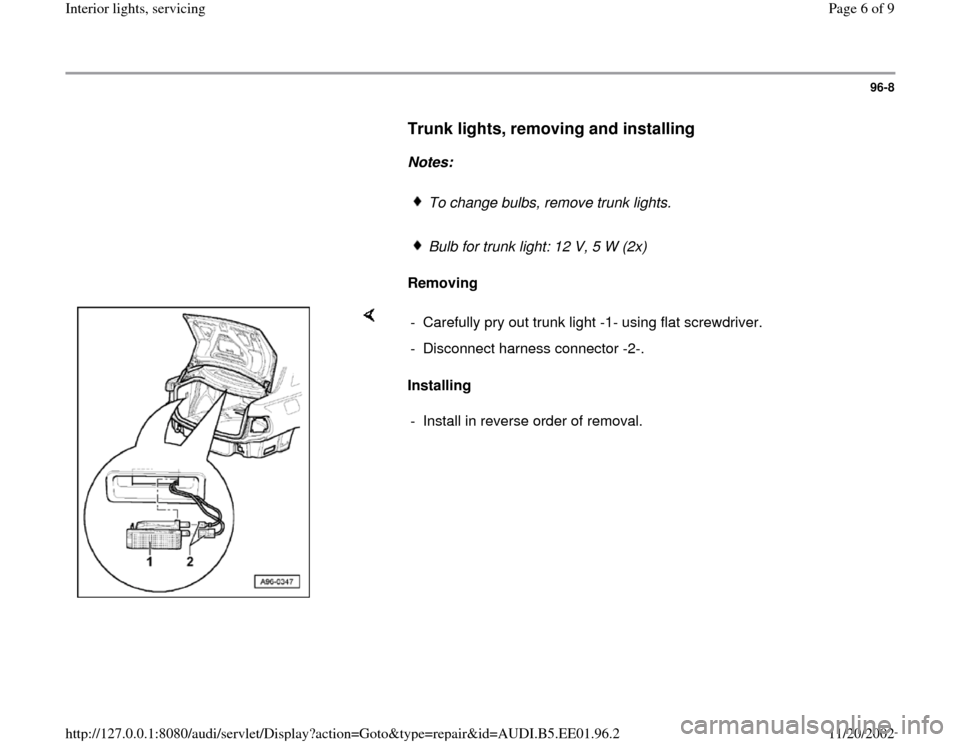

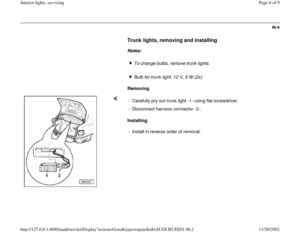

Trunk lights, removing and installing


Notes:

To change bulbs, remove trunk lights.
Bulb for trunk light: 12 V, 5 W (2x)

Removing

Installing - Carefully pry out trunk light -1- using flat screwdriver.
- Disconnect harness connector -2-.
- Install in reverse order of removal.
Pa
ge 6 of 9 Interior li
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.96.2

96-9

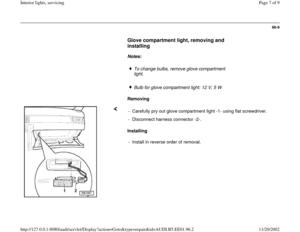

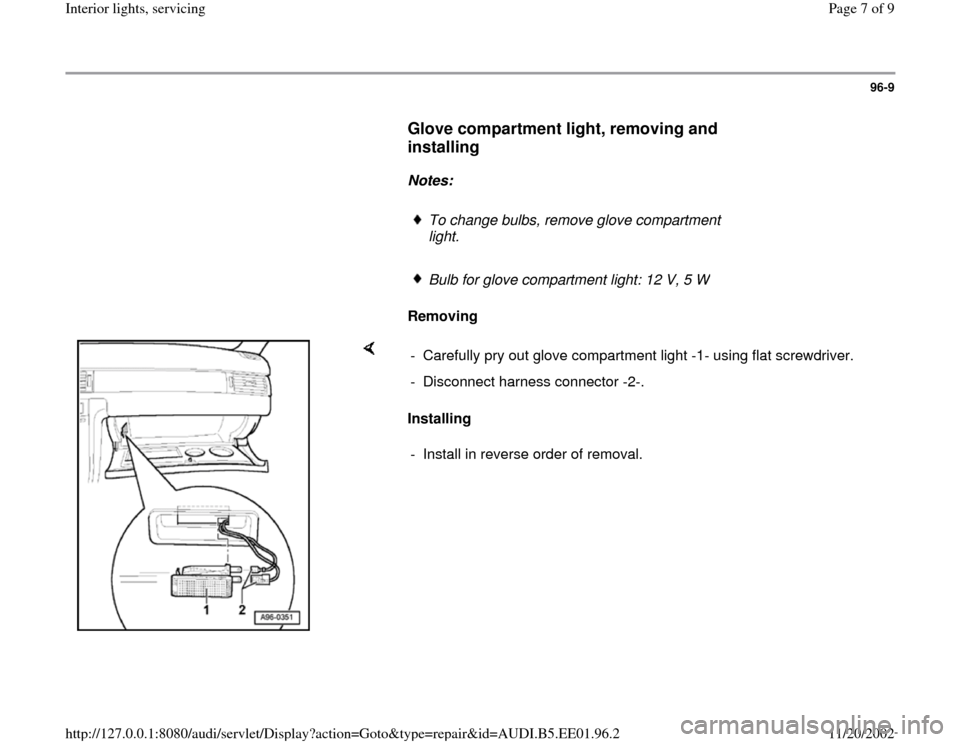

Glove compartment light, removing and
installing


Notes:

To change bulbs, remove glove compartment
light.
Bulb for glove compartment light: 12 V, 5
W

Removing

Installing - Carefully pry out glove compartment light -1- using flat screwdriver.
- Disconnect harness connector -2-.
- Install in reverse order of removal.
Pa
ge 7 of 9 Interior li
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.96.2

96-10

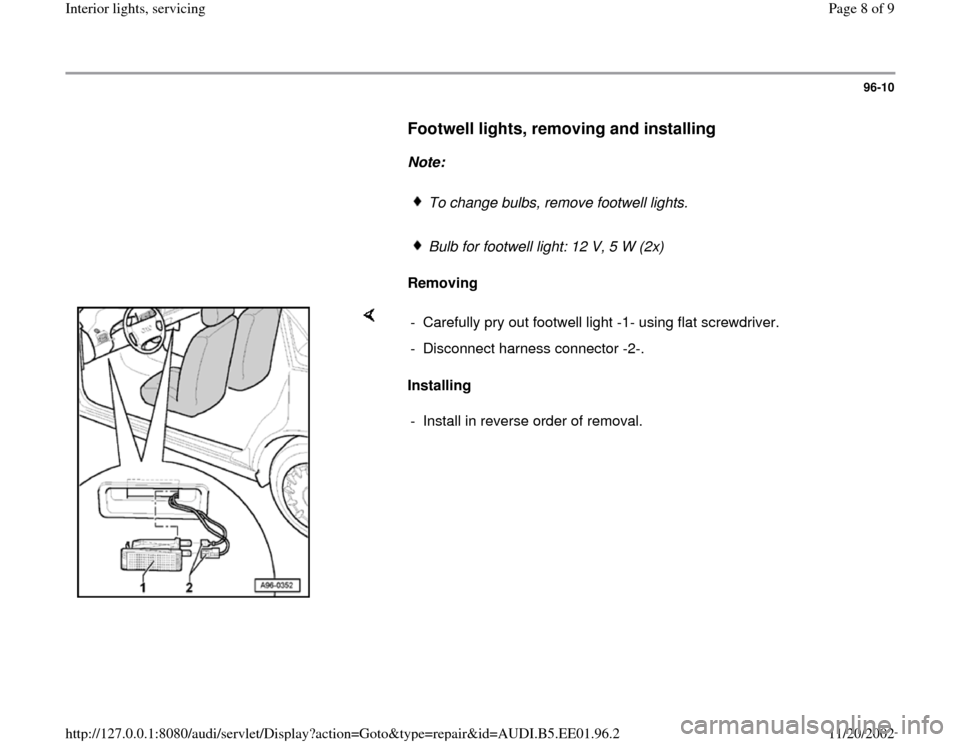

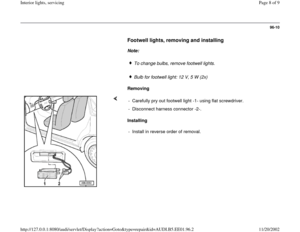

Footwell lights, removing and installing


Note:

To change bulbs, remove footwell lights.
Bulb for footwell light: 12 V, 5 W (2x)

Removing

Installing - Carefully pry out footwell light -1- using flat screwdriver.
- Disconnect harness connector -2-.
- Install in reverse order of removal.
