1997 AUDI A4 Instrument Cluster Location Diagram Through Model Year 1999 Workshop Manual

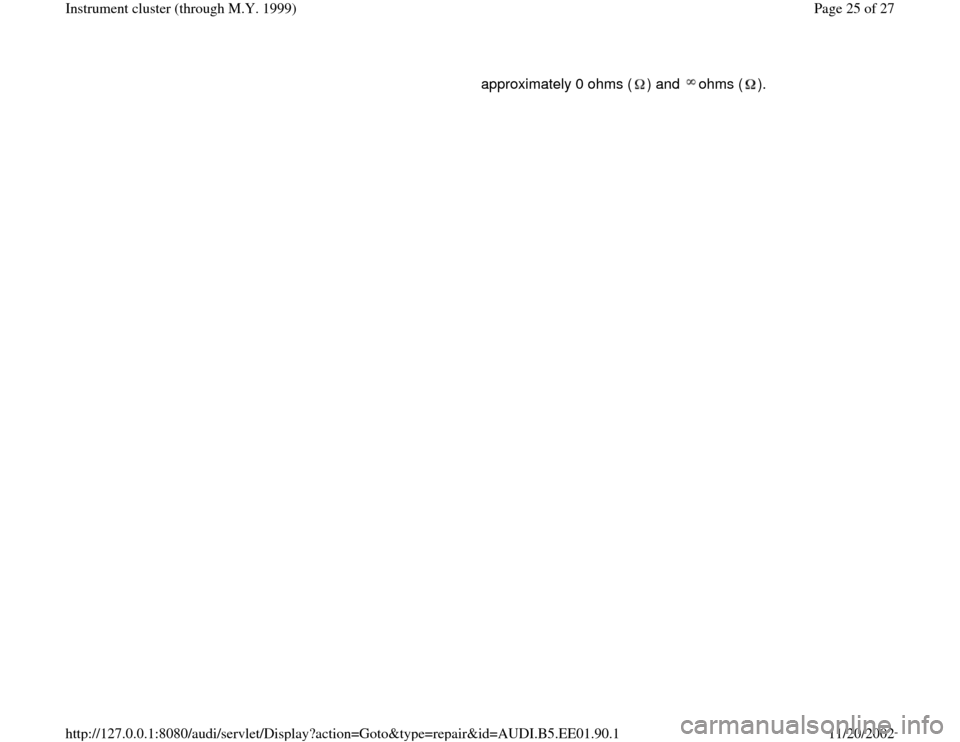

approximately 0 ohms ( ) and ohms ( ).
Pa
ge 25 of 27 Instrument cluster
(throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.90.1

90-23

Checking sender for fuel gauge

1997
26-pin connector (yellow), terminal 25

Fuel tank half full:
approx. 162 ohms ( )
Fuel tank full: approx. 40 ohms
Fuel tank reserve:
approx. 250 ohms( )

1998
32-pin connector (blue), terminal 5

Fuel tank half full:
approx. 162 ohms ( )
Fuel tank full: approx. 40 ohms
Fuel tank reserve:
approx. 250 ohms( )
Pa
ge 26 of 27 Instrument cluster
(throu
gh M.Y. 1999
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.90.1

90-24

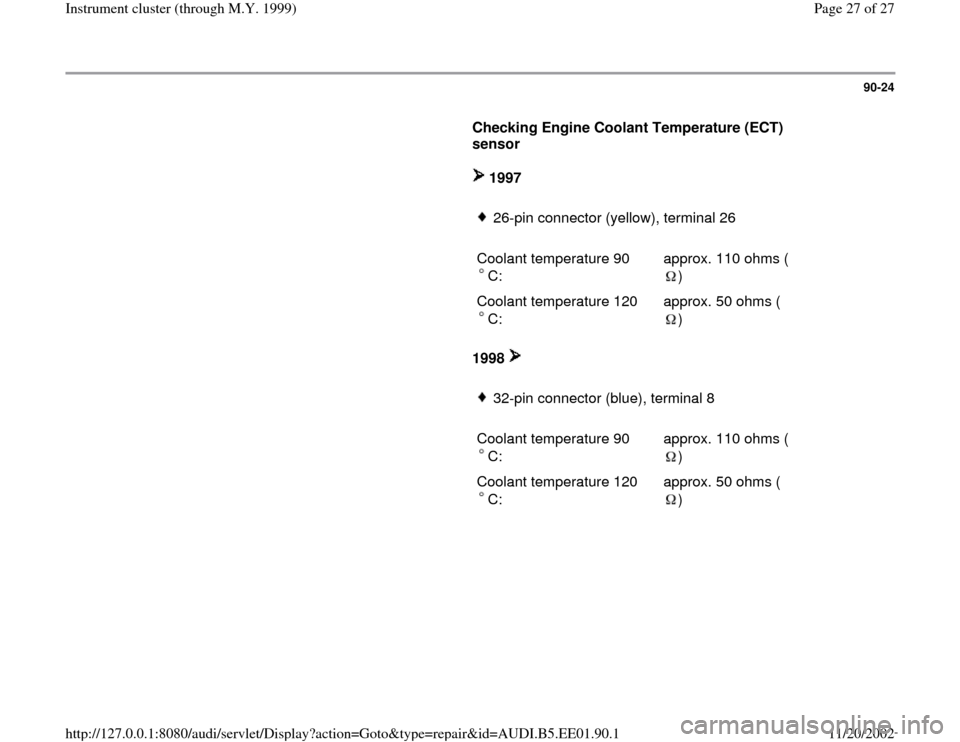

Checking Engine Coolant Temperature (ECT)
sensor

1997
26-pin connector (yellow), terminal 26

Coolant temperature 90
C:
approx. 110 ohms (
)
Coolant temperature 120
C:
approx. 50 ohms (
)

1998
32-pin connector (blue), terminal 8

Coolant temperature 90
C:
approx. 110 ohms (
)
Coolant temperature 120
C:
approx. 50 ohms (
)
