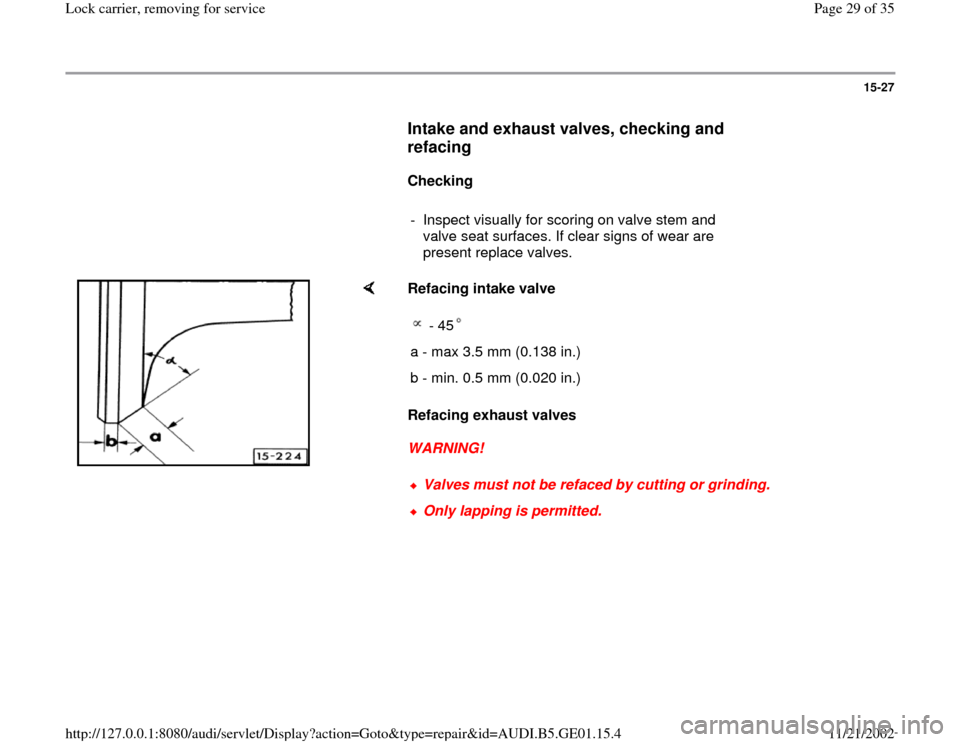

15-27
Intake and exhaust valves, checking and
refacing
Checking
- Inspect visually for scoring on valve stem and
valve seat surfaces. If clear signs of wear are
present replace valves.
Refacing intake valve
Refacing exhaust valves
WARNING! - 45a - max 3.5 mm (0.138 in.)
b - min. 0.5 mm (0.020 in.)
Valves must not be refaced by cutting or grinding. Only lapping is permitted.
Pa
ge 29 of 35 Lock carrier, removin
g for service
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE01.15.4

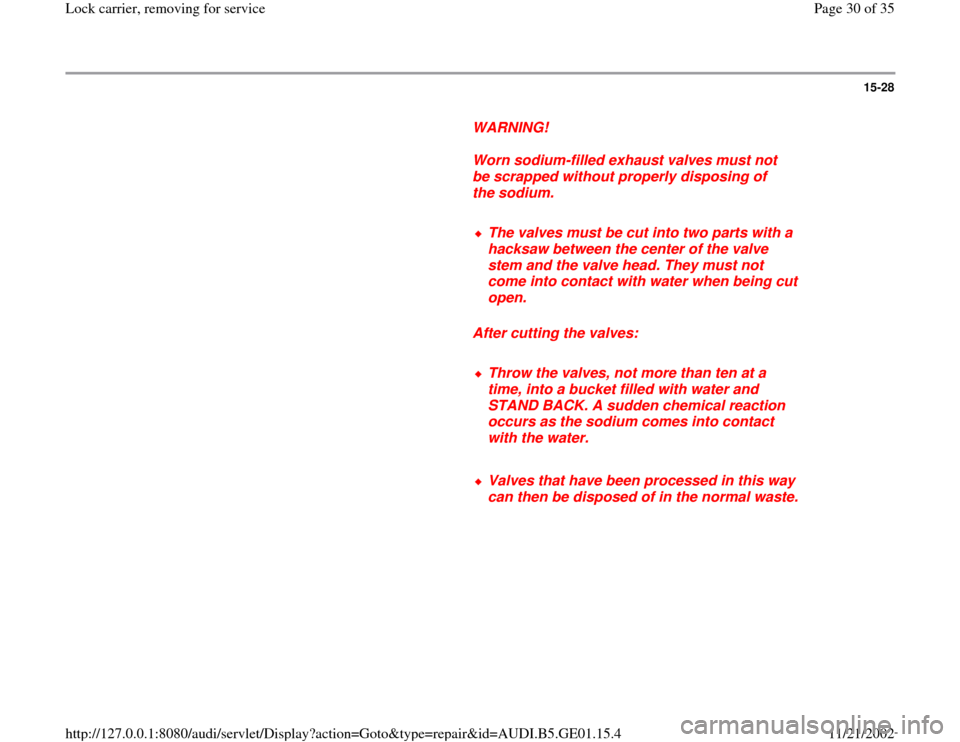

15-28
WARNING!
Worn sodium-filled exhaust valves must not
be scrapped without properly disposing of
the sodium.
The valves must be cut into two parts with a
hacksaw between the center of the valve
stem and the valve head. They must not
come into contact with water when being cut
open.
After cutting the valves:
Throw the valves, not more than ten at a
time, into a bucket filled with water and
STAND BACK. A sudden chemical reaction
occurs as the sodium comes into contact
with the water.
Valves that have been processed in this way
can then be disposed of in the normal waste.
