1996 PONTIAC GRAND-AM service schedule

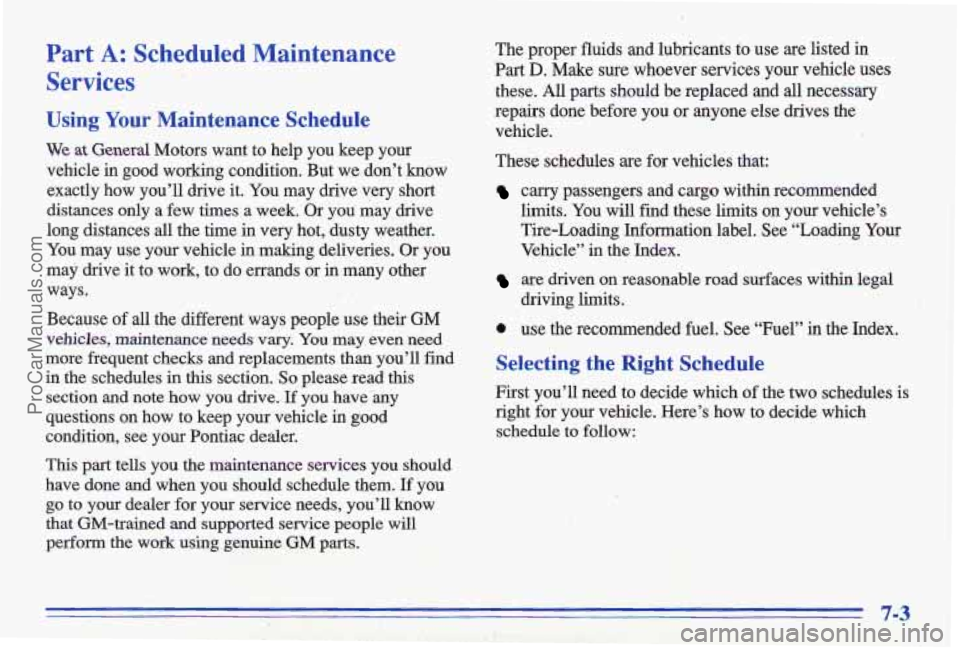

Part A: Scheduled Maintenance
Services
Using Your Maintenance Schedule
We at General Motors want to help you keep your
vehicle in good working condition. But we don’t
know
exactly how you’ll drive it. You may drive very short
distances only a
few times a week. Or you may drive
long distances all the time
in very hot, dusty weather.
You may use your vehicle in making deliveries. Or you
may drive it to work, to do errands or in many other
ways.
Because of all the different ways people use their GM
vehicles, maintenance needs vary. You may. even .need
more frequent checks and replacements than you’ll find
in the schedules in this section.
So please read this
section and note how you drive.
If you have‘any
questions on how to keep your vehicle in good condition, see your Pontiac dealer.
This
part tells you the maintenance services you should
have done and when you should schedule them.
If you
go to your dealer for your service needs, you’ll know
that GM-trained and supported service people will perform the work using genuine
GM parts. The proper fluids and lubricants to use
are listed in
Part D. Make sure whoever services.your vehicle uses
these. All parts should be replaced and all necessary
repairs done before you or anyone else drives the
vehicle.
These schedules
are for vehicles that:
carry passengers and cargo within recommended
limits. You will find these limits on your vehicle’s
Tire-Loading Information label. See “Loading
Your
Vehicle” in th’e Index.
are driven on reasonable road surfaces within legal
0 use the recommended fuel. See “Fuel” in the Index.
Selecting the Right Schedule
First you’ll need to decide which of the two schedules is
right for your vehicle. Here’s how to decide which schedule to follow: driving limits.
7-3
ProCarManuals.com

Maintenance Schedule
~~~~ .
Short Ikip/Cit"""'
Follow the Short Trip/City Maintenance Schedule if any
one of these. conditions is true for your vehicle:
Most trips are less than 5'to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
Most trips include extensive idling (such as frequent
driving in stop-and-go traffic).
Most trips are through dusty areas.
You frequently tow a trailer or use a carrier on top of
your vehicle. (With some models, you should never
tow a trailer. See
"Towing a Trailer" in the Index.)
taxi, or other commercial application.
If the vehicle is used for delivery service, police,
One of the reasons you should follow this schedule if
you operate your vehicle under any of these conditions
is that these conditions cause engine oil to break down
sooner.
I,
t
~~
Short Trip/City Intervals r
Every 3,000 Miles (5 000 km): Engine Oil and Filter
Change
(or 3 months, whichever occurs first).
Every 6,000 Miles (10 000 km): Chassis Lubrication
(or
6 months, whichever occurs first).
At 6,000 Miles (10 00'0 km), - Then Every
12,000 Miles (20 000 km): Tire Rotation.
Every 15,000 Miks (25 000 km): Air Cleaner Filter
Inspection,
if driving in dusty conditions.
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Replacement. Fuel
Tank, Cap and.Lines Inspection.
Every 50,000 Miles (83 000 km): Automatic Transaxle
Service (severe conditions only).
Every 60,000 Miles (I00 000 b): Engine Accessory
D'rive Belt Inspection.
Every 100,000 Miles (166 000 km): Cooling System
Service (or every
60 months, whichever occws first).
Spark Plyg Wire Inspection. Spark Plug Replacement.
These intewals only summarize maintenance services.
Be sure to
follow the complete maintenance schedule on
the following pages. . L . . .:-
ProCarManuals.com

Maintenance Schedule
Long Trip/Highway Definition Long TriplHighway Intervals ~~ ~ ~~ ~
Follow this maintenance schedule only if none of the
conditions from the Short Trip/City Maintenance Schedule
is true.
Driving a vehicle with a fully warmed engine under
highway conditions causes engine oil
to break down
slower. I
Every 7,500 Miles (12 500 km): Engine Oil and Filter
Change (or every 12 months, whichever occurs first).
Chassis Lubrication
(or every 12 months, whichever
occurs first).
At 7,500 Miles (12 500 km) - Then Every
15,000 Miles (25 000 km): Tire Rotation.
Every 30,000 Miles (50 bo0 km): Air Cleaner Filter
Replacement. Fuel Tank, Cap and Lines Inspection.
Every 50,000 Miles (83 000 km): Automatic Transaxle’
Service (severe conditions only).
Every 60,000 Miles (100 000 km): Engine Accessory
Drive Belt Inspection.
Every 100,000 Miles (166 000 km): Cooling System
Service (or every
60 months, whichever occurs first).
Spark Plug Wire Inspection. Spark Plug Replacement.
These intervals only summarize maintenance services.
Be sure to
follow the complete maintenance schedule on
the following pages.
,. . ~ - . .._.. .
7-5
ProCarManuals.com

The services shown in this schedule up to 100,000 miles
(166 000 km) should be performed after 100,000 miles
(166 000 km) at the same intervals'.
Footnotes
The U.S. Environmental Protection Agency or the
California
Air Resources Board has determined that the
failure
to perform this maintenance item will not nullify
the emission warranty
or limit recall liability prior to the
completion
of the vehicle's useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals
and the maintenance
be recorded.
3,000 Miles (5 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
i:
DATE ACTUAL MILEAGE SERVICED BY:
1
1'
I I ,. , .I .rc ,,>*.I , . . .- , ..-I
ProCarManuals.com

I Short Trip/City Maintenance Schedule I
6,000 Miles (10 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
Lubricate the suspension, steering linkage
and transaxle shift linkage (or every
6 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for propter rotation
pattern and additional information. During tire rotation, check brake calipers
for
freedom of movement. Refer to the
appropriate GM service manual for proper
caliper service procedures.
~
DATE SERVICED BY: ACTUAL MILEAGE
9,000 Miles (15 000 km)
Change engine oil and filter (ar every
3 months, whichever occurs first).
An Emission Control Service.
DATE ACTUAL MILEAGE SERVICED BY:
7-7
ProCarManuals.com

I Short Trip/City Maintenance Schedule I
12,000 Miles (20 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emimion Contrul Service.
[3 Lubricate the suspension, steering linkage
and transaxle shift linkage (or .every
6 months, whichever occurs first).
I
ACTUAL MILEAGE SERVICED BY:
I I
15,000 Miles -(25 000 km)
0 IChange engine oil and filter (or every
3 months, whichever occurs first).
Art Emission Cmtrol Service.
in dusty conditions. Replace filter if
necessary, An Emission Control Service. ?
0 Inspect air cleaner filter if you are driving
I DATE I ACTUALMILEAGE ISERVICER BY:
ProCarManuals.com

Short TriplCity Maintenance Schedule ,’
!
18,000’ Miles: (30 000 km) I :.
El Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
Lubricate the suspension, steering linkage
and transaxle shift linkage (or every
6 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation’’
in the Index for proper rotation
pattern and additional information. During
tire rotation, check brake calipers for
freedom of mdvement. Refer to the
appropriate
GM service manual for proper
caliper service procedures.
21,000 Miles (35 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
8
I I I 1
DATE ACTUAL MILEAGE SERVICED BY:
ProCarManuals.com

I Short Trip/City Maintenance Schedule I
24,000 Miles (40 000 km)
I7 Change engine oil and filter (or every
3 mdnths, whichever occurs first).
An Emission Control Service,
and transaxle shift linkage ,(or every
6 months, whichever occurs first).
0 Lubricate the suspension, steering linkage
27,000 Miles (45 000 km)
,O Change engine oil and filter (or every
,3 months, whichever occurs 'first).
An Emission Control Service.
DATE ACTUAL MILEAGE SERVICED BY:
