1996 PONTIAC GRAND-AM engine

Capacities and Specifications
Engine Crankcase
2.4LEngine ...........................................
3.1LEngine ...........................................
Pan Removal and Replacement ............................
After Complete Overhaul ................................
Automatic Transaxle
When draining or replacing torque converter, more fluid may be needed.
Manual mansaxle
Complete Drain and,Refill ...............................
Cooling System
2.4LEngine ............................................
3.1LEngine ............................................
Refrigerant, Air Conditioning
See refrigerant charge label und'er hood.
FuelTank .............................................
Tire Pressures, Sizes ....................................
4.0 quarts (3.8 L)
4.5 quarts (4.3 L)
6.0 quarts (5.7 L)
8.0 quarts (7.6 L)
2.0 quarts (1.9 L)
11.3 quarts (10.7 L)
13.6 quarts (12.9 L)
15.2 gallons (57.5 L)
See Tire-Loading Information
label
on driver's door.
100 lb-ft (140 N-m) WheeINutTorque ......................................
Windshield Wiper Blade (Pin Type)
Length ............................................... 19 inches (48 cm)
PartNumber
.......................................... 22155381
Note:
All capacities are approximate. When adding, be sure to fill to the appropriate level or as recommended in this manual.
6-60
ProCarManuals.com

2.4L Engine Specifications
VIN Engine Code .....................
Horsepower ............................
Firing Order ; ...........................
Thermostat Temperature ..................
3.1L Engine Specifications
VIN Engine Code .........................
Horsepower ............................
Firing Order ............................
Thermostat Temperature ..................
Dimensions
Length Coupe
................ 186.9 inches (474.7 cm)
Sedan
................. 186.9 inches (474.7 cm)
.Coupe
.......... . . 74.1 inches (188.2 cm)
Sedan
......... ..... 74.1 inches (188.2 cm)
Coupe ................ 53.3 inches (136.0 cm)
Sedan
.................. 53.3 inches (136.0 cm)
Width
Height
T
150
180°F (82°C)
1-3-4-2
M
155
195°F (91OC)
1-2-3-4-5-6
Wheelbase Coupe
................ 103.4 inches (262.7 cm)
Sedan
................. 103.4 inches (262.7 cm)
Coupe
................. 55.8 inches (141.7 cm)
Coupe
................ .55.3 inches (140.4 cm)
Front Tread
Sedan
.................. 55.8 inches (141.7 cm)
Rear Tread Sedan
................. .55.3 inches (140.4 crn)
6-61
ProCarManuals.com

. ’ Normal Maintenance Replacement Parts
Air Cleaner Element
2.4L ............... AC me A-1233.C
3.1L ................ AC Type A-1233C
Engine Oil Filter
2.4L ............... AC Type PF-44
3.1L ............... AC Type PF-47
Spark Plugs
2.4L ............... AC Type 041-910, .
3.1L ............... AC Type 41-9110,
Gap: 0.060 inch (1.52 mm)
Gap: 0.060 inch (1.52 mm)
Air Conditioning Refrigerants..
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant,
be sure the proper refrigerant is used.
If you’re not sure, ask your Pontiac dealer.
: .
6-62
ProCarManuals.com

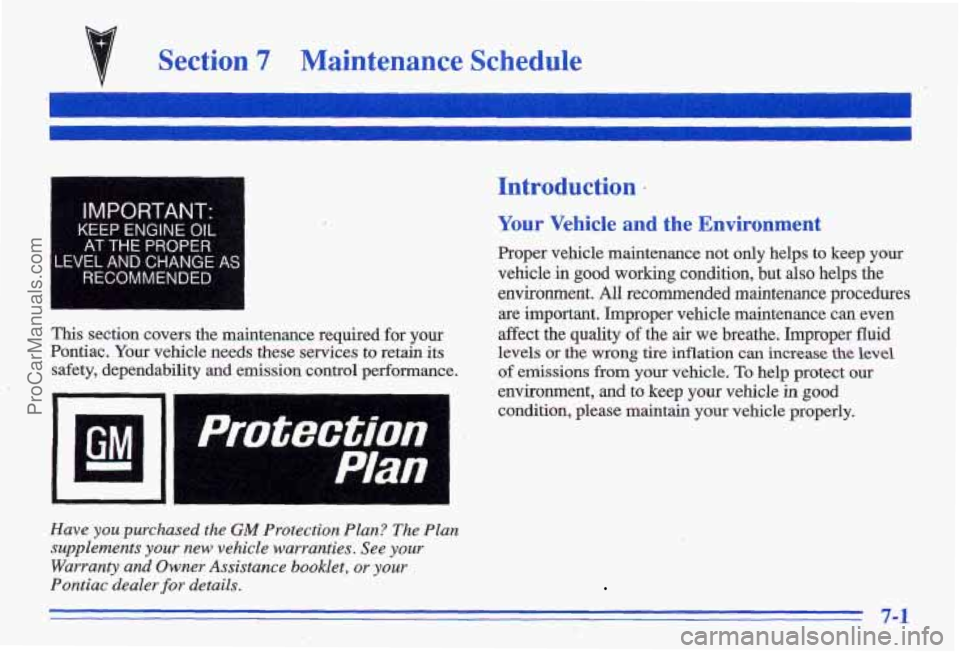

v Section 7 Maintenanc,e Schedule - -.
IMPORTANT-
KEEP ENGINE OIL
AT THE PROPER
.EVEL AND CHANGE AS
RECOMMENDED
Introduction
Your Vehicle and the Environment
Proper vewcle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance can even
~ This section covers the maintenance required for your affect the quality of the air we breathe. Improper fluid
Pontiac. Your vehicle needs
these services to retain its levels or the wrong tire inflation can increase the level
safety, dependability and emission control performance. of emissions from your vehicle. To help protect our
..
'. 2 ,
Have you purchased the GM Protection Plan? The Plan
supplements your new vehicle warranties. See your
Warranty and Owner Assistance booklet, or your
Pontiac dealer for details. .- ,! .- .. .. .. .. 1' . '>.. 3 , .. -. ., . -b . ' .: : I .6.
7-1
ProCarManuals.com

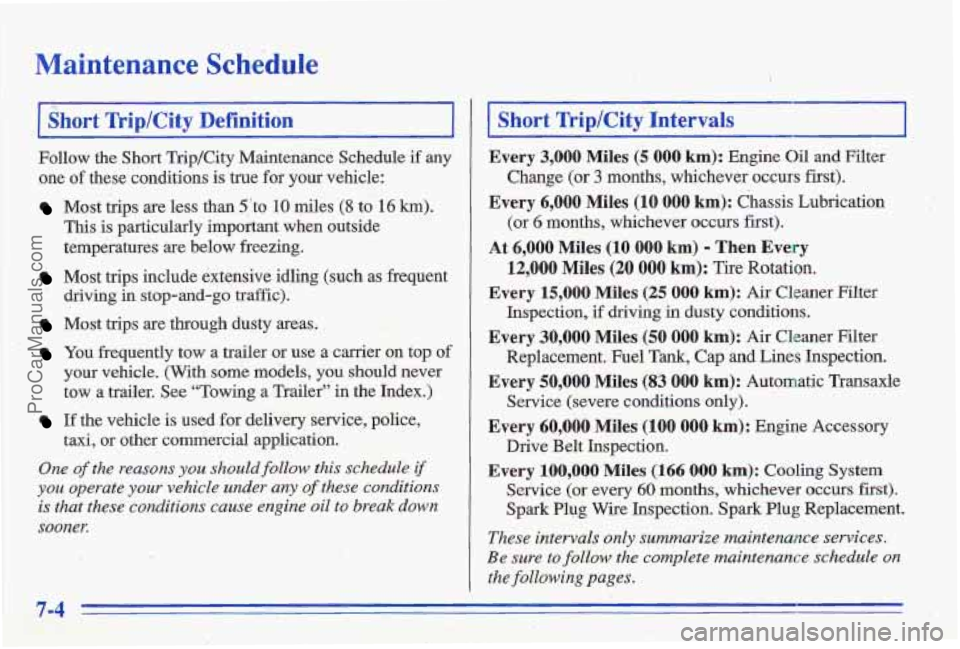

Maintenance Schedule
~~~~ .
Short Ikip/Cit"""'
Follow the Short Trip/City Maintenance Schedule if any
one of these. conditions is true for your vehicle:
Most trips are less than 5'to 10 miles (8 to 16 km).
This is particularly important when outside
temperatures are below freezing.
Most trips include extensive idling (such as frequent
driving in stop-and-go traffic).
Most trips are through dusty areas.
You frequently tow a trailer or use a carrier on top of
your vehicle. (With some models, you should never
tow a trailer. See
"Towing a Trailer" in the Index.)
taxi, or other commercial application.
If the vehicle is used for delivery service, police,
One of the reasons you should follow this schedule if
you operate your vehicle under any of these conditions
is that these conditions cause engine oil to break down
sooner.
I,
t
~~
Short Trip/City Intervals r
Every 3,000 Miles (5 000 km): Engine Oil and Filter
Change
(or 3 months, whichever occurs first).
Every 6,000 Miles (10 000 km): Chassis Lubrication
(or
6 months, whichever occurs first).
At 6,000 Miles (10 00'0 km), - Then Every
12,000 Miles (20 000 km): Tire Rotation.
Every 15,000 Miks (25 000 km): Air Cleaner Filter
Inspection,
if driving in dusty conditions.
Every 30,000 Miles (50 000 km): Air Cleaner Filter
Replacement. Fuel
Tank, Cap and.Lines Inspection.
Every 50,000 Miles (83 000 km): Automatic Transaxle
Service (severe conditions only).
Every 60,000 Miles (I00 000 b): Engine Accessory
D'rive Belt Inspection.
Every 100,000 Miles (166 000 km): Cooling System
Service (or every
60 months, whichever occws first).
Spark Plyg Wire Inspection. Spark Plug Replacement.
These intewals only summarize maintenance services.
Be sure to
follow the complete maintenance schedule on
the following pages. . L . . .:-
ProCarManuals.com

Maintenance Schedule
Long Trip/Highway Definition Long TriplHighway Intervals ~~ ~ ~~ ~
Follow this maintenance schedule only if none of the
conditions from the Short Trip/City Maintenance Schedule
is true.
Driving a vehicle with a fully warmed engine under
highway conditions causes engine oil
to break down
slower. I
Every 7,500 Miles (12 500 km): Engine Oil and Filter
Change (or every 12 months, whichever occurs first).
Chassis Lubrication
(or every 12 months, whichever
occurs first).
At 7,500 Miles (12 500 km) - Then Every
15,000 Miles (25 000 km): Tire Rotation.
Every 30,000 Miles (50 bo0 km): Air Cleaner Filter
Replacement. Fuel Tank, Cap and Lines Inspection.
Every 50,000 Miles (83 000 km): Automatic Transaxle’
Service (severe conditions only).
Every 60,000 Miles (100 000 km): Engine Accessory
Drive Belt Inspection.
Every 100,000 Miles (166 000 km): Cooling System
Service (or every
60 months, whichever occurs first).
Spark Plug Wire Inspection. Spark Plug Replacement.
These intervals only summarize maintenance services.
Be sure to
follow the complete maintenance schedule on
the following pages.
,. . ~ - . .._.. .
7-5
ProCarManuals.com

The services shown in this schedule up to 100,000 miles
(166 000 km) should be performed after 100,000 miles
(166 000 km) at the same intervals'.
Footnotes
The U.S. Environmental Protection Agency or the
California
Air Resources Board has determined that the
failure
to perform this maintenance item will not nullify
the emission warranty
or limit recall liability prior to the
completion
of the vehicle's useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals
and the maintenance
be recorded.
3,000 Miles (5 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
i:
DATE ACTUAL MILEAGE SERVICED BY:
1
1'
I I ,. , .I .rc ,,>*.I , . . .- , ..-I
ProCarManuals.com

I Short Trip/City Maintenance Schedule I
6,000 Miles (10 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
Lubricate the suspension, steering linkage
and transaxle shift linkage (or every
6 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for propter rotation
pattern and additional information. During tire rotation, check brake calipers
for
freedom of movement. Refer to the
appropriate GM service manual for proper
caliper service procedures.
~
DATE SERVICED BY: ACTUAL MILEAGE
9,000 Miles (15 000 km)
Change engine oil and filter (ar every
3 months, whichever occurs first).
An Emission Control Service.
DATE ACTUAL MILEAGE SERVICED BY:
7-7
