1996 PONTIAC FIREBIRD headlamp

Remote Lock Control Verification
Your vehicle comes with this feature set in Mode 5.
This ,means that when you use the Remote Lock
Control transmitter to lockhnlock your vehicle, your
parking lamps will flash briefly upon the fist push on
LOCK. Your horn will sound briefly, your
parking
lamps will flash briefly upon the second push on LOCK
and your parking lamps will flash briefly upon any
push on UNLOCK. To change the factory setting, do
the following:
1.
2.
3.
Press the UNLOCK switch an the Remote Lock
Control transmitter.
Count
the number of chimes you hear. The number
of chimes tells you which mode your vehicle is
set for.
Press the
UNLOCK switch on the Remote Lock
Control transmitter
until you hear the number
of chimes that correspond to the mode selection
you want.
Mode 1: All Off (The headlamps will not flash and the
horn will not sound to provide you feedback that 'a
1ocWunlock command has been received
by the Remote
Lock Control transmitter).
Mode 2: Horn and LampsLamps (Your horn will
sound briefly and your parking lamps will flash
when you press LOCK on the Remote Lock Control
transmitter. Only your parking lamps will flash when
you press UNLOCK).
Molde 3: Horn and Lamps (Your horn will sound briefly
and yo'ur parking lamps will flash every time you push
LOCK and UNLOCK).
Mode 4: Lamps (Your parking lamps will flash every
time you push LOCK and UNLOCK).
Mode 5: Lamps/Horri and LampsLamps (Your lamps
will flash upon
the fist push on LOCK, your lamps
will flash and your horn will sound upon the second
push on
LOCK and your lamps will flash upon any
push
on UNLOCK).
ProCarManuals.com

Tilt Steering Wheel Turn SignaVMultifunction Lever
A tilt steering wheel allows you to adjust the steering
wheel before
you drive.
You can also raise it to the highest level to give your
legs more room when you exit and enter the vehicle.
To tilt the wheel, hold the steering wheel and pull the
lever. Move the steering wheel
to a comfortable level,
then release the lever to lock the wheel in place. The
lever on the left side of the steering column
includes your:
Turn Signal and Lane Change Indicator
e Headlamp Highkow Beam and Passing Signal
e Windshield Wipers
Windshield Washer
Cruise Control (Option)
2-43
ProCarManuals.com

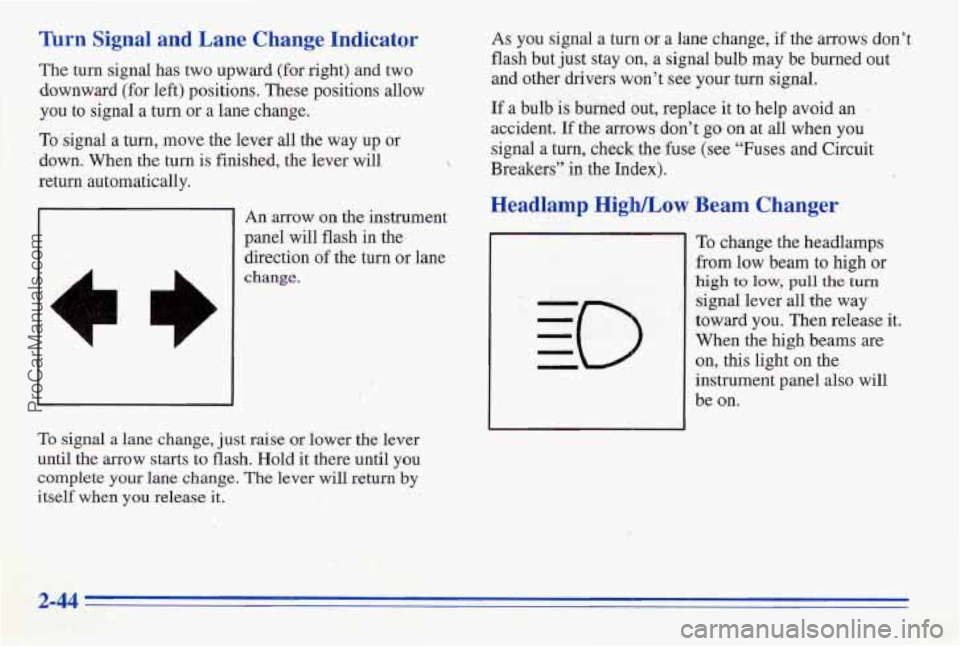

Turn Signal and Lane Change Indicator
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow
you to signal a turn or a lane change.
To signal a turn, move the lever all the way up or
down. When
the turn is finished, the lever will +
return automatically.
An arrow on the instrument
panel will flash in the
direction.
of the turn or lane
change.
As you signal a turn or a lane change, if the arrows don’t
flash but just ‘stay
on, a signal bulb may be burned out
and other drivers won’t see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don’t go on at all when you
signal a turn, check the fuse (see “Fuses and,Circuit
Breakers” in the Index).
Headlarnp High/Low Beam Changer ’
.. -.
.;: , i.:. : . .. 1 g .- ..
To change the headlamps
from low beam to high or
high to low, pull the turn
signal lever all the way
toward you.
Then release it.
When
the high beams are
con, this light
on the
instrument panel also will
be on.
To signal a lane change, just raise or lower the lever
until the
mow starts to flash. Hold it there until you
complete
your lane change. The lever will return by
itself when you release it.
2-44
ProCarManuals.com

Lamps The main lamp control is a knob that works these lamps:
0 Headlamps
Taillamps
Parking Lamps
0 License Lamps
Sidemarker Lamps
0 Instrument Panel Lights
-'Q- , This setting turns on your headlamps and other
operating lamps.
Pg This setting turns on your parking lamps without
your headlamps.
Turn the hob to OFF to turn off the lamps.
Headlamps On Reminder
If you turn the ignition OFF and leave the lamps on, you
will hear a chime lasting up to 5 seconds. If the laws
are still on when you open the driver's door, the chime
will sound again.
ProCarManuals.com

Headlamp Doors The headlamp doors should be open when driving in icy or snowy conditions to prevent the doors from
freezing closed and when washing the vehicle to help
clean the headlamps.
You can open the headlamp doors manually:
1. Open the hood.
2. Remove the plastic cover from the retractor
motor knob.
3. Turn the retractor motor knob counterclockwise
until the headlamp door is fully open. The knob will
get harder to turn when the headlamp door is all
the
way up.
4. Replace the plastic cover on the retractor motor knob.
To manually close the headlamp doors, turn the lampssoff
The headlamp doors are designed to open when you turn and turn the knob clockwise. If the headlamp doors aren’t
the headlamps on.and close when you turn the working properly, see your Pontiac dealer for help.
headlamps off. The headlamp doors can be opened
without turning
on the headlamps by turning the
headlamps
on, then turning in the switch back to the
parking lamps position.
ProCarManuals.com

Daytime Running Lamps (Option)
Daytime Running Lamps (DRL) can make it easier for
others
tu see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful in.the
short periods after dawn and before sunset.
A light sensor on top of the instrument panel makes the
DRL work, so be sure it isn’t covered.
The
DRL system will make your front turn signal lamps
come on when:
The ignition is on,
The headlamp switch is OFF, and
The parking brake is released.
When
the DRL are on, only your front turn signal
lamps will be on. The taillamps, sidemarker and other
lamps won’t be on. Your instrument panel won’t be lit
up either.
When it’s dark enough outside, your front turn signal
lamps will
go out and your headlamps will come on.
The other lamps that come on with your headlamps will
also come on.
When it’s bright enough outside, the regular lamps will
go off, and your front turn signal lamps will come on.
As with any vehicle, you should turn on the regular
headlamp system when you need it.
Fog Lamps (Option)
Use your fog lamps for better vision in foggy or misty
conditions. Your parking lamps must be on or your fog
lamps won’t work.
SO To turn the fog lamps on, push the top of the fog
lamp switch,
Push the bottom of the switch to turn the
fog lamps off. A light on the switch will come on when
the fog
lamps are on.
Fog lamps will go off whenever your high beams come
on. When the high beams
go off, the fog lamps will
come
on again.
If your vehicle is equipped with Vehicle and Content
Theft-Deterrent System and your
fog lamp switch is
on,
the fog lamps may flash to indicate operation of
the Vehicle
and Content Theft-Deterrent System.
See “Vehicle and Content Theft-Deterrent System” in
the
Index.
2-52
ProCarManuals.com

Here are some tips on night driving.
0 Drive defensively.
Don’t drink and drive.
Adjust your inside rearview mirror to reduce the
glare from headlamps behind
you.
Since you can’t see as well, you may need to
slow down and keep more space between you and
other vehicles.
0 Slow down, especially on higher speed roads. Your
headlamps can light up only
so much road ahead.
In remote areas, watch for animals.
If you’re tired, pull off the road in a safe place
and rest.
Night Vision
No one can see as well at night as in the daytime. But as
we get older these differences increase.
A 50-year-old
driver may require at least twice as much light to see the same
thing at night as a 20-year-old.
What you do in the daytime can also affect your,night
vision. For example,
if you spend the day in bright
sunshine
you are wise to wear sunglasses. Your eyes will
have less trouble adjusting to night. But
if you’re driving, don’t wear sunglasses at night. They may
cut
down on glare from headlamps, but they also make
a lot
of things invisible.
You can be temporarily blinded by approaching
headlamps.
It can take a second or two, or even several
seconds, for your eyes
to readjust to the dark. When you
are faced with severe glare (as from
a driver who
doesn’t lower the high beams, or
a vehicle with
misaimed headlamps), slow down a little. Avoid staring
directly into the approaching headlamps.
Keep
your windshield and all the glass on your vehicle
clean
-- inside and out. Glare at night is made much
‘worse by dirt on the glass. Eventhe inside of the glass
can build up a film caused by dust. Dirty glass makes
lights dazzle and flash more than clean glass would,
making the pupils of your eyes contract repeatedly.
Remember that your headlamps light up far less of a
roadway when you are in a
turn or curve. Keep your
eyes moving; that way, it’s easier
to pick out dimly
lighted objects. Just as your headlamps should be
checked regularly for proper aim,
so should your eyes
be examined regularly. Some drivers suffer from night
blind,ness
-- the inability to see in dim light -- and aren’t
even aware
of it.
4-16
ProCarManuals.com

Hydroplaning
Hydroplaning is dangerous. So much water can build up
under your tires that they can actually ride on the water.
This can happen if the road is wet enough and you’re
going fast enough. When your vehicle is hydroplaning,
it has little or no contact with the road.
Hydroplaning doesn’t happen often. But it can if your
tires haven’t much tread or if the pressure in one or
more is low. It can happen
if a lot of water is standing on
the road. If you can see reflections from trees, telephone
poles or other vehicles, and raindrops “dimple” the
water’s surface, there could be hydroplaning.
Hydroplaning usually happens at higher speeds. There
just isn’t a hard and fast rule about hydroplaning. The
best advice is to slow down when it is raining.
,I ’. -x.
Driving Through Deep Standing Water
NOTICE:
If you drive too quickly through deep puddles or
standing water, water can come in through your engine’s air intake aqd badly damage your
engine. Never drive through water. that is slightly
lower than,the underbody
of your vehicle. If you
can’t avoid deep puddles or standing water, drive
through them very slowly.
Some Other Rainy Weather Tips .‘
Turn on your low-beam headlamps -- not just
your parking lamps
-- to help make you more visible
to others.
Besides slowing down, allow some extra following
distance. And be especially careful when you pass
another vehicle. Allow yourself more clear room
ahead, and be prepared to h,ave your view restricted
by road spray.
a Have good tires with proper tread depth. (See
“Tires” in the Index.)
4-19
