1996 OLDSMOBILE AURORA fuse

.nu-=* UJ LLlUUl
I nese are some of the symbols you may find on your vehicle.
For example,
these symbols
are used on an
original battery:
POSSIBLE A
CAUTION
INJURY
PROTECT EYES BY
SHIELDING
CAUSTIC
BURNS
SPARK
OR ,\I/,
COULD FLAME
EXPLODE BAllERY
These symbols are important
for you and
your passengers whenever your
vehicle
is
driven:
DOOR LOCK
UNLOCK
FASTEN SEAT
BELTS
These symbols have to do with
your lights:
SIGNALS e
TURN
RUNNING
* 0
DAYTIME -
LAMPS .**
FOG LAMPS $0
These symbols
are
on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD DEFROSTER
WINDOW
DEFOGGER
VENTILATING FAN
These symbols are used on
warning and
indicator lights:
COOLANT -
TEMP -
CHARGING I-1
BAllERY
SYSTEM
BRAKE
(0)
ENGINE OIL w,
PRESSURE
ANTI-LOCK
(@)
BRAKES
Here are some
other symbols
you may see:
FUSE
t
LIGHTER -
HORN )cr
SPEAKER
b
FUEL e3
ProCarManuals.com

Remember, the theft-deterrent system won’t be activated
if you lock the doors with a key or manual door lock. It
only activates if you use a power door lock switch or
Remote Lock Control System.
You should also
remember that you can start your vehicle with the
correct ignition key if the alarm has been set
off, but this
does not shut off the alarm.
Here’s how to avoid setting
off the alarm by accident:
If you don’t want to activate the theft-deterrent
system, the vehicle should be locked
after the doors
are closed.
Always unlock a door with a key, or use the Remote
Lock Control System. Unlocking a door any other
way will set off
the alarm.
Testing the Alarm
The alarm can be tested by first having the driver’s
window down. ’Activate the system by locking the doors
with the power door lock switch
or the Remote Lock
Control System. Get out
of the car and close the door and
wait for the SECURITY light to
go out. Then reach in
through the window, unlock the door with the manual door
lock, and open the door.
This should set off the alarm.
If the alarm does not sound when it should, check to
see if the horn works. The horn fuse may be blown.
To replace the fuse, see “Fuses and Circuit Breakers”
in the Index.
To reduce the possibility of theft, always activate the
theft-deterrent system when leaving your vehicle.
If you set off the alarm by accident, unlock any door
with
your key.
You can also turn off the alarm by using the Remote
Lock Control System. The alarm won’t stop if you try
to
unlock a door any other way.
2-16
ProCarManuals.com

PASS-hti
Your vehicle is equipped
with the PASS-Key
I1
(Personalized Automotive
Security System)
theft-deterrent system.
PASS-Key
I1 is a passive
theft-deterrent system.
It works when you insert
or remove the key from
the ignition.
PASS-Key
I1 uses a resistor pellet in the ignition key
that matches a decoder in your vehicle.
When the PASS-Key
II system senses that someone is
using the wrong key, it shuts down the vehicle’s starter an\
d
fuel systems. For about three minutes, the starter won’t work and fuel won’t go to
the engine. If someone tries to
start your vehicle again or uses another key during this
time, the vehicle will not start.
This discourages someone
from randomly trying different keys with different resistor
pellets
in an attempt to make a match. The
ignition key must be clean and dry before it’s
inserted in the ignition or the engine may not start. If
the engine does not start and the SECURITY light is
on or
you get the CLEAN KEY...WAIT 3 MINUTES
message on the DIC, the key may be dirty or wet. Turn
the ignition off.
Clean and dry the key. Wait about three minutes and try
again. The SECURITY light may remain on during this
time. If the starter still won’t work, and the key appears
to be clean and dry, wait about three minutes and try
another ignition key. At this time, you may also want to
check the fuses
(see “Fuses and Circuit Breakers” in the
Index). If the starter won’t work with the other key, your
vehicle needs service.
If your vehicle does start, the first
ignition key may be faulty.
See your Aurora retailer or a
locksmith who can service the PASS-Key
11.
ProCarManuals.com

’hrn and Lane Change Signals If you leave the turn signal on, a chime will sound after
you drive about 3/4 of a mile (1.2 km).
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up
or
down. When the turn is finished, the lever will
return automatically. An
arrow on
the instrument
panel will flash in the
direction of the turn or
lane change.
To signal a lane change, just raise or lower the lever
until the
arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrows don’t
flash but just stay on, a signal bulb may be burned out
and other drivers won’t
see your turn signal.
If a bulb is burned out, replace it to help avoid an accident.
If the arrows don’t go on at all when you signal a turn,
check the fuse (see “Fuses and Circuit Breakers”
in the
Index) and for burned-out bulbs.
ProCarManuals.com

Oil Pressure Warning Light
OIL
If you have a problem with
your oil, this light may stay
on after you start your
engine, or come on when
you are driving.
A warning
chime and the message
LOW OIL PRESSURE may
also come on.
These indicate that oil is not going through your engine
quickly enough
to keep it cool. The engine could be low
on oil, or could have some other oil problem. Have it
fixed right away.
The
oil light could also come on in three other
situations:
When the ignition is on but the engine is not running,
the light will come on as a test to show you
it is
working, but the light will go out when you
turn the
ignition to START.
If it doesn't come on with the
ignition on, you may have a problem with the fuse or
bulb. Have it fixed right away.
Sometimes when the engine is idling at a stop, me
light may blink
on and off. This is normal.
If you make a hard stop, the light may come on for a
moment. This is normal.
Don't keep driving if the oil pressure is low. ir
you do, your engine can become so hot that it
catches fire.
You or others could be burned.
Check your
oil as soon as possible and have your
vehicle serviced.
NOTICE:
Damage to your engine from neglected oil
problems can be costly and
is not covered by
your warranty.
ProCarManuals.com

Fuel Economy Fuel c
The ECON button displays average fuel economy and
instantaneous fuel economy calculated for your specific
driving conditions. Press ECON to display average fuel
economy, such as:
25.2 AVG MI/GAL or
9.3 AVG L/100
KM
Press ECON again to display instantaneous fuel
economy, such as:
28 INST MI/GAL or
8.4 INST L/lOO KM
Press again to return to average fuel economy.
The average
fuel economy is viewed as a long-term
approximation
of your overall driving conditions.
If you press RESET in this mode while you’re driving,
the system will begin figuring fuel economy from that
point in time. Press FUEL to see
how much fuel has been used since
you last pressed the reset button. The display will show
a reading such as:
10.4 GALLONS USED or
39.4 LITERS
USED
To learn how much fuel will be used from a specific
starting point, first press FUEL to display fuel used, then
press
RESET.
Don’t confuse fuel used with the amount of fuel in
your tank.
ProCarManuals.com

Your vehicle has an air bag system. Before attempting to
do your own service work, see “Servicing Your Air
Bag-Equipped Aurora” in the Index.
You should keep a record with all parts receipts and list
the mileage and the date
of any service work you
perform. See “Maintenance Record” in
the Index.
You can be injured and your vehicle could be
damaged if
you try to do service work on a
vehicle without knowing enough about
it.
Be sure you have sufficient knowledge,
experience, and the proper replacement
parts and tools before you attempt any
vehicle maintenance task.
Be sure to use the proper nuts, bolts and
other fasteners. “English” and “metric”
fasteners can be easily confused. If you use
the wrong fasteners, parts can later break
or fall off.
You could be hurt.
Fuel
Use premium unleaded gasoline rated at 91 octane or
higher. At a minimum, it should meet Specifications ASTM
D4814 in the United States and CGSB 3.5-M93 in Canada.
Improved gasoline specifications have been developed by
the American Automobile Manufacturers Association
(AAMA) for better vehicle performance and engine
protection. Gasolines meeting the
AAMA specification
could provide improved driveability and emission control
system protection compared to other gasolines.
Be sure the posted octane for premium
is at least 91. If
the octane
is less than 91, you may get a heavy knocking
noise when you drive. (In an emergency, you may be
.
able to use a lower octane -- as low as 87 -- if heavy
knocking does not occur.) If you’re using
91 or higher
octane unleaded gasoline and you still hear heavy
knocking, your engine needs service.
If your vehicle is certified to meet California Emission
Standards (indicated on the underhood tune-up label), it
is designed to operate on fuels that meet California
specifications.
If such fuels are not available in states
adopting California emissions standards, your vehicle
will operate satisfactorily on fuels meeting federal
specifications, but emission control system performance
may be affected. The malfunction indicator lamp on
your instrument panel may turn
on and/or your vehicle
ProCarManuals.com

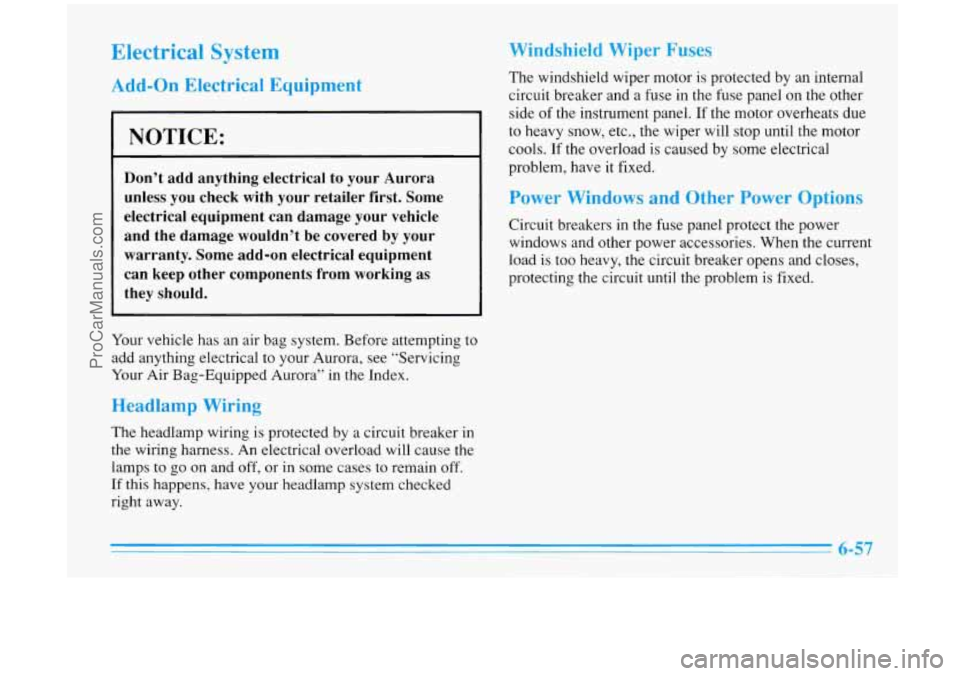

Electrical System
Add-on Electrical Equipment
I NOTICE:
Don’t add anything electrical to your Aurora
unless
you check with your retailer first. Some
electrical equipment can damage your vehicle and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working
as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your Aurora, see “Servicing
Your Air Bag-Equipped Aurora’’ in the Index.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the wiring harness. An electrical overload will cause the
lamps to go on and
off, or in some cases to remain off.
If this happens, have your headlamp system checked
right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by an internal
circuit breaker and a fuse in the fuse panel on the other
side of the instrument panel. If the motor overheats due
to heavy snow, etc., the wiper will stop until the motor
cools.
If the overload is caused by some electrical
problem, have it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed.
ProCarManuals.com
