1996 OLDSMOBILE AURORA warning

Oil Pressure Warning Light
OIL
If you have a problem with
your oil, this light may stay
on after you start your
engine, or come on when
you are driving.
A warning
chime and the message
LOW OIL PRESSURE may
also come on.
These indicate that oil is not going through your engine
quickly enough
to keep it cool. The engine could be low
on oil, or could have some other oil problem. Have it
fixed right away.
The
oil light could also come on in three other
situations:
When the ignition is on but the engine is not running,
the light will come on as a test to show you
it is
working, but the light will go out when you
turn the
ignition to START.
If it doesn't come on with the
ignition on, you may have a problem with the fuse or
bulb. Have it fixed right away.
Sometimes when the engine is idling at a stop, me
light may blink
on and off. This is normal.
If you make a hard stop, the light may come on for a
moment. This is normal.
Don't keep driving if the oil pressure is low. ir
you do, your engine can become so hot that it
catches fire.
You or others could be burned.
Check your
oil as soon as possible and have your
vehicle serviced.
NOTICE:
Damage to your engine from neglected oil
problems can be costly and
is not covered by
your warranty.
ProCarManuals.com

Fuel Gage
When the ignition is on,
your fuel gage tells you
about how much fuel you
have left. Press any button
on the Driver Information Center to
turn off the warning.
Here are four things that some owners ask about. None
of these show a problem with your fuel gage:
0
0
When you have approximately 2.6 gallons (9 L) of
fuel remaining, the message LOW FUEL will be
displayed and a chime will sound. You need to get
more fuel right away.
0
0
At the service station, the gas pump shuts off before
the gage reads
“F” (Full).
It takes a little more or less fuel to fill up than the
gage indicated. For example, the gage may have
indicated the tank was half full, but it actually took a
little more or less than half the tank’s capacity
to fill
the tank.
The gage moves a little when you turn a corner or
speed up.
The tank is not necessarily empty when the pointer is
over the
“E” (Empty) mark. There is a reserve of up
to
1.5 gallons (5.6 L) in the tank. You should still get
more fuel as
soon as possible.
ProCarManuals.com

Driver Inf rmation Cent
The Driver Information Center (DIC) displays
information in either English or metric. When the
system is on or off, hold the
OFF button down for five
seconds to change the display between English and
metric. This will also change the digital screen for the
climate control system between English and metric.
In addition to the functions described in this part, the
DIC also displays various warning messages under
appropriate conditions. Turn
on the system
by pressing any button except
RESET, ENTER or
OFF. When you turn on the ignition,
the Driver Information Center will be in the mode last
displayed when the engine was turned off. Keep in mind
that this also applies to the
OFF mode.
To turn off messages on the DIC (except LOW
OIL
PRESSURE, LOW BRAKE FLUID, PARK BRAKE
SET and the hot engine warnings), press any button on
the DIC.
You will need to open the cover to access the control
buttons. To open the cover, push the button located to
the right
of the cover.
To close the cover, push it down to its closed position.
2-74
~
ProCarManuals.com

When the remaining oil life or transaxle fluid life is low,
the system will alert you with a message:
CHANGE OIL SOON or
CHANGE TRNS
FLUID SOON
When the oil or transaxle fluid life is down to zero, you
will receive the message:
CHANGE
OIL NOW or
CHANGE TRNS FLUID NOW
To reset the
OIL LIFE reminder after an oil change
or the
TRNS FLUID LIFE reminder after a transaxle
fluid change:
With the ignition on, press the ENG button
so the OIL
LIFE percentage or the TRNS LIFE percentage is
displayed.
Press RESET and hold for five seconds. The word
RESET will appear, then OIL LIFE 100% or TRNS
FLUID 100%.
Remember, you must reset the OIL LIFE or TRNS
FLUID yourself after each oil or transaxle fluid change.
It will not reset itself. Also, be careful not to reset the
OIL LIFE or TRNS FLUID accidentally at any time
other than when the oil or transaxle fluid
has just been changed.
It can’t be reset accurately until the next oil or
transaxle fluid change.
The Driver Information Center does not replace the need
to maintain your vehicle as recommended in the
Maintenance Schedule in this manual. Also, the oil
change reminder will not detect dusty conditions or
engine malfunctions that may affect the oil.
If you drive
in dusty areas, change your oil after every
3,000 miles
(5 000 km) or three months, whichever occurs first,
unless the DIC instructs you to do
so sooner. Also, the
oil change reminder does not measure how much oil you
have in your engine.
So, be sure to check your oil level
often. See “Engine Oil” in the Index.
Check Oil Level Warning
When CHECK OIL LEVEL appears, it indicates that the
engine oil level is
1 to 1 1/2 quarts (0.9 L to 1.4 L) low.
The message will appear only if the engine is running
and it’s been at least eight minutes since the engine was
last running. If the message appears, check the oil
dipstick level. If
it reads low, your oil level should be
brought up to the proper level (see “Engine Oil” in the
Index). After bringing the oil to the proper level, the
ignition must be off for eight minutes to allow the
majority of oil to drain into the oil pan.
2-77
ProCarManuals.com

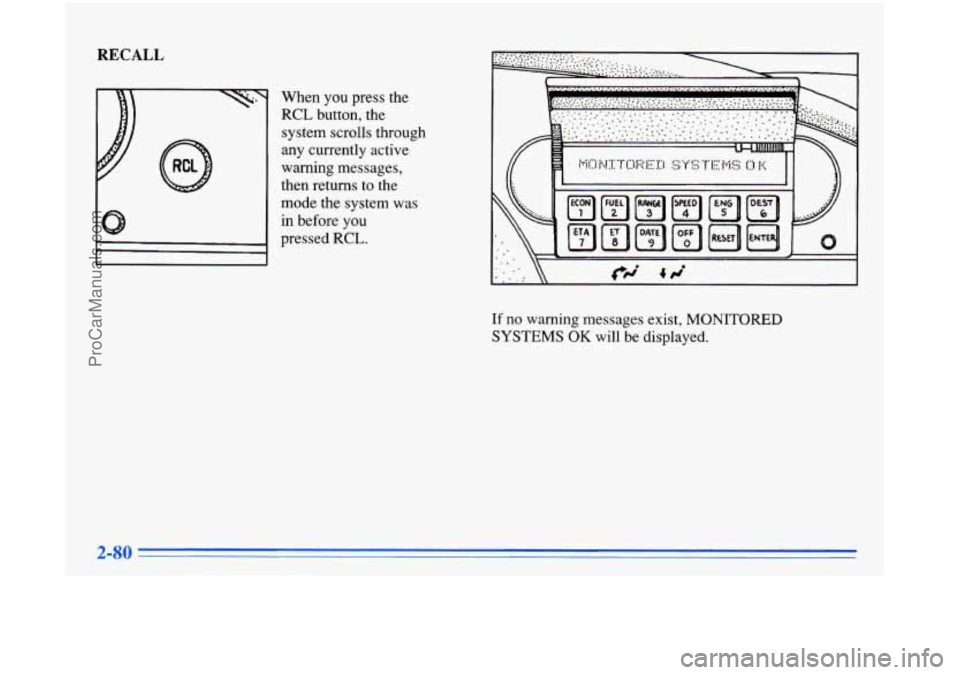

RECALL
When you press the
RCL button, the
system scrolls through
any currently active
warning messages,
then returns to the
mode the system was
in before you
pressed
RCL.
If no warning messages exist, MONITORED
SYSTEMS OK will be displayed.
ProCarManuals.com

Avoid needless heavy braking. Some people drive in
spurts -- heavy acceleration followed by heavy
braking
-- rather than keeping pace with traffic.
This is
a mistake. Your brakes may not have time to
cool between hard stops. Your brakes will wear out
much faster if you do a lot
of heavy braking. If you
keep pace with the traffic and allow realistic following
distances, you will eliminate a lot
of unnecessary
braking. That means better braking and longer
brake life.
If your engine ever stops while you’re driving, brake
normally but don’t pump your brakes. If
you do, the
pedal may get harder to push down.
If your engine
stops, you will still have some power brake assist. But
you will use it when you brake. Once the power assist is
used up, it may take longer to stop and the brake pedal
will be harder to push.
Anti-Lock Brakes
Your vehicle has anti-lock brakes (ABS). ABS is an
advanced electronic braking system that will help
prevent
a braking skid.
When you start your engine and begin to drive away,
your anti-lock brake system will check itself. You may
hear a momentary motor or clicking noise while this test
is going on, and you may even notice that your brake
pedal moves a little. This is normal.
LOCK
ANT‘- (e)
If there’s a problem with the
anti-lock brake system, this warning light will stay on.
See “Anti-Lock Brake
System Warning Light” in
the Index.
4-6
ProCarManuals.com

When the system is on, this
warning light will come on
to let you know if there’s a
problem with your traction
control system.
TRACTION
OFF
See “Traction Control System Warning Light” in the
Index. When this warning light is on, the system will not
limit wheel spin. Adjust your driving accordingly.
The traction control system automatically comes
on
whenever you start your vehicle. To limit wheel spin,
especially in slippery road conditions, you should
always leave the system
on. But you can turn the
traction control system
off if you ever need to. (You
should turn the system off if your vehicle ever gets stuck
in sand, mud, ice or snow. See “Rocking Your Vehicle”
in the Index.) To turn the system off,
press the
TRACTION
CONTROL button on
the center console.
The traction control system warning light will come on and stay on.
If the system is limiting wheel spin when you
press the button, the warning light will come on -- but
the system won’t
turn off right away. It will wait until
there’s no longer a current need to limit wheel spin.
You can turn the system back on at any time by pressing
the button again. The traction control system warning
light should go off.
ProCarManuals.com

Loss of Control
Let’s review what driving experts say about what
happens when the three control systems (brakes, steering
and acceleration) don’t have enough friction where the
tires meet the road to do what the driver has asked.
In any emergency, don’t give up. Keep trying to steer
and constantly seek an escape route or area
of less
danger.
Skidding
In a skid, a driver can lose control of the vehicle.
Defensive drivers avoid most skids by taking reasonable
care suited to existing conditions, and by not
“overdriving” those conditions. But skids are always
possible.
The three types
of skids correspond to your Aurora’s
three control systems.
In the braking skid, your wheels
aren’t rolling. In the steering or cornering skid, too
much speed or steering in a curve causes tires to slip and
lose cornering force. And
in the acceleration skid, too
much throttle causes the driving wheels to spin.
A cornering skid is best handled by easing your foot off
the accelerator pedal.
Remember: Any traction control system helps avoid
only the acceleration skid.
If your traction control system is off, then an
acceleration skid is also best handled by easing your
foot off the accelerator pedal.
If your vehicle starts to slide, ease your foot off the
accelerator pedal and quickly steer the way you want the
vehicle to go. If you start steering quickly enough, your
vehicle may straighten out. Always be ready for a
second skid if it occurs.
Of course, traction is reduced when water, snow, ice,
gravel or other material is on the road. For safety, you’ll
want to slow down and adjust your driving to these
conditions. It is important to slow down on slippery
surfaces because stopping distance will be longer and
vehicle control more limited.
While driving
on a surface with reduced traction, try
your best to avoid sudden steering, acceleration
or
braking (including engine braking by shifting to a lower
gear). Any sudden changes could cause the tires to
slide. You may not realize the surface is slippery until
your vehicle is skidding. Learn to recognize warning
clues
-- such as enough water, ice or packed snow
on the road to make a “mirrored surface” -- and
slow down when you have any doubt.
Remember: Any anti-lock brake system (ABS) helps
avoid only the braking skid.
4-14
