Auxiliary Warning Module (If equipped)
[LG18600(ALL)06/94]
An additional bank of indicator and warning lights is located
above the driver's side vent, just to the right of the steering
wheel. The light(s) located in this module are described and
illustrated below.
[LG18700(ALL)04/95]
13-1/2 pica art:0050122-F
The auxiliary warning module
% [LG18710(ALL)05/95]
Traction Control Active Light
[LG18720(ALL)04/95]
This light comes on when the Traction Control system begins
applying and releasing the brakes and adjusting the engine
characteristics to limit a wheelspin condition. You may feel
some steering changes and hear some noise, but this is normal.
[LG18730(ALL)04/95]
one inch art:0050274-AFile:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

108
% [IP01731(ALL)10/93]
Air Conditioning (A/C) Controls Ð Main (Front) System
Only (Manual Air Conditioning)
[IP01740(ALL)05/95]
10-1/2 pica
art:0050130-C
The climate controls Ð main A/C
[IP01751(ALL)05/95]
The Fan Speed Knob controls the volume of air circulated in the
vehicle. There are four fan settings: Low, Medium Low, Medium
High, and High.
[IP01756(ALL)05/95]
NOTE: The fan will not operate when the Function Selector
Knob is in them(OFF) position.
[IP01761(ALL)06/94]
The Temperature Control Knob may be adjusted from COOL air
in the blue range to WARM air in the red range.
[IP01766(ALL)06/94]
NOTE: Air temperature can be adjusted for the main climate
control system only. Air temperature from the
auxiliary heating/air conditioning system (if equipped)
cannot be adjusted. Rear passengers will receive either
FULL COOL or FULL WARM air based on the setting
of the Function Selector Knob.
[IP01771(ALL)06/94]
The Function Selector Knob controls air circulation and A/C
Compressor Operation.
File:wnips.ex
Update:Tue Mar 19 08:23:17 1996

Instrument Panel Controls
113 equipped with a rear seat climate control system, the instrument
panel will also include a rear seat climate control knob. To turn
on the rear passenger compartment control system, select REAR
CTRL, Medium Low, Medium High, or High. With the knob set
to REAR CTRL, rear seat passengers will have control of rear
fan speed on the rear seat climate control panel. Positions
Medium Low, Medium High, or High will control rear fan
speed from the front control panel.
[IP02090(ALL)05/95]
10-1/2 pica
art:0050059-D

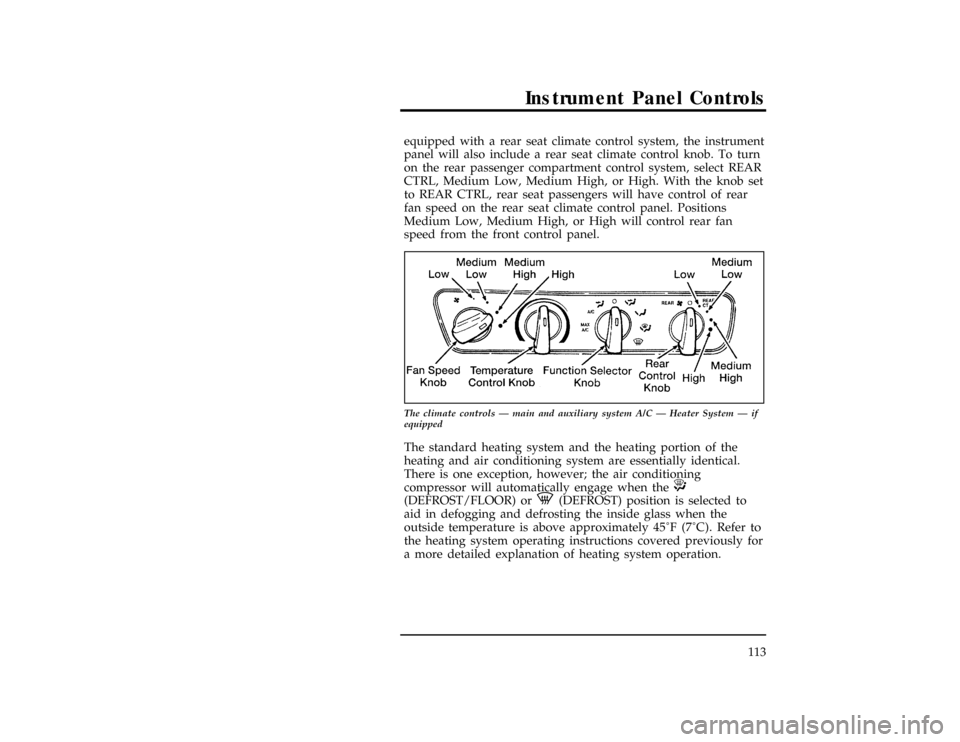

The climate controls Ð main and auxiliary system A/C Ð Heater System Ð if
equipped
[IP02095(ALL)04/95]
The standard heating system and the heating portion of the
heating and air conditioning system are essentially identical.
There is one exception, however; the air conditioning
compressor will automatically engage when theP
(DEFROST/FLOOR) orV(DEFROST) position is selected to
aid in defogging and defrosting the inside glass when the
outside temperature is above approximately45ÊF (7ÊC).Refer to
the heating system operating instructions covered previously for
a more detailed explanation of heating system operation.
File:wnips.ex
Update:Tue Mar 19 08:23:17 1996

Instrument Panel Controls
117
[IP02400(ALL)04/95]
If an A/C mode is chosen, rear passengers will receive FULL
COOL (air-conditioned) air out of the side and upper rear
registers. If a heat mode or theQ(PANEL) mode is chosen,
rear passengers will receive FULL WARM (heated) air out of
the lower rear registers.
[IP02420(ALL)04/95]
Rear passengers do not have the ability to adjust the
temperature or select the location of the airflow from the
auxiliary climate control system. Rear passengers can adjust the
Rear Fan Speed Control Knob and air discharge (adjust
registers) for comfort.
[IP02500(ALL)08/94]
NOTE: For maximum heating and cooling for front seat
passengers, set the rear fan switch to them(OFF)
position.
*
[IP09300(ALL)04/95]
Liftgate Window Features
%*
[IP09400(ALL)05/95]
Rear Window Defogger (If equipped)
(Standard in Canada)
*
[IP09500(ALL)04/95]
The defogger for the rear liftgate window clears frost, fog, or
thin ice from both the inside and outside of the rear window.
The defogger operates with the ignition in the ON position.
[IP09600(ALL)09/93]
The control switch is located on the instrument panel to the
right of the steering column and below the climate control
system.
