Driving Your Windstar
245
*
[DR08700(ALL)01/93]
RWARNING
When parking, do not use the gearshift in place of the
parking brake. Always set the parking brake fully and
make sure that the gearshift is securely latched in Park
(P). Turn off the ignition whenever you leave your
vehicle. Never leave your vehicle unattended while it is
running. If you do not take these precautions, your
vehicle may move unexpectedly and injure someone.
*
[DR08900(ALL)01/93]
RWARNING
If the parking brake is fully released, but the Brake
System light remains on, have the brakes checked
immediately. They may not be working properly.
*
[DR09000(ALL)02/94]
The parking brake is not designed to stop a moving vehicle, but
you can use the parking brake to stop your vehicle in an
emergency if the service brakes fail. However, since the parking
brake does not stop your vehicle as quickly as the normal
brakes, the stopping distance will increase greatly.
%*
[DR09100(ALL)01/95]
Driving Under Special Conditions
%*
[DR09200(ALL)01/95]
Tips for Safe Driving
*
[DR09300(ALL)01/93]
As with any new vehicle, yours may drive and handle
differently from your previous vehicle. Use greater care until
you become accustomed to its features and driving
characteristics.
*
[DR09400(ALL)01/93]
Always operate your vehicle within reasonable limits. Abrupt
changes in acceleration, deceleration, turning, or combinations of
these maneuvers can cause a vehicle to behave differently than
anticipated, especially when road conditions vary.
File:wndrs.ex
Update:Tue Mar 19 08:18:48 1996

278
%*
[RE09800(ALL)09/93]
7-1/2 pica art:0040176-A
Lug nut tightening sequence
[RE09900(ALL)11/93]
The lug nuts should be tightened to 83-113 ft-lb (113-153 Nm).
*
[RE10100(ALL)01/93]13.
Replace the wheel cover by pressing it into place. If you
have the standard wheel covers, you must align the notch in
the wheel cover with the tire's valve stem and align the
recess in the back of the wheel cover with one of the lug
nuts. If you have the optional aluminum wheel, press the
center wheel cap into place after matching up the design of
the wheel cap to the wheel.
[RE10200(ALL)03/94]14.
Replace the jack in the storage compartment and make sure
the jack is securely fastened.
*
[RE10300(ALL)01/93]15.
Store the flat tire under the vehicle just as you would store
the spare tire. Refer to the section onStowing the Spare Tire
in this chapter.
[RE10600(ALL)09/93]16.
Unblock the wheels.
*
[RE10700(ALL)01/93]
Retighten the lug nuts to the specified torque at 500 miles
(800 km) of operation, after any wheel change, or any time the
lug nuts are loosened.
File:wnres.ex
Update:Tue Mar 19 08:18:21 1996

Roadside Emergencies
279
*
[RE10720(ALL)01/93]
Stowing the spare tire
[RE10730(ALL)05/95]1.
To raise the tire to the stowed position, lay the tire on the
ground with the interior side facing up. Install the retainer
through the wheel center and slide the tire under the vehicle.
Fit the hex-shaped end of the wheel lug wrench over the hex
nut in the floor of the cargo area. Turn the wheel lug
wrench clockwise until the tire is raised to its original
position underneath the vehicle.
[RE10740(ALL)11/93]
NOTE: The hex nut ratchets when the tire is raised to the
stowed position. It will not allow you to over-tighten.
*
[RE10750(ALL)01/93]2.
Check for proper seating against the underbody supports
and retighten if necessary.
[RE10760(ALL)05/95]
RWARNING
Check the tire seating position for looseness and make
sure the tire is not too far forward to avoid axle contact.
*
[RE10780(ALL)05/95]
RWARNING
Make sure spare tires and jacking equipment are stowed
and secured in the proper storage location.
File:wnres.ex
Update:Tue Mar 19 08:18:21 1996

296
[AC01200(ALL)12/93]
Audio Equipment
[AC01300(ALL)12/93]
CD Changer
*
[AC01400(ALL)01/93]
Safety Equipment
*
[AC01500(ALL)11/93]
Vehicle Security Systems
*
[AC01600(ALL)01/93]
Travel Equipment
[AC01700(ALL)05/95]
Soft Luggage Carrier
Aero Hood Deflector
Factory Luggage Rack & Adaptors
Trailer Hitch (Class II)
Console
*
[AC01800(ALL)03/94]
NOTE: When adding accessories, equipment, passengers, and
luggage to your vehicle, do not exceed the total
weight capacity of the vehicle or of the front or rear
axle (GVWR, GAWR as shown on the Safety
Compliance Certification Label). Consult your dealer
for specific weight information.
*
[AC01900(ALL)04/94]
NOTE: Devices that emit radio frequency (RF) energy such as
AM/FM radios, mobile communication systems
(two-way radios, telephones) and radio controlled
security systems, are subject to the rules and
regulations of the Federal Communications
Commission (FCC) 47 CFR Parts 2 and 15. Any such
system installed in your vehicle should comply with
those rules and should be installed only by a
qualified technician. In addition, to insure continued
compliance with the FCC's requirements, RF devices
must not be modified or changed in a manner not
expressly approved by Ford Motor Company.
File:wnacs.ex
Update:Tue Mar 19 08:17:13 1996

302
*
[SV02700(ALL)01/95]
n
Never get under a vehicle while it is supported by a jack
only. If you must work under a vehicle, use safety stands.
*
[SV02800(ALL)01/95]
n
Keep all lit cigarettes and other smoking materials away
from the battery and all fuel-related parts.
*
[SV02900(ALL)03/95]
Working Under the Hood
[SV03000(ALL)02/95]
Before you open the hood, read this section carefully.
*
[SV03100(ALL)02/95]
If you plan to work under the hood while the engine is
off:
*
[SV03200(ALL)01/93]
RWARNING
Set the parking brake and make sure the gearshift is
securely latched in P (Park). This will prevent your
vehicle from moving unexpectedly.
*
[SV03300(ALL)01/93]
RWARNING
Always remove the key from the ignition after you turn
off the engine.
*
[SV03400(ALL)03/95]
If you must work under the hood while the engine is
on:
[SV03500(ALL)05/95]
RWARNING
Set the parking brake and make sure that the gearshift is
securely latched in P (Park). This will prevent your
vehicle from moving unexpectedly.
*
[SV03600(ALL)03/95]
RWARNING
Do not wear loose clothing or jewelry that can get caught
in the moving parts.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

304
[SV04300(ALL)06/94]
24 pica art:0050028-B

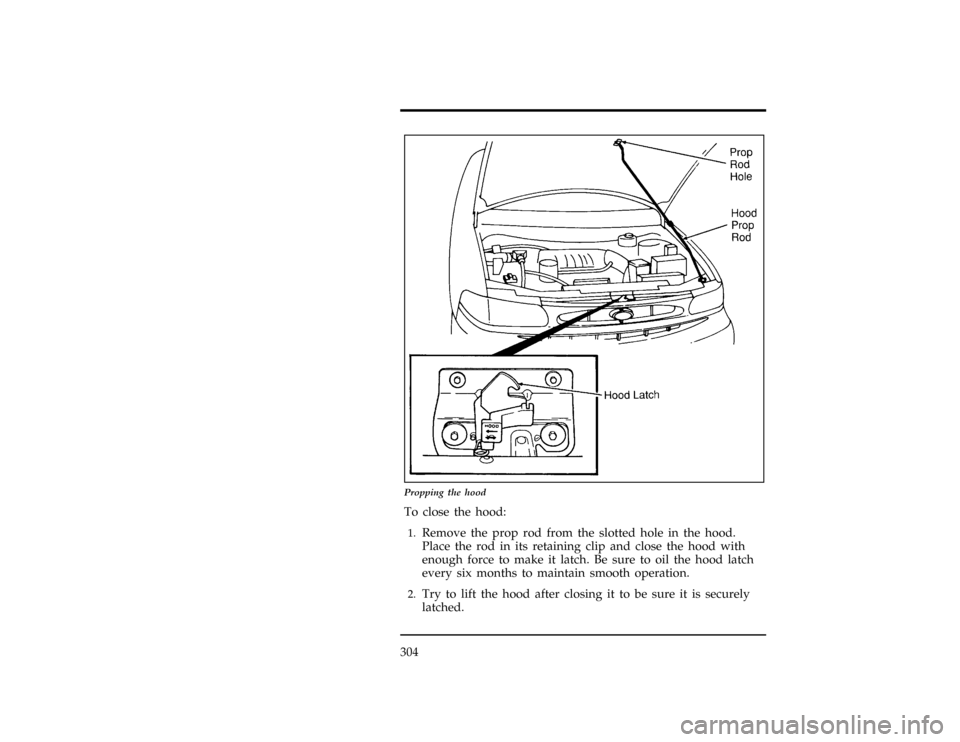

Propping the hood
*
[SV04400(ALL)01/93]
To close the hood:
*
[SV04500(ALL)01/93]1.
Remove the prop rod from the slotted hole in the hood.
Place the rod in its retaining clip and close the hood with
enough force to make it latch. Be sure to oil the hood latch
every six months to maintain smooth operation.
*
[SV04600(ALL)01/93]2.
Try to lift the hood after closing it to be sure it is securely
latched.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

Servicing Your Windstar
309
[SV06100(ALL)09/93]
10-1/2 pica
art:0050054-A

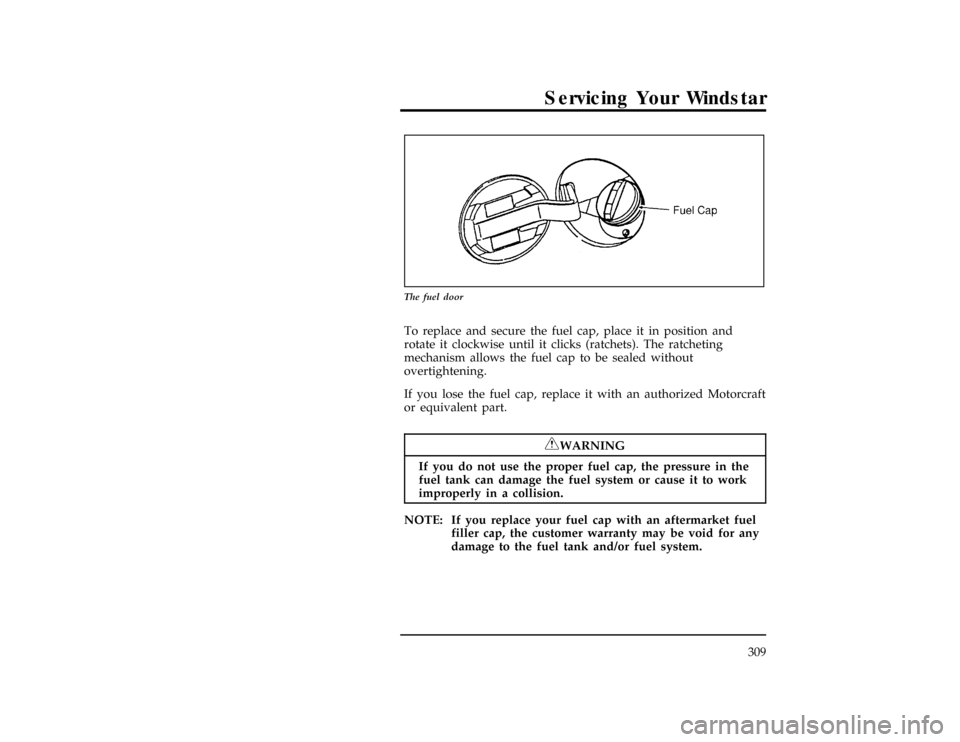

The fuel door
*
[SV06200(ALL)01/93]
To replace and secure the fuel cap, place it in position and
rotate it clockwise until it clicks (ratchets). The ratcheting
mechanism allows the fuel cap to be sealed without
overtightening.
[SV06290(ALL)05/95]
If you lose the fuel cap, replace it with an authorized Motorcraft
or equivalent part.
%*
[SV06300(ALL)05/95]
RWARNING
If you do not use the proper fuel cap, the pressure in the
fuel tank can damage the fuel system or cause it to work
improperly in a collision.
*
[SV06600(ALL)01/95]
NOTE: If you replace your fuel cap with an aftermarket fuel
filler cap, the customer warranty may be void for any
damage to the fuel tank and/or fuel system.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

Servicing Your Windstar
317
*
[SV15000(ALL)01/95]
Neveruse:
*
[SV15100(ALL)01/95]
n
ªNon-Detergentº oils
*
[SV15200(ALL)04/95]
n
Oils labeled API SA, SB, SC, SD, SE, SF or SG
%*
[SV15300(ALL)01/95]
n
Additional engine oil additives, oil treatments or engine
treatments
%*
[SV15400(ALL)03/95]
Engine oils with anSAE 5W-30viscosity arePREFERREDfor
your vehicle. They provide the best engine performance, fuel
economy and engine protection for all climates down to-15ÊF
(-25ÊC).
%*
[SV15550(ALL)03/95]
Synthetic engine oils which are CERTIFIED and of the preferred
viscosity may be used in your engine. The engine oil and oil
filter must still be changed according to the maintenance
schedule.
%*
[SV15600(ALL)01/95]
Checking and Adding Engine Oil
*
[SV15700(ALL)03/95]
Since the proper amount of engine oil is important for safe
engine operation, check the oil using the dipstick each time you
put fuel in your vehicle. Remember the engine must be off, the
oil must be warm and the vehicle must be parked on level
ground.
%*
[SV15800(ALL)03/95]
Checking the engine oil level:
*
[SV15900(ALL)02/95]1.
Turn the engine off after it has warmed up and allow a few
minutes for the engine oil to drain back into the oil pan.
*
[SV16000(ALL)03/95]2.
Set the parking brake, making sure the gearshift is securely
latched in P (Park).
*
[SV16100(ALL)02/95]3.
Open the hood. Protect yourself from engine heat.
[SV16200(ALL)08/94]4.
Locate the dipstick labelled ªEngine Oilº and carefully pull it
out of the engine.
*
[SV16300(ALL)01/95]5.
Wipe the dipstick clean and put it back into position, making
sure it is fully seated.
