Features
179
[FV17795(ALL)06/94]
24 pica art:0050170-D

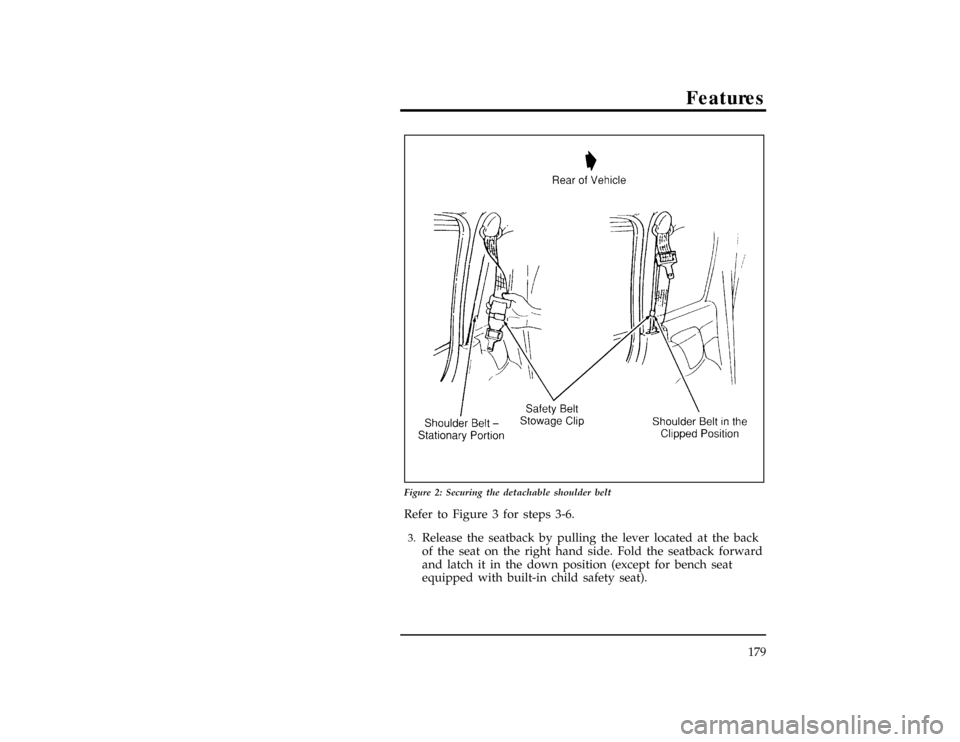

Figure 2: Securing the detachable shoulder belt
[FV17798(ALL)10/93]
Refer to Figure 3 for steps 3-6.
[FV17800(ALL)03/94]3.
Release the seatback by pulling the lever located at the back
of the seat on the right hand side. Fold the seatback forward
and latch it in the down position (except for bench seat
equipped with built-in child safety seat).
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996

184
*
[FV19400(ALL)05/95]
RWARNING
Never adjust the driver's seat or seatback when the
vehicle is moving.
*
[FV19500(ALL)06/94]
RWARNING
Always latch the vehicle seat to the floor, whether the
seat is occupied or empty. If not latched, the seat may
cause injury during a sudden stop.
*
[FV19600(ALL)05/93]
RWARNING
Before using the seat, make sure that the latch hooks are
securely locked around the floor pins.
%*
[FV19700(ALL)04/95]
Cleaning the Seats
*
[FV19800(ALL)05/95]
Leather and vinyl
[FV19900(ALL)04/95]
For routine cleaning, wipe the surface with a soft, damp cloth.
For more thorough cleaning, wipe the surface with a leather
cleaner of a mild soap.
%*
[FV20000(ALL)04/95]
Fabric
*
[FV20100(ALL)04/95]
Remove dust and loose dirt with a whisk broom or a vacuum
cleaner. Remove fresh spots immediately. Follow the directions
that come with the cleaner.
*
[FV20200(ALL)04/95]
NOTE: Before using any cleaner, test it on a small, hidden
area of fabric. If the fabric's color or texture is
adversely affected by a particular cleaner, do not use
it.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996

192
[FV33800(ALL)09/93]
13-1/2 pica
art:0040111-B

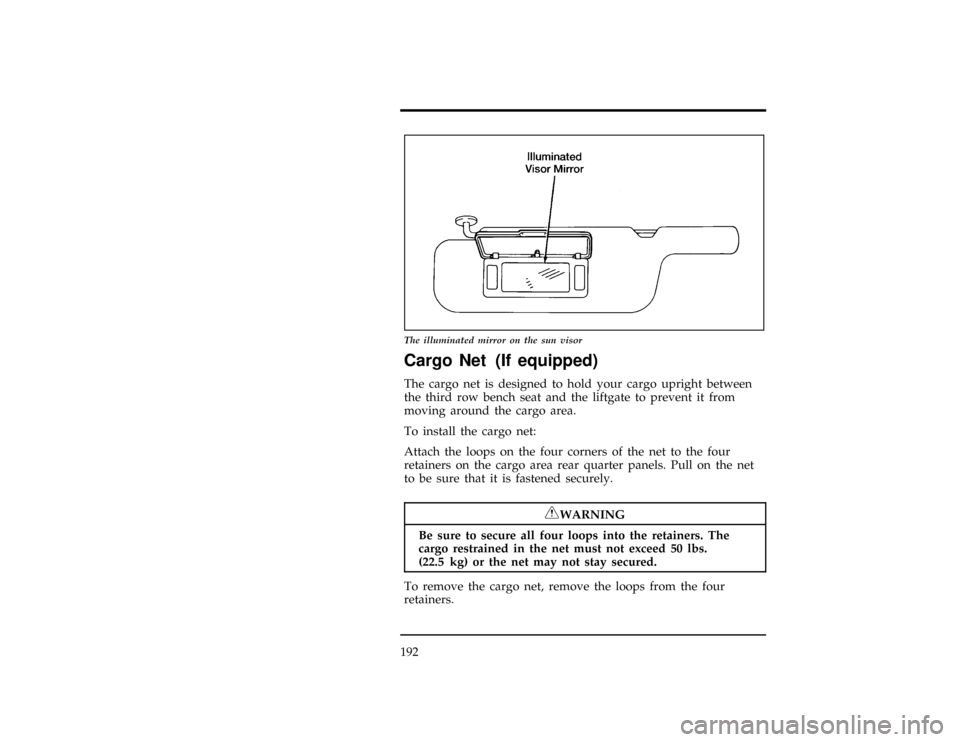

The illuminated mirror on the sun visor
%*
[FV34400(ALL)09/93]
Cargo Net (If equipped)
*
[FV34500(ALL)01/93]
The cargo net is designed to hold your cargo upright between
the third row bench seat and the liftgate to prevent it from
moving around the cargo area.
*
[FV34600(ALL)01/93]
To install the cargo net:
*
[FV34700(ALL)01/93]
Attach the loops on the four corners of the net to the four
retainers on the cargo area rear quarter panels. Pull on the net
to be sure that it is fastened securely.
*
[FV34800(ALL)01/93]
RWARNING
Be sure to secure all four loops into the retainers. The
cargo restrained in the net must not exceed 50 lbs.
(22.5 kg) or the net may not stay secured.
*
[FV34900(ALL)01/93]
To remove the cargo net, remove the loops from the four
retainers.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996

194located on the Safety Compliance Certification Label (located on
the driver's door pillar).
[FV35300(ALL)10/93]
7-1/2 pica art:0050109-A

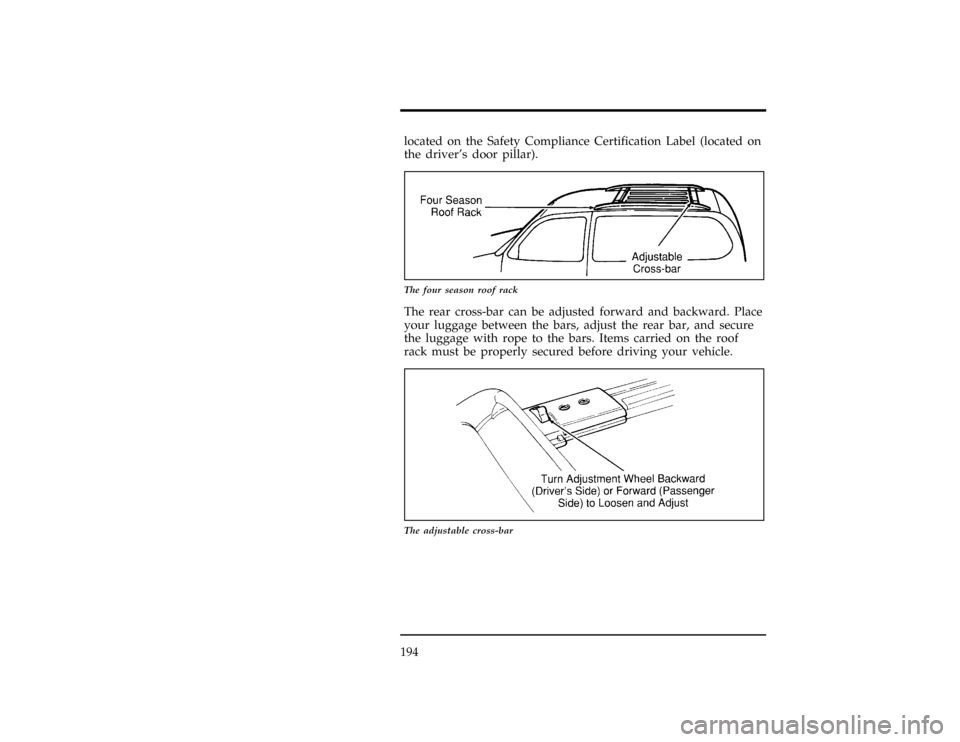

The four season roof rack
[FV35400(ALL)11/93]
The rear cross-bar can be adjusted forward and backward. Place
your luggage between the bars, adjust the rear bar, and secure
the luggage with rope to the bars. Items carried on the roof
rack must be properly secured before driving your vehicle.
[FV35500(ALL)03/94]
10-1/2 pica
art:0050032-B
The adjustable cross-bar
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996

202
*
[AS07600(ALL)04/95]
How to insert a disc and begin play
*
[AS07700(ALL)04/95]
Insert one disc,label side upinto the disc opening. When
inserted, the disc automatically loads into the unit and play
starts at the beginning of the first track (selection).
*
[AS07800(ALL)04/95]
When the disc reaches the end, the disc player automatically
returns to the beginning of the disc and resumes playing.
*
[AS07900(ALL)11/93]
NOTE: Once a disc is inserted, the disc opening is secured to
prevent the accidental insertion of a second disc.
[AS08000(ALL)11/93]
NOTE: The CD player has heat protection circuitry to protect
the laser diode. If the temperature of the player
reaches167ÊF (75ÊC), theheat detection circuit will
shut off the player and ªTOO HOTº will scroll in the
display for five seconds (radio will resume playing).
When the temperature returns to normal operating
range, the CD player will again be operational.
*
[AS08100(ALL)04/95]
How to stop and restart the CD player
*
[AS08200(ALL)04/95]
When a disc is loaded, the unit automatically enters the play
mode and the play indicator
ailluminates. To stop
temporarily, press the ªPLAY/STOPº button or the ªAM/FMº
button. The stop indicator
Xin the display illuminates and
operation returns to the radio mode. To resume CD play, press
the ªPLAY/STOPº button once again.
*
[AS08300(ALL)11/93]
NOTE: If the ignition key is turned OFF during play and
then is set to the ON or ACCESSORY position, the
CD player will resume playing in the mode it was in
when ignition was turned off.
File:wnass.ex
Update:Tue Mar 19 08:19:39 1996

235
Driving Your Windstar
%*
[DR01000(ALL)01/93]
Automatic Transaxle Operation
%*
[DR01100(ALL)01/95]
Putting Your Vehicle in Gear
*
[DR01200(ALL)04/95]
Your vehicle's gearshift lever is on the steering column. The
OVERDRIVE ON/OFF button is located on the end of the
gearshift lever. You can put the gearshift lever in any one of
several positions.
[DR01300(ALL)10/93]
13-1/2 pica
art:0050016-A
The steering column gearshift
*
[DR01400(ALL)01/93]
RWARNING
Hold the brake pedal down while you move the gearshift
lever from position to position. If you do not hold the
brake pedal down, your vehicle may move unexpectedly
and injure someone.
*
[DR01500(ALL)01/93]
Once you place the gearshift lever securely into position,
gradually release the brake pedal and use the accelerator as
necessary.
File:wndrs.ex
Update:Tue Mar 19 08:18:48 1996

238
*
[DR03500(ALL)09/93]
To return the transaxle to the normal Overdrive operation, press
the OVERDRIVE ON/OFF button again. Use this button to
select Overdrive or Overdrive Off whenever you drive your
vehicle.
*
[DR03700(ALL)02/95]
The transaxle will be in the ªoverdrive onº mode when the
vehicle is started even if the O/D OFF mode was selected when
the vehicle was last shut off.
*
[DR03900(ALL)04/95]
NOTE: If the O/D OFF indicator light is flashing on and off
repeatedly when the vehicle is started, there is a
transaxle electronic system malfunction. Contact your
dealer as soon as possible.
*
[DR04000(ALL)01/93]
When to use 2 (Second)
[DR04100(ALL)03/94]
Use 2 (Second) when driving on slippery roads or to provide
additional engine braking on downgrades. This position
provides Second and First gear operation only.
*
[DR04200(ALL)12/93]
When to use 1 (First)
[DR04300(ALL)05/95]
Use 1 (First) to provide maximum engine braking on steep
downgrades. Upshifts from First can be made by manually
shifting to 2 (Second) orj(Overdrive). 1 (First) gear provides
only first gear operation. If you select First while driving at
higher speeds, the transaxle will shift to 2 (Second), and then
downshift to 1 (First) after the vehicle decelerates to the proper
speed.
*
[DR04400(ALL)06/92]
Parking
*
[DR04500(ALL)01/93]
Always come to a complete stop before you shift into P (Park).
This position locks the transaxle and prevents the front wheels
from turning. To securely latch the gearshift in the P (Park)
position, pull it toward you, push it completely
counterclockwise against the stop, and then push it toward the
instrument panel.
File:wndrs.ex
Update:Tue Mar 19 08:18:48 1996

Driving Your Windstar
239
[DR04600(ALL)05/95]
The gearshift is securely latched in P (Park) if you can not
rotate it in a clockwise direction without pulling it toward you.
*
[DR04700(ALL)05/95]
RWARNING
Always set the parking brake fully and make sure that
the gearshift is securely latched in P (Park).
*
[DR04800(ALL)05/95]
RWARNING
Never leave your vehicle unattended while it is running.
*
[DR04900(ALL)05/95]
RWARNING
Never leave your vehicle unattended while it is running.
*
[DR05000(ALL)06/94]
Forced Downshifts
[DR05100(ALL)05/95]
To gain extra acceleration in
j(Overdrive) (when passing
another vehicle) push the accelerator to the floor. The transaxle
will automatically downshift to the appropriate gear (third,
second or first).
% [DR05200(ALL)04/95]
Traction Control (If equipped)
[DR05300(ALL)04/95]
Traction Control can help improve your traction on slippery
surfaces, but always operate your vehicle within reasonable
limits. Abrupt changes in acceleration, deceleration, turning, or
combinations of these maneuvers can cause your vehicle to
behave differently than anticipated, especially when road
conditions vary.
[DR05400(ALL)04/95]
To turn Traction Control off, press the button located in the
glove compartment while the vehicle is stopped.
[DR05500(ALL)05/95]
Traction Control can be turned back on by pressing the button
again while the vehicle is stopped or by restarting the engine.
