For seating positions equipped with a dual-locking mode
retractor, use the following procedure:
[SR31101(ALL)05/95]1.
Position the child seat in the center of passenger seat.
[SR31150(ALL)05/95]2.

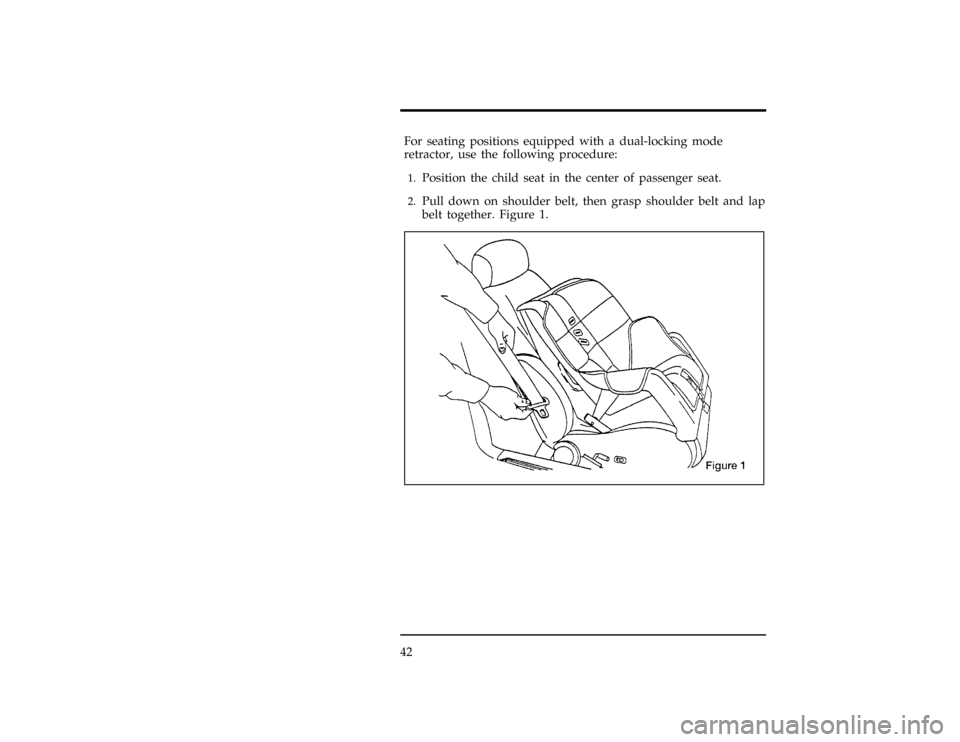

Pull down on shoulder belt, then grasp shoulder belt and lap
belt together. Figure 1.
[SR31201(ALL)06/95]
17-1/2 pica
art:0050276-AFile:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

44
[SR31350(ALL)05/95]4.
Insert the belt into the proper buckle for that seating position
until you hear and feel the latch engage. See Figure 3. Make
sure the tongue is latched securely to buckle by pulling on
the tongue.
[SR31401(ALL)06/95]
17-1/2 pica
art:0050278-A
Buckling the belt
[SR31450(ALL)05/95]5.
Grasp the shoulder portion of the belt and pull downward
until all of the belt is extracted and a click is heard. At this
time, the retractor is in the automatic locking mode (child
restraint mode). See Figure 4.
[SR31501(ALL)05/95]
NOTE: The dual-locking mode retractor must be in the
automatic locking mode to properly restrain a child
seat.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
45
[SR31550(ALL)06/95]
17-1/2 pica
art:0050279-A
Setting the retractor to automatic locking mode
[SR31601(ALL)05/95]6.
Allow the belt to retract. A clicking sound will be heard as
the belt retracts. This indicates the retractor is in the
automatic locking mode. Pull on the lap belt portion across
the child seat towards the buckle and continue to pull up on
the shoulder belt portion while pushing down on the child
seat allowing the shoulder belt to retract, to remove any
slack in seat belt. See Figures 5 and 6.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

48
[SR31750(ALL)05/95]7.

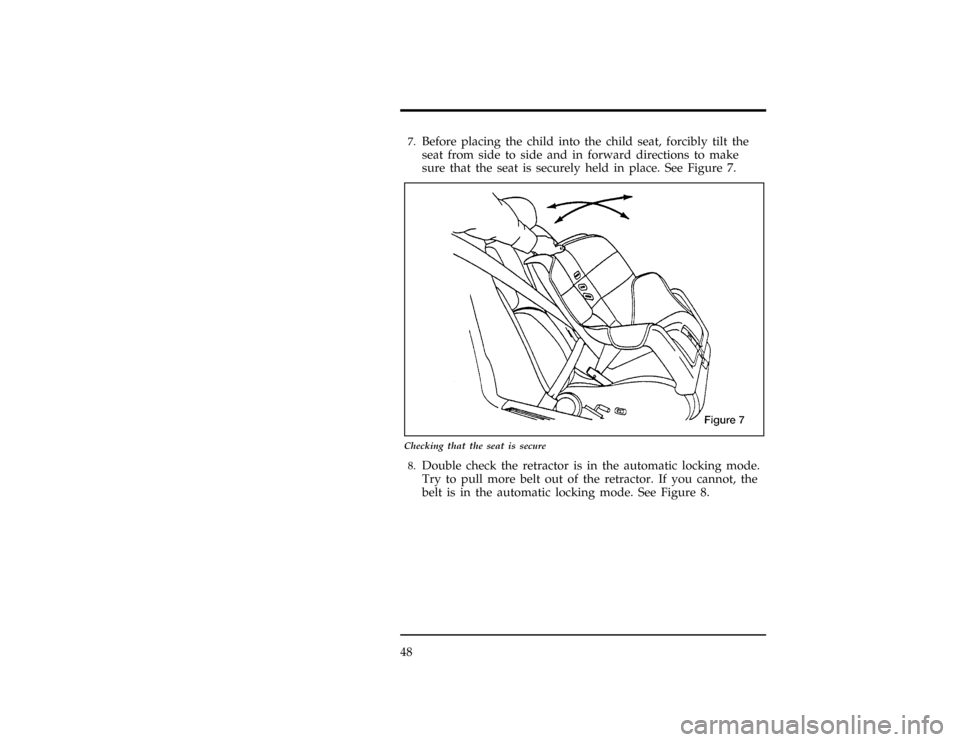

Before placing the child into the child seat, forcibly tilt the
seat from side to side and in forward directions to make
sure that the seat is securely held in place. See Figure 7.
[SR31801(ALL)06/95]
17-1/2 pica
art:0050282-A
Checking that the seat is secure
[SR31850(ALL)05/95]8.
Double check the retractor is in the automatic locking mode.
Try to pull more belt out of the retractor. If you cannot, the
belt is in the automatic locking mode. See Figure 8.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
49
[SR31901(ALL)06/95]
17-1/2 pica
art:0050283-A
Checking the retractor
[SR31950(ALL)06/95]9.
Check to make sure that the seat is properly secured prior to
each use. If the retractor is not locked, repeat steps 6
through 8.
[SR32001(ALL)05/95]
NOTE: To remove retractor from the automatic lock mode,
allow seat belt to retract fully to its stowed position
and the retractor will automatically switch back to the
vehicle sensitive locking mode for normal adult usage.
[SR32050(ALL)05/95]
Installing a Child Safety Seat at the Rear Center
Seating Position with Locking Adjustable Lap Belt
[SR32101(ALL)05/95]1.
Lengthen the lap belt. To lengthen the belt, hold the tongue
so that its bottom is perpendicular to the direction of
webbing while sliding the tongue up the webbing.
[SR32150(ALL)05/95]2.
Place the child safety seat in the center seating position.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

56
%*
[ST03100(ALL)02/95]
Removing the Key From the Ignition
*
[ST03200(ALL)01/93]
LOCK is the only position that allows you to remove the key
from the ignition. The LOCK feature helps to protect your
vehicle from theft, because it also locks the steering wheel and
the gearshift lever when the key is removed.
%*
[ST03300(ALL)01/93]
If your key is stuck in the LOCK position, and you are unable
to turn it, move your steering wheel left or right until the key
turns freely.
*
[ST03400(ALL)01/93]
To remove your key from the ignition:
*
[ST03500(ALL)05/95]1.
Put the gearshift lever in P (Park).
*
[ST03600(ALL)02/95]2.
Set the parking brake fully.
*
[ST03700(ALL)03/95]3.
Turn the ignition key to LOCK.
*
[ST03800(ALL)03/95]4.
Remove the key.
*
[ST03900(ALL)01/93]
RWARNING
When you leave your vehicle, place the gearshift lever in
Park (P). Set the parking brake fully, and shut off the
engine. Never park your vehicle in Neutral (N). If you do
not take these precautions, your vehicle may move
suddenly and injure someone.
*
[ST04100(ALL)01/93]
RWARNING
Do not leave children, unreliable adults, or pets alone in
your vehicle. They could accidentally injure themselves
or others through inadvertent operation of the vehicle.
Further, on hot, sunny days, temperatures in a closed
vehicle could quickly become high enough to cause
severe and possibly fatal injuries to people as well as
animals.
File:wnsts.ex
Update:Tue Mar 19 08:25:19 1996

144
[FV03050(ALL)10/93]

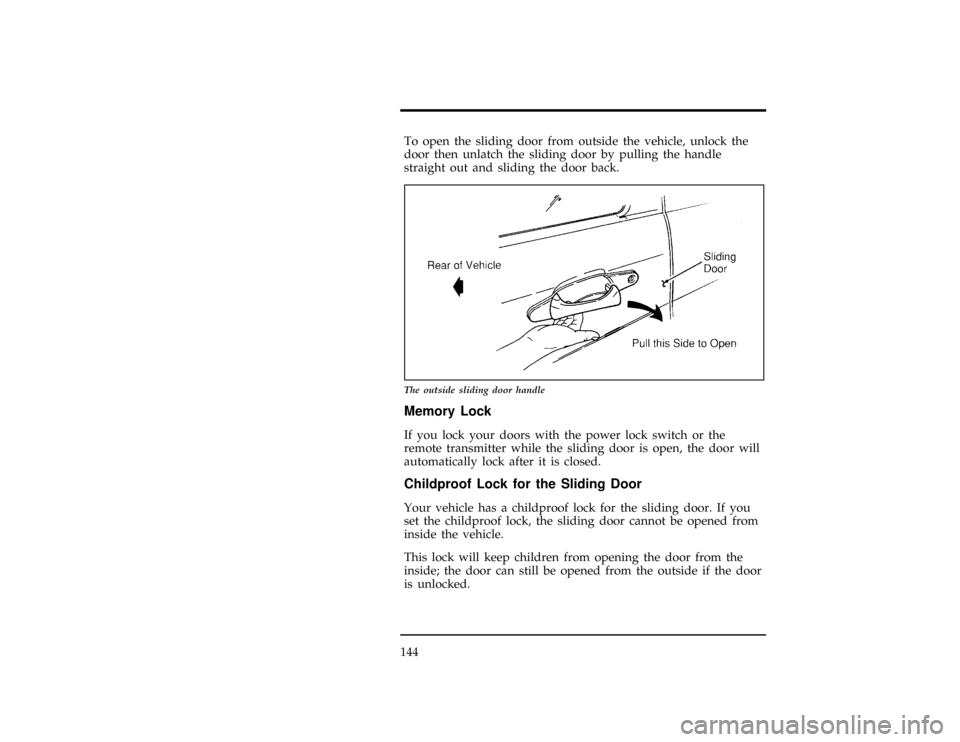

To open the sliding door from outside the vehicle, unlock the
door then unlatch the sliding door by pulling the handle
straight out and sliding the door back.
[FV03075(ALL)06/94]
13-1/2 pica
art:0050120-B
The outside sliding door handle
[FV03080(ALL)09/93]
Memory Lock
[FV03085(ALL)03/94]
If you lock your doors with the power lock switch or the
remote transmitter while the sliding door is open, the door will
automatically lock after it is closed.
%*
[FV03100(ALL)01/93]
Childproof Lock for the Sliding Door
%*
[FV03200(ALL)01/93]
Your vehicle has a childproof lock for the sliding door. If you
set the childproof lock, the sliding door cannot be opened from
inside the vehicle.
*
[FV03300(ALL)01/93]
This lock will keep children from opening the door from the
inside; the door can still be opened from the outside if the door
is unlocked.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996

Features
145
[FV03400(ALL)11/93]
24 pica art:0050082-B

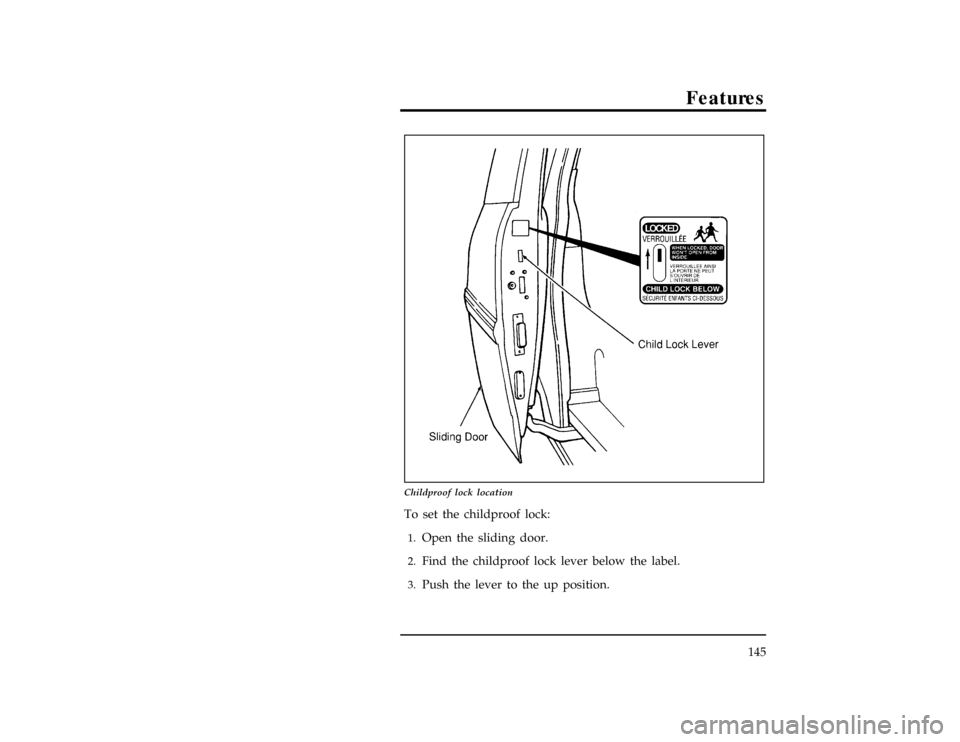

Childproof lock location
*
[FV03500(ALL)01/93]
To set the childproof lock:
*
[FV03600(ALL)01/93]1.
Open the sliding door.
[FV03700(ALL)10/93]2.
Find the childproof lock lever below the label.
[FV03800(ALL)11/93]3.
Push the lever to the up position.
