1996 FORD TAURUS fuse box

308 % [SV33975(ALL)11/94]The power distribution box fuses and relays
*
[SV33983(ALL)07/95]
Ford recommends that high current fuses be
replaced by a qualified technician.
*
[SV33985(ALL)05/95]
RWARNING
Always disconnect the battery before
servicing high current fuses.
[SV33986(ALL)11/94]
half page art:0001089-B

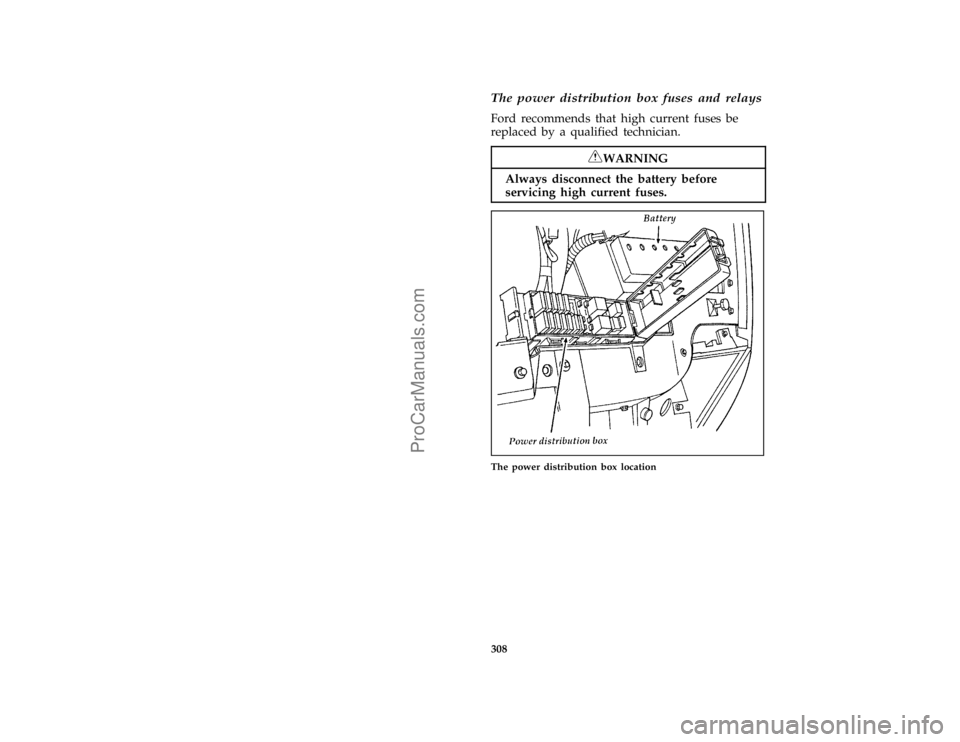

The power distribution box location
File:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

311 %
*
[SV35200(ALL)06/95]
Checking and Replacing Fuses
*
[SV35300(ALL)02/95]
If you need to check a fuse, follow these steps:
[SV35400(ALL)11/94]
1. Lift the handle of the fuse panel or power
distribution box to unlatch the cover.
[SV35600(ALL)11/94]
2. On the cover, find the fuse you want to
check. The diagram on the cover tells you
where to locate the fuse on the panel.
[SV35900(ALL)11/94]
3. Check the fuse to see if it is blown. To
remove the fuse, use the pulling tool
attached to the inside cover of the fuse
panel. Look through the clear side of the
fuse to see if the metal wire inside is
separated. If it is, the fuse should be
replaced.
*
[SV36000(ALL)10/95]
quarter page art:0030248-C
Fuse puller tool and fuse
*
[SV36100(ALL)11/94]
4. Replace the fuse with one that has the right
amperage rating. (See the following chart.)
[SV36200(ALL)04/95]
six pica chart:0001443-AFile:15fcsvt.ex
Update:Tue Jan 23 13:58:51 1996
ProCarManuals.com

Index 365
Ford Customer Assistance Center..... 239
Ford Dispute Settlement Board...... 240
Ford Extended Service Plan........ 4
Ford Motor Company of Canada..... 245
Ford of Canada Customer
Assistance Centre........... 245
Foreign registration........... 247
French owner guides, how to obtain.... 3
Fuel.................. 264
calculating fuel economy....... 270
capacity............... 328
choosing the right fuel........ 266
comparisons with EPA fuel
economy estimates......... 271
filling your vehicle with fuel...... 264
filter, specifications.......... 329
fuel gauge............... 82
improving fuel economy....... 271
octane rating............. 266
quality................ 267
running out of fuel.......... 269
safety information relating to
automotive fuels.......... 268
storing your vehicle.......... 332
treating emergencies......... 268
Fuel cap................ 264
removing.............. 264
replacing............... 265
Fuel filter, specifications......... 329
Fuel gauge................ 82
Fuel pump shut-off switch
engine does not start.......... 65
starting after a collision......... 65
Fuse panels
instrument panel........... 304
power distribution box........ 308
File:fcixt.ex
Update:Tue Jan 23 08:18:16 1996
ProCarManuals.com

Index 371
O
Octane rating.............. 266
Odometer
description............... 84
trip odometer............. 84
Oil filter................ 329
Oil (see Engine oil)........... 272
Oil viscosity.............. 273
On-board diagnostic (OBD II) system . . . 325
Overdrive.............194, 199
Overseas offices............. 247
P
Panic alarm feature, remote
entry system............. 135
Parking brake
operation.............. 205
warning light.............. 73
Parts (see Motorcraft Parts)....... 329
PCV valve, specifications........ 329
Phone, cellular............. 158
Power distribution box (see Fuses).... 308
Power door locks............ 126
Power features
door locks.............. 126
lumbar support............ 149
mirrors............... 153
moon roof.............. 144
seats................. 148
windows............... 142
Power steering
dipstick............... 301
driving with power steering...... 201
fluid, checking and adding...... 300
fluid, refill capacity.......... 328
fluid, specifications.......... 330
servicing............... 201
File:fcixt.ex
Update:Tue Jan 23 08:18:16 1996
ProCarManuals.com
