1996 FORD PROBE wiper blades

230 [SV22600(ALL)05/95]
half page art:0032082-AWindshield washer fluid reservoir
*
[SV23000(ALL)05/95]
RWARNING
Do not put windshield washer fluid in the
container for the engine coolant.
%*
[SV23100(ALL)01/95]
Use specially formulated windshield washer
fluid rather than plain water, because specially
formulated washer fluids contain additives that
dissolve road grime. For safety reasons, washer
fluids containing an appropriate antifreeze such
as methanol should be used in freezing weather
(temperatures below32ÊF [0ÊC]).State or local
regulations on Volatile Organic Compounds
(VOC's) may restrict use of the most common
antifreeze, methanol. Washer fluids containing
non-methanol antifreeze agents should be used
only if they provide cold weather protection
without damaging the vehicle's paint finish,
wiper blades, and windshield washer system.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

231
*
[SV24000(ALL)03/95]
Wiper blade maintenance
*
[SV24100(ALL)03/95]
Check the windshield wiper blades at least twice
a year. Also check them whenever they seem
less effective than usual. Such substances as tree
sap and some hot wax treatments used by
commercial car washes reduce the effectiveness
of wiper blades.
*
[SV24200(ALL)03/95]
If the blades do not wipe properly, clean both
the windshield and the wiper blades. Use
undiluted windshield washer solution or a mild
detergent. Rinse thoroughly with clear water. Do
not use fuel, kerosene, paint thinner, or other
solvents to clean your wiper blades. These will
damage your blades.
*
[SV24300(ALL)02/95]
To make reaching the wiper blades easy, simply
turn the ignition switch to ACC and turn your
wipers on. Wait for them to reach a vertical
position and turn the ignition to OFF. Do not
move the wipers manually. Moving the wipers
manually may damage them.
*
[SV24400(ALL)03/01]
Wiper blade replacement
*
[SV24500(ALL)01/95]
If the wipers still do not work properly after
you clean them, you may need to replace the
wiper blade assembly. When replacing the wiper
blade assembly always use a Motorcraft part or
equivalent.
*
[SV24525(ALL)10/93]
To replace the wiper blades:
*
[SV24535(ALL)04/95]
1. Pull the wiper arm away from the
windshield and lock into the service position.
*
[SV24550(ALL)03/94]
2. Turn the blade at an angle from the wiper
arm. Push the lock pin with a screwdriver to
release the blade and pull the wiper blade
down toward the windshield to remove it
from the arm.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

232
*
[SV24560(ALL)03/94]
3. Attach a new wiper blade to the wiper arm
and press it into place until you hear it click.
[SV24575(ALL)04/95]

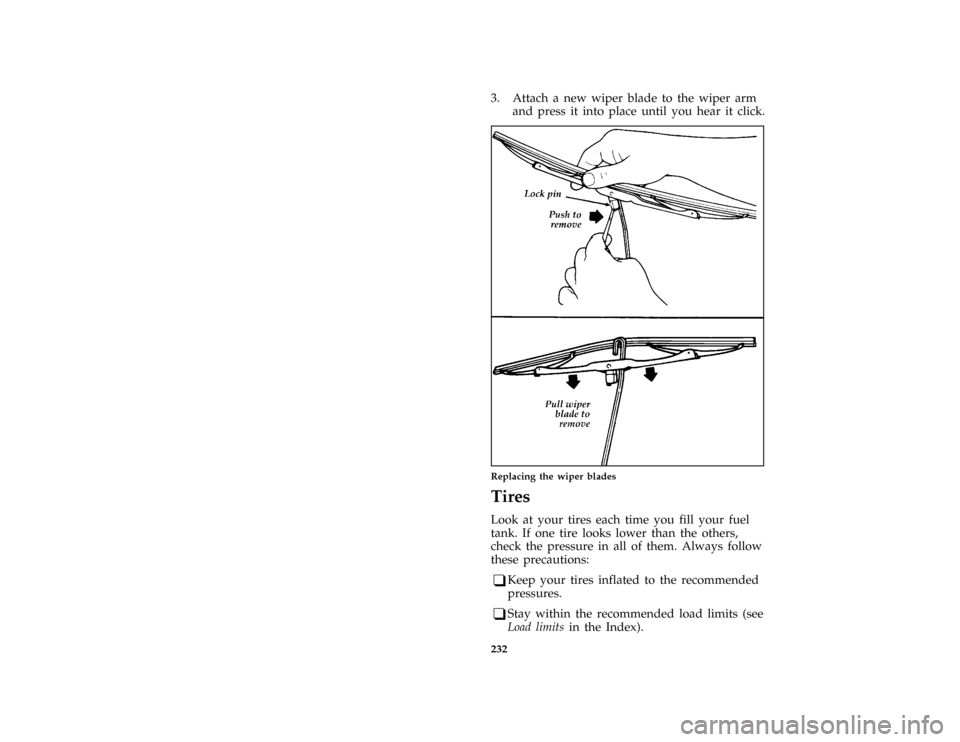

two third page art:0032367-A
Replacing the wiper blades
*
[SV24600(ALL)03/95]
Tires
*
[SV24700(ALL)03/95]
Look at your tires each time you fill your fuel
tank. If one tire looks lower than the others,
check the pressure in all of them. Always follow
these precautions:
*
[SV24900(ALL)03/95]
q
Keep your tires inflated to the recommended
pressures.
*
[SV25000(ALL)02/95]
q
Stay within the recommended load limits (see
Load limitsin the Index).
