1996 FORD PROBE engine

262
*
[SV47800(ALL)05/95]
To make sure that the catalytic converter and the
other emission control parts continue to work
properly:
*
[SV47900(ALL)01/95]
q
Use only unleaded fuel.
*
[SV48000(ALL)01/95]
q
Avoid running out of fuel.
*
[SV48100(ALL)01/95]
q
Do not turn off the ignition while your
vehicle is moving, especially at high speeds.
*
[SV48150(ALL)01/95]
q
Do not push start your vehicle.
*
[SV48200(ALL)03/95]
q
Have the services listed in yourMaintenance
Schedule and Recordbooklet performed
according to the specified schedule.
*
[SV48300(ALL)05/95]
RWARNING
Do not park, idle, or drive your vehicle in
dry grass or other dry ground cover. The
emission system heats up the engine
compartment and exhaust system, which
can start a fire.
*
[SV48400(ALL)05/95]
Watch for fluid leaks, strange odors, smoke, loss
of oil pressure, the charge warning light, the
check engine light, or the temperature warning
light. These sometimes indicate that the emission
system is not working properly.
*
[SV48500(ALL)01/95]
Do not make any unauthorized changes to your
vehicle or engine. Changes that cause more
unburned fuel to reach the exhaust system can
increase the temperature of the engine or
exhaust system.
%*
[SV48550(ALL)05/95]
In general, maintenance, replacement, or service
of the emission control devices or systems in
your new Ford Motor Company vehicle or
engine may be performed at your expense by
any automotive repair establishment or
individual using automotive parts equivalent to
those with which your vehicle or engine was
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

263
originally equipped. If other than Ford or
Motorcraft or Ford authorized remanufactured
parts are used for maintenance, replacement, or
for the service of components affecting emission
control, the owner should be assured that such
parts are warranted by their manufacturer to be
equivalent to genuine Ford Motor Company
parts in performance and durability. Please
consult your warranty information booklet for
complete warranty information.
*
[SV48600(ALL)01/95]
By law, anyone who manufactures, repairs,
services, sells, leases, trades vehicles, or
supervises a fleet of vehicles is not permitted to
intentionally remove an emission control device
or prevent it from working. In some of the
United States and in Canada, vehicle owners
may be liable if their emission control device is
removed or is prevented from working.
*
[SV48700(ALL)02/92]
Never use a metal exhaust collector when you
service your vehicle. If the metal collector
contacts any of your vehicle's plastic trim or
bumper parts they could melt or deform.
*
[SV48800(ALL)01/95]
Do not drive your vehicle if it does not operate
properly. See your dealer if the engine runs on
for more than five seconds after you shut it off
or if it misfires, surges, stalls, or backfires.
%*
[SV48810(ALL)05/95]
Information about your vehicle's emission
control system is on the Vehicle Emission
Control Information decal located on or near the
engine. This decal identifies engine displacement
and gives some tune-up specifications.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

265
*
[SV48860(ALL)06/95]
The engine must be warmed up and at
operating temperature before proceeding with
the drive modes of the following OBD II Drive
Cycle.
*
[SV48870(ALL)06/95]
1. Start the engine. Drive or idle (in neutral)
the vehicle for 4 minutes.
[SV48880(ALL)05/95]
2. Idle the vehicle in drive (neutral for
automatic transaxles) for 40 seconds.
[SV48890(ALL)05/95]
3. Accelerate the vehicle to 45 mph (72 km/h)
(for manual transaxles upshift from 1st to
5th gear, but hold in 2nd for at least 5
seconds) at 1/4 to 1/2 throttle for 10
seconds.
[SV48895(ALL)05/95]
4. Drive the vehicle with a steady throttle at
45 mph (72 km/h) (manual transaxles use
5th gear) for 30 seconds.
[SV48900(ALL)05/95]
5. Idle the vehicle in drive (neutral for manual
transaxles) for 40 seconds.
[SV48910(ALL)05/95]
6. Continue to drive the vehicle in city traffic at
speeds between 25 and 40 mph
(40-64 km/h) (manual transaxles primarily
drive vehicles in 3rd and 4th gear when
possible) for 15 minutes. During the 15
minute drive cycle the following modes must
be achieved:
*
[SV48920(ALL)06/95]
a. at least 5 stop and idle modes at 10
seconds each
*
[SV48930(ALL)06/95]
b. acceleration from idles at 1/4 to 1/2
throttle position, and
*
[SV48940(ALL)06/95]
c. choose 3 different speeds to do 1.5
minute steady state throttle drives.
[SV48950(ALL)05/95]
7. Accelerate the vehicle up to between 45 and
60 mph (72-97 km/h) (manual transaxles
upshift to 5th gear). This should take
approximately 5 minutes.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

272 %
*
[SV52200(ALL)01/95]
Engine
*
[SV52300(ALL)01/95]
q
Start engine every 15 days. Run at fast idle
until it reaches normal operating temperature.
*
[SV52400(ALL)01/95]
q
With your foot on the brake, shift through all
the gears while the engine is running.
%*
[SV52500(ALL)01/95]
Fuel system
%*
[SV52600(ALL)07/94]
q
Fill fuel tank with high-quality unleaded fuel
until the first automatic shutoff of the fuel
pump nozzle.
*
[SV52800(ALL)03/95]
NOTE: During extended periods of vehicle
storage (60 days or more), fuel may
deteriorate due to oxidation. This can
damage rubber and other polymers in
the fuel system and may also clog
small orifices.
*
[SV52900(ALL)01/95]
Ford Gas Stabilizer should be added whenever
actual or expected storage periods exceed 60
days. Follow the instructions on the label. The
vehicle should then be operated at idle speed to
circulate the additive throughout the fuel system.
*
[SV53000(ALL)01/95]
A volatile corrosion inhibitor added to the fuel
system will protect the fuel system's inner
surfaces from corrosion. Follow the instructions
packaged with the product.
%*
[SV53100(ALL)01/95]
Cooling system
*
[SV53200(ALL)01/95]
q
Protect against freezing temperatures.
%*
[SV53300(ALL)01/95]
Battery
*
[SV53400(ALL)01/95]
q
Check and recharge as necessary.
*
[SV53500(ALL)01/95]
q
Keep connections clean and covered with a
light coat of grease.
File:prsvp.ex
Update:Fri Jun 23 19:33:26 1995

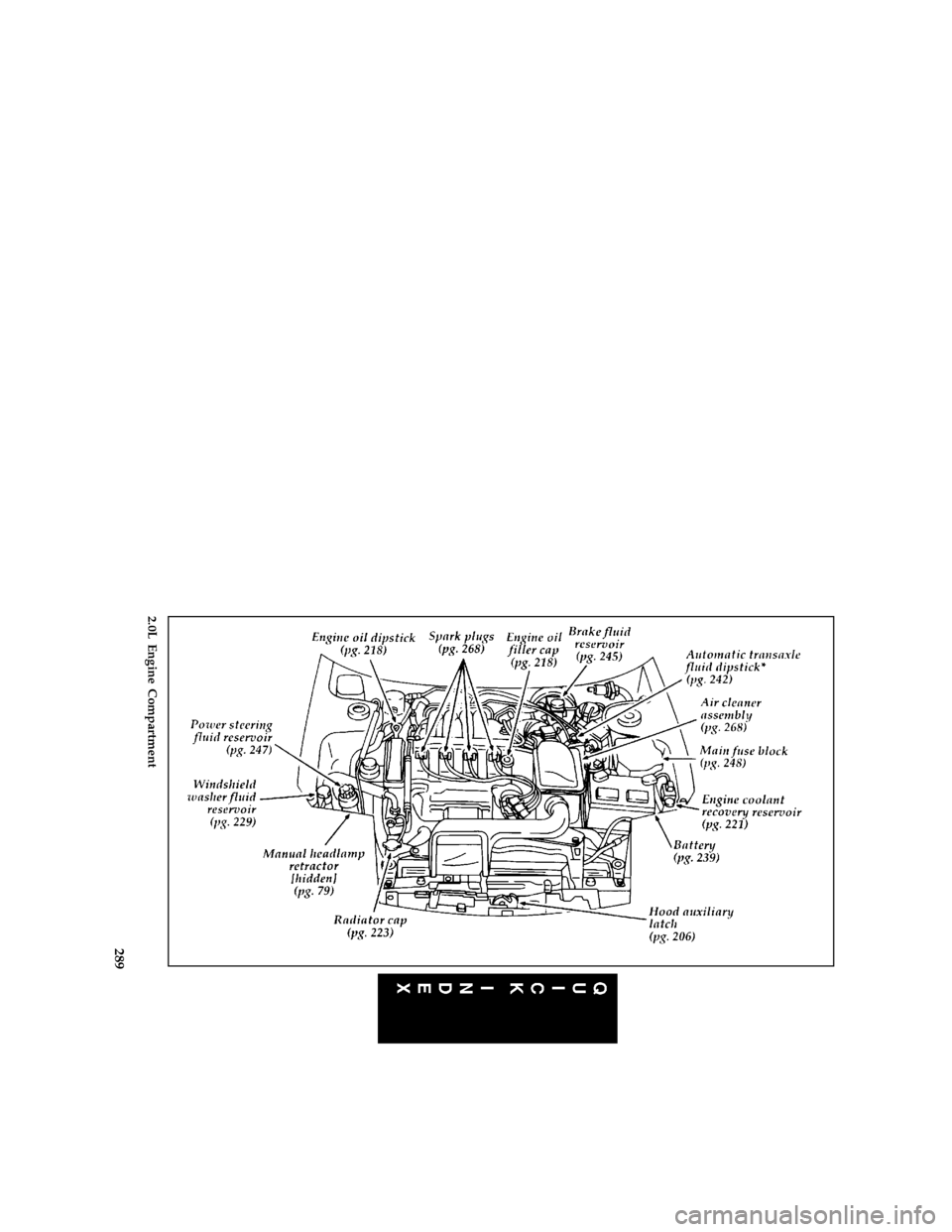

289 [QI02700(ALL)05/95]
full page art:0032136-G
2.0L Engine Compartment
File:prqip.ex
Update:Fri Jun 23 19:31:05 1995

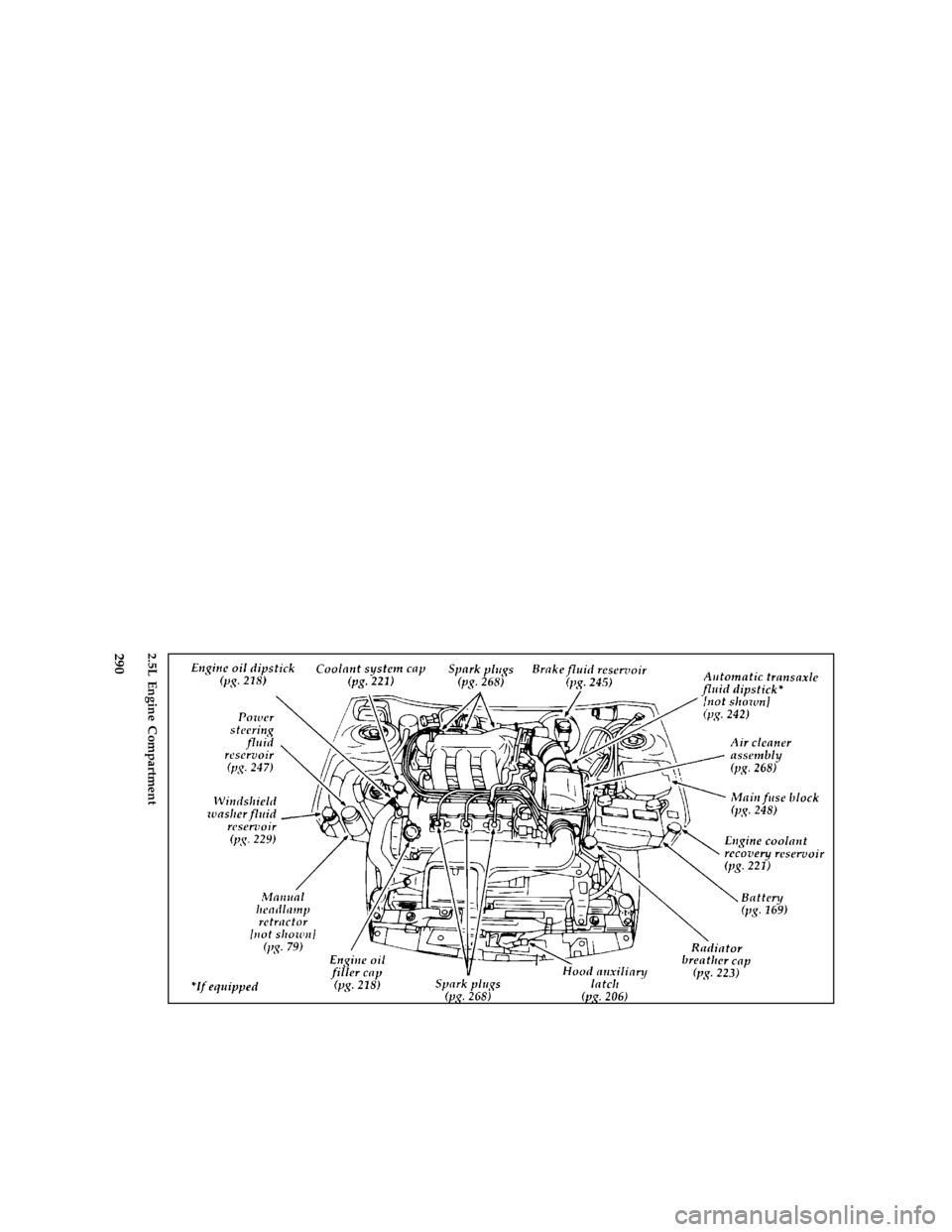

290 [QI02800(ALL)05/95]
full page art:0032137-G2.5L Engine Compartment
File:prqip.ex
Update:Fri Jun 23 19:31:05 1995

Index 291
Index
A
ABS warning light
(see Anti-lock brake system)....... 57
Additives, engine oil.......... 218
Air bag supplemental
restraint system........... 17,25
and child safety seats....... 17,24±25
description............... 18
disposal................ 22
driver air bag............. 18
indicator light............. 55
operation............... 18
passenger air bag............ 18
proper seating............. 16
tone generator............. 22
wearing safety belts........... 15
Air cleaner filter, specifications...... 268
Air conditioning, electronic automatic
temperature control system....... 65
Alcohol, in fuel............. 214
Aluminum wheels............ 238
Antenna, radio
(see Electronic sound system) . 75, 121, 143
Antifreeze (see Engine coolant)...... 221
Antifreeze (see Engine coolant)...... 221
Anti-lock brake system (ABS)
description.............. 157
see also Brake............ 157
warning light.............. 57
Appeals (see Dispute settlement board) . . 188
Assistance (see Customer assistance) . . . 185
Audio system
(see Electronic sound system)..... 121
File:prixp.ex
Update:Fri Jun 23 19:30:26 1995

Index 293
C
Canada, customer assistance....... 192
Canada, warranty information....... 4
Canadian Motor Vehicle Arbitration Plan
(CAMVAP).............. 193
Carbon monoxide in exhaust........ 48
Car seats for children
(see Child safety seats)......... 24
Cassette tape player
(see Electronic sound system) . . . 134, 140
Catalytic converter........... 261
CD player
(see Electronic sound system)..... 128
Chains, tires.............. 238
Changing a tire............. 173
Child safety restraints........... 23
child safety seats............ 24
Child safety seats
and air bags........... 17,24±25
attaching with tether straps....... 34
automatic locking mode (retractor) . . 13, 24
tether anchorage hardware....... 34
Chime, safety belt............. 54
Cleaning your vehicle
CD player and discs......... 131
chrome and aluminum parts....... 7
engine compartment......... 210
exterior................ 6
exterior lamps............. 81
fabric................ 112
headlamps............... 81
instrument panel............ 65
plastic parts.............. 7
polishing................ 6
rustproofing.............. 7
safety belts............... 15
tail lamps............... 81
upholstery and interior trim...... 112
washing................ 6
File:prixp.ex
Update:Fri Jun 23 19:30:26 1995
