1996 FORD F150 radio

162
*
[AS32400( EF )07/90]

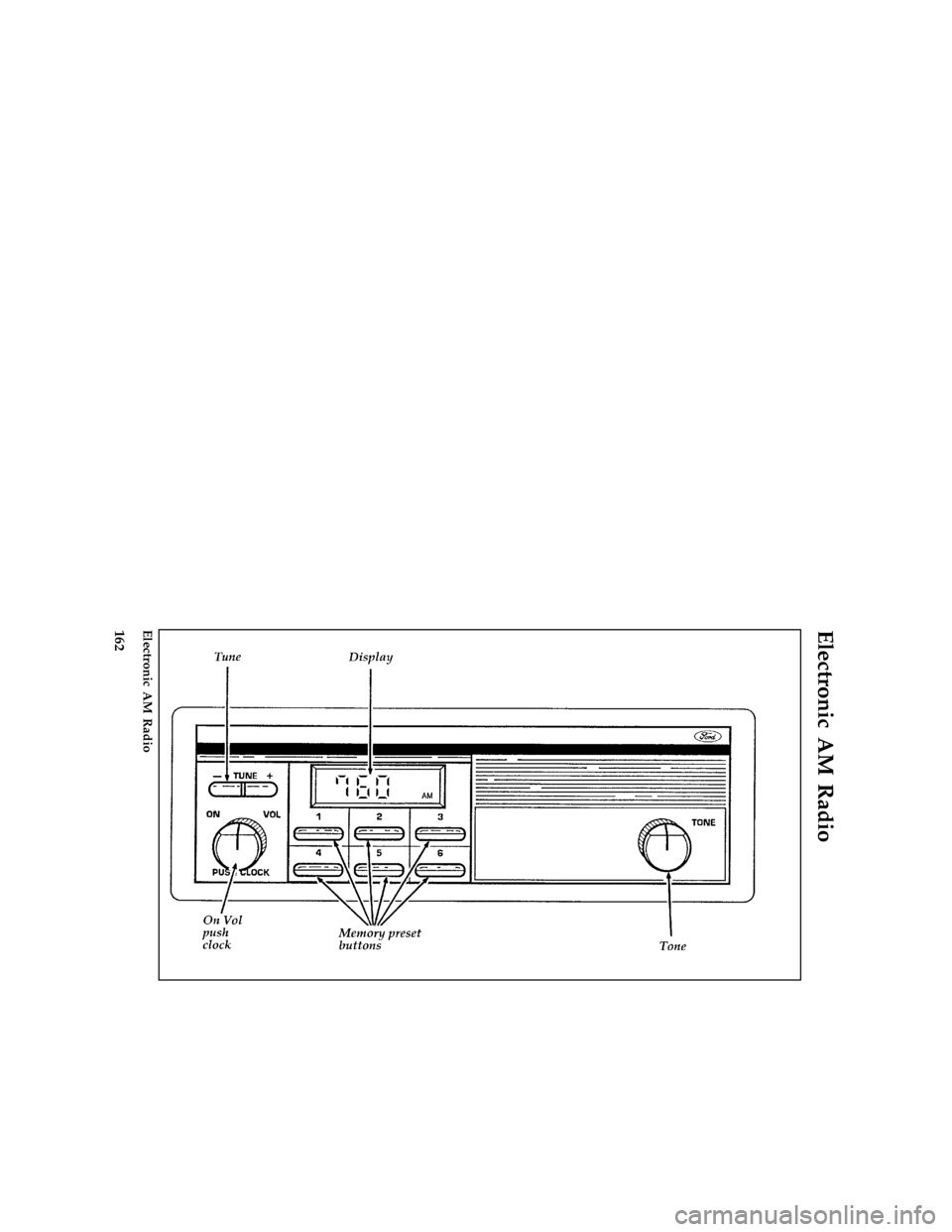

Electronic AM Radio
*
[AS32450( EF )05/94]
full page art:0060508-C
Electronic AM Radio
File:ltasf.ex
Update:Thu May 9 15:15:21 1996

163
*
[AS32500( EF )02/95]
Using the Controls on Your New Radio
*
[AS32600( EF )02/95]
How to turn the radio on and adjust the
volume
*
[AS32700( EF )07/90]
Press the ªON/OFF-VOLUMEº control to turn
the radio on. Press again to turn it off. Rotate
the control clockwise to increase the volume.
*
[AS32900( EF )07/93]
NOTE: If your radio has a clock feature, turn
the radio on by rotating the control
clockwise. Pushing the control in will
change the display from the radio
frequency to the clock (time) or from
the clock to the radio frequency.
%*
[AS33000( EF )05/95]
How to tune radio stations
*
[AS33100( EF )08/89]
There are two ways for you to tune to a
particular station. You can manually locate a
station using the ªTUNEº button or select a
station using the memory buttons, which you
can set to any desired frequency.
*
[AS33200( EF )05/95]
q
Using the ªTUNEº function
*
[AS33300( EF )07/94]
You can change the frequency up or down
one increment at a time by pressing and
releasing either the right (
a) or left (
b) side
of the ªTUNEº button. To change frequencies
quickly press and hold down either the right
or left side of the ªTUNEº button.
*
[AS33400( EF )08/04]
The ªTUNEº control adjusts your radio to
any allowable broadcast frequency regardless
of whether or not a station is present on that
frequency. (SeeAll About Radio Frequenciesin
this section.)
File:ltasf.ex
Update:Thu May 9 15:15:21 1996

164
*
[AS33500( EF )04/95]
q
Setting the Station Memory Preset buttons
*
[AS33600( EF )08/89]
Your radio is equipped with 6 station
memory buttons. These buttons can be used
to select up to 6 preset AM stations. Follow
the easy steps below to set these buttons to
the desired frequencies:
*
[AS33800( EF )05/94]
1. Tune to the desired frequency.
*
[AS33900( EF )07/94]
2. Press one of the memory buttons and hold
the button in until the sound returns. That
station is now held in memory on that
button.
*
[AS34000( EF )08/89]
3. Follow the two steps above for each station
memory preset you want to set.
*
[AS34100( EF )04/95]
NOTE: If the vehicle's battery is disconnected,
the clock and station memory preset
buttons (if programmed in auto mode)
will need to be reset.
*
[AS34200( EF )02/95]
Adjusting the tone balance and speaker
output of your radio
*
[AS34300( EF )08/89]
The ªTONEº button on the right side of your
radio controls the bass and treble balance. Rotate
the control clockwise to increase the treble
response (more highs) and counterclockwise to
increase the bass response (more lows).
*
[AS34400( EF )03/95]
Clock Operation
*
[AS34500( EF )07/90]
How to view the clock mode
*
[AS34600( EF )07/93]
Press the ªCLOCKº button to alternate the
frequency and time in the display. In the clock
mode, pressing any radio function will
automatically display the radio frequency for
approximately ten seconds before changing back
to the clock mode.
File:ltasf.ex
Update:Thu May 9 15:15:21 1996

165
*
[AS34700( EF )07/90]
How to set the clock
*
[AS34710( EF )04/92]
1. Turn the radio on.
*
[AS34720( EF )07/90]
2. Press and hold in the
ªON/OFF-VOLUME-CLOCKº control.
*
[AS34730( EF )07/90]
3. While holding the
ªON/OFF-VOLUME-CLOCKº button in,
press the ªTUNEº button left (s) to advance
the hours and right (+) to advance the
minutes.
*
[AS34740( EF )07/90]
NOTE: The clock displays 12-hour time with
no AM/PM indications.
%*
[AS35200(BEF )02/95]
Common Radio Reception Conditions
*
[AS35300(BEF )02/95]
Several conditions prevent FM reception from
being completely clear and noise-free, such as
the following:
*
[AS35400(BEF )04/95]
1. Distance/Strength
*
[AS35500(BEF )02/95]
The strength of the FM signal is directly related
to the distance the signal must travel. The
listenable range of an average FM signal is
approximately 25 miles (40 kilometers). Beyond
this distance, the radio is operating in a fringe
area and the signal becomes weaker.
*
[AS35575( EF )07/90]
NOTE: Always make sure your antenna
(Whether you have a power antenna or
a manually adjustable antenna) is fully
extended to its maximum length for
proper reception. If your antenna is not
fully extended, you may experience
signal loss while traveling in fringe
reception areas.
*
[AS35600(BEF )04/95]
2. Terrain
*
[AS35700(BEF )02/95]
The terrain (hilly, mountainous, tall buildings) of
the area over which the signal travels may
prevent the FM signal from being noise-free.
File:ltasf.ex
Update:Thu May 9 15:15:21 1996

166
*
[AS35900(BEF )01/95]
If there is a building or large structure between
the antenna and station, some of the signal
ªbendsº around the building, but certain spots
receive almost no signal. Moving out of the
ªshadowº of the structure will allow the station
to return to normal.
*
[AS36000(BEF )01/95]
When the radio waves are reflected off objects or
structures, the reflected signal cancels the normal
signal, causing the antenna to pick up noise and
distortion. Cancellation effects are most
prominent in metropolitan areas, but also can
become quite severe in hilly terrain and
depressed roadways.
*
[AS36100(BEF )01/95]
To minimize these conditions, a stereo/mono
blend circuit has been incorporated into this
system. This feature automatically switches a
weak stereo signal to a clearer monaural signal,
which improves the quality of reception.
*
[AS36200(BEF )01/95]
Several sources of static are normal conditions
on AM frequencies. These can be caused by
power lines, electric fences, traffic lights and
thunderstorms.
*
[AS36300(BEF )01/95]
Another reception phenomenon isStrong Signal
Capture and Overload. This can occur when
listening to a weak station and when passing
another broadcast tower. The close station may
capture the more distant station, although the
displayed frequency does not change. While
passing the tower, the station may switch back
and forth a few times before returning to the
original station.
*
[AS36400(BEF )01/95]
When several broadcast towers are present
(common in metropolitan areas) several stations
may overload the receiver, resulting in
considerable station changing, mixing and
distortion.
File:ltasf.ex
Update:Thu May 9 15:15:21 1996

167
*
[AS36500(BEF )01/95]
Automatic gain control circuitry for both AM
and FM bands has been incorporated into this
system to reduce strong signal capture and
overload.
%
*
[AS36600(BEF )08/89]
All About Radio Frequencies
*
[AS36700(BEF )05/95]
The Federal Communications Commission (FCC)
and the Canadian Radio Telecommunications
Commission (CRTC) establish the frequencies
AM and FM radio stations may use for their
broadcasts. The allowable frequencies are, AM:
530, 540...1600, 1610 kHz in 10 kHz steps; FM:
87.9, 88.1...107.7, 107.9 MHz in 0.2 MHz steps.
*
[AS36800(BEF )01/95]
Not all frequencies will be assigned to a given
area. This radio will tune to each of these
frequencies using MANUAL TUNE and no fine
tuning is necessary as radio stations may not use
other frequencies.
*
[AS36900(BEF )02/95]
Some FM radio stations advertise a
ªrounded-offº frequency which is not the
frequency they actually broadcast on. For
example, a radio station that is assigned a
frequency of 98.7 MHz may call itself ªRadio 99º
even though 99.0 MHz is not an allowable FM
broadcast frequency.
File:ltasf.ex
Update:Thu May 9 15:15:21 1996

295
*
[AC01600( F )04/95]
sixteen pica chart:0020765-H
*
[AC01900( ALL)01/95]
NOTE: When adding accessories, equipment,
passengers, and luggage to your
vehicle, do not exceed the total weight
capacity of the vehicle or of the front
or rear axle (GVWR, GAWR as shown
on the Safety Compliance Certification
Label). Consult your dealer for specific
weight information.
*
[AC02000( ALL)05/95]
NOTE: The Federal Communications
Commission (FCC) or the Canadian
Radio Telecommunications Commission
(CRTC) regulates the use of mobile
communications systems Ð such as
two-way radios, telephones, and theft
alarms Ð that are equipped with radio
transmitters. Any such equipment
installed in your vehicle should comply
with FCC or CRTC regulations and
should be installed only by a qualified
technician.
