1996 CHEVROLET MONTE CARLO headlamp

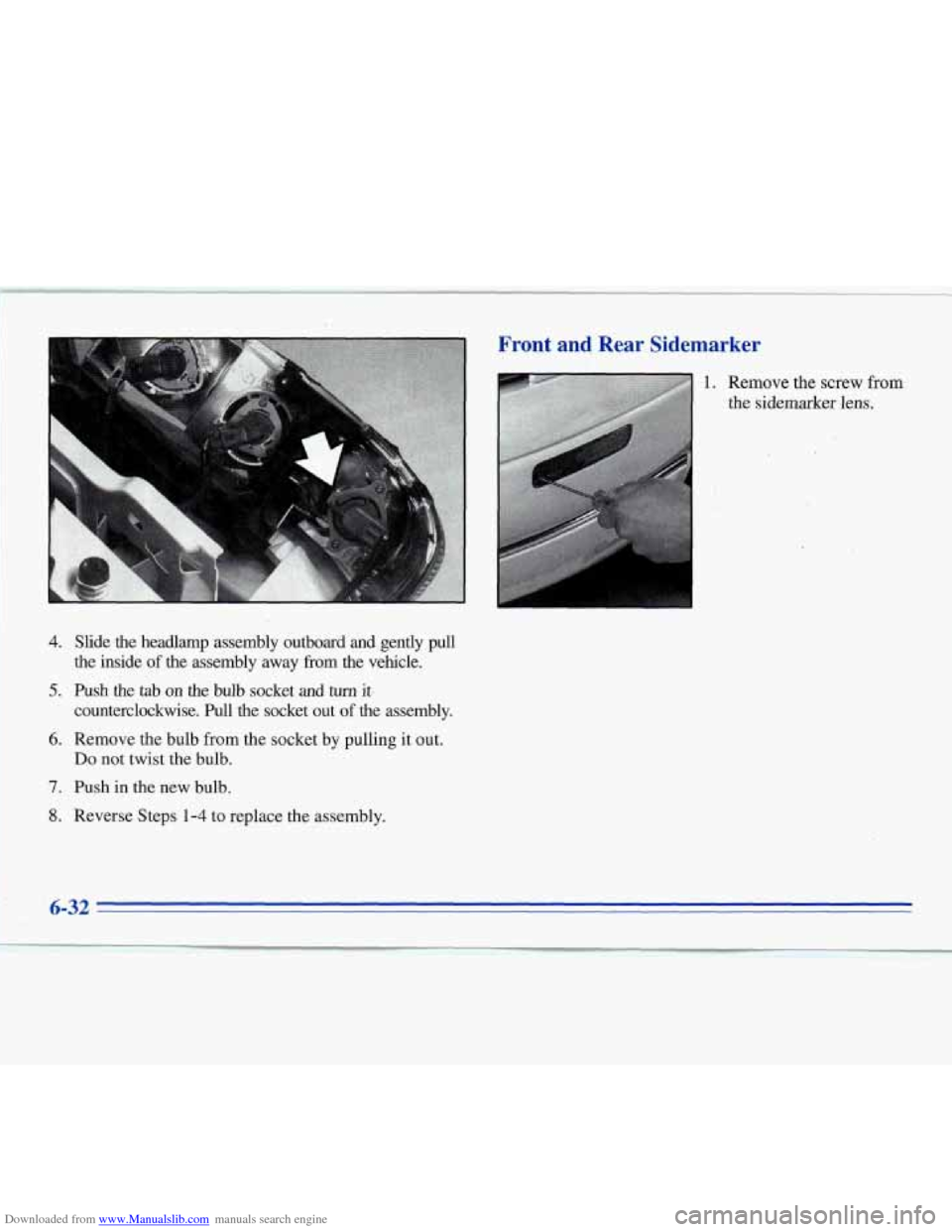

Downloaded from www.Manualslib.com manuals search engine 4. Slide the headlamp assembly outboard and gently pull
the inside
of the assembly away from the vehicle.
5. Push the tab on the bulb socket and turn itj
counterclockwise. Pull the socket out
of the assembly.
Do not twist the bulb.
6. Remove the bulb from the socket by pulling it out.
7. Push in the new bulb.
8. Reverse Steps 1-4 to replace the assembly.
Front and Rear Sidemarker
Front and Rear Sidemarker
1. Remove the screw from
' the sidemarker lens.
1. Remove the screw from
the sidemarker lens.
6-32

Downloaded from www.Manualslib.com manuals search engine NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer/odometer
calibration, headlamp aim, bumper height, vehicle
ground clearance and
tire or tire chain clearance to
,the body and chassis.
I I
See “Changing a Flat Tire” in the Index for more
information.
Used Replacement Wheels,
Tire Chains
Putting a used wheel on your vehicle is
dangerous.
You can’t know how it’s been used or
how many miles it’s been driven.
It could fail
suddenly and cause an accident.
If you have to
replace a wheel, use
a new GM original
equipment wheel.
NOTICE:
If your Chevrolet has P22960Rl6 size tires, don’t
use tire chains. They can damage your vehicle.
If you have other tires, use tire chains only where
legal and only when you must. Use only
SAE Class
“S” type chains that are the proper size for your
tires.
Install them on the front tires and tighten
them as tightly as possible with the ends securely
fastened. Drive slowly and follow the chain
manufacturer’s instructions.
If you can hear the
chains contacting your vehicle, stop
&d retighten
them.
If the contact continues, slow down until it
stops. Driving too fast or spinning the wheels with
chains on
will damage your vehicle.
6-43

Downloaded from www.Manualslib.com manuals search engine Headlamp Wiring Fuses and Circuit Breakers
The headlamp wiring is protected by a circuit breaker in
the underhood electrical center. An electrical overload
will cause the lamps to
go on and off, or in some cases
to remain off. If this happens, have your headlamp
system checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and
a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the overload is caused by some electrical problem,
have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem
is fixed. The
wiring circuits in your vehicle are protected
from short circuits by
a combination of fuses, circuit
breakers, and fusible thermal links
in the wiring itself.
This greatly reduces the chance
of fires caused by
electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace
a bad fuse with a new one of the identical size
and rating.
--.
Instrument Panel Fuse Block

Downloaded from www.Manualslib.com manuals search engine I
I'
Fuse
19
29
Rating Description
Trunk Courtesy Lamp, Door Lock Switches, Power Mirror S-witch
POWER ACCESSORY
#1--
21
AIR BAG -- Air Bag System
23 STOPLAMPS
-- TCCIBrake
24 CRUISE CONTROL Switch
28 CTSY LAMPS
-- Vanity Mirrors,
Defogger Relay,
I/P Compartment
Lamp, Header Courtesy and
Reading Lamp,
US Lighted
Rearview Mirror, Dome Lamp
WIPER
-- Wiper Switch
Fuse Rating Description
30 TURN SIGNAL -- Turn
Signal Flasher
32 POWER LOCKS
-- Door Lock
Relay, Keyless Entry Receiver
3-8 RADIO
-- Radio, Steering Wheel
Radio Switches
39
I/P ELECTRONICS IGNITION
FEED
-- Headlamp Switch,
Cruise Control Cut-Out Switch,
Air Bag System, TCClBrake
Switch, Instrument Cluster,
Chime Module, Keyless Entry
Receiver, Daytime Running
, Lamps Module (DRL)
6-55

Downloaded from www.Manualslib.com manuals search engine Underhood Electrical Center -- Driver's Side
Additional fuses are in a fuse block on the driver's side
of the engine compartment.
L
FOG LPS PARKLPS HORN
OD0 ABS VAR PIS II
Fuse Description
FOG LPS Fog Lamps
PARK LPS Headlamp Switch
HORN Horn Relay, Underhood Lamp
VAR
P/S Steering
ABS Anti-Lock Brake System
6-58

Downloaded from www.Manualslib.com manuals search engine Fuse
10
I1
12
13
Description
IGN SW2 -- I/P Fuse Block: PWR
WDO and Circuit Breaker D;
Passenger’s Side Underhood
Electrical Center: TCC and ENG
EMIS Fuses
IGN SW 1 -- I/P Fuse Block:
Radio, Wiper,
HVAC, ABS and
Turn Signal Fuses; Passenger’s
Side Underhood Electrical Center:
F/IJN, ECM IGN and ELEK
IGN Fuses
HD LPS -- Circuit Breaker to
Headlamp Switch
ABS
-- ABS Relay
Relay
14
16
Description
ABS -- Anti-Lock Brake System
HORN

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Exterior Lamps Bulb Number
Back-up ............................... 3057
Center High-vounted Stop
............... 89 1 T2
Front Parking/Turn Signal ............... 3357NA
Headlamp. High-Beam
................... 9005
Headlamp. Low-Beam .................... 9006
License Plate ............................ 168
Sidemarker. Front
......................... 194
Sidemarker. Rear
......................... 194
Stop/Tail/Turn Signal
..................... 3057
Interior Lamps Bulb Number
Ashtray ................................. 194
Center Instrument Cluster
............. 16 1 or 194
Console Shift Indicator
............ ‘-4 . .,-. 73
Dome
.................................. 561
Door Lock Switch
......................... 73
GloveBox .............................. 194
Heater and Air Conditioning Control
. . T- 1.75, T- 1.5
High-Beam Indicator ...................... 161
Luggage Compartment
.................... 920
Inside Rearview Mirror Reading
............. 192
Side Window Switch
....................... 73
6-60

Downloaded from www.Manualslib.com manuals search engine Engineoil ..................................... 6-9
Adding
..................................... 6-10
Additives
................................... 6-13
Checking
................................... 6-10
Used ....................................... 6-14
Whentochange
.............................. 6-14
Ethanol
........................................ 6-3
Exhaust. Engine
................................ 2-21
Fabric Cleaning
............................... 6-45
Fabric Protection
............................... 6-45
Fan Knob. Climate Control System
.................. 3-2
FillingYourTank
................................ 6-4
Filter. Air
...................................... 6- 15
Filter. Engine Oil ............................... 6- 14
Finish Care
.................................... 6-49
Finish Damage
................................. 6-50
First Gear. Automatic Transaxle
................... 2- 16
Flashers. Hazard Wxning ......................... 5- 1
Flat Tire. Changing ............................. 5-22
Fluids and Lubricants
............................ 7-4 I
Foreign Countries. Fuel ........................... 6-3
Four-Way Manual Front Seat
...................... 1-2
French Language Manual
11
Front Parking Bulb Replacement ................... 6-30
Front Sidemarker Bulb Replacement
................ 6-32
FrontTowing
................................... 5-9
Front Turn Signal Bulb Replacement ................ 6-30
Fuel
.......................................... 6-2
Canadian
.................................... 6-3
Filling Your Tank
.............................. 6-4
Gage
....................................... 2-52
In Foreign Countries ........................... 6-3
.. ...........................
Fuses and Circuit Breakers ....................... 6-53
Gages Engine Coolant Temperature
.................... 2-47
Fuel
....................................... 2-52'
GAWR
....................................... 4-27
Gear Positions. Automatic Transaxle
................ 2-13
GloveBox .................................... 2-34
Gross Axle Weight Rating
........................ 4-27
Gross Vehicle Weight Rating
...................... 4-27
Guide en Franpis
11
GVWR ....................................... 4-27
Halogen Bulbs
................................ 6-29
Hazard Warning Flashers
.......................... 5-1
Head Restraints ................................. 1-5
Headlamps .................................... 2-30
Bulb Replacement ............................ 6-29
HighLow Beam Changer
...................... 2-25
On Reminder
................................ 2-30
Wiring
..................................... 6-53
Hearing Impaired. Customer Assistance
.............. 8-3
Heating
........................................ 3-3
High-Beam Headlamps .......................... 2-25
Highway Hypnosis
.............................. 4-20
Hill and Mountain Roads
......................... 4-21
Hitches. Trailer
................................. 4-31
Hood
Checking Things Under
......................... 6-6
Release
...................................... 6-6
Horn
......................................... 2-23
Hydroplaning
.................................. 4-16
.. .................................
9-4
~~ . .. -
