1996 CADILLAC FLEETWOOD light

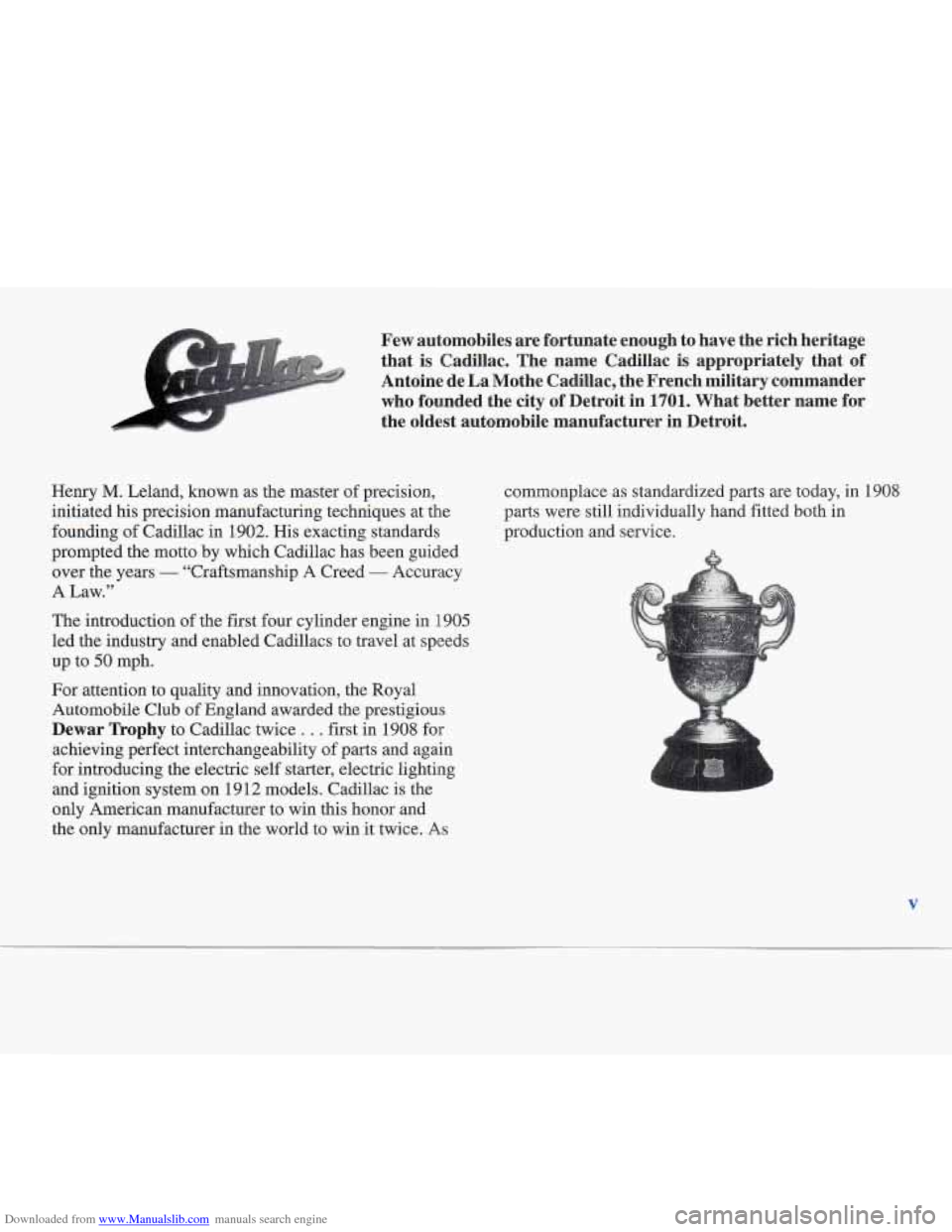

Downloaded from www.Manualslib.com manuals search engine Few automobiles are fortunate enough to have the rich heritage \
that is Cadillac. The name Cadillac is appropriately that of
Antoine de La Mothe Cadillac, the French military commander who founded the city of Detroit in
1701. What better name for
the oldest automobile manufacturer in Detroit.
Henry M. Leland, known as the master of precision,
initiated
bs precision manufacturing techniques at the
founding of Cadillac in 1902. His exacting standards
prompted the motto by which Cadillac has been guided
over the years
- “Craftsmanship A Creed - Accuracy
A Law.”
The introduction of the first four cylinder engine in 1905
led the industry and enabled Cadillacs to travel at speeds
up to
50 mph.
For attention to quality and innovation, the Royal
Automobile Club of England awarded the prestigious
Dewar Trophy to Cadillac twice . . . first in 1908 for
achieving perfect interchangeability of parts and again
for introducing the electric self starter, electric lighting
and ignition system
on 19 12 models. Cadillac is the
only American manufacturer to win this honor and
the only manufacturer
in the world to win it twice. As
commonplace as standardized parts are today, in 1908
parts were still individually hand fitted both in
production and service.
V

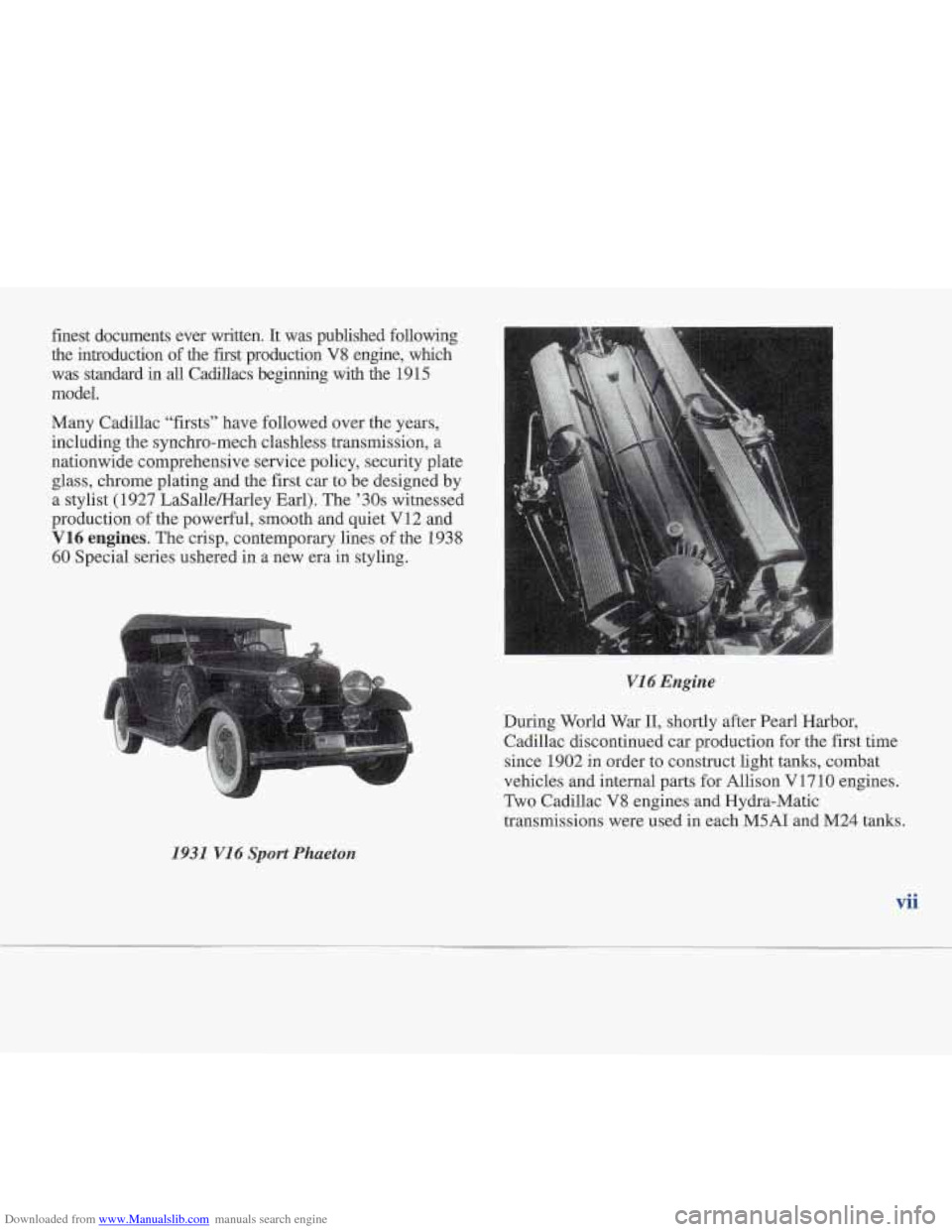

Downloaded from www.Manualslib.com manuals search engine finest documents ever written. It was published following
the introduction of the first production V8 engine, which
was standard in
all Cadillacs beginning with the 19 15
model.
Many Cadillac “firsts” have followed over the years,
including
the synchro-mech clashless transmission, a
nationwide comprehensive service policy, security plate
glass, chrome plating and the first car to be designed by
a stylist (1927 LaSalle/Harley Earl). The ’30s witne.ssed
production of the powerful, smooth and quiet
V12 and
V16 engines. The crisp, contemporary lines of the 1938
60 Special series ushered in a new era in styling.
Vl6 Engine
During World War 11, shortly after Pearl Harbor,
Cadillac discontinued car production for the first time
since 1902 in order
to construct light tanks, combat
vehicles and internal parts for Allison V1710 engines.
Two Cadillac V8 engines and Hydra-Matic
transmissions were used in each MSAI and M24 tanks.
1931 V16 Sport Phaeton
vii

Downloaded from www.Manualslib.com manuals search engine advances such as air suspension, memory seat, '
automatic electric door locks, transistor radio, a b;
stainless steel roof and low profile tires.
I
~ ....
For the 1948 model, Cadillac introduced the legendary
tail
fin which once more set the trend in automotive
styling for nearly
two decades. This was closely
followed with the two door hardtop Coupe DeVille and
the industry's first modern overhead valve, high compression V8 engine on the 1949 model.
Engineering innovations, conveniences and styling dominated the
'50s and '60s. Cruise control, automatic
climate control, tilt and telescoping steering wheels,
twilight sentinel and four door hard tops all debuted in
these years. In 1957 the Eldorado Brougham featured
1957 Eklorado Brougham
The Eldorado, introduced in 1953, was
1967 as the first front wheel drive perso
The 472 cu. in. V8 engine used in all Cadilla
and 1969 was enlarged to
500 cu. in. for all 1
through 1976 Eldorados. The Track Ma
computerized skid control braking
sys
debuted on 1970 Eldorados.
A driver and passenger Air Cushion Restraint
system (air bag) was available on all 1974,
1
1976 Cadillacs.
Analog Electronic
Fuel Injection was
1975 Cadillacs and standard on the ne

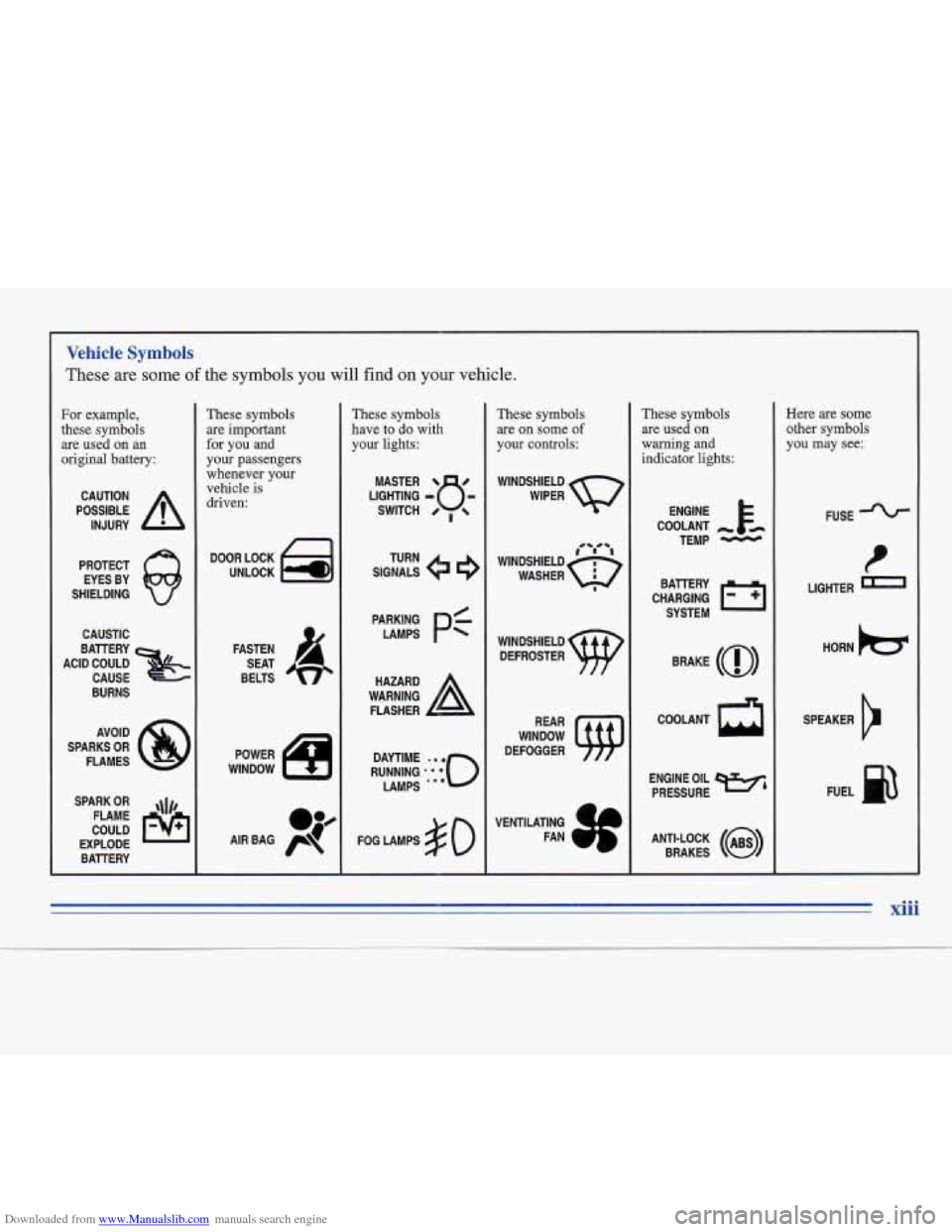

Downloaded from www.Manualslib.com manuals search engine Vehicle Symbols
These are some of the symbols you will find on your vehicle.
For example,
these symbols
are used on an
original battery:
POSSIBLE A
CAUTION
INJURY
PROTECT EYES BY
SHIELDING
CAUSTIC
ACID COULD
&
BAllERY
CAUSE
BURNS
AVOID
SPARKS
OR
FLAMES
SPARK
OR ,\I/,
COULD FLAME
EXPLODE BATTERY
These symbols are important
for you and
your passengers
whenever your
vehicle
is
driven:
DOOR LOCK
UNLOCK
FASTEN SEAT
BELTS
POWER
WINDOW
These symbols
have to do with
your lights:
SIGNALS e
TURN
PAERK pf
FOG LAMPS $0
These symbols
are on some
of
your controls:
WIPER w
WINDSHIELD
DEFROSTER
WINDOW
DEFOGGER
VENTILATING FAN
These symbols are used
on
warning and
indicator lights:
COOLANT
TEMP
-
CHARGING Tql
BAllERY
SYSTEM
BRAKE
(0)
COOLANT a
ENGINE OIL e,
PRESSURE
ANTI-LOCK
(a)
BRAKES
Here are some
other symbols
you may see:
FUSE -%-
t
LIGHTER m
HORN )cr
SPEAKER
b
FUEL e3
xiii

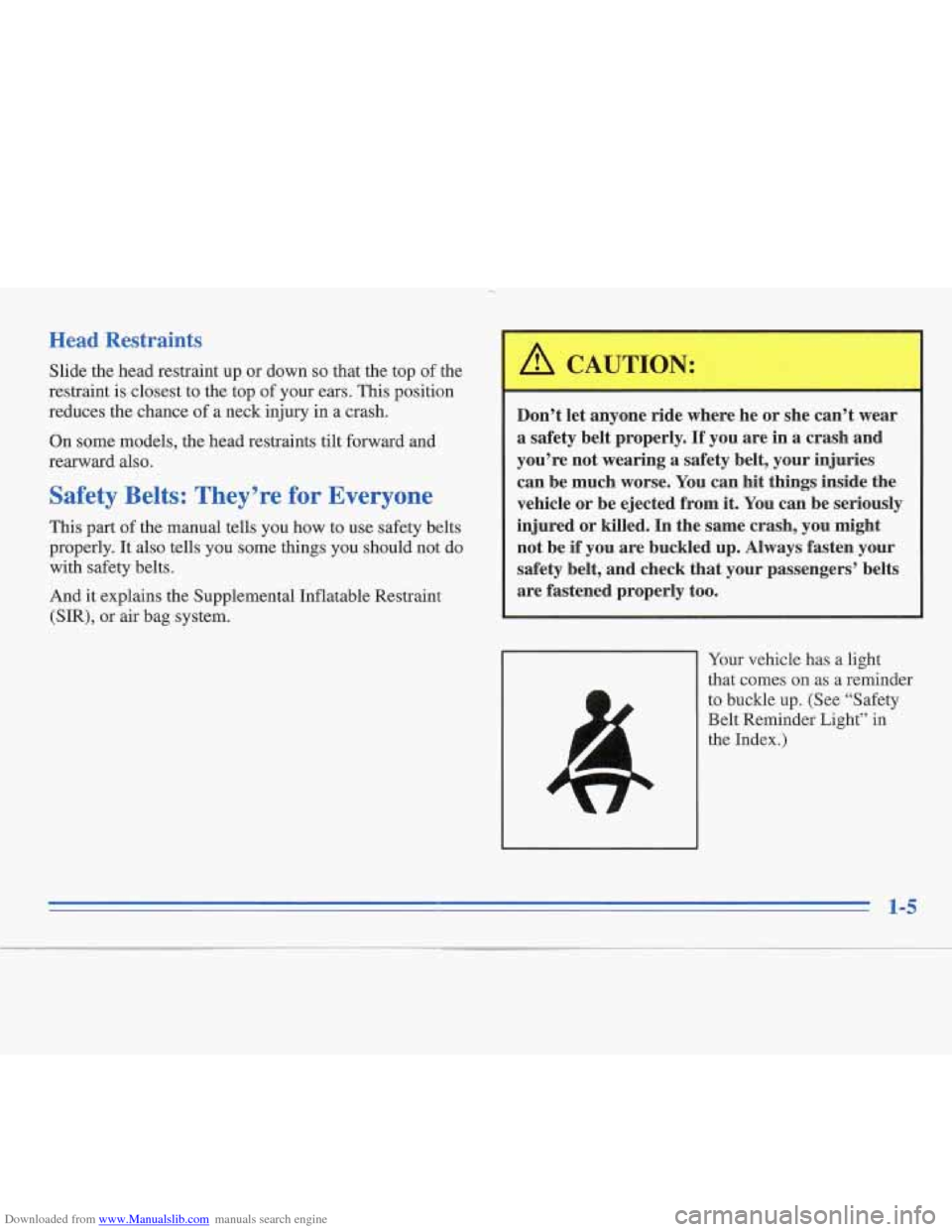

Downloaded from www.Manualslib.com manuals search engine Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top
of your ears. This position
reduces the chance of
a neck injury in a crash.
On some models, the head restraints tilt forward and
rearward also.
Safety Belts: They’re for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things you should not do
with safety belts.
And it explains the Supplemental Inflatable Restraint
(SIR), or air bag system.
Don’t let anyone ride where he or she can’t wear
a safety belt properly.
If you are in a crash and
you’re not wearing
a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it. You can be seriously
injured or killed. In the same crash, you might
not be
if you are buckled up. Always fasten your
safety belt, and check that your passengers’ belts
are fastened properly too.
Your vehicle has a light
that comes on as a reminder
to buckle up. (See “Safety
Belt Reminder Light” in the Index.)

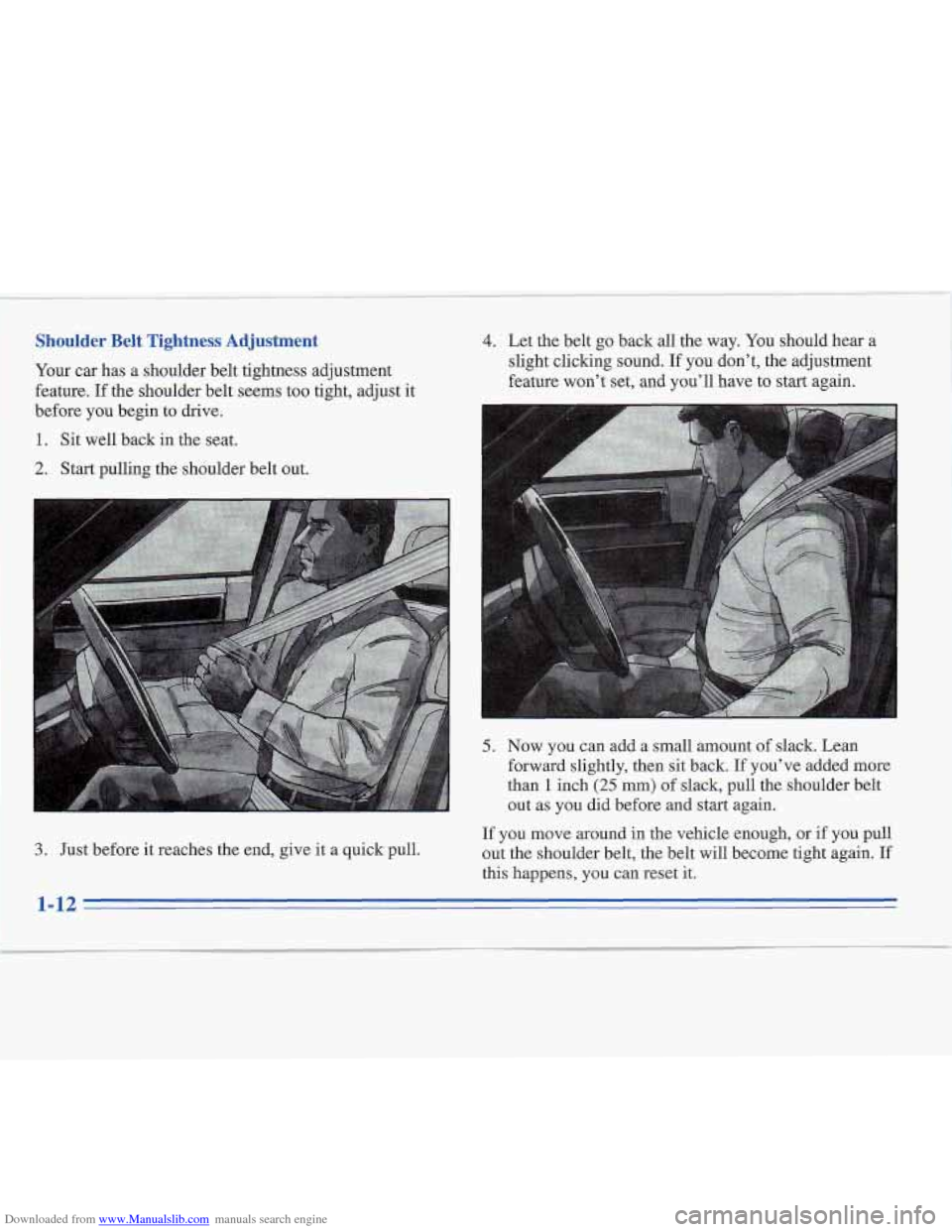

Downloaded from www.Manualslib.com manuals search engine Shoulder Belt Tightness Adjustment
Your car has a shoulder belt tightness adjustment
feature. If the shoulder belt seems too tight, adjust it
before you begin to drive.
1. Sit well back in the seat.
2. Start pulling the shoulder belt out.
4. Let the belt go back all the way. You should hear a
slight clickmg sound. If you don’t, the adjustment
feature won’t set, and you’ll have to start again.
3. Just before it reaches the end, give it a quick pull.
5. Now you can add a small mount of slack. Lean
forward slightly, then sit back.
If you’ve added more
than
1 inch (25 mm) of slack, pull the shoulder belt
out as you did before and start again.
If
you move around in the vehicle enough, or if you pull
out the shoulder belt, the belt will become tight again.
If
this happens, you can reset it.
t
1-12

Downloaded from www.Manualslib.com manuals search engine An inflating air bag can seriously injure small
children. Always secure chiIdren properly in your
vehicle.
To read how, see the part of this manual
called “Children” and the caution label
on the
right front passenger’s safety belt.
AIR
BAG
There is an air bag readiness
light
on the instrument
panel, which shows
AIR
BAG.
The system checks the air bag’s electrical system for
malfunctions. The light tells you if there is an electrical
problem. See “Air Bag Readiness Light” in the Index
for more information.
How the Air Bag System Works
Where is the air bag?
The driver’s air bag is in the middle of the steering wheel.
1-19

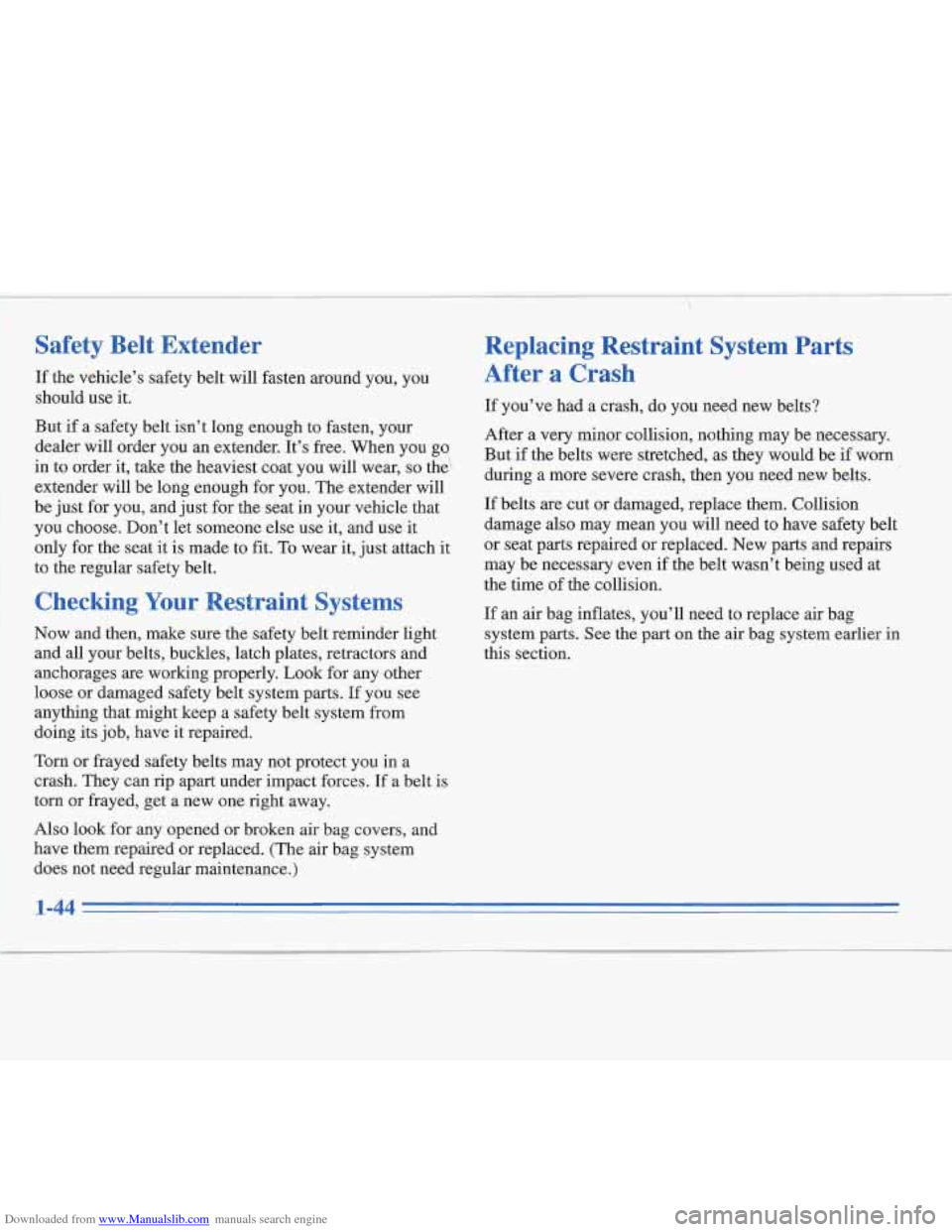

Downloaded from www.Manualslib.com manuals search engine Safety Belt Extender
If the vehicle’s safety belt will fasten around you, you
should use
it.
But if a safety belt isn’t long enough to fasten, your
dealer will order you an extender. It’s free. When you
go
in to order it, take the heaviest coat you will wear, so the
extender will be long enough for you. The extender will
be just for you, and just for the seat in your vehicle that
you choose. Don’t let someone else use it, and use it
only for the seat it
is made to fit. To wear it, just attach it
to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors and
anchorages
are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from
doing its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces.
If a belt is
torn or frayed, get a new one right away.
Also look for any opened
or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Replacing Restraint System Parts
After
a Crash
If you’ve had a crash, do you need new belts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if worn
during
a more severe crash, then you need new belts.
If belts are cut or damaged, replace them. Collision
darnage
also may mean you will need to have safety belt
or seat parts repaired or replaced. New parts and repairs
may be necessary even if the belt wasn’t being used at
the time of the collision.
If an air bag inflates, you’ll need to replace
air bag
system parts. See the
part on the air bag system earlier in
this section.
