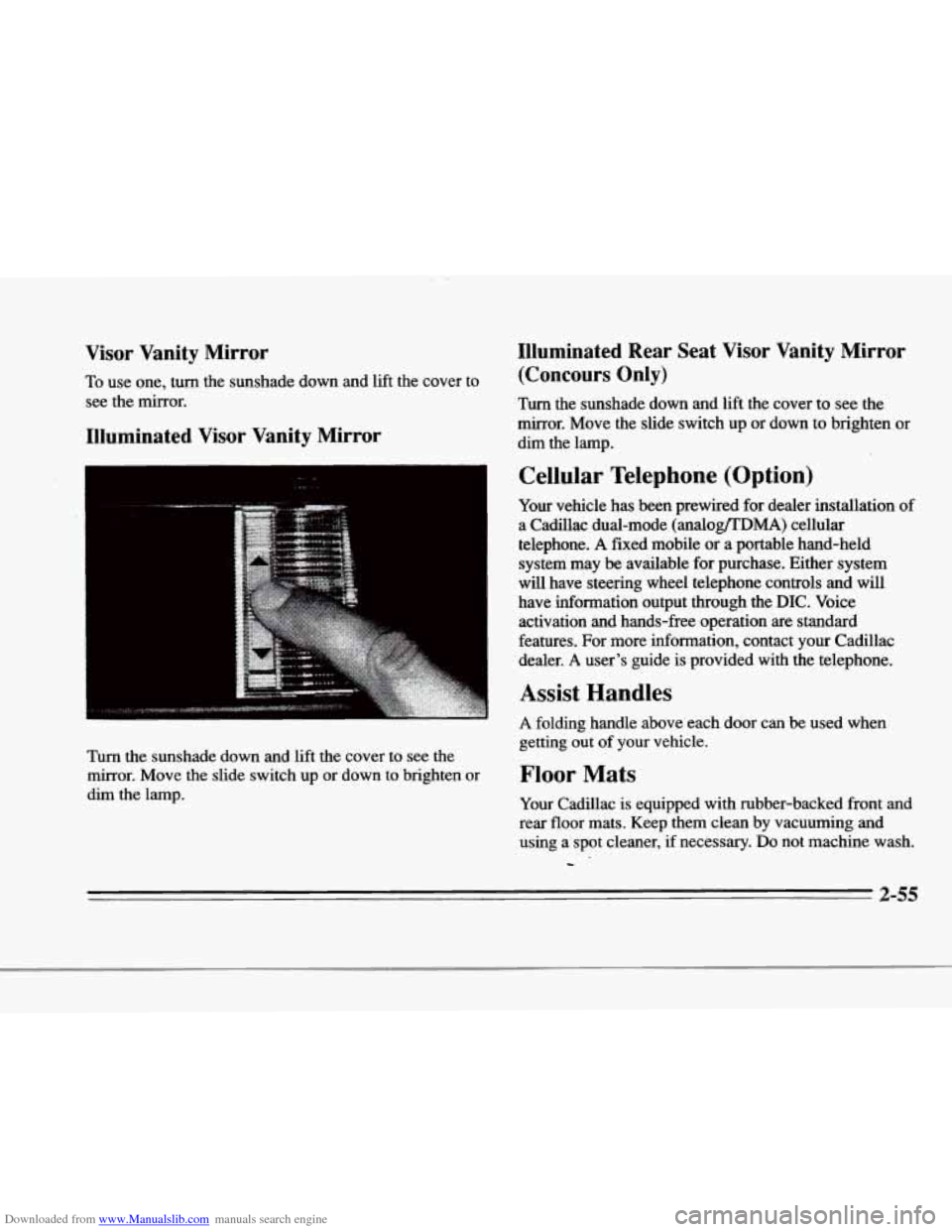

Visor Vanity Mirror Illuminated Rear Seat Visor Vanity Mirror
To use
one, turn the sunshade down and lift the cover to (Concours Only)
see the mirror.
Illuminated Visor Vanity Mirror
Turn the sunshade down and lift the cover to see the
mirror. Move the slide switch up or down to brighten or
dim the lamp.
Cellular Telephone (Option)
Turn the sunshade down and lift the cover to see the
mirror. Move the slide switch up or down to brighten
or
dim the lamp. Your vehicle has been prewired
for dealer installation of
a Cadillac dual-mode (analog/TDMA) cellular
telephone.
A fixed mobile or a portable hand-held
system may be available for purchase. Either system
will have steering wheel telephone controls
and will
have information output through the DIC. Voice
activation and hands-free operation are standard
features. For more information, contact your Cadillac
dealer.
A user's guide is provided with the telephone.
Assist Handles
A folding handle above each door can be used when
getting out
of your vehicle.
Floor Mats
Your Cadillac is equipped with rubber-backed front and
rear floor mats. Keep them clean by vacuuming and
using a spot cleaner,
if necessary. Do not machine wash.
2-55

Downloaded from www.Manualslib.com manuals search engine P
L-
c
(@ Rear Window Defogger
The lines you see on the rear window warrn the glass.
Press the button to turn on the rear defogger. With it,
the rear window and both outside rearview mirrors are heated.
The system will automatically shut off after
10 minutes. If further defogging is desired, press the
button again.
Do not attach a temporary vehicle license, tape or decals
across the defogger grid on the rear window.
NOTICE:
Scraping the inside of your rear window could
cut and damage the heating grids.
Your warranty
would not cover this damage.
And don’t put
decals there;
you might have to scrape them off.
Steering Wheel Controls for
Climate Control
Some heating and cooling
controls can be adjusted at
the steering wheel. Other touch controls operate some audio controls. See
“Steering Wheel Controls
for Audio System’’ later in
this section.
# FAN SPEED: Press the up arrow lever to increase
the
fan speed and the down arrow lever to decrease
fan speed.
TEMP: Press the up arrow lever to increase
the temperature and the down arrow lever to
decrease temperature.
c

Downloaded from www.Manualslib.com manuals search engine I Fuse I Usage -1 Fuse Usage -
Headlamp Wash Relay (Export), HDLP WASH
AMP
(Optional) Right and Left Hand Bose Relay,
Right Front and Rear Speaker
(On Door), Left Front and Rear
Speaker {On Door) Headlamp
Wash Motor
CONVENC Trunk Release Relay, Trunk
Release Solenoid,
Fuel Door
Release Relay, Fuel Filler Door
Release Solenoid, Door Lock Relay, Right and Left Front Door
Motors, Right and Left Rear Door
Motors, Door Unlock Relav
PZM
PZM
Radio Receiver, Radio Interface
Module (RIM)(Bose Only),
Phone, DAB Relay, Trunk Release
Relay, Fuel Door Release Relay,
High Beam Relay
Steering Wheel Controls, Cluster
EM, Electrwhromic Minor,
Rain
Sensor (Optional), Accessory Relay
RADIO/
PHONE
BATT Driver and Passenger
Seat Lumbar
Switch, Lumbar Switch (Driver
Seat Only), Memory Seat Module
RTD Module
CLUSTER-
ACC RTD
Front and Rear Park Lamps, Right
Front and Rear Sidemarker
Lamps, Headlamp Switch
(Export), Rear Fog Lamp Relay
(Export), HeadlamD Switch I RR DEFOG I Rear Defog I I -
HTD MIR I Right and Left Outside Heated 1
I I Mirror I
HTD SEAT R Passenger Heated Seat Relay
HTD SEAT
L Driver Heated Seat Relay RK Left Front and Rear Sidemarker
Lamps, Right and Left Parking Lamps, License Lamp, Underhood
L~D
I PULLDOWN Trunk Pull-Down Motor
ELC Relav and Motor
I ELC I d
ANTENNA I Power Mast Antenna * Do not alter OBD Ii related fuses or circuit breakers.
6-6 1

Downloaded from www.Manualslib.com manuals search engine P
c
c
IC
c-
c
.
Instrument Panel ............................. 6-47
Leather
..................................... 6-47
Outside of Your Cadillac
....................... 6-49
SpeakerCovers
.............................. 6-47
Special Problems
............................. 6-46
Stains
...................................... 6-46
Tires
....................................... 6-50
Vinyl
....................................... 6-46
Wheels
..................................... 6-50
Windshield and Wiper Blades
................... 6-48
Clock. Setting
the ............................... 3-10
Coinholder .................................... 2-52
Comfort Controls ................................ 3-1
Compact Disc Care ............................. 3-31
Compact Disc Player
....................... 3.18. 3.25
Compact Disc Player
Errors .................. 3.21. 3.28
Compact Spare Tire
............................. 5-35
Compass. Rearview Mirror with
................... 2-48
Control
of a Vehicle .............................. 4-5
Convenience Net
............................... 2-53
Convex Outside Mirror
.......................... 2-51
Coolant
....................................... 6-20
Heater. Engine ............................... 2- 17
Cooling System
................................ 5-1 8
Cornering Lamp Bulb Replacement ................ 6-31
Cornering Lamps
............................... 2-41
Courtesy Lamps
................................ 2-44
Courtesy Transportation
........................... 7-7
Cruise Control
................................. 2-36
Comfort Controls. Steering Wheel Touch Control
...... 3-9
SurgeTank ............................. 5.18. 5.20 Cruise Engaged Message
......................... 2-78
Cupholders .................................... 2-52
Customer Assistance
for Text Telephone Users ......... 7-3
Customer Assistance Information ................... 7-1
Customer Satisfaction Procedure .................... 7-1
Damage. Finish ............................... 6-51
Damage. Sheet Metal
............................ 6-50
Daytime Running Lamps ......................... 2-41
Dead Battery ................................... 5-3
Defects. Reporting Safety ................... 7.10. 7. 11
Defensive Driving ............................... 4-1
Defogger. Rear Window .......................... 3-9
Defogging ................................. 3-4.3-8 ... Defrosting ................................. 3.4, 3.8
DIC .......................................... 2-74
Dimensions. Vehicle
............................ 6-64
Dolby@ B Noise Reduction ............. 3- 13.3.18. 3.25
Door Central Unlocking System
....................... 2-3
Locks
....................................... 2-3
Storage Compartments
......................... 2-52
Door Open Message
............................. 2-78
Driver Door Open Message
....................... 2-78
Driver Information Center
........................ 2-74
Driver Information Center Messages
................ 2-76
DriverPosition
................................. 1-12
Driver’s Outside Auto-Dimming Rearview Mirror ..... 2-51
8-3
.

Downloaded from www.Manualslib.com manuals search engine Keyless Entry System ........................... 2-6
Keys
.......................................... 2-1
Labels CertificationlTire
............................. 4-30
Service Parts Identification
..................... 6-53
Tire-Loading Information
...................... 4-29
Vehicle Identification Number
................... 6-53
Lamps ........................................ 2-40
Interior
..................................... 2-43
Monitor
: ................................... 2-43
On Reminder
................................ 2-41
Panel
....................................... 2-43
Leaving Your Vehicle
............................. 2-6
Leaving Your Vehicle with the Engine Running
....... 2-26
Level Control. Electronic
......................... 2-83
Light Sensor
................................... 2-42
Air Bag Readiness
....................... 1-22. 2-64
Anti-Lock Brake System Warning
............ 2-67. 4-6
Brake System Warning ......................... 2-65
Charging System
............................. 2-65
Coolant Temperature Warning
................... 2-68
Oil Pressure ................................. 2-71
Parking Brake Indicator
........................ 2-66
Safety Belt Reminder
...................... 1-7. 2-64
Service Engine Soon
.......................... 2-69
Loading Your Vehicle
........................... 4-29
Anti-Lockout Feature
.......................... 2-6
Automatic Door
............................... 2-4
Lighter ....................................... 2-54
Lights
Traction Control System Warning
............ 2-67. 4-9
Locks *
Door ........................................ 2-3
PowerDoor .................................. 2-4
Programmable Automatic
Door ................... 2-4
Rear Door Security
............................. 2-5
Trunk Reiease
................................ 2-10
Lumbar Controls ................................ 1-2
MAGNASTEER TM ............................ 4- io
Maintenance. Normal Replacement Parts
............ 6-65
Maintenance. Underbody
......................... 6-51
Maintenance When Trailer Towing ................. 4-40
Malfunction Indicator Lamp
...................... 2-69
Map Lamps ................................... 2-44
MapPocket
................................... 2-52
Matching Transmitter(s)
To Your Vehicle ............. 2-8
MaxiFuse/Relay Center
.......................... 6-58
Methanol
...................................... 6-3
Mirrors
............................. 2-46.2-48. 2-51
Convex Outside
.............................. 2-51
Driver’s Outside Auto-Dimming Rearview
......... 2-51
Electrochromic Daymight Rearview
......... 2.46. 2.48
Power Remote Control
......................... 2-51
Visor Vanity ................................. 2-55
Monitored Systems
OK Message ................... 2-79
Mountain Roads
................................ 4-23
Multifunction Lever
............................. 2-31
Net. Convenience
.............................. 2-53
Neutral
(N). Automatic Transaxle .................. 2-21
New Vehicle Break-In
........................... 2-14
Nightvision
................................... 4-16
8-6
..
1
*
.
..
.
c

Downloaded from www.Manualslib.com manuals search engine r
r
r
r
r
r
r
r
Odometer .................................... 2-63
Odometer. Trip
.................................. 2-75
Off-Road Recovery ............................. 4- 12
Oil. Engine
..................................... 6-9
Oil Life Indicator
............................... 2-83
Oil Pressure Light
.............................. 2-7 1
Operation ...................................... 2-7
Overdrive
(0). Automatic Transaxle .... : ........... 2-21
Overheated Engine'Protection Operating Mode
....... 5-15
Overheating Engine
............................. 5- 15
Owner Publications
............................. 7- 12
Paint Spotting. Chemical
........................ 6-51
Park
(P)
Automatic Transaxle .......................... 2- 19
Shifting Into
................................. 2-24
Shifting Out
of .............. .. ................ 2-27
AtNight
.................................... 2-11
Brake
...................................... 2-23
Brake Indicator Light
.......................... 2-66
Lots ....................................... 2-11
Over Things That Bum
........................ 2-27
WithaTrailer
................................ 4-39
Pass
Key Not Programmed Message ................. 2-79
PASS-Key
II .................................. 2-13
PCM Fault Message ............................. 2-79
Power
.
AntennaMastC are ............................ 3-32
DoorLocks
................................... 2-4
OptionFuses
................................ 6-54
Remote Control Mirror
........................ 2-51
Parking
Passing
...................................... 4-13 Retained Accessory
........................... 2-16
Seatback Recliner
............................... 1-5
steering
...................................... 4-10
Steering
fluid ................................ 6-24
Windows ................................... 2-29
PowerSeat
..................................... 1-1
Lumbar Controls
.............................. 1-2
MemoryFunction
.............................. 1-3
Pregnancy. Use
of Safety Belts .................... 1-27
Problems
on the Road ............................ 5-1
Programmable Automatic Door Locks
............... 2-4
Publications. Service and Owner
................... 7-11
Pull-Down Feature. Automatic
.................... 2-11
Radio Reception
.............................. 3-30
Radios
............................. 3.10.3-14. 3.22
Rain. DrivingIn
................................ 4-17
Rainsense Wipers
............................... 2-34
RAP ......................................... 2-16
ReadingLamps
................................ 2-44
Rear Compartment
Fuse Block ....................... 6-60
Door Security Locks ........................... 2-5
Outside Seat Position
.......................... 1-29
Seat Passengers
.............................. 1-29
Storage Armrest
.............................. 2-52
Towing
................................. 5.9. 5.13
WmdowDefogger
............................. 3-9
WmdowLockout
............................. 2-30
Rearview Mirror. Electrochromic Daymight
.... 2.46. 2.48
Reclining Front Seatbacks
......................... 1-5
Reduced Engine Power Message
................... 2-79
Refrigerants. Air-conditioning
............... 6.64. 6.65
8-7
