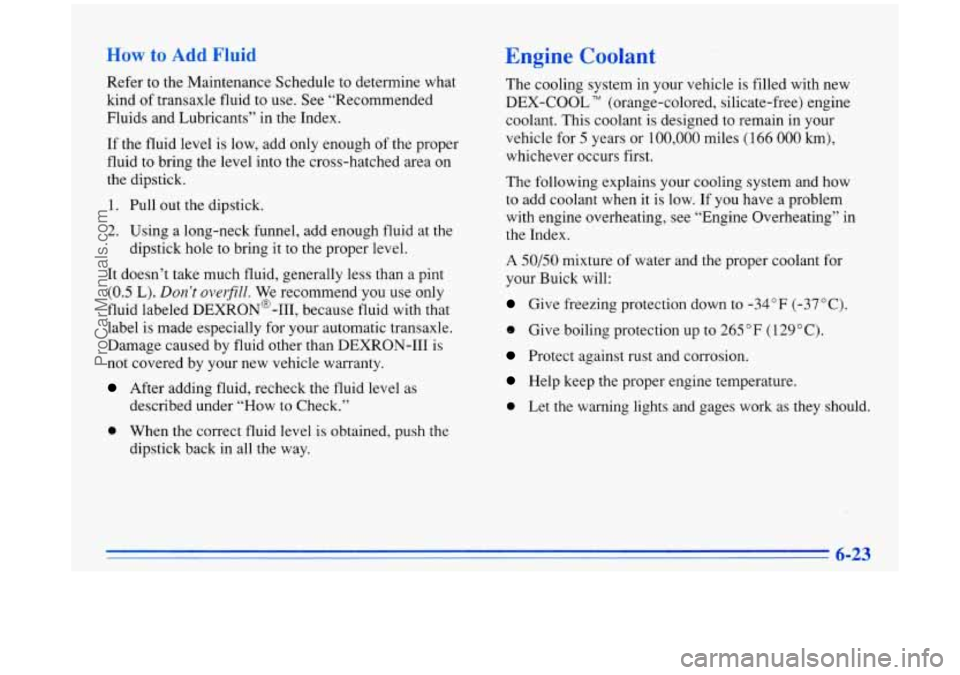

How to Add Fluid
Refer to the Maintenance Schedule to determine what
kind of transaxle fluid to use. See “Recommended
Fluids and Lubricants” in the Index.
If the fluid level is low, add only enough
of the proper
fluid to bring the level into the cross-hatched area on
the dipstick.
1. Pull out the dipstick.
2. Using a long-neck funnel, add enough fluid at the
It doesn’t take much fluid, generally less than a pint
(0.5 L). Don’t ovel-fill. We recommend you use only
fluid labeled DEXRON@-111, because fluid with that
label is made especially for your automatic transaxle.
Damage caused by fluid other than DEXRON-I11 is
not covered by your new vehicle warranty.
dipstick hole to
bring it to the proper level.
After adding fluid, recheck the fluid level as
described under “How to Check.”
0 When the correct fluid level is obtained, push the
dipstick back in all the way.
Engine Coolant
The cooling system in your vehicle is filled with new
DEX-COOL
TM (orange-colored, silicate-free) engine
coolant. This coolant is designed to remain in your
vehicle for
5 years or 100,000 miles (166 000 km),
whichever occurs first.
The following explains your cooling system and how
to add coolant when
it is low. If you have a problem
with engine overheating, see “Engine Overheating” in
the Index.
A 50/50 mixture of water and the proper coolant for
your Buick will:
Give freezing protection down to -34°F (-37°C).
9 Give boiling protection up to 265 OF ( 129 O C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
0 Let the warning lights and gages work as they should.
ProCarManuals.com

Key Lock Cylinders Service ..................... 7-39
Key Reminder Warning
.......................... 2-21
Keyless Entry System. Remote
Instant Alarm
................................. 2-8
Personal Choice
............................... 2-8
Keys
.......................................... 2-1
Labels Certification
................................. 4-29
Certificationflire
............................. 4-28
Service Parts Identification
..................... 6-56
Tire-Loading Information
...................... 4-28
Vehicle Identification Number
................... 6-56
Lamps
........................................ 2-43
Courtesy
.................................... 2-47
Interior
..................................... 2-46
Monitor System
.............................. 2-45
OnReminder
................................ 2-44
Perimeter Lighting
............................ 2-48
TheaterDimming
............................. 2-47
Leaving
Your Vehicle ............................. 2-7
Leaving Your Vehicle with the Engine Running
....... 2-29
License Plate Holder
............................ 2-63
Light Sensor. Twilight Sentinel
.................... 2-46
Lights Lighter
....................................... 2-61 .
Air Bag Readiness ....................... 1 - 18. 2-70
Anti-Lock Brake System Warning
............ 2-72.4-6
Battery Warning
.............................. 2-70 Brake System Warning
......................... 2-71
ChangeOilSoon
............................. 2-80
CheckEngine
................................ 2-75
DoorAjar
................................... 2-81
Engine Coolant Temperature Warning
............. 2-74
Engine Oil Pressure Light/Gage
................. 2-78
Interior
..................................... 2-46
Low Coolant Warning
......................... 2-75
LowFuel
................................... 2-82
OilLevelCheck
.............................. 2-79
Safety Belt Reminder
...................... 1-6, 2-69
Traction Control System Warning
............ 2-73, 4-8
TrunkAjar .................................. 2-81
Loading Your Vehicle
........................... 4-28
Locks Cylinders
................................... 7-39
Door
........................................ 2-3
FuelDoor
.................................... 6-6
Key Lock Cylinder Service
..................... 7-39
Lockout Protection
............................. 2-7
Memory Door
................................. 2-4
PowerDoor
.................................. 2-4
Rear Door Security
............................. 2-6
Steering Column Lock Check
................... 7-40
Trunk
...................................... 2-13
Window
.................................... 2-33
Low Coolant Warning Light
...................... 2-75
LowFuelLight
................................ 2-82
Lubricants and Fluids
............................ 7-43
Lubrication Service, Body
........................ 7-39
ProCarManuals.com

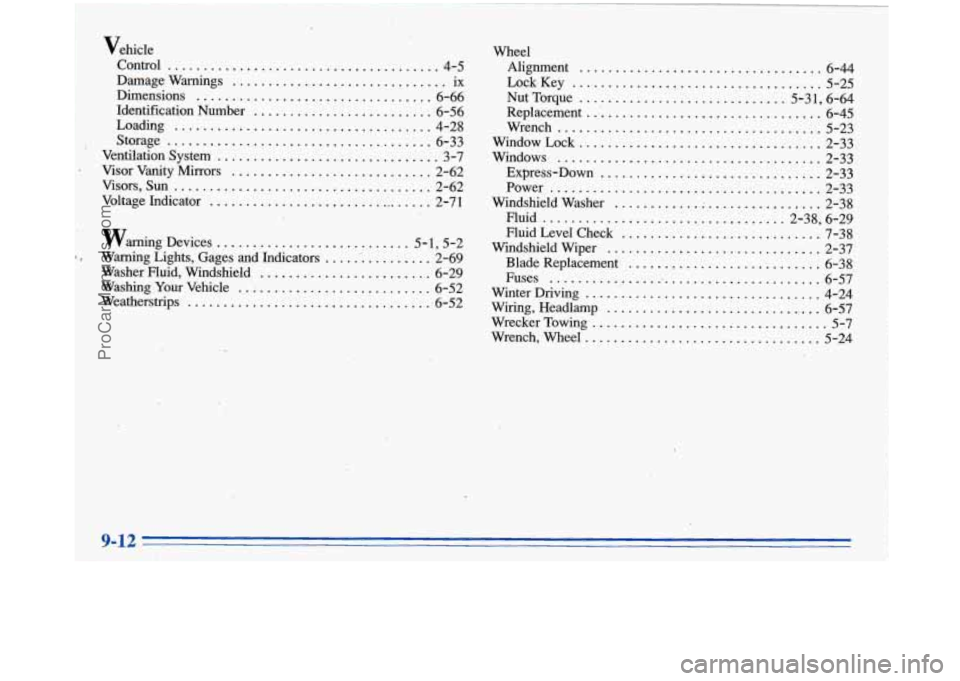

Vehicle Control
...................................... 4-5
Damage Warnings ................................ ix
Dimensions ................................. 6-66
Loading .................................... 4-28
Storage ...................................... 6-33
Identification Number ......................... 6-56
Ventilation System ............................... 3-7
Visor Vanity Mirrors ............................ 2-62
Visors, Sun .................................... 2-62
Voltage Indicator ................................ 2-7 1
warning Devices ........................... 5.1. 5.2
Warning Lights. Gages and Indicators ................ 2-69
Washer Fluid. Windshield ........................ 6-29
Washing Your Vehicle .. : ........................ 6-52
Weatherstrips ................................... 6-52
Wheel
Alignment
.................................. 6-44
LockKey ................................... 5-25
Replacement ............................... : .. 6-45
Nut Torque ............................. 5-31, 6-64
Wrench ..................................... 5-23
Express-Down ............................... 2-33
Fluid ................................... 2-38, 6-29
Fluid Level Check ............................ 7-38
Windshield Wiper ............................... 2-37
Blade Replacement ........................... 6-38
Winter Driving ................................. 4-24
Wiring, Headlamp ............................... 6-57
WindowLock .................................. 2-33
Windows ..................................... 2-33
Power ...................................... 2-33
Windshield Washer ............................. 2-38
Fuses ....................................... 6-57
WreckerTowing ................................. 5-7
Wrench ,Wheel ................................. 5-24
