1996 AUDI A8 01V Transmission Oil Pan And Oil Strainer Assembly Workshop Manual

38-9


31 -
Bolt - 6 Nm
32 -
Bracket
For solenoid valves
33 -
Solenoid Valve 6 -N93- With O-ringRemove and install oil pan to replace
page 38
-19

34 -
Solenoid Valve 7 -N94-
With O-ringRemove and install oil pan to replace
page 38
-19

35 -
Solenoid valve 5 -N92-
With O-ringRemove and install oil pan to replace
page 38
-19

Pa
ge 9 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

38-10


36 -
Solenoid valve 1 -N88-
Without O-ringRemove and install oil pan to replace
page 38
-19
and unbolt guide plate for park
locking mechanism
When installing, do not tighten bolts for
guide plate (23 Nm) in selector lever
position "P".
37 -
Bolt - 6 Nm
38 -
Magnet 4 pieces in the oil pan recesses
39 -
O-ring Always replace
40 -
ATF check plug - 80 Nm 17 mm socket-head bolt
Pa
ge 10 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

38-11


Overview of the removed parts for transmission
with hydraulic control E18/2
1 -
Drain plug - 40 Nm
5 mm socket-head boltRemove to drain ATF page 38
-20
2 -
Seal
Always replace
3 -
Bolt - 10 Nm Tighten bolts for oil pan in several stages in
diagonal sequence
4 -
Oil pan Removing and installing page 38
-19
5 -
Gasket
Always replace
Pa
ge 11 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

38-12


Parts Catalog 6 -
ATF-strainer
Removing and installing page 38
-21
7 -
Bolt - 8 Nm
For mounting valve body: 1 bolt M6 x 30,
16 bolts M6 x 60 Observe tightening sequence page 38
-
26

8 -
Valve body
Removing and installing page 38
-22
Allocation according to transmission code
letters
9 -
Bolt - 8 Nm
10 -
Bracket
For wiring harnessHook in wiring harnessMounted with valve body bolts
Pa
ge 12 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

38-13


11 -
Bolt - 6 Nm
12 -
Transmission Vehicle Speed Sensor (VSS)
-G38-
Removing and installing page 38
-40
13 -
Spacer sleeve
Height: 8 mm
14 -
Inner oil line Always replaceRemoving and installing page 38
-29
15 -
O-ring
Always replace
16 -
Speedometer Vehicle Speed Sensor (VSS)
-G22- Removing and installing page 38
-35
Pa
ge 13 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

38-14


17 -
O-ring
Always replaceCoat with Vaseline
18 -
Multi-Function Transmission Range (TR)
Switch -F125- Removing and installing page 38
-33
Replacing shift rod sealing ring page 38
-
31

19 -
Bolt - 8 Nm
20 -
O-ring
Always replace
21 -
Locking clamp
Pa
ge 14 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

38-15


22 -
Wiring harness in transmission
Always replace page 38
-42
Transmission Fluid Temperature Sensor -
G93- is integrated into the wiring harness Remove and install valve body to replace
page 38
-22

Unhook from bracket for wiring harness,
item 10 Installation position wiring harness
connector: Flat part of rear collar points
toward oil pan, the tabs at collar are
horizontal
23 -
Bolt - 9 Nm
24 -
Sensor for transmission RPM -G182- Removing and installing page 38
-36
Pa
ge 15 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1

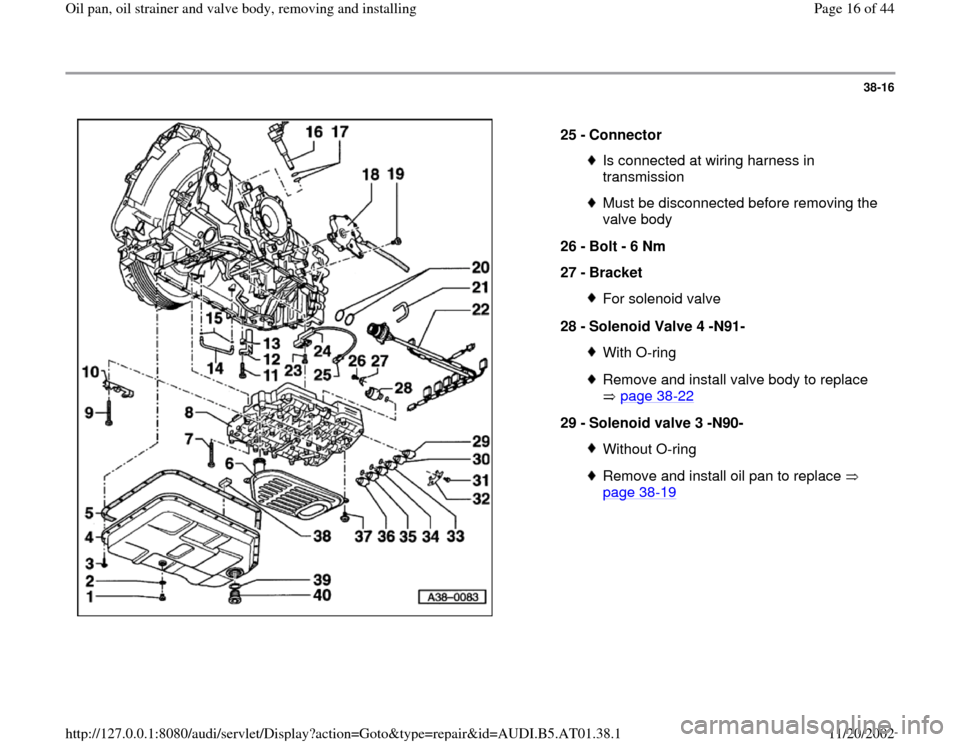

38-16


25 -
Connector
Is connected at wiring harness in
transmission Must be disconnected before removing the
valve body
26 -
Bolt - 6 Nm
27 -
Bracket For solenoid valve
28 -
Solenoid Valve 4 -N91- With O-ringRemove and install valve body to replace
page 38
-22

29 -
Solenoid valve 3 -N90-
Without O-ringRemove and install oil pan to replace
page 38
-19

Pa
ge 16 of 44 Oil
pan, oil strainer and valve bod
y, removin
g and installin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT01.38.1
