Installing - Pull headlight out from peg mount at side (approx. 15 mm), lift slightly
and then lift out carefully toward front, rotating if necessary.
- Install in reverse order of removal.
- Always align headlights to adjacent body panels (gap clearances)
before securing.
- Adjust headlights after assembly Page 94
-8 .
Pa
ge 7 of 16 Headli
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.94.1

94-13

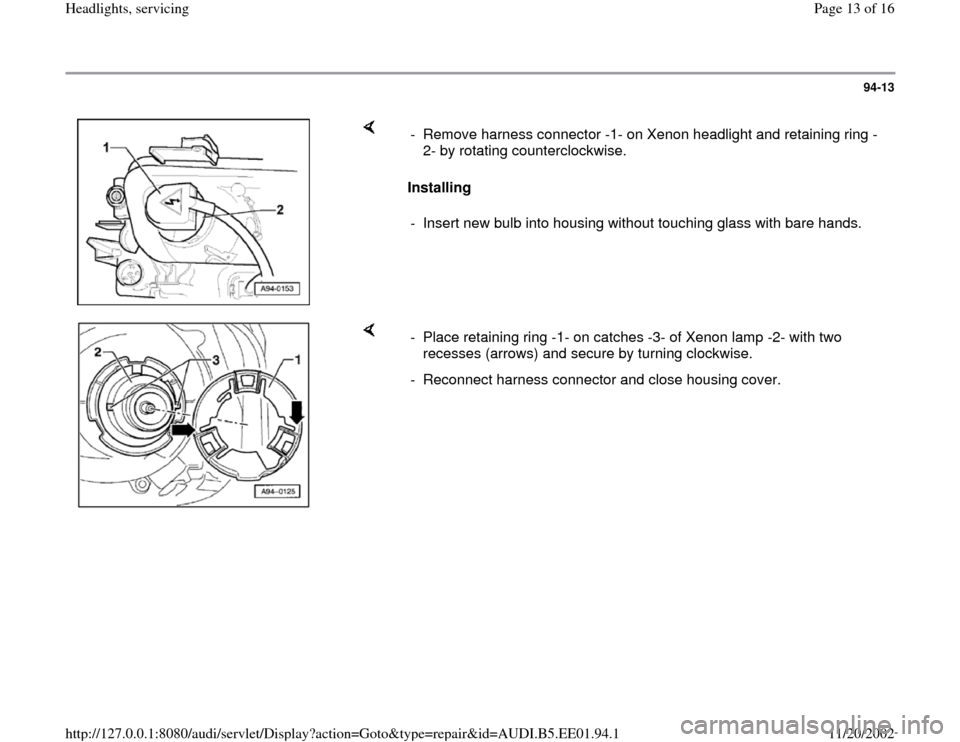

Installing - Remove harness connector -1- on Xenon headlight and retaining ring -
2- by rotating counterclockwise.
- Insert new bulb into housing without touching glass with bare hands.

- Place retaining ring -1- on catches -3- of Xenon lamp -2- with two
recesses (arrows) and secure by turning clockwise.
- Reconnect harness connector and close housing cover.
Pa
ge 13 of 16 Headli
ghts, servicin
g
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE01.94.1

94-14

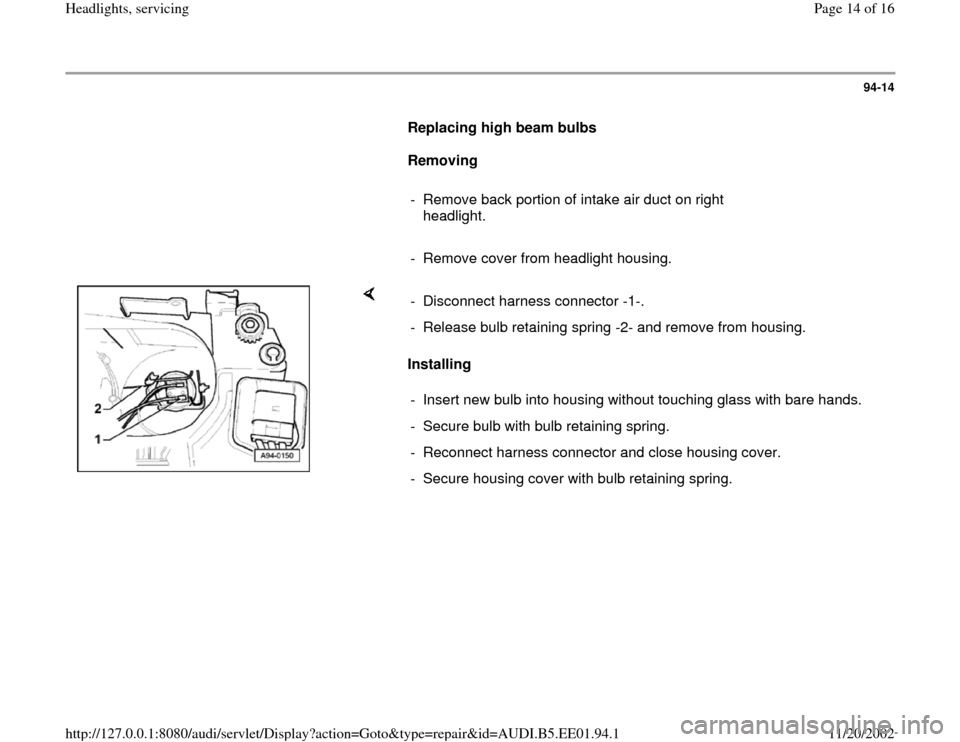

Replacing high beam bulbs

Removing

- Remove back portion of intake air duct on right
headlight.

- Remove cover from headlight housing.

Installing - Disconnect harness connector -1-.
- Release bulb retaining spring -2- and remove from housing.
- Insert new bulb into housing without touching glass with bare hands.
- Secure bulb with bulb retaining spring.
- Reconnect harness connector and close housing cover.
- Secure housing cover with bulb retaining spring.
