72-32

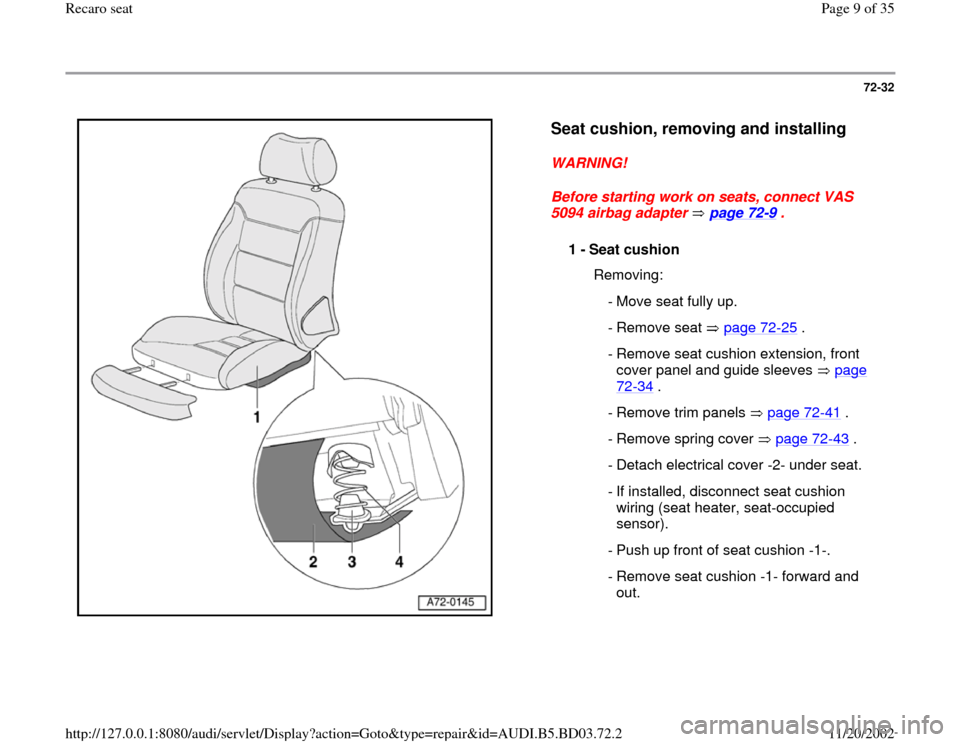

Seat cushion, removing and installing
WARNING!
Before starting work on seats, connect VAS
5094 airbag adapter page 72
-9 .
1 -
Seat cushion
Removing:
- Move seat fully up.
- Remove seat page 72
-25
.
- Remove seat cushion extension, front
cover panel and guide sleeves page
72
-34
.
- Remove trim panels page 72
-41
.
- Remove spring cover page 72
-43
.
- Detach electrical cover -2- under seat.
- If installed, disconnect seat cushion
wiring (seat heater, seat-occupied
sensor).
- Push up front of seat cushion -1-.
- Remove seat cushion -1- forward and
out.
