72-55

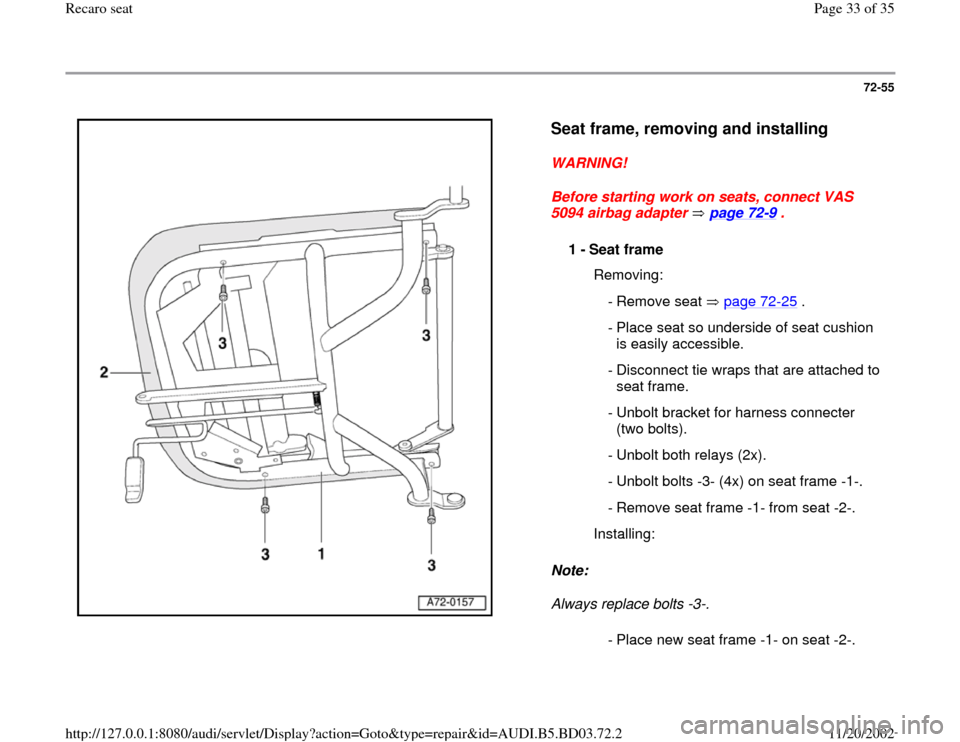

Seat frame, removing and installing
WARNING!
Before starting work on seats, connect VAS
5094 airbag adapter page 72
-9 .
Note:
Always replace bolts -3-.
1 -
Seat frame
Removing:
- Remove seat page 72
-25
.
- Place seat so underside of seat cushion
is easily accessible.
- Disconnect tie wraps that are attached to
seat frame.
- Unbolt bracket for harness connecter
(two bolts).
- Unbolt both relays (2x).
- Unbolt bolts -3- (4x) on seat frame -1-.
- Remove seat frame -1- from seat -2-.
Installing:
- Place new seat frame -1- on seat -2-.
