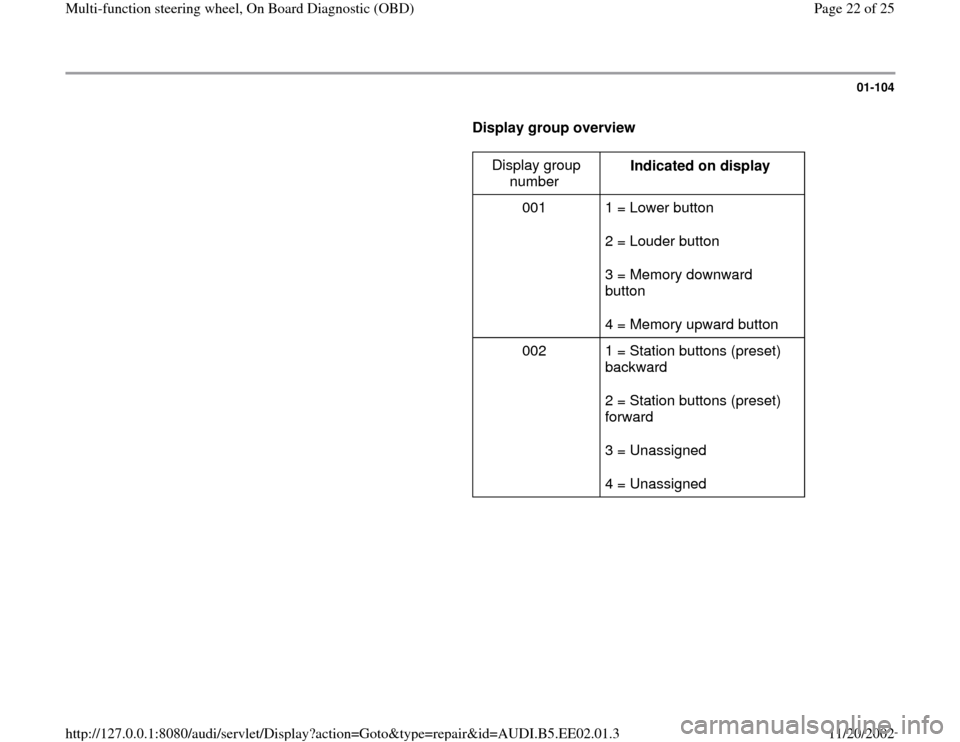

01-104

Display group overview

Display group
number Indicated on display
001 1 = Lower button
2 = Louder button
3 = Memory downward
button
4 = Memory upward button
002 1 = Station buttons (preset)
backward
2 = Station buttons (preset)
forward
3 = Unassigned
4 = Unassigned
Pa
ge 22 of 25 Multi-function steerin
g wheel, On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE02.01.3

01-106
Measuring value block 002

Read Measuring Value Block 2

Indicated on display:

activated activated








Station buttons (preset) forward
not operated operated


Station buttons (preset) backward

not operated
operated

Pa
ge 24 of 25 Multi-function steerin
g wheel, On Board Dia
gnostic
(OBD
)
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.EE02.01.3

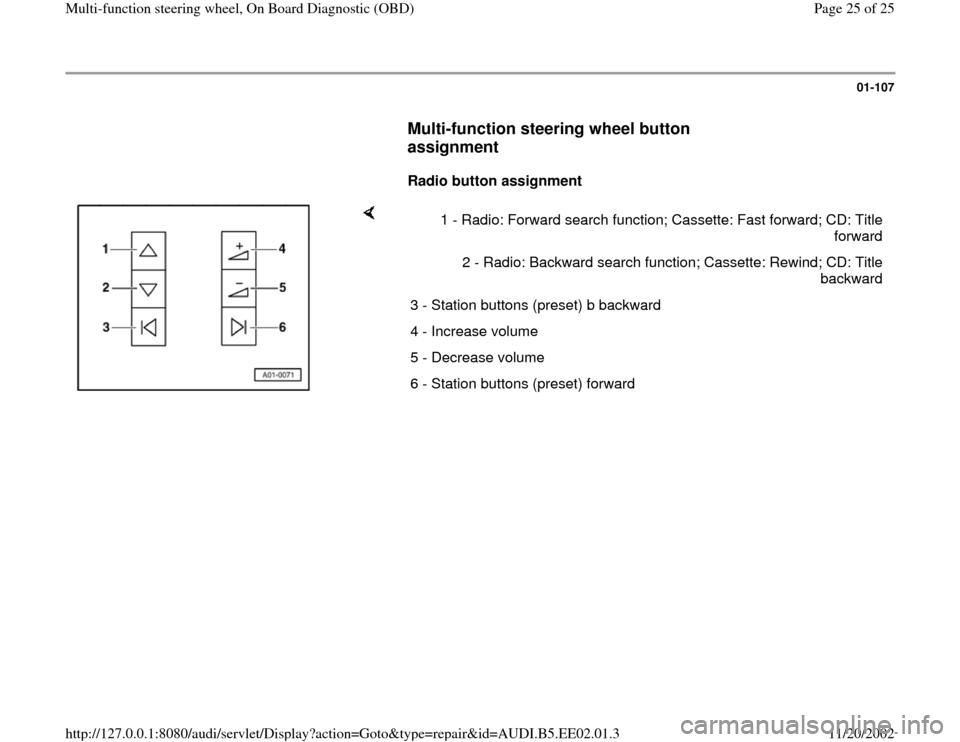

01-107

Multi-function steering wheel button
assignment


Radio button assignment

1 - Radio: Forward search function; Cassette: Fast forward; CD: Title
forward
2 - Radio: Backward search function; Cassette: Rewind; CD: Title
backward
3 - Station buttons (preset) b backward
4 - Increase volume
5 - Decrease volume
6 - Station buttons (preset) forward
