Page 2 of 23
72-2
Front seats, removing and installing
WARNING!
Before starting work on seats, connect VAS
5094 airbag adapter page 72
-9 .
Notes:
Slight changes may have to be made to the
removal and installation procedures, depending
upon the equipment installed in vehicle.
For memory and power seats, move seat fully
up and back before disconnecting the battery.
Before disconnecting the battery, determine the
radio code.
Pa
ge 2 of 23 Front seats
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.72.1
Page 5 of 23
72-5
Front power seats, removing and
installing
WARNING!
Before starting work on seats, connect VAS
5094 airbag adapter page 72
-9 .
Notes:
WARNING!
Disconnect battery Ground (GND) strap before
removing seat.
Slight changes may have to be made to
removal and installation procedures, depending
upon equipment installed in vehicle.
For power seat, move seat fully up and back
before disconnecting battery.
Before disconnecting battery, determine radio
code.
Pa
ge 5 of 23 Front seats
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.72.1
Page 12 of 23
72-12
Backrest, removing and installing
WARNING!
Before starting work on seats, connect VAS
5094 airbag adapter page 72
-9 .
Fabricating removal tool:
- Bend screwdriver -1- with width -2- (3.5 mm) and dimensions -A- (20
mm) and -B- (max. 15 mm).
- Remove seat page 72
-2 .
- Turn adjusting wheel -1- from behind until you can see one of the
adjusting wheel catches (direction of arrow A). If necessary, use
flashlight.
- Attach removal tool -2- and pull in direction of arrow -B-.
-
Turn adjusting wheel an additional 120 .- Attach removal tool -2- and pull in direction of arrow B.
- Remove adjusting wheel.
Pa
ge 12 of 23 Front seats11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.72.1

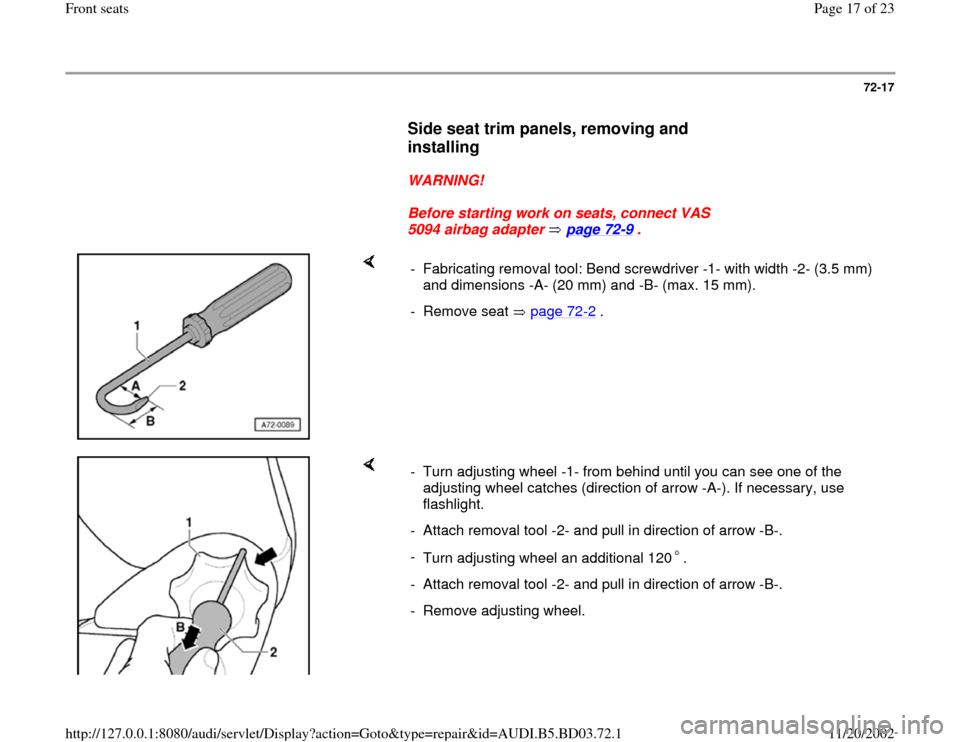

Page 17 of 23
72-17
Side seat trim panels, removing and
installing
WARNING!
Before starting work on seats, connect VAS
5094 airbag adapter page 72
-9 .
- Fabricating removal tool: Bend screwdriver -1- with width -2- (3.5 mm)
and dimensions -A- (20 mm) and -B- (max. 15 mm).
- Remove seat page 72
-2 .
- Turn adjusting wheel -1- from behind until you can see one of the
adjusting wheel catches (direction of arrow -A-). If necessary, use
flashlight.
- Attach removal tool -2- and pull in direction of arrow -B-.
-
Turn adjusting wheel an additional 120 .- Attach removal tool -2- and pull in direction of arrow -B-.
- Remove adjusting wheel.
Pa
ge 17 of 23 Front seats11/20/2002 htt
