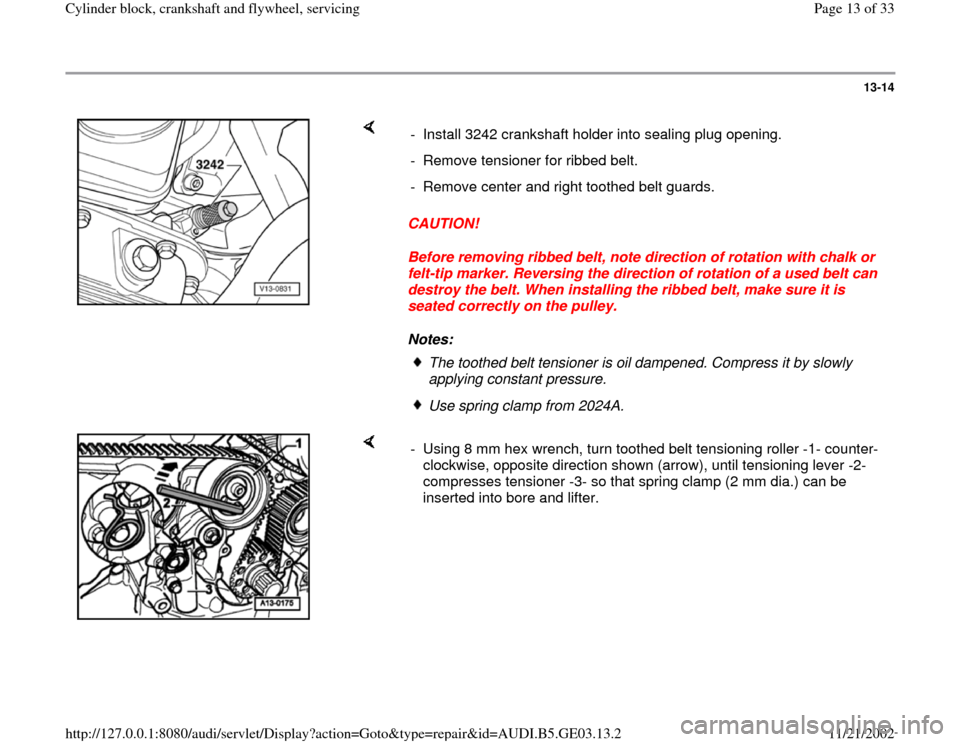

CAUTION!
Before removing ribbed belt, note direction of rotation with chalk or
felt-tip marker. Reversing the direction of rotation of a used belt can
destroy the belt. When installing the ribbed belt, make sure it is
seated correctly on the pulley.
Notes: - Install 3242 crankshaft holder into sealing plug opening.
- Remove tensioner for ribbed belt.
- Remove center and right toothed belt guards.
The toothed belt tensioner is oil dampened. Compress it by slowly
applying constant pressure. Use spring clamp from 2024A.
- Using 8 mm hex wrench, turn toothed belt tensioning roller -1- counter-
clockwise, opposite direction shown (arrow), until tensioning lever -2-
compresses tensioner -3- so that spring clamp (2 mm dia.) can be
inserted into bore and lifter.
Pa
ge 13 of 33 C
ylinder block, crankshaft and fl
ywheel, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE03.13.2
13-19
- Remove crankshaft/toothed belt gear.
- Unscrew inner part of 3203 seal puller two turns
(approx. 3 mm) and secure using knurled bolt.
Installing - Grease threaded head of 2085 seal puller, position and with forced
pressure screw into oil seal as far as possible.
- Loosen knurled bolt and turn inner part against crankshaft until oil seal
is removed.
- Place 3202/1 guide sleeve on crankshaft pin.
- Slide dry oil seal over guide sleeve.
The rest of the installation follows is the reverse of removal. - Press in oil seal to stop using 3265 seal installer.
