13-24

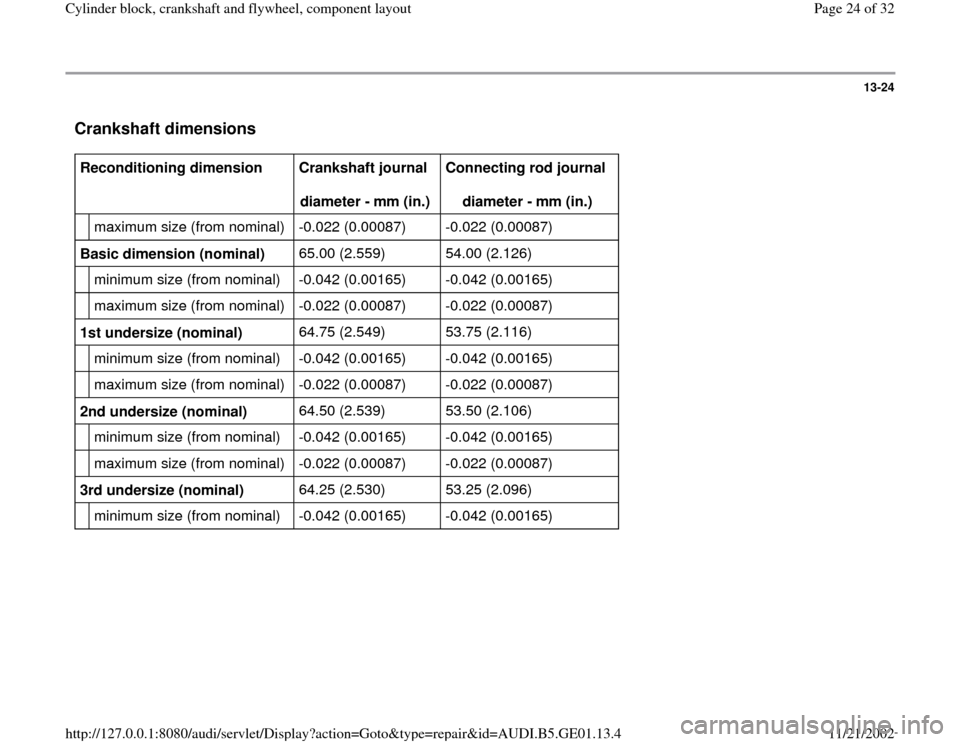

Crankshaft dimensions
Reconditioning dimension
Crankshaft journal
diameter - mm (in.) Connecting rod journal
diameter - mm (in.)
maximum size (from nominal) -0.022 (0.00087) -0.022 (0.00087)
Basic dimension (nominal) 65.00 (2.559) 54.00 (2.126)
minimum size (from nominal) -0.042 (0.00165) -0.042 (0.00165)
maximum size (from nominal) -0.022 (0.00087) -0.022 (0.00087)
1st undersize (nominal) 64.75 (2.549) 53.75 (2.116)
minimum size (from nominal) -0.042 (0.00165) -0.042 (0.00165)
maximum size (from nominal) -0.022 (0.00087) -0.022 (0.00087)
2nd undersize (nominal) 64.50 (2.539) 53.50 (2.106)
minimum size (from nominal) -0.042 (0.00165) -0.042 (0.00165)
maximum size (from nominal) -0.022 (0.00087) -0.022 (0.00087)
3rd undersize (nominal) 64.25 (2.530) 53.25 (2.096)
minimum size (from nominal) -0.042 (0.00165) -0.042 (0.00165)
Pa
ge 24 of 32 C
ylinder block, crankshaft and fl
ywheel, com
ponent la
yout
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE01.13.4
13-30

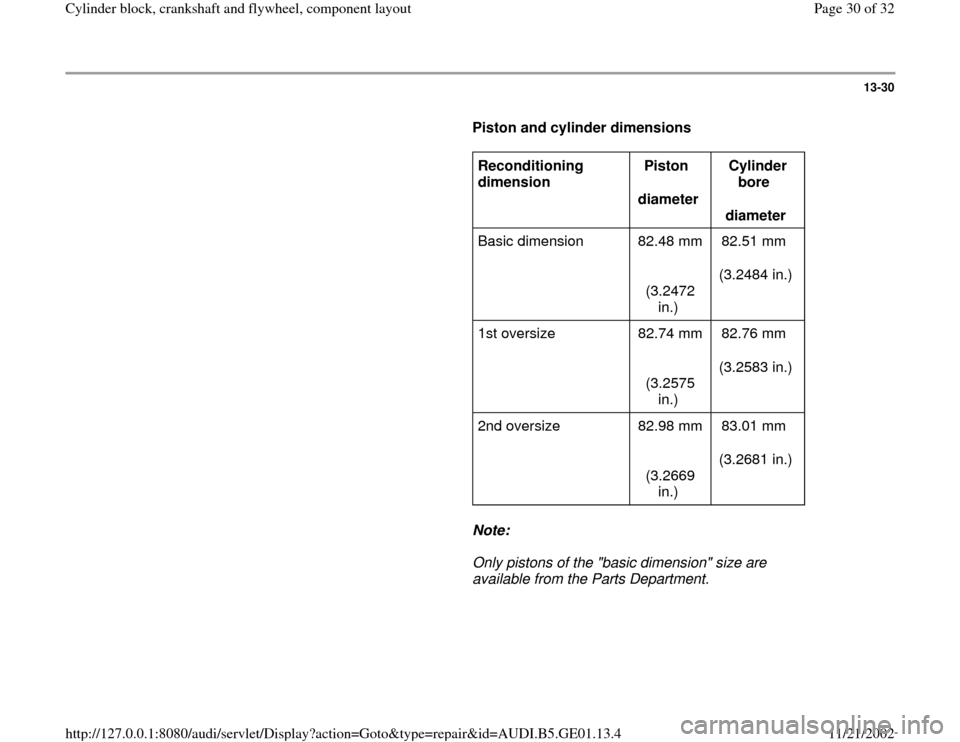

Piston and cylinder dimensions
Reconditioning
dimension Piston
diameter Cylinder
bore
diameter
Basic dimension 82.48 mm
(3.2472
in.) 82.51 mm
(3.2484 in.)
1st oversize 82.74 mm
(3.2575
in.) 82.76 mm
(3.2583 in.)
2nd oversize 82.98 mm
(3.2669
in.) 83.01 mm
(3.2681 in.)
Note:
Only pistons of the "basic dimension" size are
available from the Parts Department.
